UAP-AC-HD UNIFI AC2600 ACCESS POINT

DUAL BAND 1733+800 MBPS

Code: 09051375

1.71 kg
810354026102
EACH
Low Stock
DON'T PAY $759
$616 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

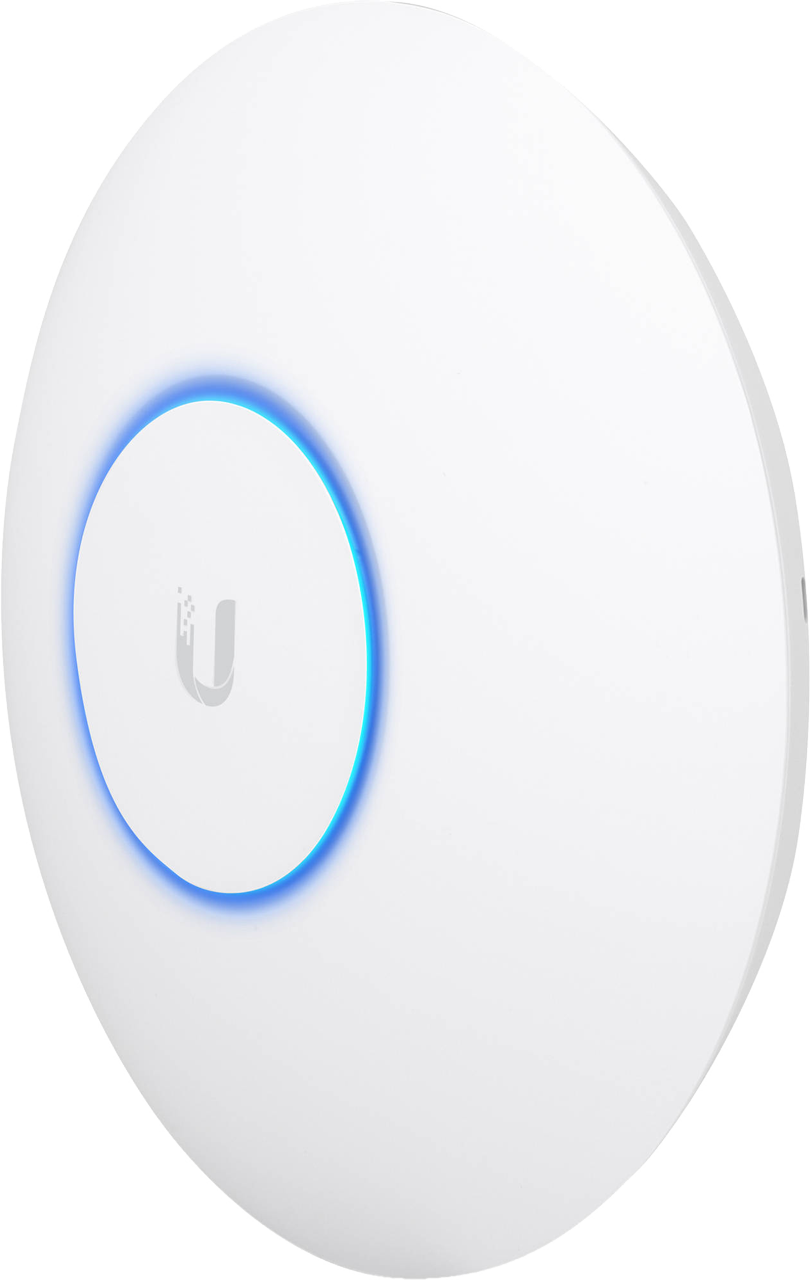

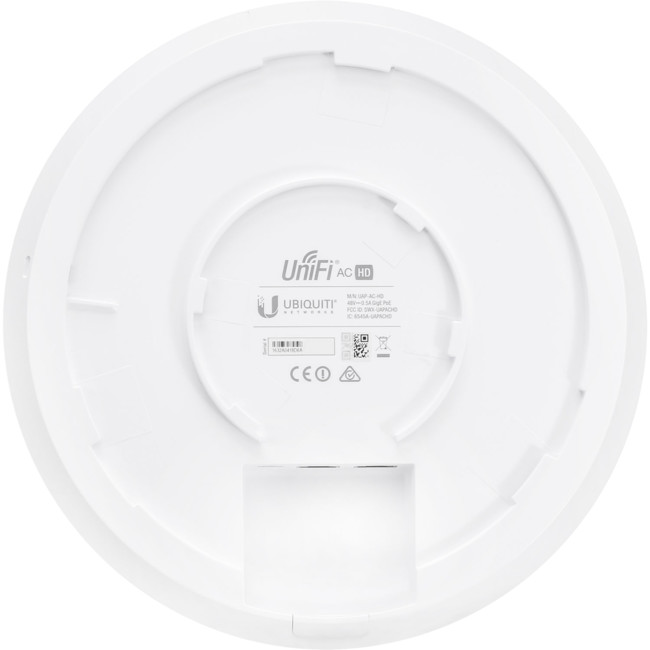

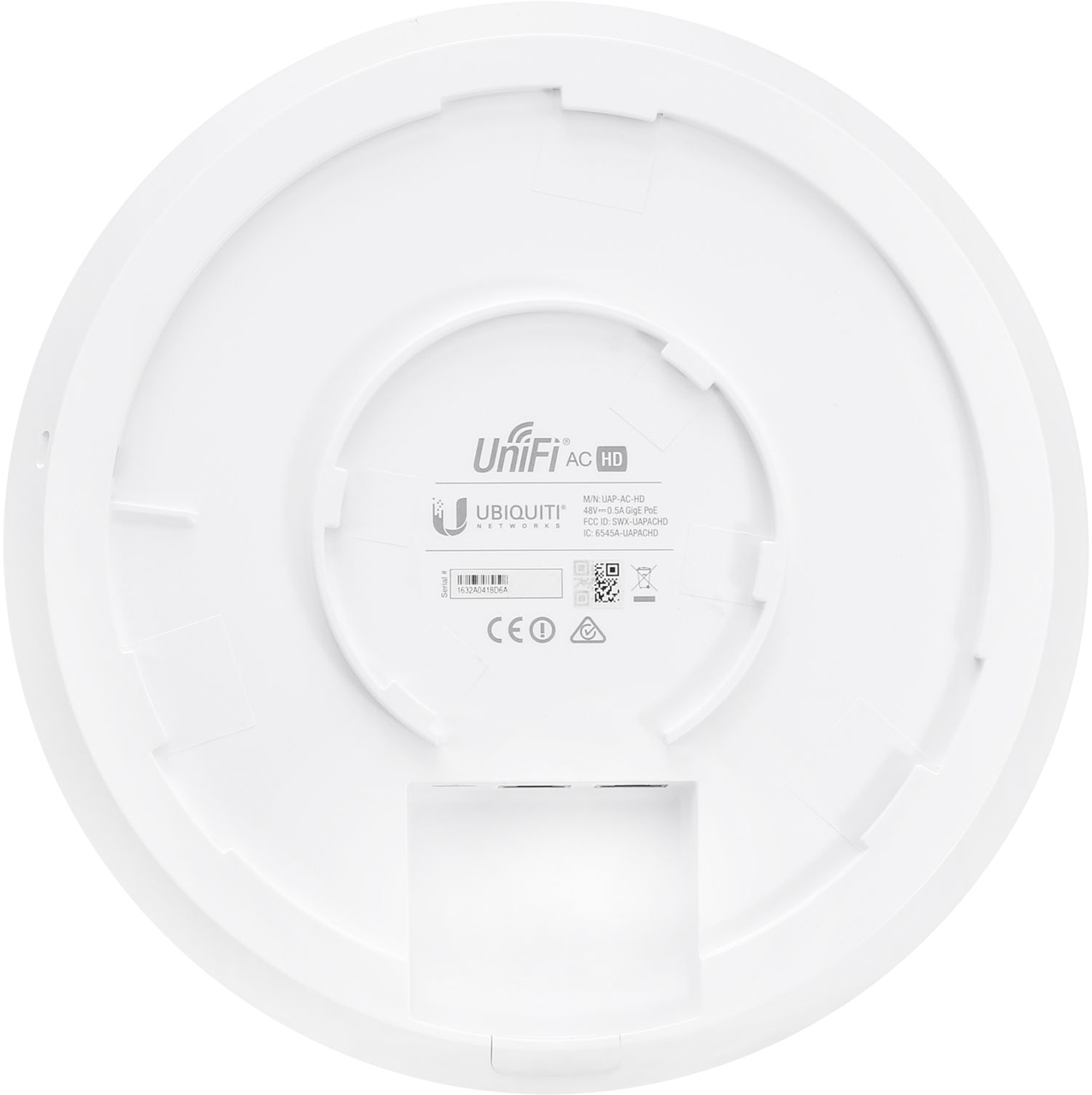

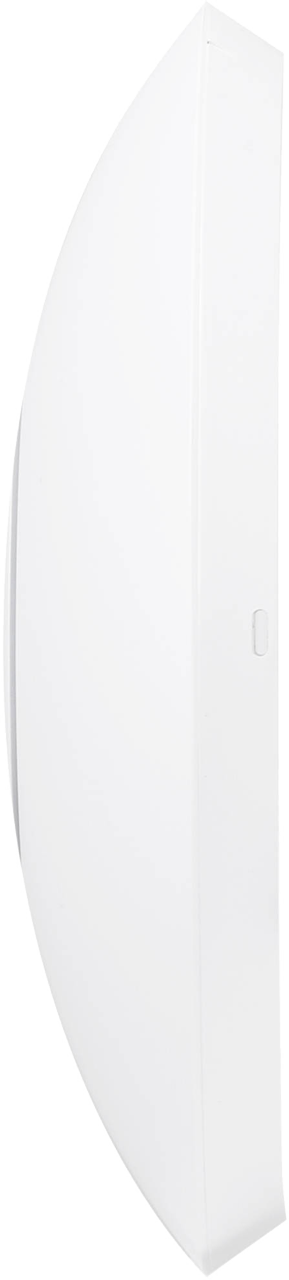

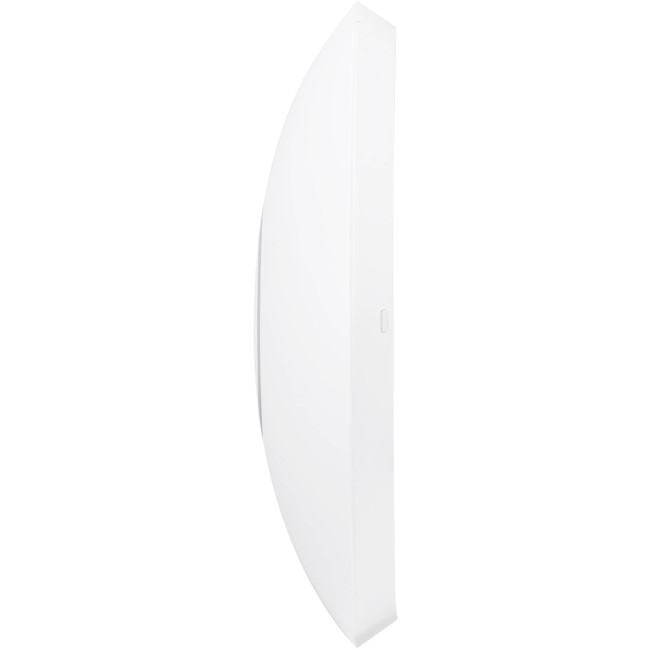

Ubiquiti UniFi AP AC HD Access Point

Build your Wi-Fi network with the UniFi® AC HD Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-HD, is an indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters. Engineered from the ground up to take advantage of 802.11AC Wave 2, the UAP-AC-HD provides unparalleled multi-user support.
High-Density Applications Powered by MU-MIMO Technology
802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.

  • Radio Hardware Acceleration. Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency
  • CPU Hardware Acceleration. Dedicatedhardware offload for QoS, Guest Control, and Client Management
  • Optimized for MU-MIMO. Genetically optimized antenna arrays for maximal utilization of 802.11ac Wave 2 MU-MIMO Beamforming
  • Beamforming. Data is sent and received using multiple antennas to increase throughput and range.

Advanced Features in UniFi Controller
UniFi is quickly expanding to a full Software Defined Networking (SDN) solution with seamless integration of high-performance switching, gateways, and more.

Specifications

UNIFI
Dimensions220 x 220 x 48.1 mm
Weight700 g (24.7 oz), 830 g (29.3 oz) with Mounting Kits
Networking Interface(2) 10/100/1000 Ethernet Ports

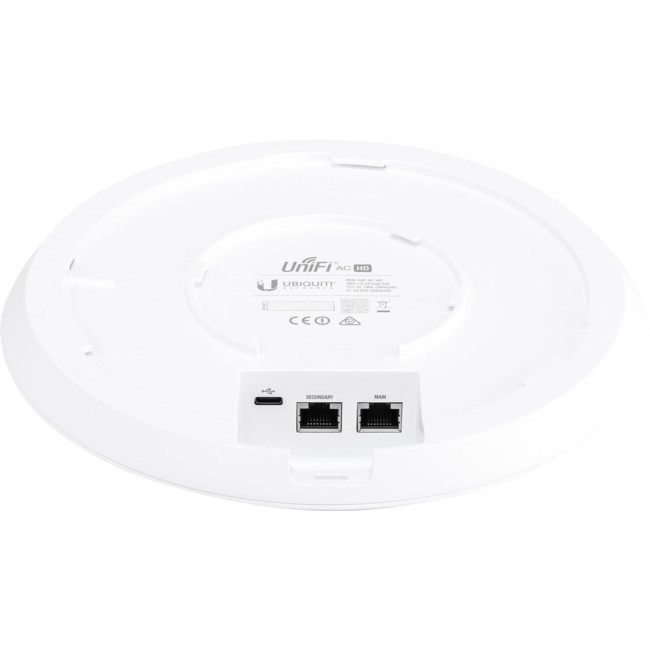

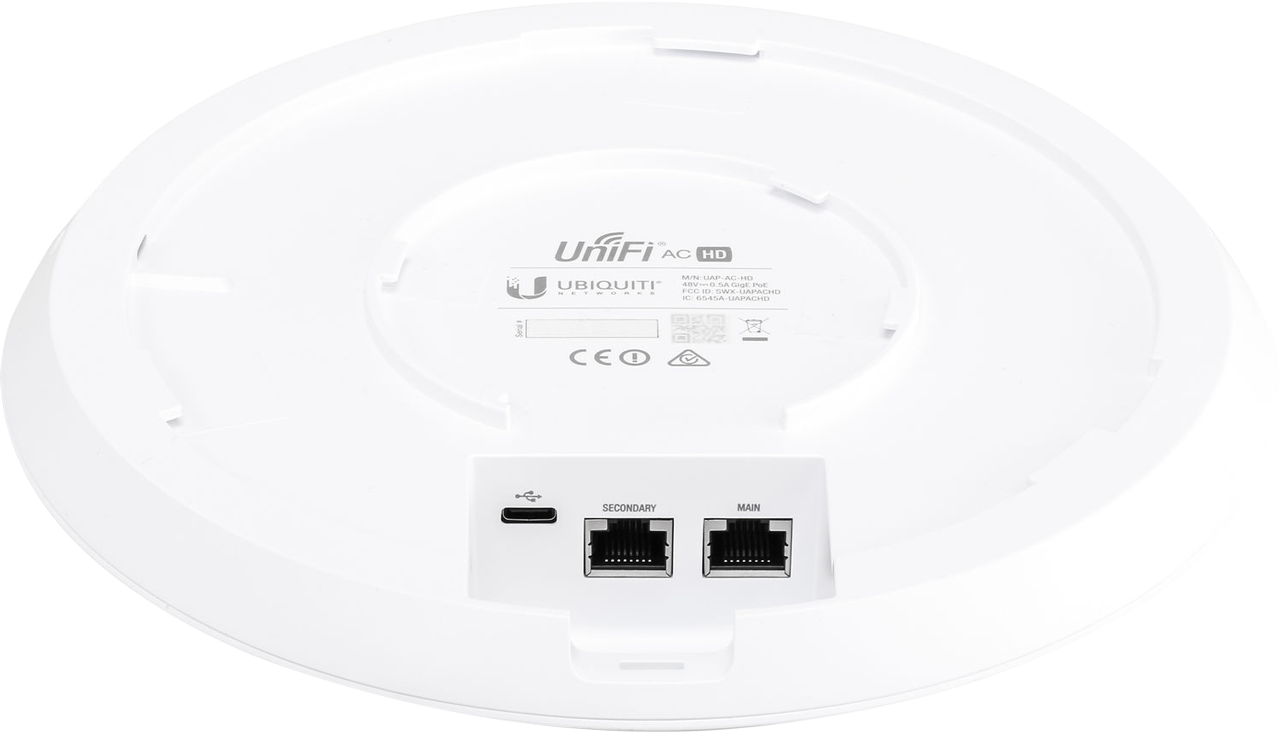

Ports(2) Ethernet RJ45, (1) USB Type C
ButtonsReset
Antennas(2) 2.4G internal single band antennas, dual polarity (2) 5G internal single band antennas, dual polarity
Wi-Fi Standards802.11a/b/g/n/ac/ac-wave2
Power MethodPoE 802.3at
Power SupplyPoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption17W
Max TX Power25 dBm
BSSID4 Per Radio
Power SaveSupported
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
CertificationsCE, FCC, IC
MountingWall/Ceiling (Kits Included)
Operating Temperature-10 to 70°C (14 to 158° F)
Operating Humidity5 to 95% Noncondensing
ADVANCED TRAFFIC MANAGEMENT
VLAN802.1Q
Advanced QoSPer-User Rate Limiting
Guest Traffic IsolationSupported
WMMSupported
Concurrent Clients500+
SUPPORTED DATA RATES (MBPS)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps

Model Comparison

UAP-AC-PROUAP-AC-HD
DimensionsØ196.7 x 35 mmØ220 x 48.1 mm
EnvironmentIndoor/OutdoorIndoor/Outdoor
2.4 GHz Radio Rate450 Mbps800 Mbps
5 GHzRadio Rate1300 Mbps1733 Mbps
PoE Mode802.3af PoE/802.3at PoE+802.3at PoE+
Ports(2) 10/100/1000 Ethernet(2) 10/100/1000 Ethernet
Wi-FiUsers200 Users500+ Users
