Equipment suppliers of products like this one often recommend or require the use of shielded data cables (F/UTP,S/UTP, or similar) when their products are used outdoors. Electro-Static Discharge (ESD) can kill outdoor products quickly and without warning. Please read your manual carefully and choose appropriate cabling.
| HARDWARE FEATURES | Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | - 1 × 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
- 1 × Reset Button
|
| Power Supply | - Passive Power over Ethernet via LAN (+4, 5 pins; −7, 8 pins)
- Voltage range: 16-27V DC
|
| Dimensions (No Mount) | 360mm × 280mm × 207mm (14.4″ × 11.0″ × 8.1″) |
| Antenna Gain | 23dBi |
| Antenna Beamwidth | 9° (Azimuth), 7° (Elevation) |
| Protection | - 15KV ESD Protection
- 6KV Lightning Protection
|
| Enclosure | - Material: Outdoor PC stabilized plastic
- Weatherproof: IP65 water and dust proof design
|
| WIRELESS FEATURES | Wireless Standards | IEEE 802.11a/n |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | - Up to 300Mbps (40MHz, Dynamic)
- Up to 144.4Mbps (20MHz, Dynamic)
- Up to 72.2Mbps (10MHz, Dynamic)
- Up to 36.1Mbps (5MHz, Dynamic)
|
| Frequency | 5.15~5.85GHz |
| Transmit Power | Max. 29dBm/790mW (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | Operating Modes | AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client) |
| Network Configuration | - WAN: Static/Dynamic/PPPoE/L2TP/PPTP
- LAN: Static/Dynamic/DHCP
- Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger
- Security: SPI Firewall/ Ping Forbidden/VPN/DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding
|
| Wireless Configurations | - Pharos MAXtream TDMA Technology
- Selectable Channel Width: 5/10/20/40MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
|
| Management | - Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based management
- System log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
|
| System Tools | - Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyser
- Speed Test
- Ping
- Traceroute
|
| System-level Optimisations | - Optimised IGMP Snooping/Proxy for multicast applications
- Hardware watch dog
|
| ENVIRONMENT | Operating Temperature | −40°C ~ 70°C (−40°F ~ 158°F) |
| Storage Temperature | −40°C ~ 70°C (−40°F ~ 158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~95% non-condensing |
| OTHERS | Certification | CE, FCC, RoHS, IP65 |
| Package Contents | - Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter

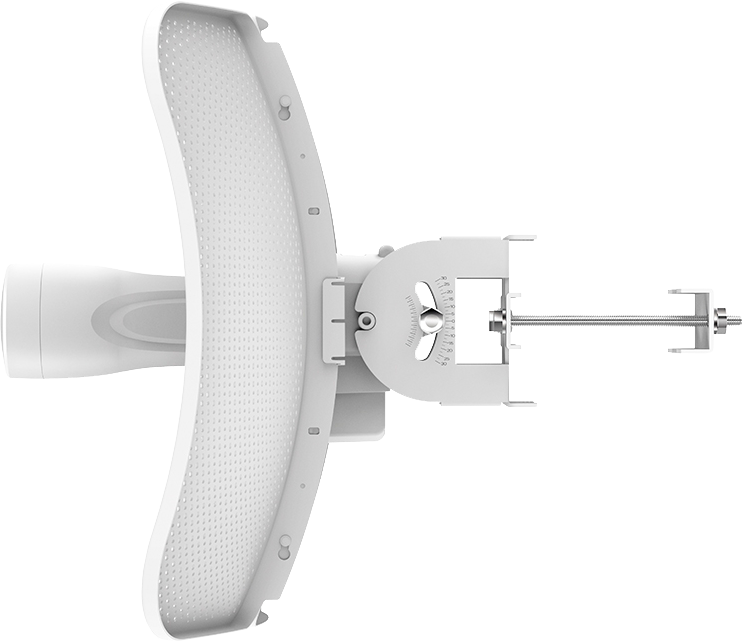

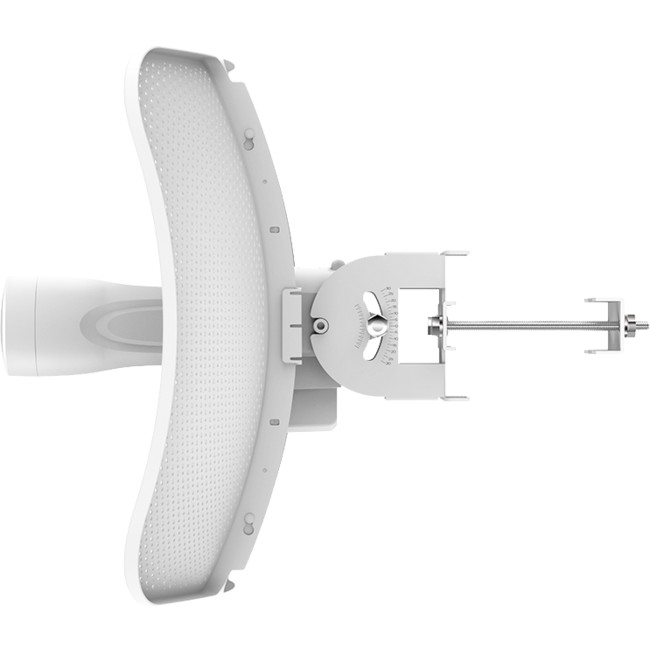

- Pole Mounting Straps
- AC Power Cord
- Installation Guide
|
| System Requirements | - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Webbrowsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
