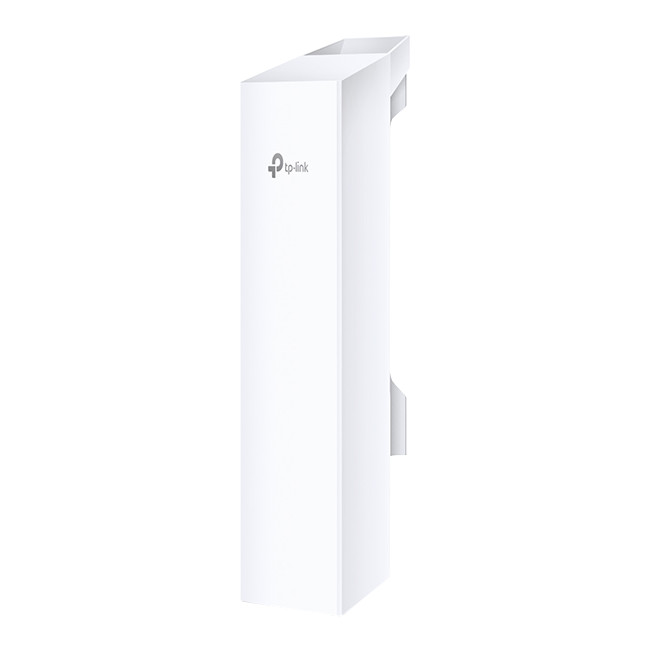

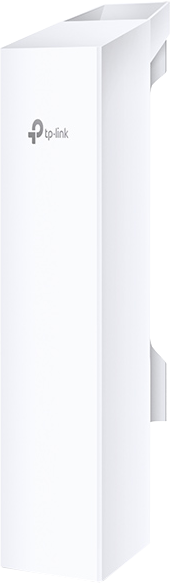

TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE
Equipment suppliers of products like this one often recommend or require the use of shielded data cables (F/UTP, S/UTP, or similar) when their products are used outdoors. Electro-Static Discharge (ESD) can kill outdoor products quickly and without warning. Please read your manual carefully and choose appropriate cabling.
TP-LINK's 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from −30°C (−22°F) to +70°C (158°F).
Advanced Antenna System
Built-in High Gain Dual-Polarised Antenna.
Dedicated metal reflector ensures higher gain and lower noise interference.
13km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.
Pharos Control – Centralised Management System
CPE220 also comes equipped with centralised management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations
Features
- Built-in 12dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 30dBm/1000mw
- System-level optimisations for more than 13km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralised Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
{tab Specifications}
Specifications
| HARDWARE FEATURES | Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | - 1 × 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
- 1 × 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
- 1 × Grounding Terminal
- 1 × Reset Button
|
| Power Supply | Passive Power over Ethernet via LAN0 (+4, 5 pins; −7, 8 pins) |
| Voltage Range | 16-27V DC |
| Dimensions (W×D×H) | 276mm × 79mm × 60mm (11″ × 3.1″ × 2.1″) |
| Power Consumption | 10.8W Max.
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Antenna Type | - Built-in 12dBi 2×2 Dual-polarised Directional Antenna
- Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet |
| Protection | - 15KV ESD Protection
- 6KV Lightning Protection
|
| Enclosure | - Outdoor ASA Stabilised Plastic Material
- IPX5 Waterproof Certification
|
| WIRELESS FEATURES | Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | - Up to 300Mbps (40MHz, Dynamic)
- Up to 144.4Mbps (20MHz, Dynamic)
- Up to 72.2Mbps (10MHz, Dynamic)
- Up to 36.1Mbps (5MHz, Dynamic)
|
| Frequency | 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmission Power | 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
| SOFTWARE FEATURES | Wireless Configurations | - Pharos MAXtream TDMA Technology
- 802.11b/g/n Modes
- Selectable Channel Width: 5/10/20/40MHz
- Automatic Channel Selection
- Transmission Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging (AP mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation
- Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi multimedia
|
| Management | - Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based management
- System Log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
|
| System Tools | - Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyser
- Speed Test
- Ping
- Traceroute
|
| System-level Optimisations | - Optimised IGMP Snooping/Proxy for multicast applications
- Hardware watch dog
|
| POE ADAPTER FEATURES | Interfaces | - 1 × AC Jack with Earth Ground
- 1 × 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
- 1 × 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)
|
| Efficiency | >80% |
| Button | Remote Reset Button |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| Power Status | LEDs - 0~0.8A: Green
- 0.8A~1.0A: Red
|
| OUTPUT | Input Current | 0.8A Max @ 100V AC |
| Input Voltage | 100V~240V AC @ 50Hz~60Hz |
| Output Voltage | 24V DC / 1.0A Max (+4, 5 pins; −7, 8 pins) (Supports up to 60m Power over Ethernet) |
