VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs.
*The TD-W9960 is compatible with VDSL2, ADSL2+, ADSL2 and ADSL.
With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, the TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.
Set up the TD-W9960 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.

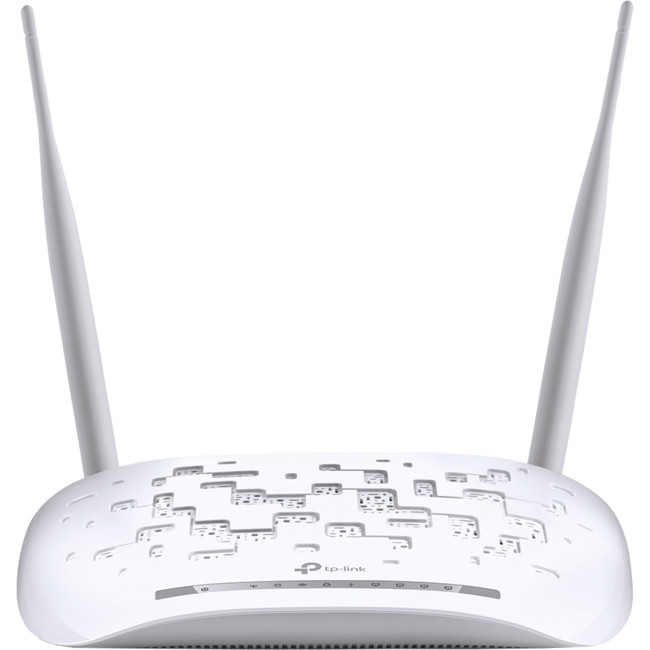

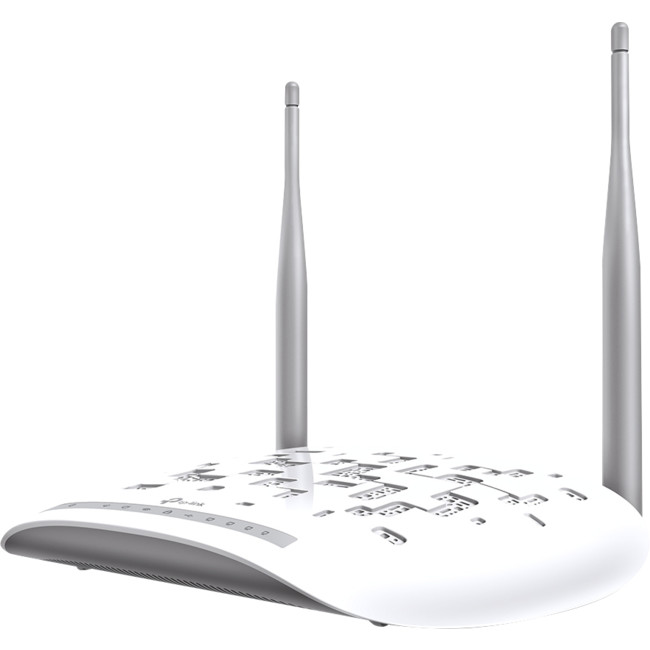

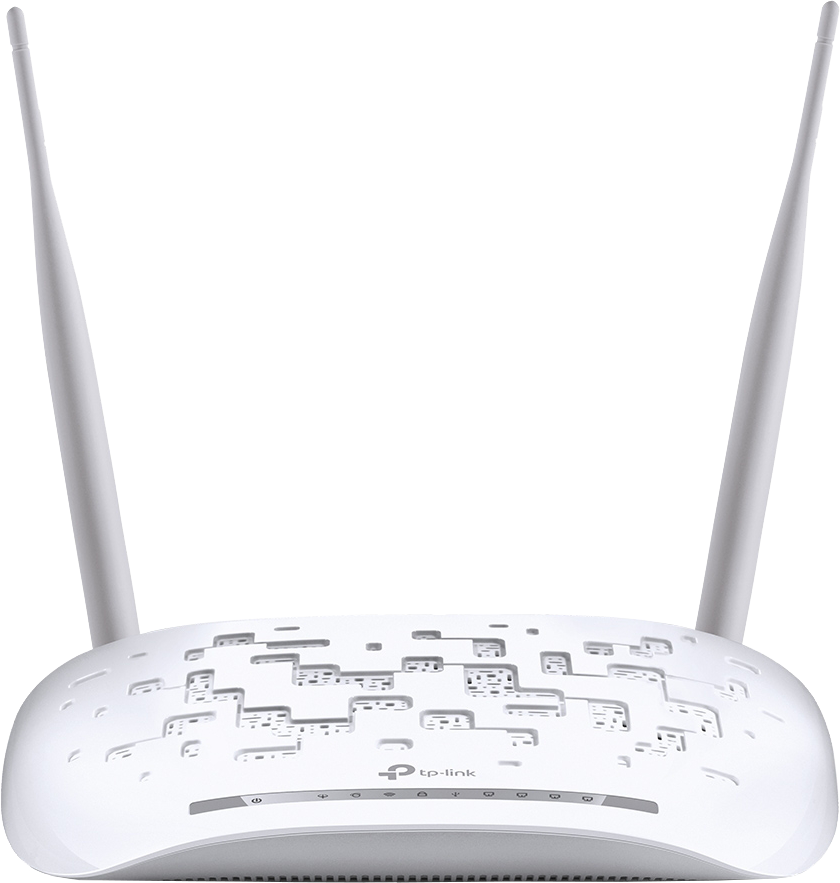

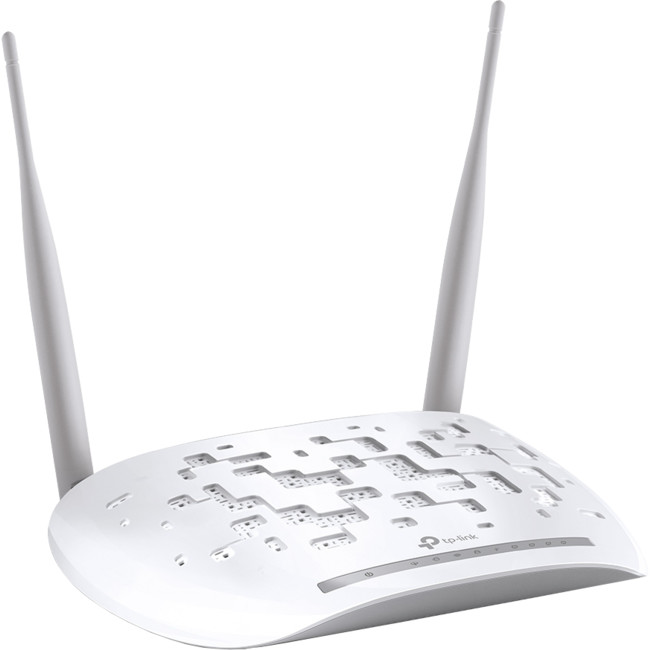

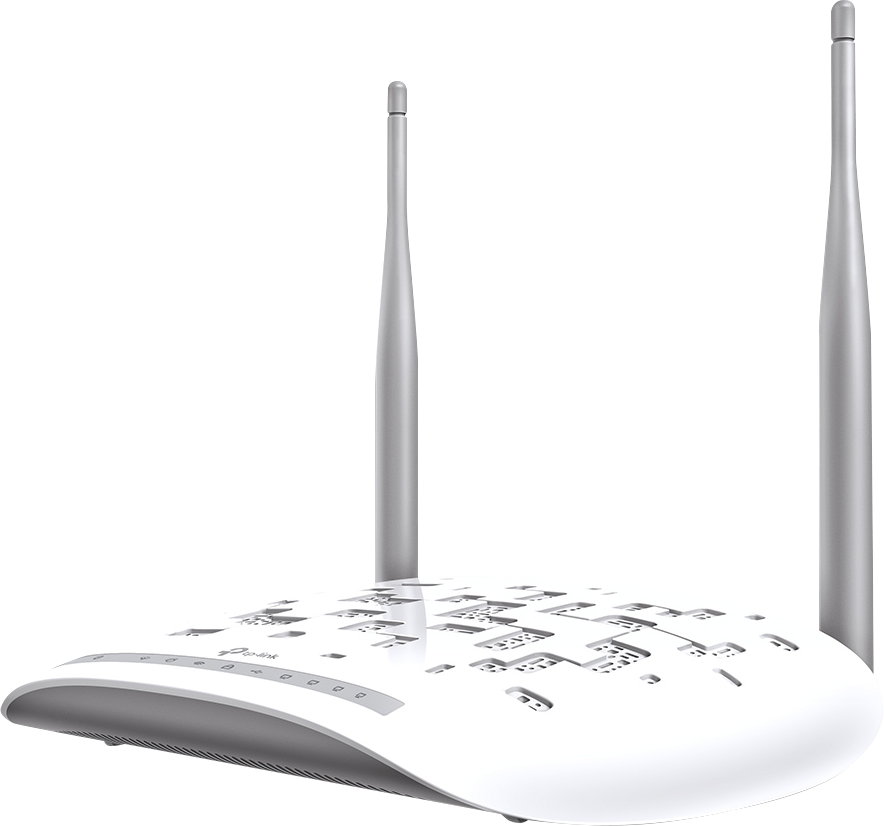

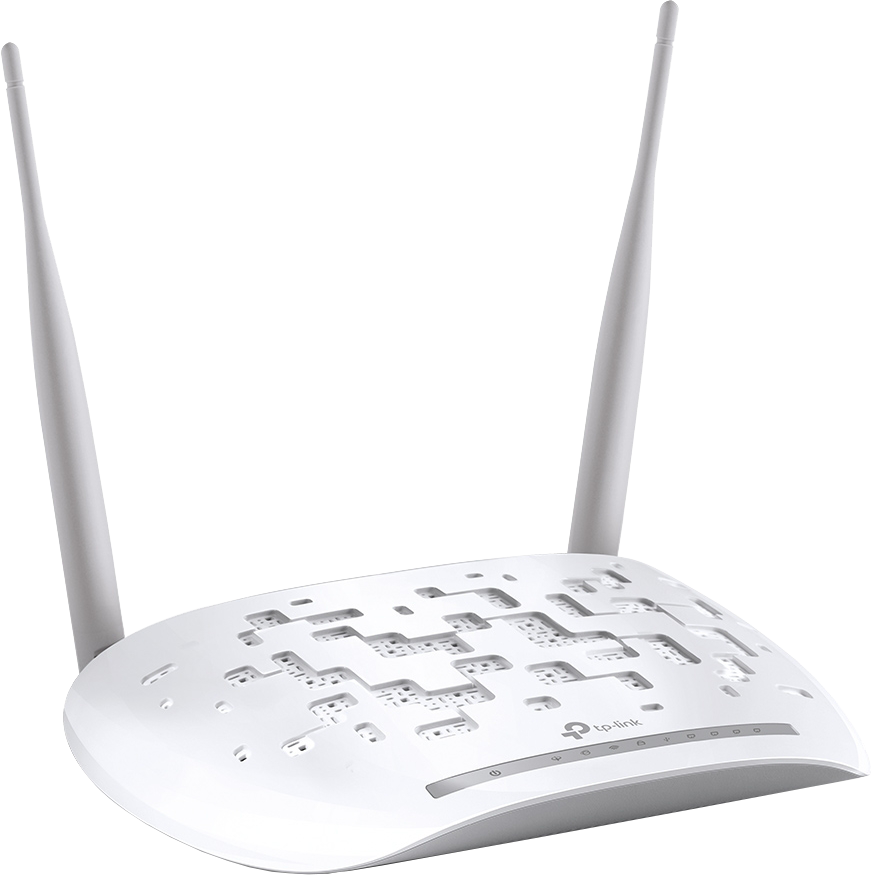

Two external 5dBi high-gain antennas beam signal to everycorner of your home, creating a strong, stable Wi-Fi network.
Lightning protection shields TD-W9960 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.
Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.

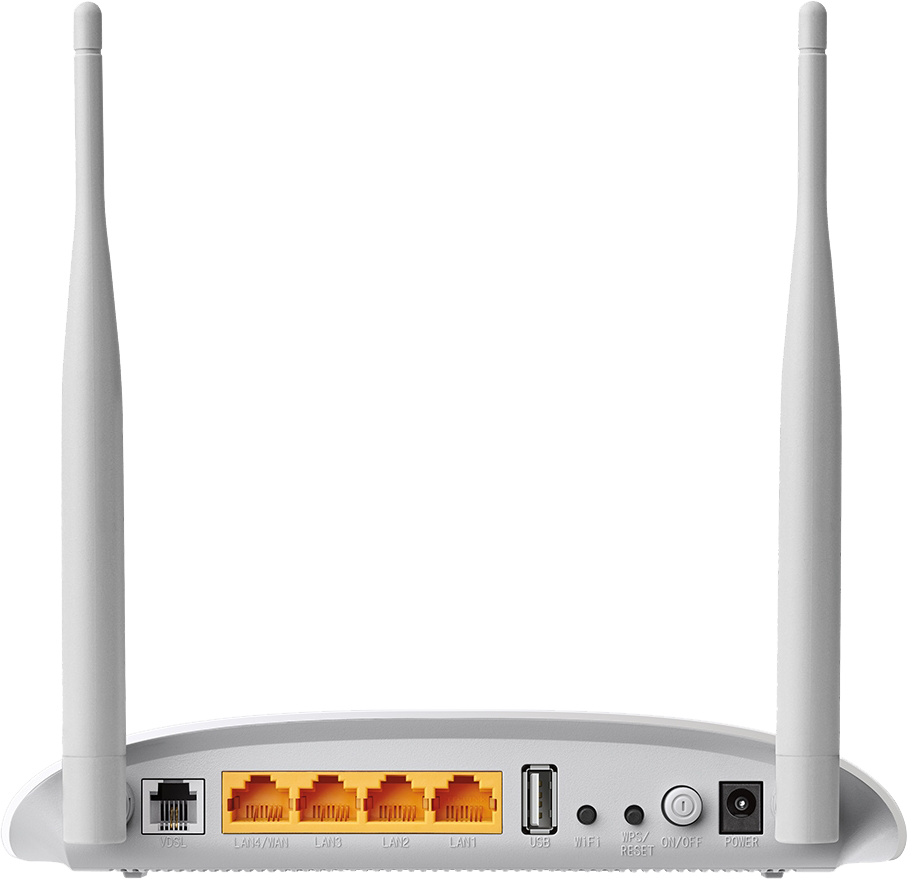

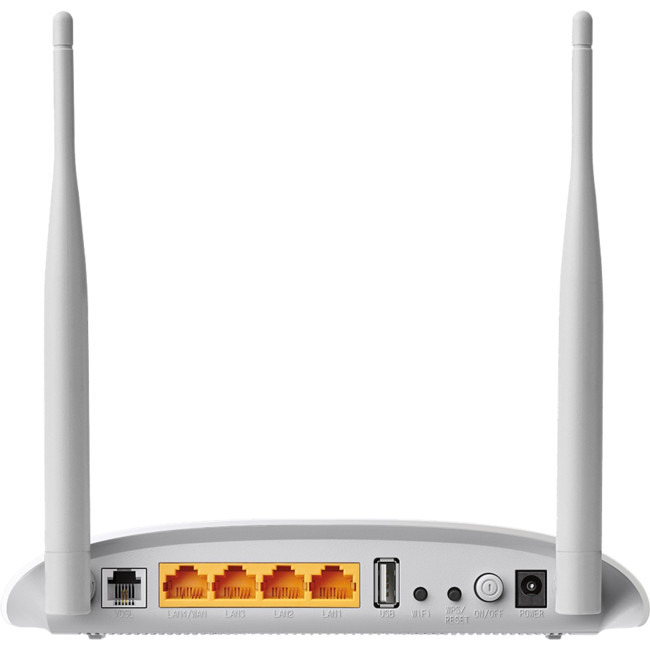

| HARDWARE FEATURES | Interface | - 3 × 10/100Mbps RJ45 LAN Ports
- 1 × 10/100Mbps RJ45 LAN/WAN Port
- 1 × RJ11 Port
|
|---|
| Button | - WPS Button
- RESET Button
- Power ON/OFF Button
|
| External Power Supply | 9V DC/0.6A |
| IEEE Standards | IEEE 802.3, 802.3u |
| VDSL2 Standards | - ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
|
| Dimensions (W×D×H) | 181.6mm × 129.7mm × 36.2mm |
| Antenna Type | Omni directional, Fixed |
| Antenna Gain | 2 × 5dBi |
| WIRELESS FEATURES | Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
|---|
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm (EIRP) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
| SOFTWARE FEATURES | Quality of Service | WMM, Bandwidth Control (IP QoS) |
|---|
| Security | NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address Binding |
| Operating Modes | VDSL/ADSL Modem Router, Wireless Router |
| Management | Web Based Configuration (HTTP), Remote management, CWMP (TR-069), Web Based Firmware Upgrade, Diagnostic Tools |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| VPN Pass-Through | IPSec VPN |
| Protocols | Supports IPv4 and IPv6 |
| ATM/PPP Protocols | - PPPoE (RFC2516)
- PPPoA (RFC 2364)
- MERIPoE (RFC 1483 Routed)
- IPoA (RFC1577/2225)
- Bridge (RFC1483 Bridge)
|
| Advanced Features | Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP V1/V2 (Optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| APP | Tether App |
| ENVIRONMENT | Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
|---|
| Storage Temperature | −40°C ~ 70C (−40°F ~ 158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| OTHERS | Certification | CE, RoHS |
|---|
| Package Contents | - TD-W9960
- External DSL Splitter
- RJ-11 DSL Cable
- RJ-45 Ethernet Cable
- Quick Installation Guide
- Power Adapter
|
| System Requirements | - Microsoft Windows 98SE, NT, 2000, XP, Vista™or Windows 7, 8, 8.1, 10,
- Mac OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
- Java-enabled browser
- Subscription with an internet service provider (for internet access)
|
