1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
2: Use of 802.11ax (Wi-Fi 6) and its features require clients to also support corresponding features.
3: 2.5 Gbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
4: It is recommended to use the supplied power adapter. If you use other power adapters, there is a risk of damaging the device.
5: The scenarios are only for illustration, and users can choose the corresponding mode according to actual needs. Whether the USB Internet Sharing function can be used depends on the compatibility of the 3G/4G USB Modem or mobile device, and is not guaranteed to be compatible with all devices.
| WIRELESS | Standards and Protocols | - Wi-Fi 6
- 5 GHz: IEEE 802.11a/n/ac/ax
- 2.4 GHz: IEEE 802.11b/g/n/ac/ax
|
|---|
| Wi-Fi Speeds | - AX3000
- 5 GHz: 2402 Mbps (802.11ax)
- 2.4 GHz: 574 Mbps (802.11ax)
|
| Wi-Fi Capacity | - High Dual-Band: Allocate devices to different bands for optimal performance.
- Airtime Fairness: Improves network efficiency by limiting excessive occupation.
- 4 Streams: Connect your devices to more bandwidth.
|
| Working Modes | - Router Mode
- USB Tethering Mode
- 3G/4G USB Modem Mode
- Hotspot Mode (WISP Mode)
- Access Point Mode
- Range Extender Mode
- Client Mode
|
| SECURITY | Network Security | - SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
|
|---|
| Guest Network | - 1 × 5 GHz Guest Network
- 1 × 2.4 GHz Guest Network
|
| VPN Server | - OpenVPN Server
- PPTP VPN Server
- L2TP VPN Server
- Wireguard VPN Serve
|
| VPN Client | - Open VPN Client
- PPTP VPN Client
- L2TP VPN Client
- Wireguard VPN Client
|
| Wi-Fi Encryption | - WPA2-PSK
- WPA3-Personal
- WPA/WPA2-Enterprise
|
| HARDWARE | Ethernet Ports | - 2.5 × Gigabit WAN Port
- 1 × Gigabit LAN Port
|
|---|
| USB Support | 1 × USB 3.0 Port |
| Buttons | - WPS/Reset Button
- ECO Switch
|
| Power | 5V/3A, External DC power adapter |
| SOFTWARE FEATURES | Quality of Service | QoS by Device |
|---|
| WAN Type | - Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
|
| Management Features | |
| DHCP | - DHCP Server
- DHCP Client List
- Address Reservation
|
| Protocols | |
| TEST DATA | Wi-Fi Transmission Power | CE:- <20dBm (2.4 GHz)
- <23dBm (5.15 GHz~5.25 GHz)
FCC:- <30dBm (2.4 GHz & 5.15 GHz~5.825 GHz)
|
|---|
| Wi-Fi Reception Sensitivity | 2.4GHz: - 11b 1M: −96dBm
- 11n HT20M MCS7: −73dBm
- 11n HT40M MCS7: −70dBm
5GHz:- 11a 6M: -93dBm
- 11ax HE20M MCS11: −63dBm
- 11ax HE40M MCS11: −60dBm
- 11ax HE80M MCS11: −59dBm
|
| ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
|---|
| Storage Temperature | −40°C~60°C (−40°F~140°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| OTHER | Dimensions (W×D×H) | 105mm × 91.3mm × 30mm (4.1″ × 3.6″ × 1.2″) |
|---|

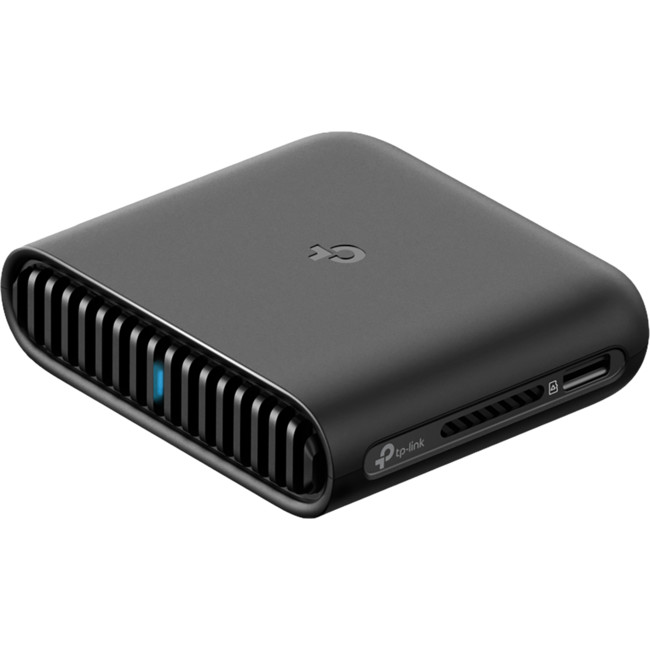

| Package Contents | - TL-WR3002X
- Power Adapter
- RJ45 Ethernet Cable
- USB Cable
- Quick Installation Guide
- Wi-Fi Info Card
|
| Certifications | FCC, CE |
