Name: TLMR3020 TRAVEL 3G 4G 'N' ROUTER PORTABLE 150MBPS TP-LINK
Brand: TP-LINK
SKU: 09051185
Price: 39 AUD
Availability: InStock

PORTABLE 150MBPS TP-LINK

Code: 09051185

0.2730 kg

6935364082345

EACH

Low Stock

$39 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features
Downloads

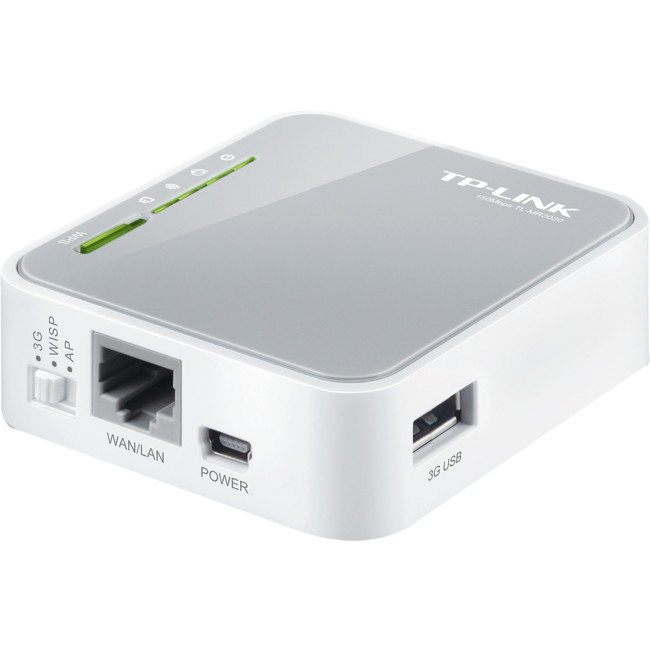

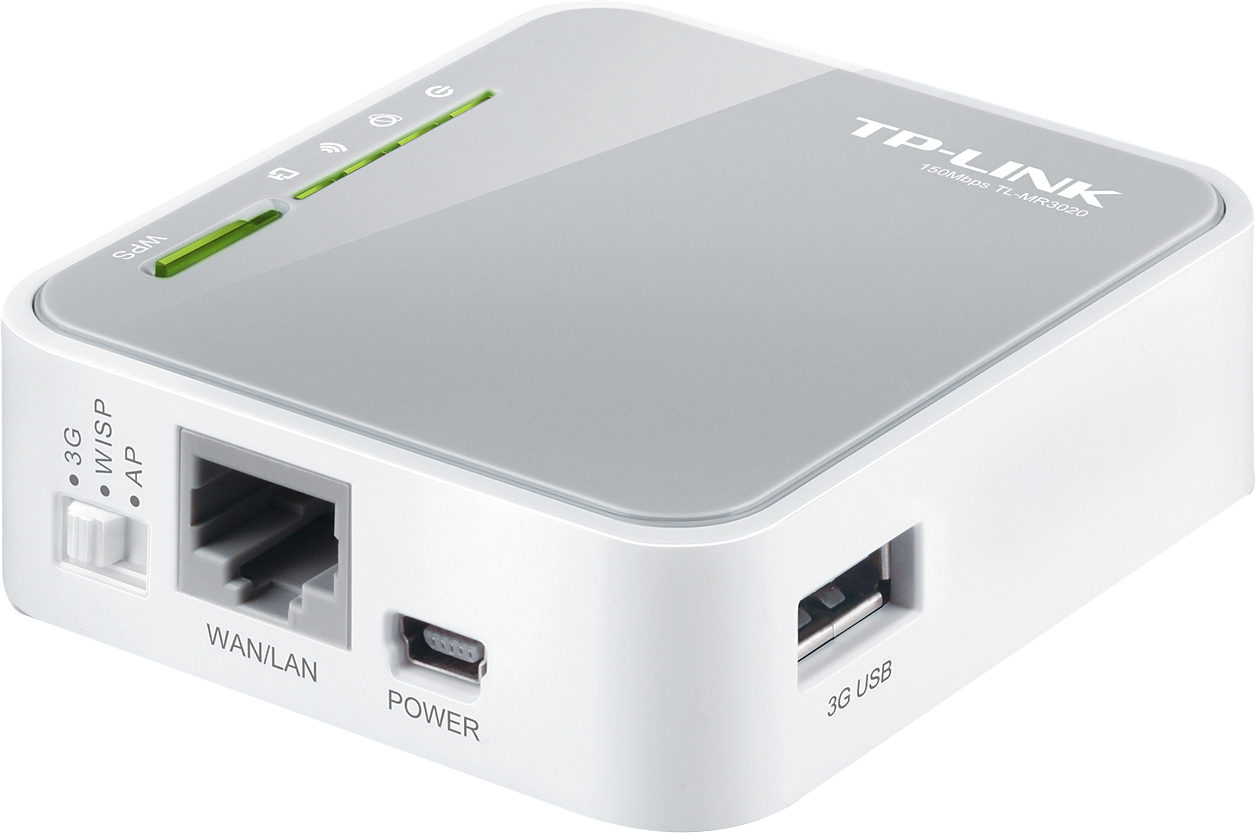

TP-LINK TL-MR3020 Portable 3G/4G Wireless N Router

Share a 3G/4G* mobile connection, compatible with 120+ LTE/HSPA+/HSPA/UMTS/EVDO 3G/4G USB modems, tested in the field
Travel-size design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available
Wireless speed is up to 150Mbps
Three modes available for different situations: 3G/4G* Router, WISP Client Router and Travel Router Mode (AP Mode)
With 3G/4G* and WAN failover back-up strategy, TL-MR3020 can provide a sustained internet connection.

*If your existing device does not support 4G sharing, please upgrade it to the latest firmware manually.

Click here to find your firmware version.

Travel-Sized Design

With the travel-sized and compact design, TL-MR3020 is small enough to take on the road and make sure that you can share a 3G internet connection wherever wireless 3G coverage is available.

Travel Router with 3G/4G Function

TL-MR3020 is the ideal travel partner for people on the go. 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilising a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.

Power Supply

TL-MR3020 provides you a mini USB port to be connected to your laptop or power adapter for power supply.

Specifications

HARDWARE FEATURES	Interface	1 × 10/100Mbps WAN/LAN Port, USB 2.0 Port for 3G/4G modem, a mini USB Port for power supply
	Button	Reset Button, Mode Switch
	External Power Supply	5V DC / 1.0A
	Dimensions (W×D×H)	74mm × 67mm × 22mm (2.9″ × 2.6″ × 0.9″)
	Antenna Type	Internal Antenna
	Compatibility	NBN - Fibre to the Premises (FTTP) - WAN Preferred or WAN Only Modes NBN - Fibre to the Home (FTTH) - WAN Preferred or WAN Only Modes For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html
WIRELESS FEATURES	Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
	Frequency	2.4-2.4835GHz
	Transmit Power	<20dBm
	Wireless Modes	3G Router, Travel Router (AP), WISP Client Router
	Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
SOFTWARE FEATURES	Security	Firewall, MAC filtering, Denial of Service (DoS)
	DHCP	Server, DHCP Client List, Address Reservation
	Port Forwarding	Virtual Server, Port Triggering, DMZ, UPnP
	Access Control	Parental Control, Host List, Access Schedule, Rule Management
ENVIRONMENT	Operating Temperature	−10°C ~ 60°C
	Storage Temperature	−40°C ~ 80°C
	Operating Humidity	10%~90% non-condensing
	Storage Humidity	5%~90% non-condensing
OTHERS	Certification	CE, FCC, RoHS
	Package Contents	TL-MR3020 router QIG Power Adapter USB Cable Resource CD Ethernet Cable
	System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, 10, MAC® OS, NetWare®, UNIX® or Linux

Datasheet PDF file

User Guide PDF file

Quick Installation Guide PDF file
