TP-LINK ARCHERC24 AC750 Dual-Band Wi-Fi Router
Doubling Bandwidth with Dual Band
AC Dual-band WiFi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.
Stable and Far-Reaching

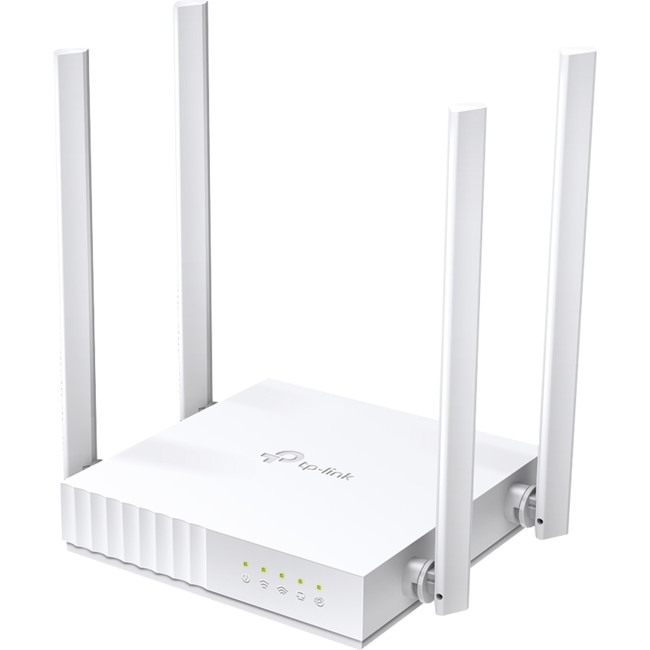

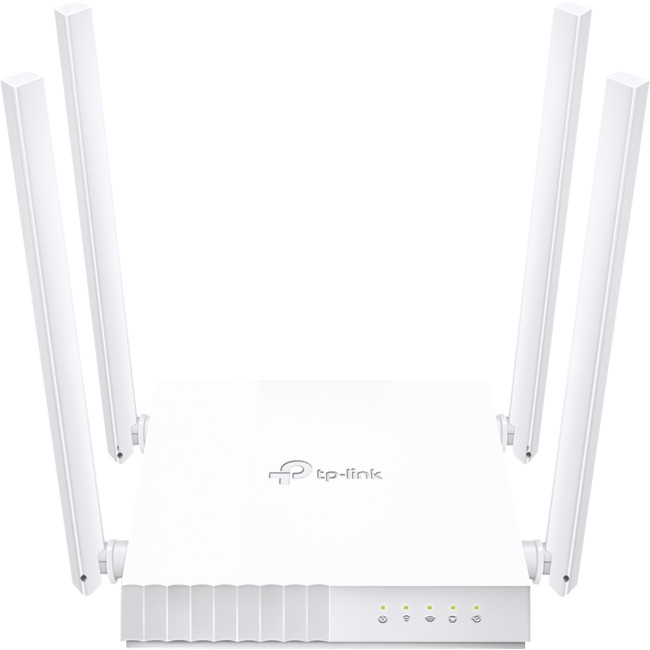

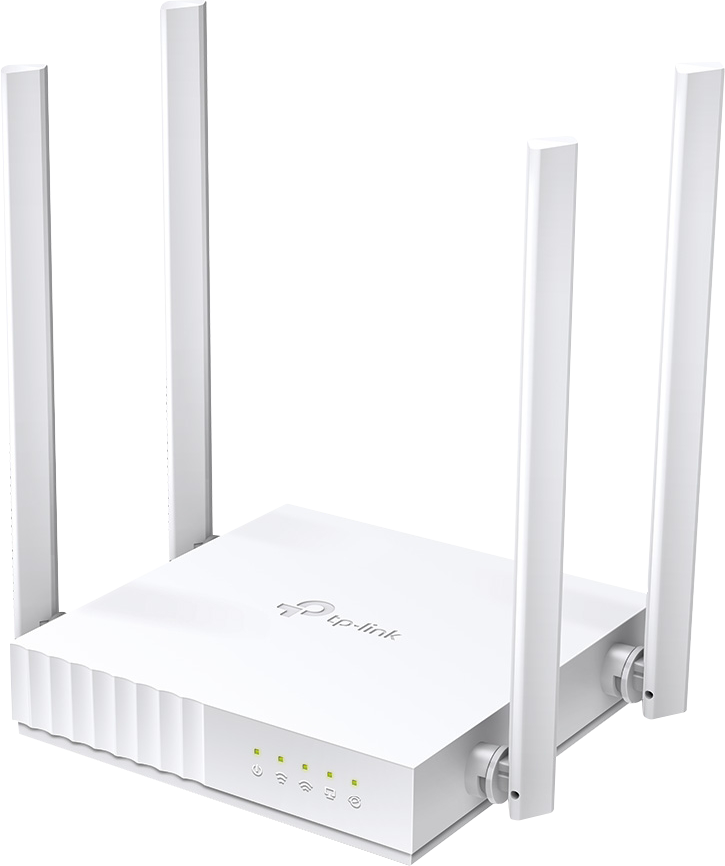

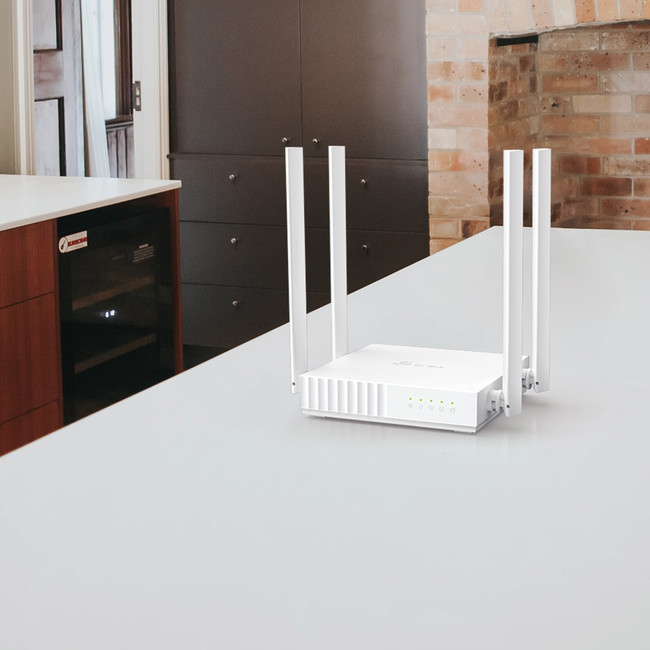

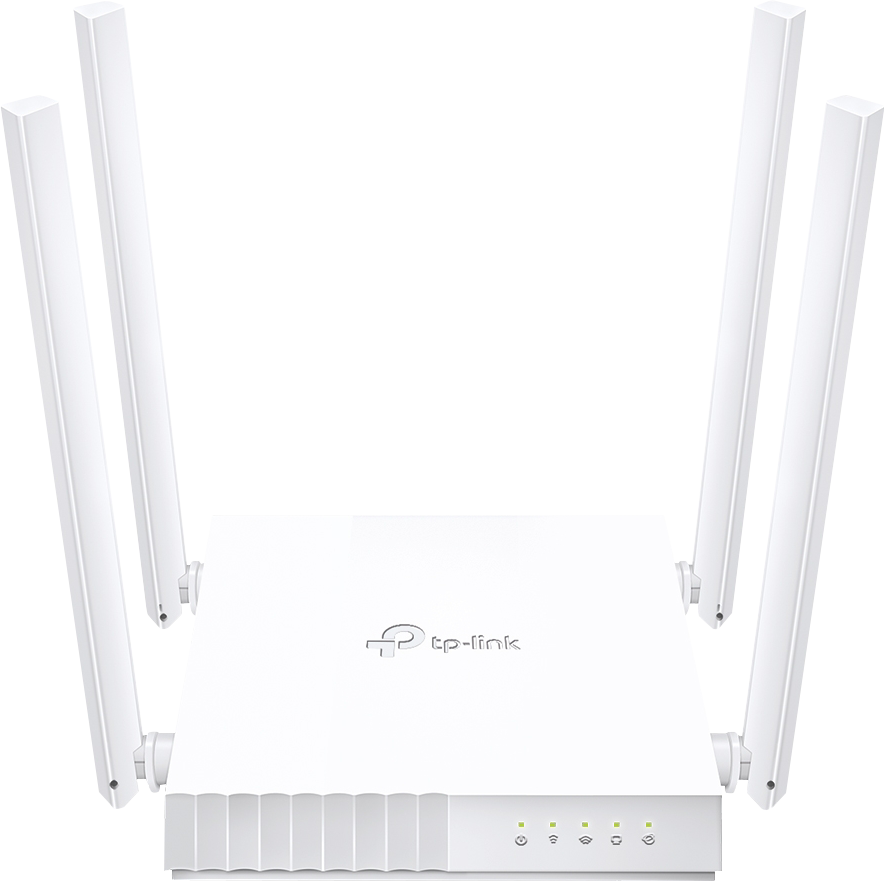

Featuring 4 × diagonally-distributed antennas, Archer C24 cover more direction and expand the Wi-Fi coverage, supporting buffer-free surfing and stalling-free downloading.
Multi-Mode 3 in 1
- Router Mode (Default): Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.
- Access Point Mode: Transform your existing wired network into a wireless one.
- Range Extender Mode: Boost the existing wireless coverage in your house.
Versatile Management
Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.
- Parental Controls: Block content, limit online time
- Guest Network: Use a different password, secure private network
- QoS: Prioritise devices
High Integration, Compact Size
Archer C24's system structure focuses on creating optimal Wi-Fi. The advanced semiconductor technology helps integrate units including CPU, memory, and a 3-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.
As Stable as a Larger One
Archer C24 goes through rigorous repeated testing to ensure a final product reliable under a number of strenuous environments. The final result: 8 randomly selected Archer C24 routers collectively tested for 1,936 hours.
Easy Setup at Your Fingertips
Set up Archer C24 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
{tab Specifications}
Specifications
WIRELESS | Standards | Wi-Fi 5 - IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
|
Wi-Fi Speeds | AC750 - 5 GHz: 433 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
|
Wi-Fi Range | 2 Bedroom Houses 4 × Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
Wi-Fi Capacity | Medium Dual-Band Allocate devices to different bands for optimal performance |
Working Modes | - Router Mode
- Access Point Mode
- Range Extender Mode
|
HARDWARE | Processor | Single-Core CPU |

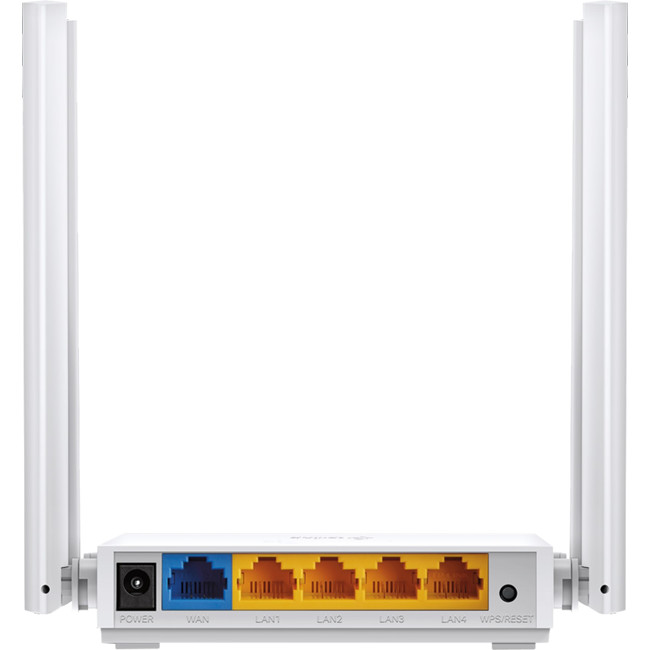

Ethernet Ports | - 1 × 10/100 Mbps WAN Port
- 4 × 10/100 Mbps LAN Ports
|
Buttons | WPS/Reset Button |
Power | 9V / 0.6A |
SECURITY | WiFi Encryption | - WEP
- WPA
- WPA2
- WPA/WPA2-Enterprise (802.1x)
|
Network Security | - SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
|
Guest Network | - 1 × 5 GHz Guest Network
- 1 × 2.4 GHz Guest Network
|
SOFTWARE | Protocols | |
Parental Controls | - URL Filtering
- Time Controls
|
WAN Types | - Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
|
Quality of Service | QoS by Device |
NAT Forwarding | - Port Forwarding
- Port Triggering
- DMZ
- UPnP
|
IPTV | - IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
|
DHCP | - Address Reservation
- DHCP Client List
- Server
|
DDNS | |
Management | Check Web Emulator> |
PHYSICAL | Dimensions (W×D×H) | 115mm × 106.7mm × 24.3mm (4.5″ × 4.2″ × 1.0″) |
Package Contents | - Wi-Fi Router Archer C24
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
|
OTHER | System Requirements | - Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
|
Certifications | FCC, CE, RoHS |
ENVIRONMENT | Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Storage Temperature | −40°C ~ 60°C (−40°F ~ 140°F) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
TEST DATA | WiFi Transmission Power | CE: - 2.4GHz: <20dBm
- 5GHz: <23dBm
|
WiFi Reception Sensitivity | 5GHz: - 11a 54M: -76dBm
- 11ac VHT20 MCS8: -71dBm
- 11ac VHT40 MCS9: -66dBm
- 11ac VHT80 MCS9: -62dBm
2.4GHz: - 11g 54M: -76dBm
- 11n HT20 MCS7: -73dBm
- 11n HT40 MCS7: -71dBm
|
