TLSG105PPM2 5 PORT 2.5G MULTI-GIGA SWITCH WITH 4 POE++ PORTS

Code: 09051174

1.75 kg
4895252501131
EACH
8
Low Stock
$189 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

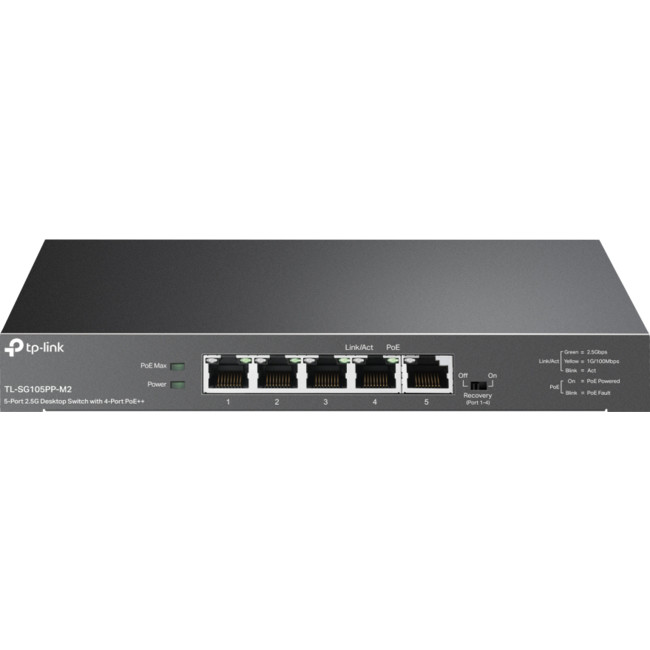

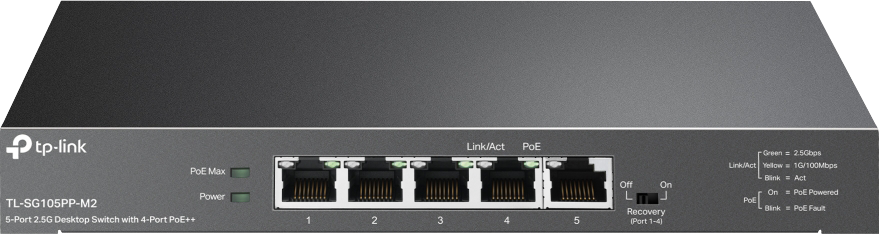

TP-LINK TLSG105PPM2 5 PORT 2.5G MULTI-GIGA SWITCH WITH 4 POE++ PORTS

  • 5 × 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  • With four PoE++ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt type3compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 60W for each PoE++ port
  • Supports PoE Power up to 123W for all PoE ports
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play, no configuration and installation required

Specifications


HARDWARE FEATURESInterface
  • 5 × 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 53.5V DC / 2.43A)
Packet Forwarding Rate18.6 Mpps
PoE Ports (RJ45)
  • Standard: 802.3 af/at/bt type3 compliant
  • PoE++ Ports: Ports 1 – 4
  • Power Supply: 123W
Mac Address Table4K
Switching Capacity25Gbps
Dimensions (W×D×H)209mm × 126mm × 26mm (8.2″ × 4.9″ × 1.0″)
Max Power Consumption
  • 7.57W (220/50 Hz. no PD connected)
  • 143.37W (220/50 Hz. with 123W PD connected)
Max Heat Dissipation
  • 25.81BTU/h (220 V/50 Hz with no PD connected)
  • 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
SOFTWARE FEATURESAdvanced Features
  • Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
  • PoE Auto Recovery (Ports 1-4)
Transfer MethodStore-And-Forward
ENVIRONMENTOperating Temperature0°C – 40°C (32°F – 104°F)
Storage Temperature−40°C – 70°C (−40°F – 158°F)
Operating Humidity10–90% RH non-condensing
Storage Humidity5–90% RH non-condensing
OTHERSCertificationFCC, CE, RoHS
Package Contents
  • TL-SG105PP-M2
  • Power Adapter
  • Installation Guide
  • Rubber Feet
