TLSG105M2 5 PORT 2.5G MULTI-GIGA

DESKTOP SWITCH

Code: 09051170

1.75 kg
6935364052881
EACH
8
Low Stock
$79 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

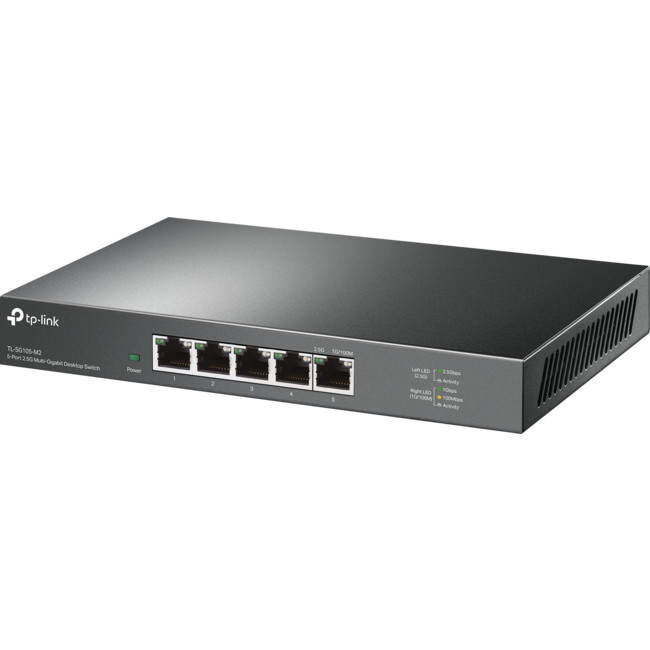

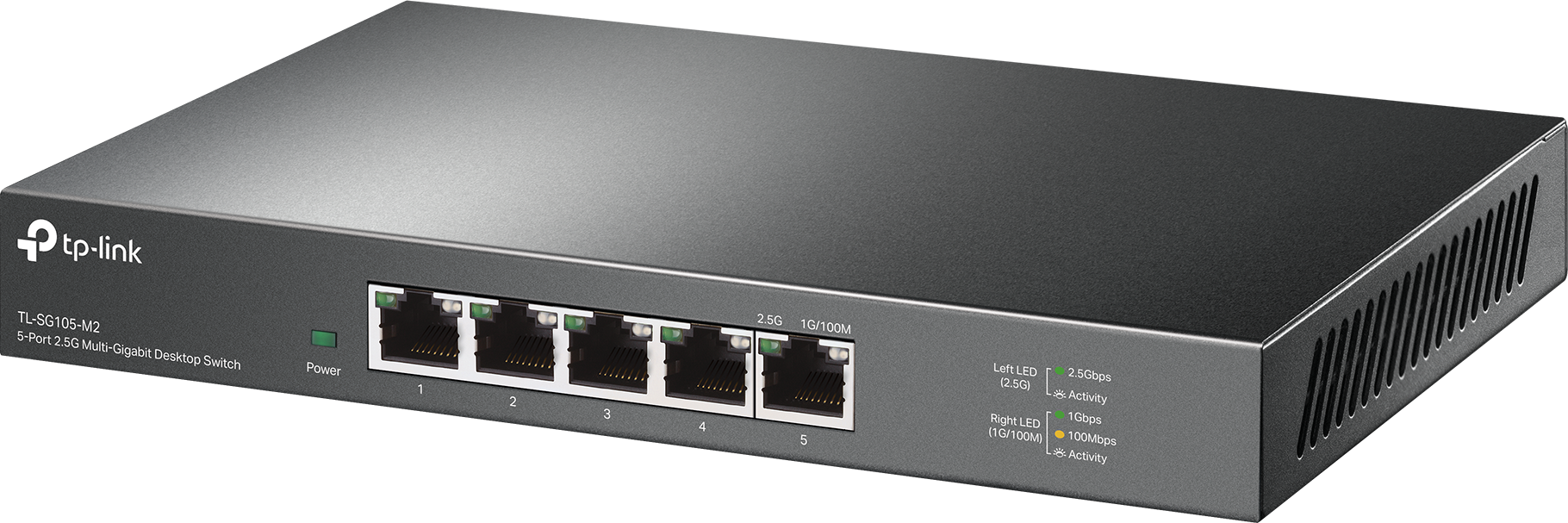

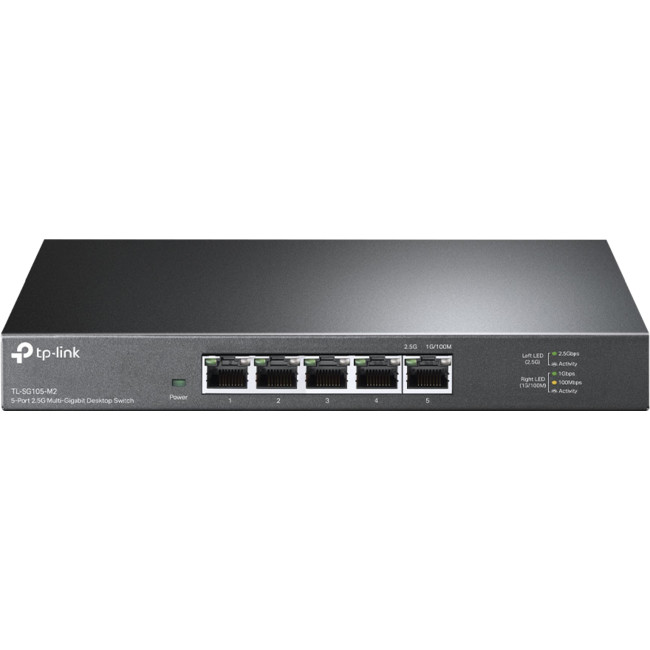

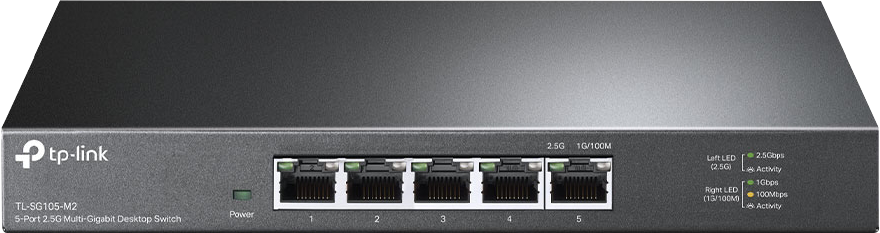

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch

Up To 25G Switching Capacity, Connects 2.5G NAS/Server, 2.5G Wi-Fi 6 AP, 4K Video, Wall-Mountable, 5YW

  • Five 2.5Gbps Ports: 5 × 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices and provide up to 25Gbps of switching capacity.
  • Super-Fast Connections: Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G Wi-Fi 6AP, 4K video, and more.
  • Ideal for Various Scenarios: Built for LAN parties, home entertainment, small and home offices, and instant transfer for work stations.
  • Hassle-Free Cabling: Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.
  • Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
  • Plug and Play: Allows for easy deployment without the need for a technician.
  • Metal Casing: Durable metal casingand desktop/wall-mounting design are well-suited for different environments.

Specifications


HARDWARE FEATURESStandards and ProtocolsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface5 × 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan QuantityFanless

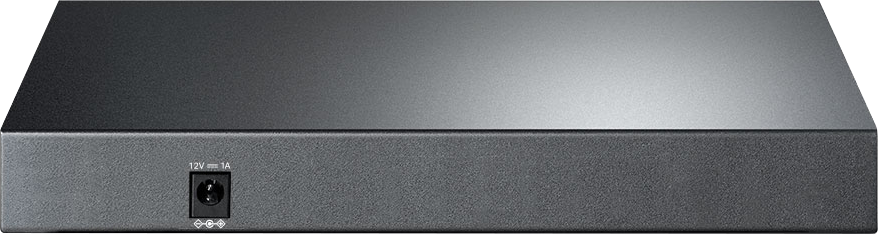

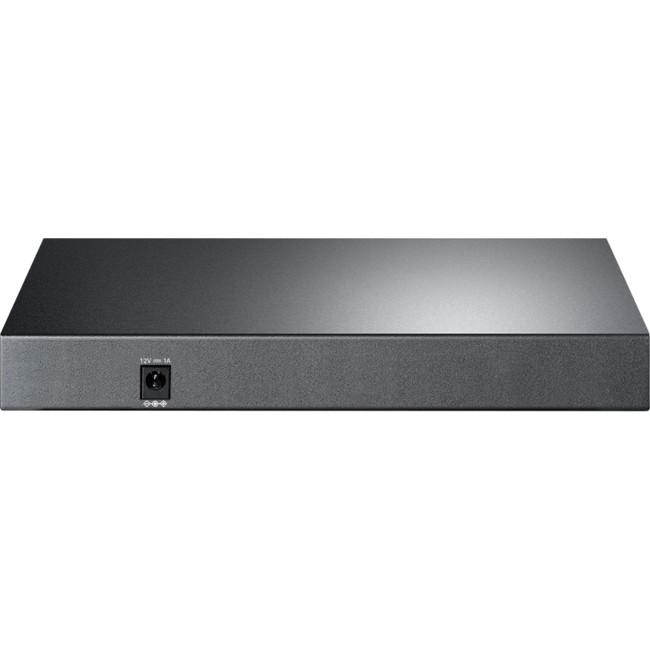

External Power SupplyExternal Power Adapter (Output: 12V DC / 1A)
LED Indicator
  • System Power: 1
  • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions (W×D×H)209mm × 126mm × 26mm (8.2″ × 4.9″ × 1.0″)
Max Power Consumption12.11W
Max Heat Dissipation41.32 BTU/h
PERFORMANCESwitching Capacity25 Gbps
Packet Forwarding Rate18.6 Mpps
MAC Address Table16K
Packet Buffer Memory1.5Mb
Jumbo Frame10KB
SOFTWARE FEATURESAdvanced Features
  • 802.3X Flow Control
  • 802.1p/DSCP QoS
Transfer MethodStore and Forward
EnvironmentOperating Temperature0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature−40°C ~ 70°C (−40°F ~ 158°F)
Operating Humidity10~90% RH non-condensing
Storage Humidity5~90% RH non-condensing
OTHERSCertificationCE, FCC ,RoHS
Package Contents
  • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2
  • Power Adapter
  • Installation Guide
  • Rubber Feet
