Code: 09051163

0.6510 kg

1210002608886

EACH

ETA 2026-08-31

$249 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features
Downloads

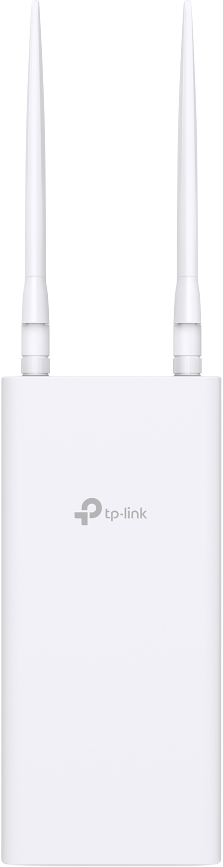

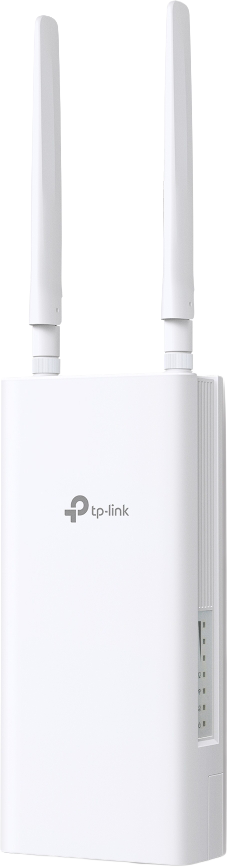

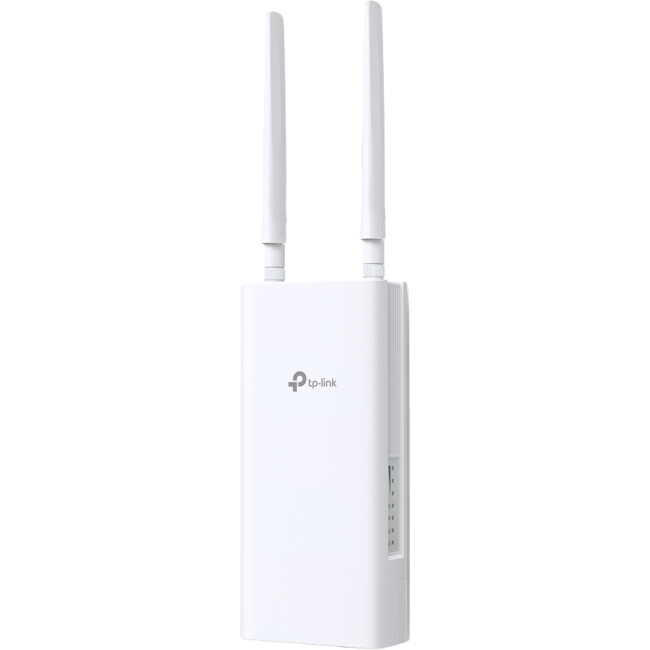

4G AC1200 Dual Band Wi-Fi Outdoor Router

Fast 4G LTE Speed- Supports LTE up to 150 Mbps download speed and 50 Mbps upload speed.*
1200 Mbps Dual Band Wi-Fi Speed- Up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
Durable Outdoor Enclosure- Robust outdoor connectivity and reliability with IP65 weatherproof protection**and ±6kV lightning protection & ±15kV ESD protection§.

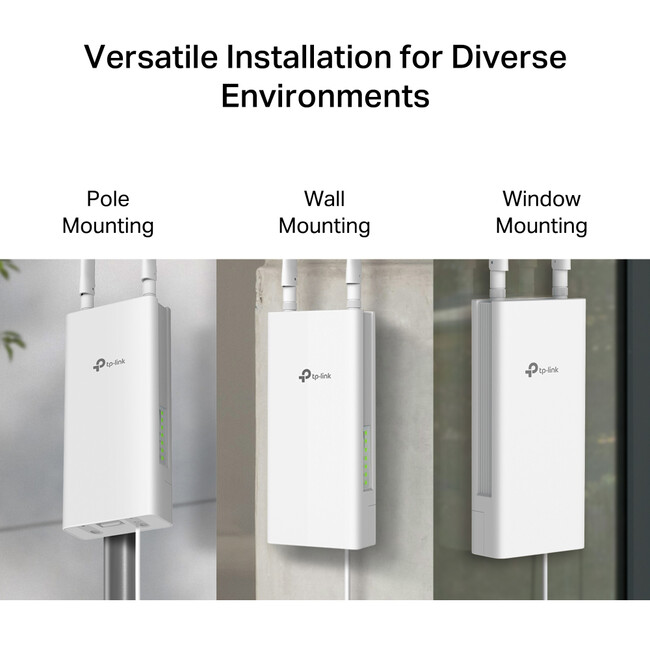

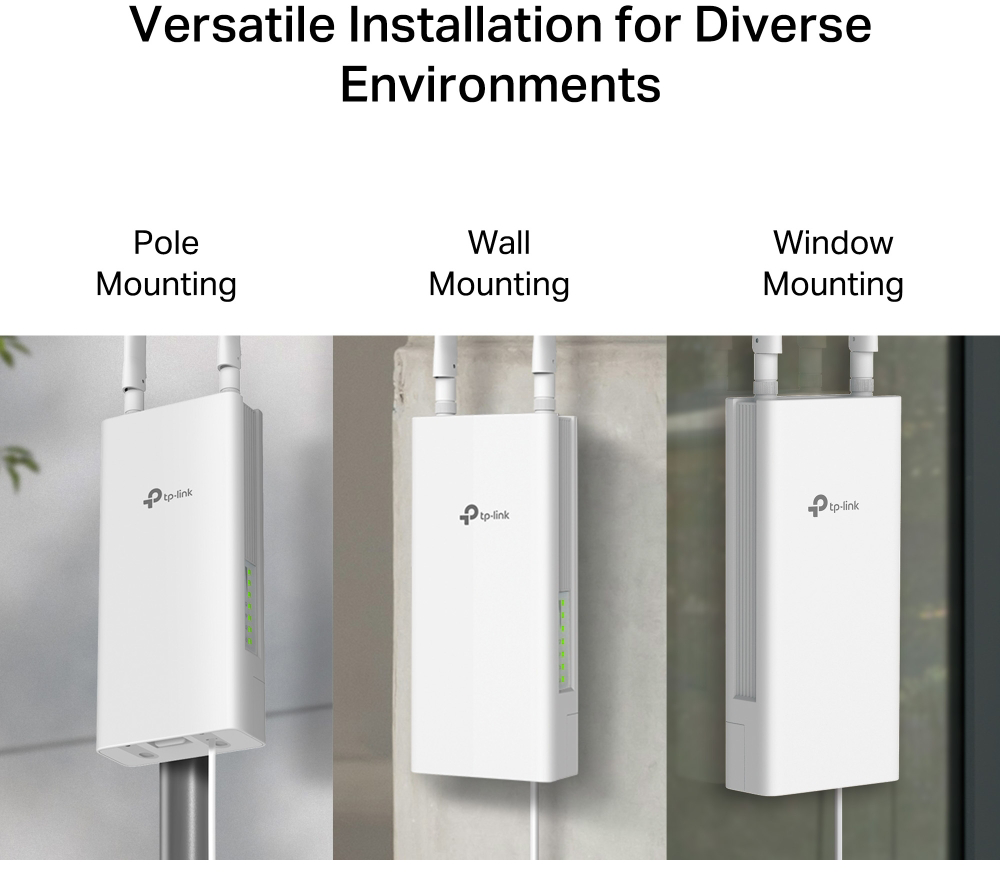

Multiple Mounting Installation- Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.

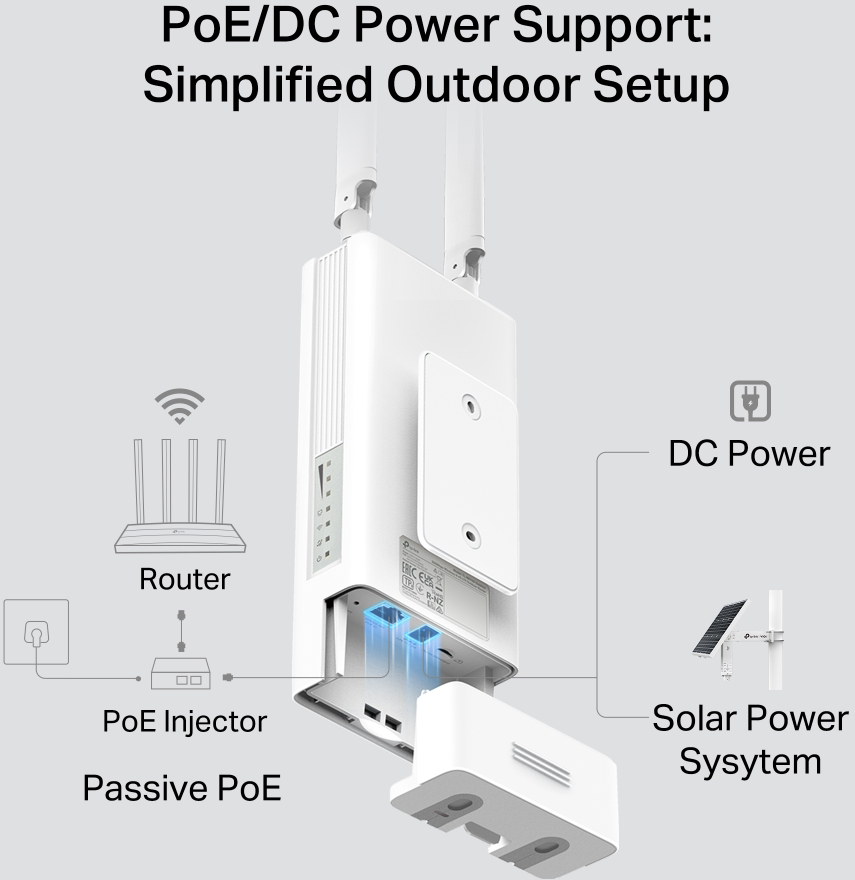

PoE/DC Power Supply- Supports 802.3af/802.3at and passive PoE, enabling easy deployment.
Plug and Play- Plug in a SIM card to get instant internet access anywhere.
Simplified Setup- Easily set up and manage your network with the Tether app.
OneMeshTMSeamless Roaming- Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.

4G
Network Type	4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA+/HSPA/UMTS:B1/B5/B8 (2100/850/900 MHz)
Speed	Download Speed 150 Mbps Upload Speed 50 Mbps
SIM Type	1× Nano SIM Card

HARDWARE
Interface	1× 10/100 Mbps WAN/LAN Port (PoE In) 1× Nano SIM Card Slot 1 × DC Port
Buttons	1× Reset Button
Power	12V/1A 24V/0.5A Passive PoE 44-57V/0.35A 802.3af/at
Dimensions (W x D x H)	8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)
Antennas	2 × Detachable LTE Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Reception Sensitivity	5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

SOFTWARE FEATURES
Quality of Service	WMM, QoS
Security	DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding
Operating Modes	3G/4G Router, Wireless Router
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features	Access Control, Local Management, Remote Management, Reboot Schedule
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link DDNS, DynDns, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Controls, Local Management Control, Host List, Access Control
Protocols	IPv4, IPv6
Guest Network	2.4 GHz guest network x 1, 5 GHz guest network x 1
VPN Server	PPTP VPN, IPSec VPN, OpenVPN

OTHERS
Package Content	1× AC1200 Wireless Dual Band 4G LTE Outdoor Router Archer MR402-Outdoor 1× 10-meter RJ45 Ethernet Cable 1× PoE Adapter 1× AC Power Cord 1× Quick Installation Guide Window/Pole/Wall Mounting Kits
Requirements	• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version • Nano SIM Card
Certifications	CE, RoHS
Environment	Operating Temperature: -30°C~60°C (-22°F~140°F) Storage Temperature: -40°C~70°C (-40 °F~158 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH
