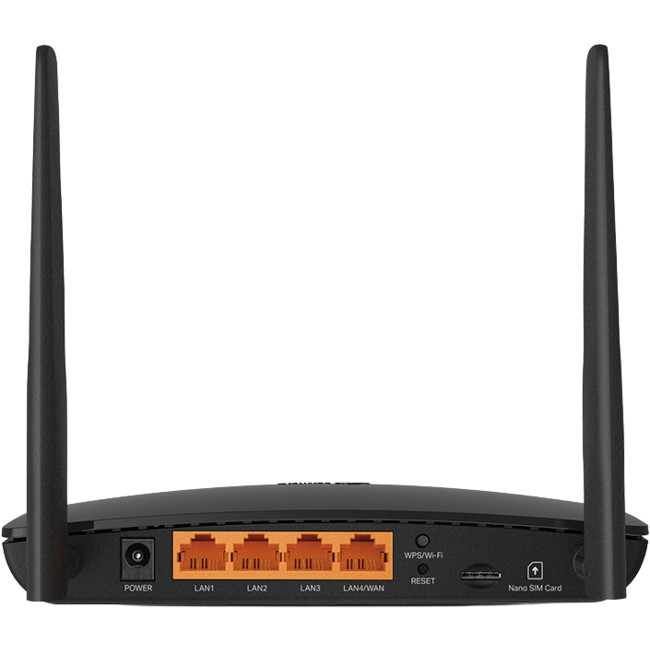

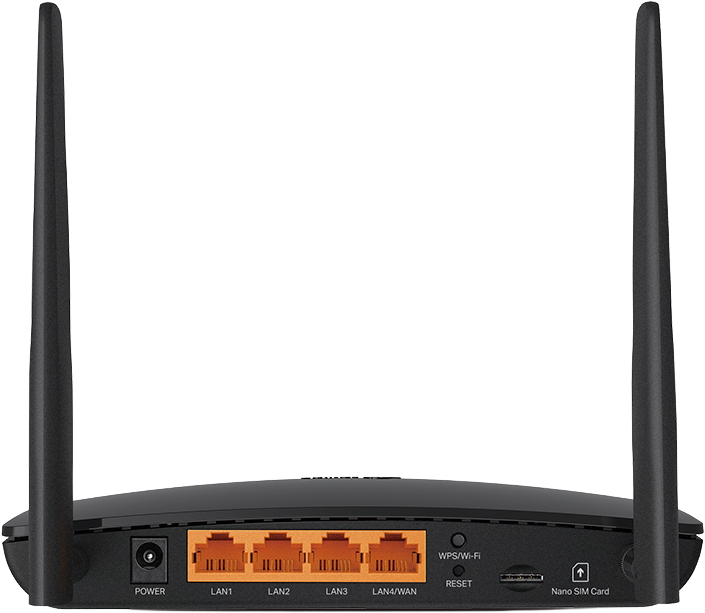

HARDWARE FEATURES | Interface | - 3 × 10/100Mbps LAN Ports
- 1 × 10/100Mbps LAN/WAN Port

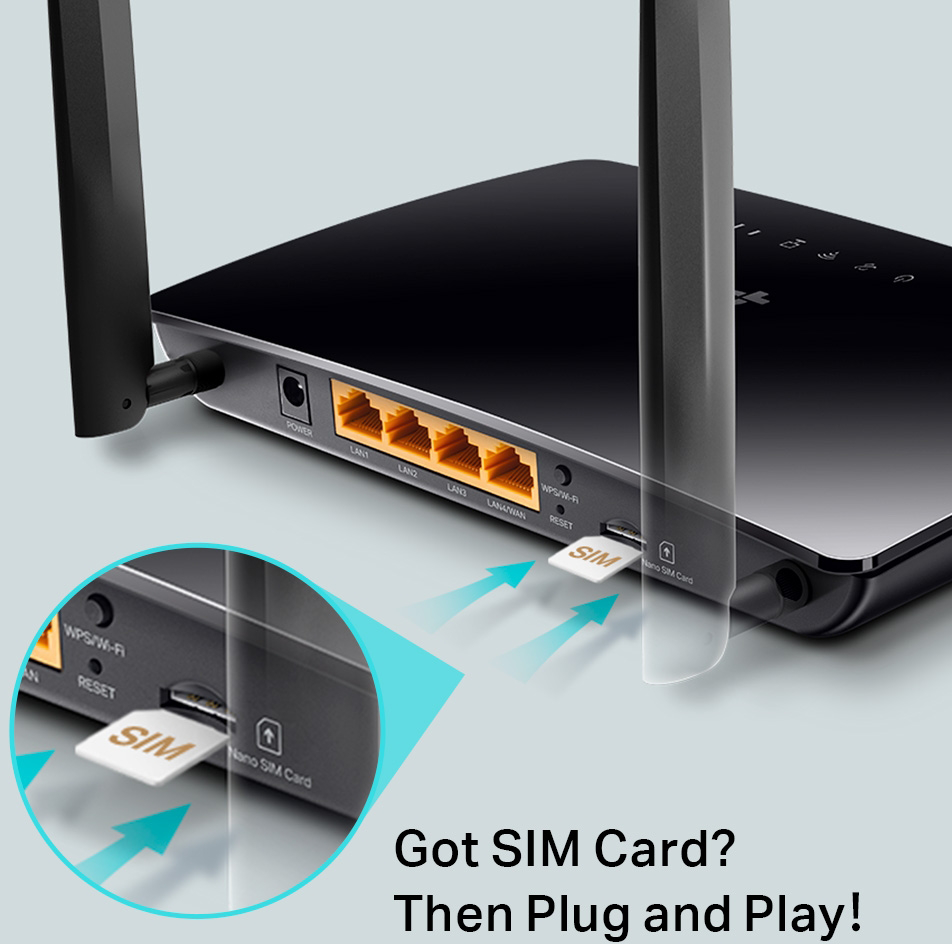

- 1 × Nano SIM Card Slot
- 2 × External SMA-F Antenna Interface
|
Antenna | 2 × Detachable External 4G LTE Antennas |
WIRELESS FEATURES | Wireless Standards | - 5 GHz: IEEE 802.11a/n/ac
- 2.4 GHz: IEEE 802.11b/g/n
|
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | - 2.4 GHz: 300 Mbps
- 5 GHz: 433 Mbps
|
Reception Sensitivity | 5 GHz:- 11a 54M: −78 dBm
- 11ac VHT20 MCS0: −92 dBm
- 11ac VHT20 MCS8: −72 dBm
- 11ac VHT40 MCS0: −90 dBm
- 11ac VHT40 MCS9: −67 dBm
- 11ac VHT80 MCS0: −87 dBm
- 11ac VHT80 MCS9: −64 dBm
2.4 GHz:- 11g 54M: −74 dBm
- 11n HT20 MCS0: −91 dBm
- 11n HT20 MCS7: −72 dBm
- 11n HT40 MCS0: −88 dBm
- 11n HT40 MCS7: −69 dBm
|
Wireless Functions | - Enable/Disable Wireless Radio
- Wireless Schedule
- WMM
- Wireless Statistics
|

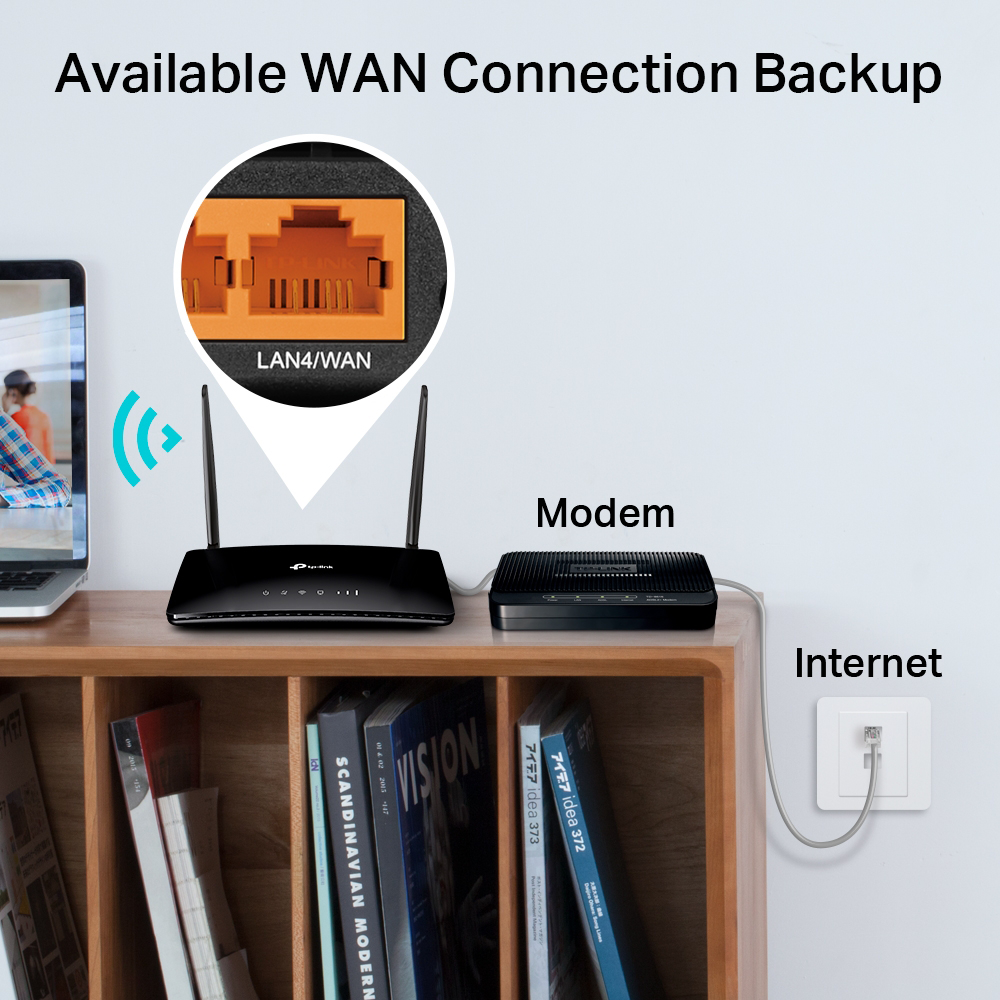

WAN Failover | |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Transmission Power | - 2.4 GHz: <20 dBm
- 5 GHz: <23 dBm
|
Network Type3 | 4G:- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G:- HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
|
SOFTWARE FEATURES | Quality of Service | Prioritises network traffic by device or application. |
Operating Modes | 3G/4G Router, Wireless Router |
WAN Type | - Dynamic IP
- Static IP
- PPPoE
- PPTP (Dual Access)
- L2TP (Dual Access)
|
Management Features | - Access Control
- Local Management
- Remote Management
- Reboot Schedule
|
DHCP | - Server
- DHCP Client List
- Address Reservation
|
Port Forwarding | - Virtual Server
- Port Triggering
- UPnP
- DMZ
|
Dynamic DNS | |
Firewall Security | - DoS
- SPI Firewall
- IP and MAC Address Binding
|
Protocols | Supports IPv4 and IPv6. |
Guest Network | - 1 × 2.4GHz Guest Network
- 1 × 5GHz Guest Network
|
VPN Server | PPTP VPN, OpenVPN |
ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
Storage Temperature | −40°C~60°C (−0°F~140°F) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
GENERAL | Button | WPS/Wi-Fi Button, Reset Button |
External Power Supply | 12V/1A |
Dimensions (W×D×H) | 174mm × 124.5mm × 33.5mm (6.85″ × 4.9″ × 1.32″) |
Certification | CE, RoHS |

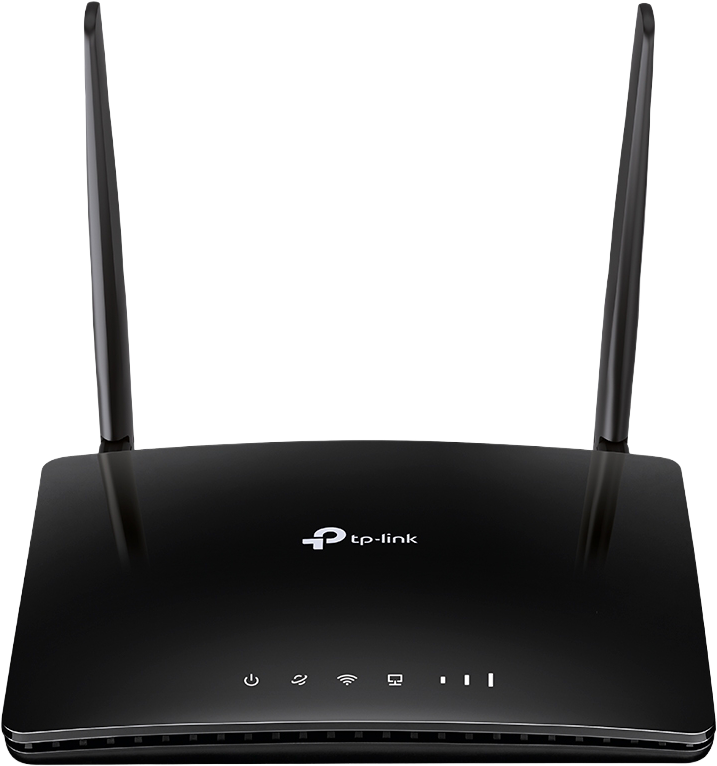

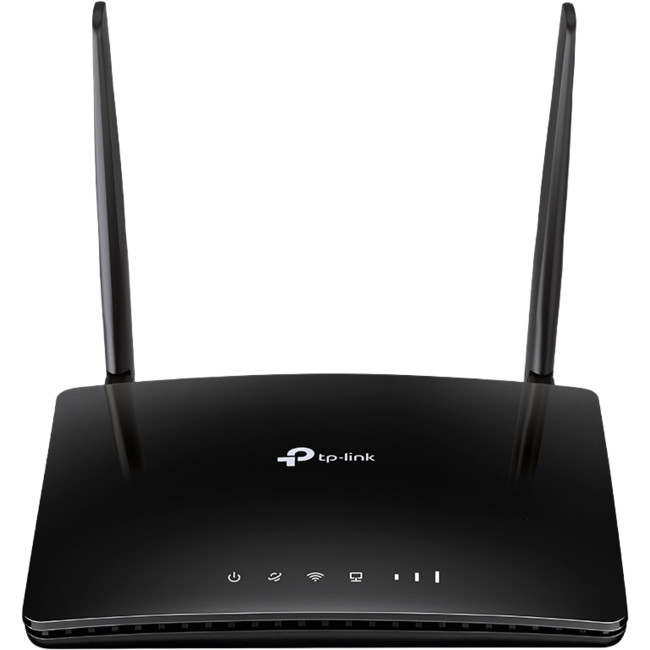

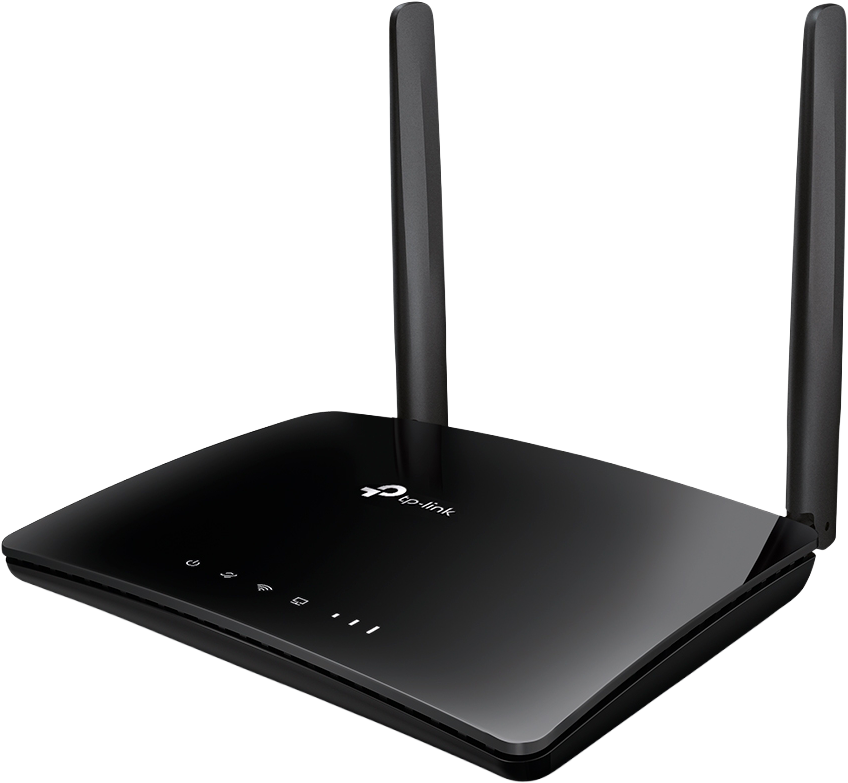

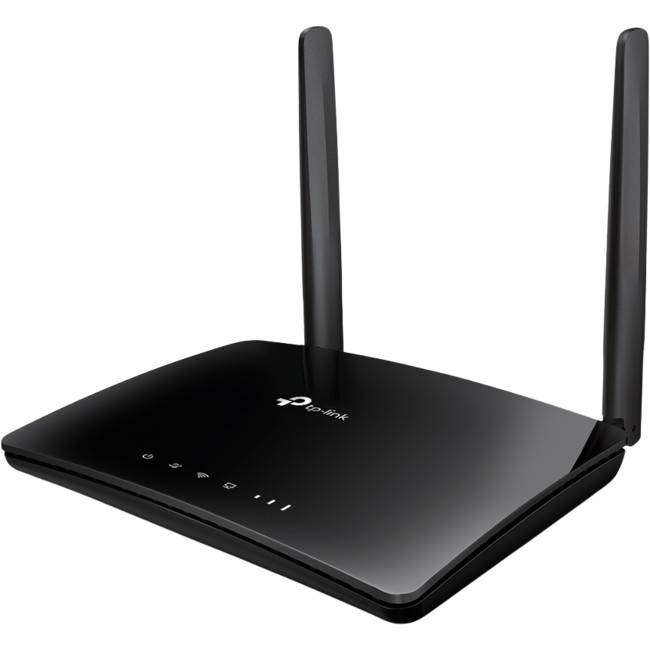

Package Contents | - AC750 Wireless Dual Band 4G LTE Router Archer MR202
- RJ45 Ethernet Cable
- 1.5m Power Adapter
- Quick Installation Guide
|
System Requirements | - Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
- Nano SIM Card
|
