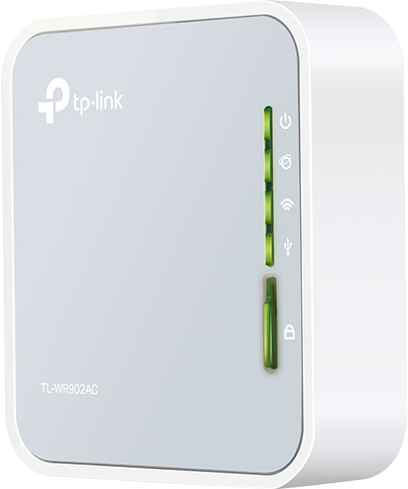

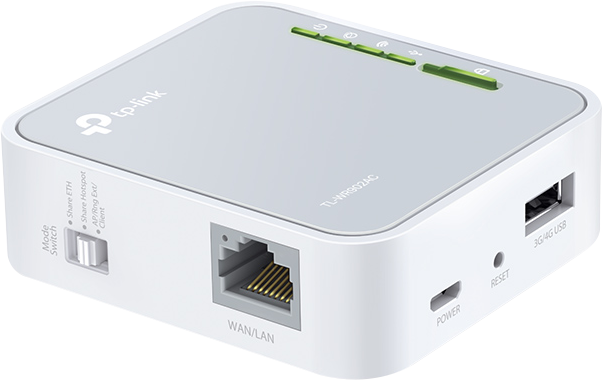

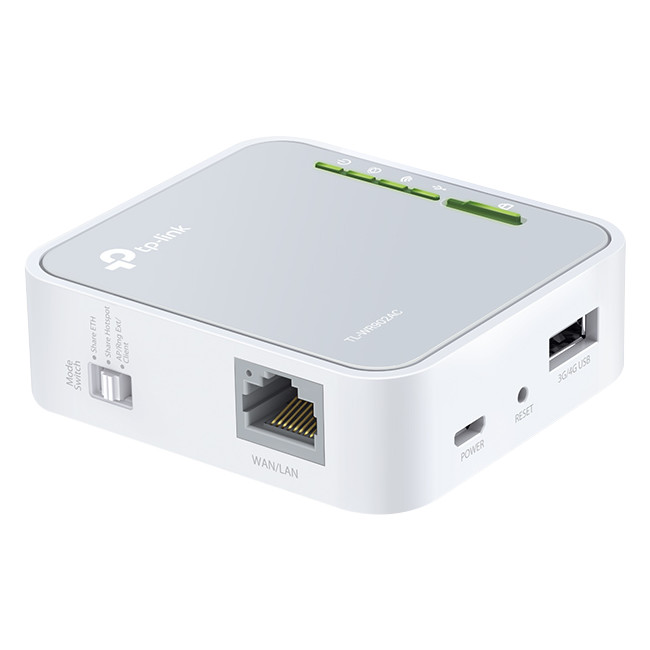

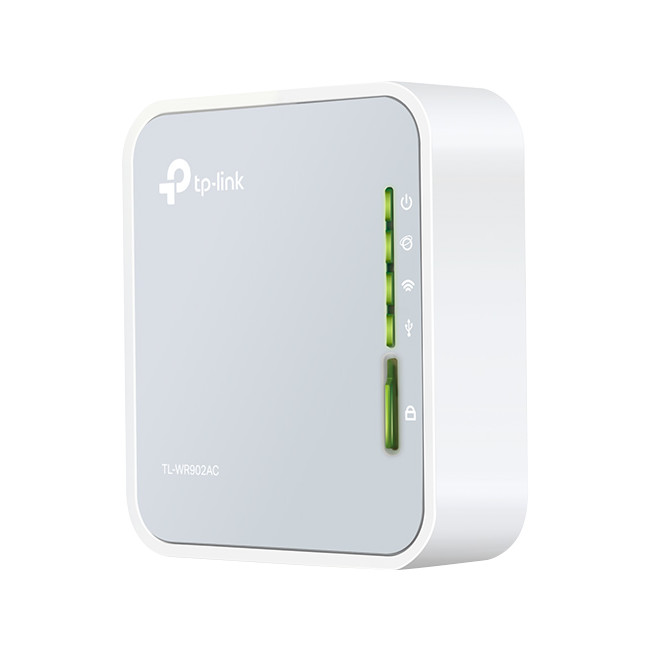

TP-LINK TLWR902AC AC750 Wireless Travel Router
Portable and compact
With the travel-sized and compact design, TL-WR902AC is small enough to put into your pocket and make sure you can have internet access wherever you go. The mini USB power supply and built-in adapter make it perfect for travelers, students, and anyone else living life on the go.
Excellent Wireless Speed with 11AC Wi-Fi
Coming with the next generation Wi-Fi standard 802.11ac, 3 times faster than wireless N speeds, TL-WR902AC delivers a combined wireless data transfer rate of up to 733Mbps, making it an ideal choice for various applications simultaneously.
Creates Wi-Fi Wherever You Want and Anyway YouDesire!
To meet the wireless needs of almost any situation you might encounter, the TL-WR902AC features Router, Hotspot, Range Extender, Client, and Access Point Modes.
Multifunctional USB Port for File Sharing and Charging
A multifunctional USB port allows you to share files and media through your internet browser with different computers. Also, the USB port can provide power supply (up to 5V/2A) to mobile devices like smart phones or tablets, making it easy to charge on the go.
{tab Specifications}
Specifications
| HARDWARE FEATURES | Interface | - 1 × 10/100Mbps WAN/LAN Port
- 1 × Reset Button
- 1 × USB 2.0 Port
- 1 × Mode Switch
- 1 × WPS Button
|
|---|
| External Power Supply | 5V/2A |
| Dimensions (W×D×H) | 74mm × 67mm × 22mm (2.91″ × 2.64″ × 0.87″) |
| Antenna Type | On-Board |
| Compatibility | - NBN - Fibre to the Premises (FTTP) - WAN Port Enabled
- NBN - Fibre to the Home (FTTH) - WAN Port Enabled
For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html |
| WIRELESS FEATURES | Wireless Standards | - IEEE 802.11ac/n/a 5GHz
- IEEE 802.11b/g/n 2.4GHz
|
|---|
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | - 5GHz: Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter
- 2.4GHz: Up to 300Mbps
|
| Reception Sensitivity | 5GHz:- 11a 54M: −76dBm; 11ac VHT20 MCS8: −70dBm
- 11ac VHT40 MCS9: −65.5dBm; 11ac VHT80 MCS9: −61.5dBm
2.4GHz:- 11g 54M: −76dBm11n; HT20 MCS7: −74dBm
- 11n HT40 MCS7: −71dBm
|
| Transmit Power | CE:- <20dBm (2.4GHz)
- <23dBm (5GHz)
|
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES | Quality of Service | WMM, Bandwidth Control |
|---|
| Management | - Access Control
- Local Management
- Remote Management
|
| WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 |
| Guest Network | - 2.4GHz guest network × 1
- 5GHz guest network × 1
|
| ENVIRONMENT | Operating Temperature | 0°C~40 °C (32 °F~104°F) |
|---|
| Storage Temperature | −40°C~70 °C (−40 °F~158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| OTHERS | Certification | CE, FCC, RoHS |
|---|
| Package Contents | - AC750 Wireless Travel Router TL-WR902AC
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
|
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-basedoperating system |
{tab FAQs}
FAQs
[1511] How to Enable Media Server on the TL-WR902AC (Standard Router and Hotspot Router Mode)?
[1510] How to Use the FTP Server function on the TL-WR902AC (Standard Router and Hotspot Router Mode)?
[1509] How to Use Storage Sharing on the TL-WR902AC (Standard Router and Hotspot Router Mode)?
[1508] How to Configure IP & MAC Binding on the TL-WR902AC (Standard Router and Hotspot Router Mode)?
[1507] How to Configure Bandwidth Control on the TL-WR902AC (Standard Router and Hotspot Router Mode)?
[1506] How to Configure Access Control on the TL-WR902AC (Standard Router and Hotspot Router Mode)?
[1505] How to Configure Parental Control on the TL-WR902AC (Standard Router and Hotspot Router Mode)?
[1504] How to Configure Client Mode on the TL-WR902AC?
[1503] How to Configure Access Point Mode on the TL-WR902AC?
[1502] How to Configure Range Extender Mode on the TL-WR902AC?
[1501] How to Configure Hotspot Router Mode on the TL-WR902AC?
