TLSG1008D 8 PORT ETHERNET GIGABIT SWITCH

WITH 10/100/1000M DESKTOP

Code: 09051075

0.4210 kg
6935364092313
EACH
50
In Stock
$34 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

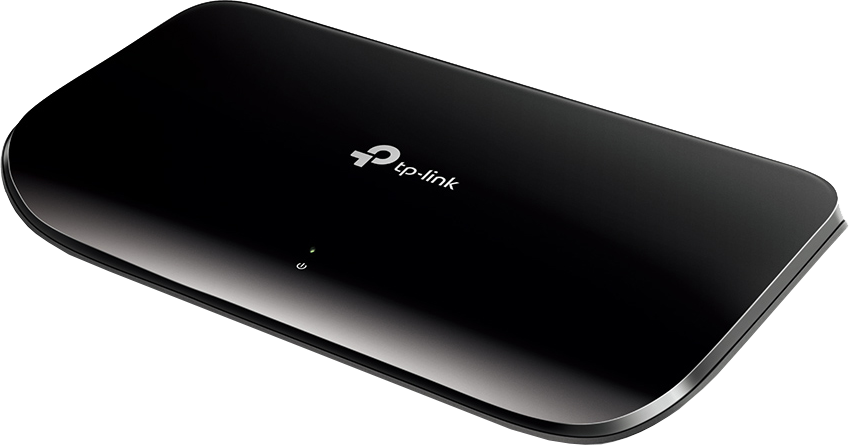

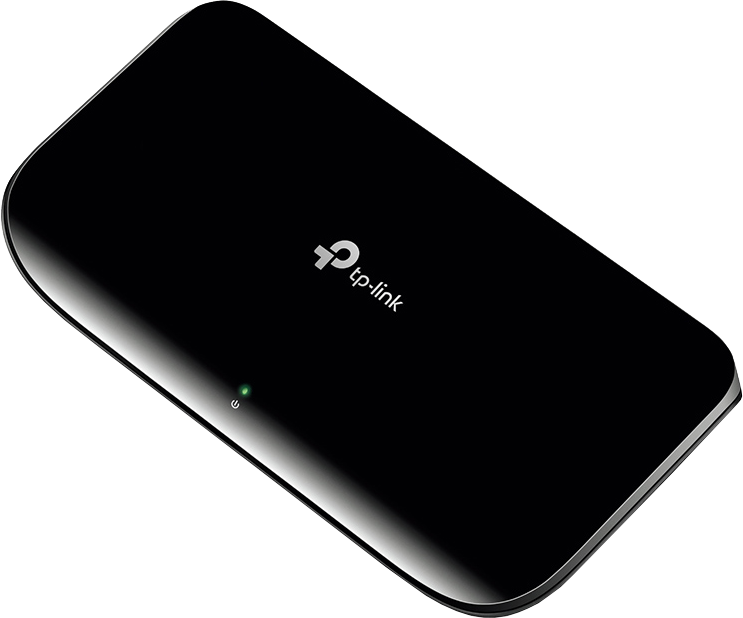

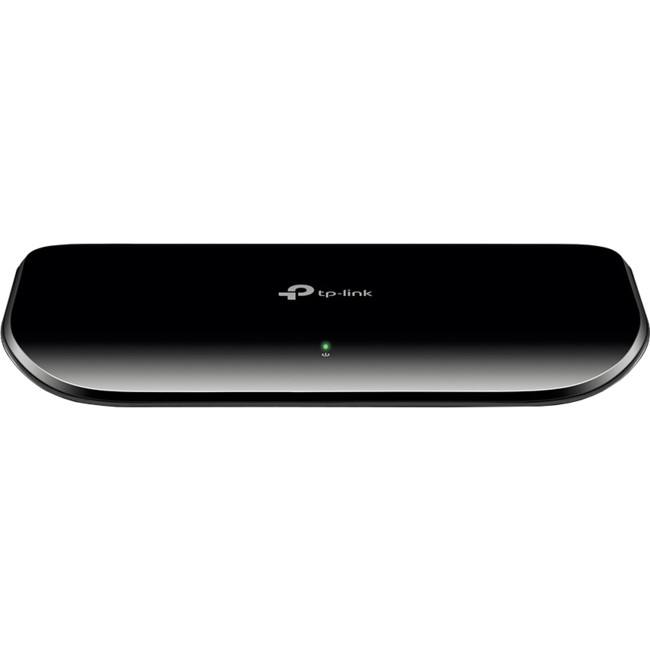

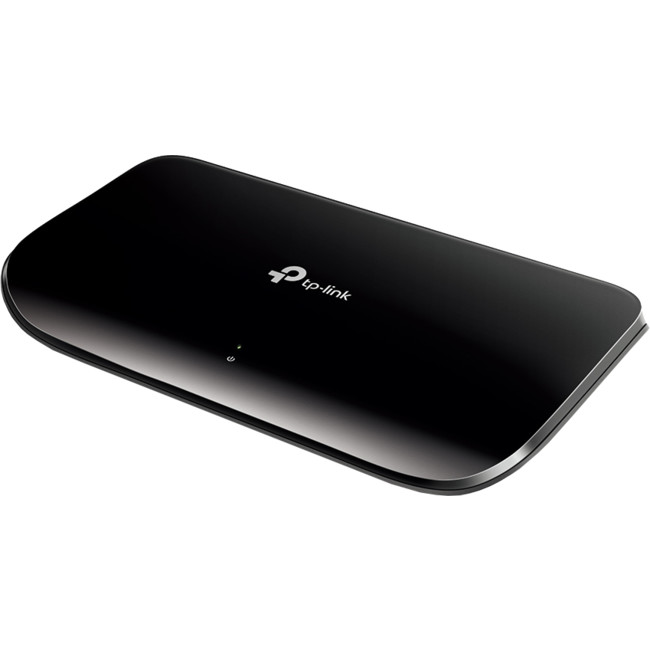

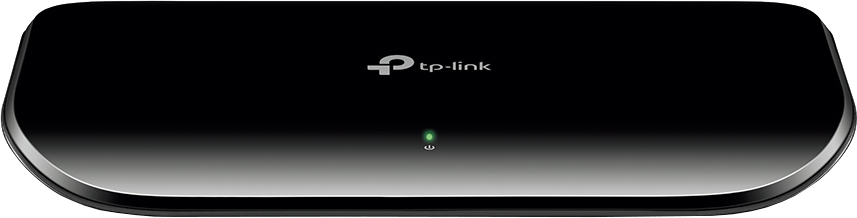

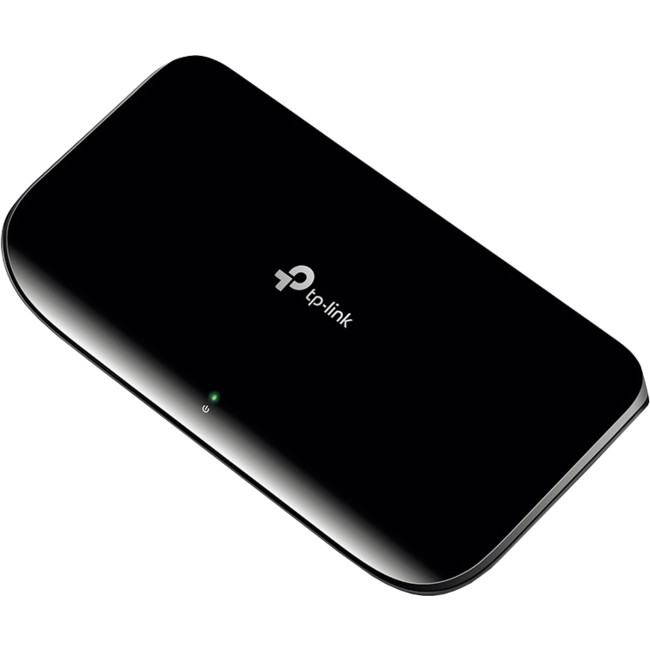

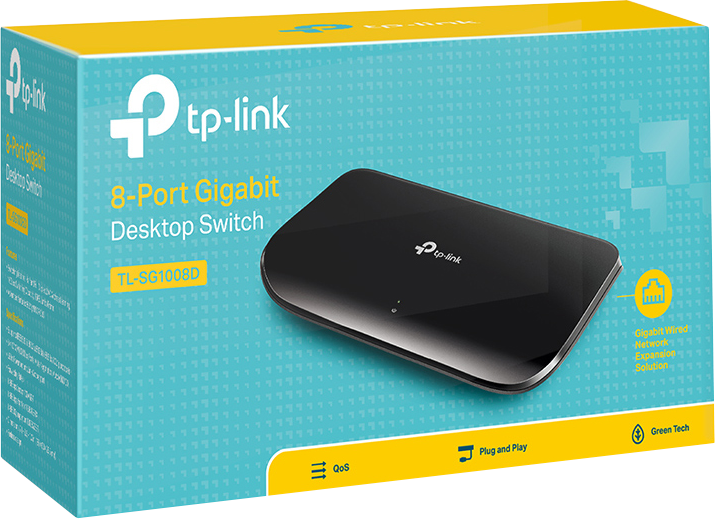

TP-LINK TLSG1008D 8-port 10/100/1000M Gigabit Ethernet Desktop Switch

8-port 10/100/1000M Gigabit Ethernet Desktop Switch Supports MAC address self-learning and auto MDI/MDIX.

The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

  • Fully Complies with IEEE802.3, 802.3u and 802.3ab standards

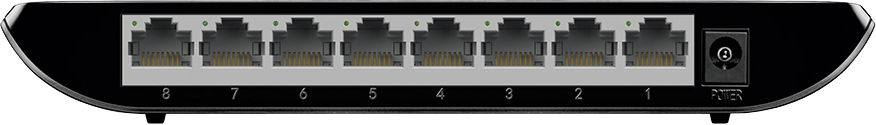

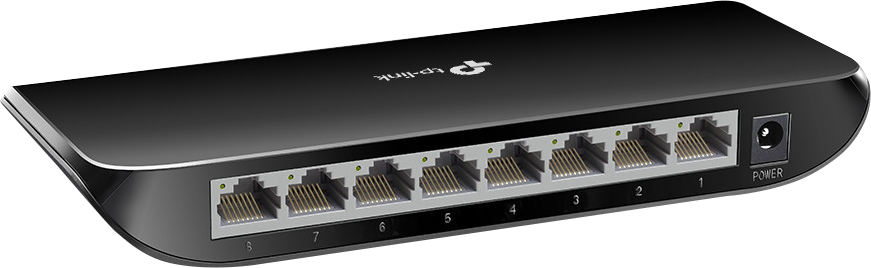

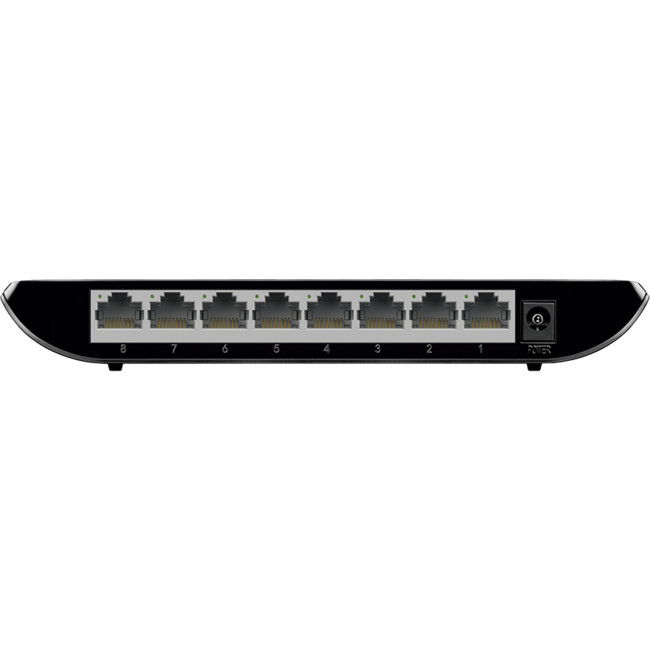

  • 8 × 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Supports IEEE802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • Plastic case, desktop or wall-mounting design
  • External power adapter supply

Specifications


Standards and Protocols
  • IEEE802.3, 802.3u, 802.3ab, 802.3x
  • CSMA/CD, TCP/IP
Basic Functions
  • Wire-speed Performance
  • MAC Address Auto-Learning and Auto-aging
  • IEEE802.3x flow control for Full-Duplex Mode and back pressure for Half-Duplex Mode
Backbound Bandwidth 16Gbps
MAC Address Table 4k
Forwarding Rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
  • 1000BASE-T: 1488000pps/port
Transmission Method Store-and-Forward

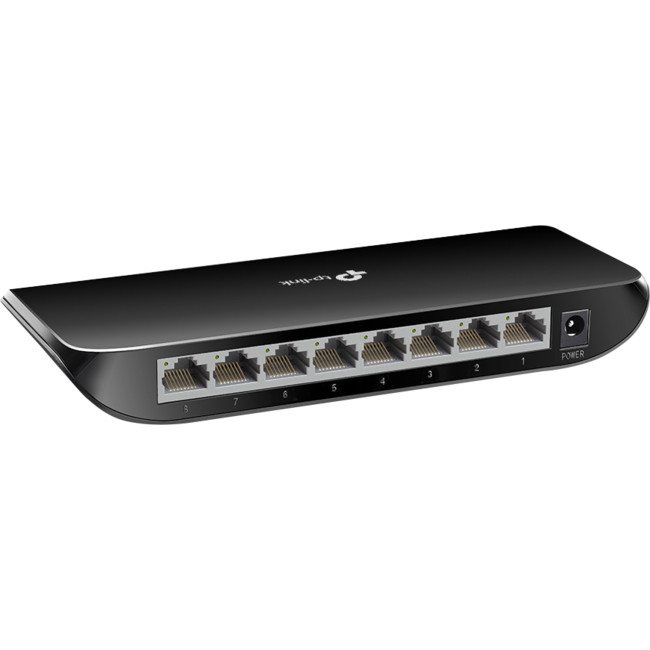

Ports 8 × 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
  • 10Base-T: UTP category 3,4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators Power, 10/100M, 1000M
Safety & Emission FCC, CE
Dimensions (W×D×H) 200mm × 140mm × 28mm (7.9″ × 5.5″ × 1.1″)
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: −40°C~70°C (−40°F~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Power External Power Adapter
