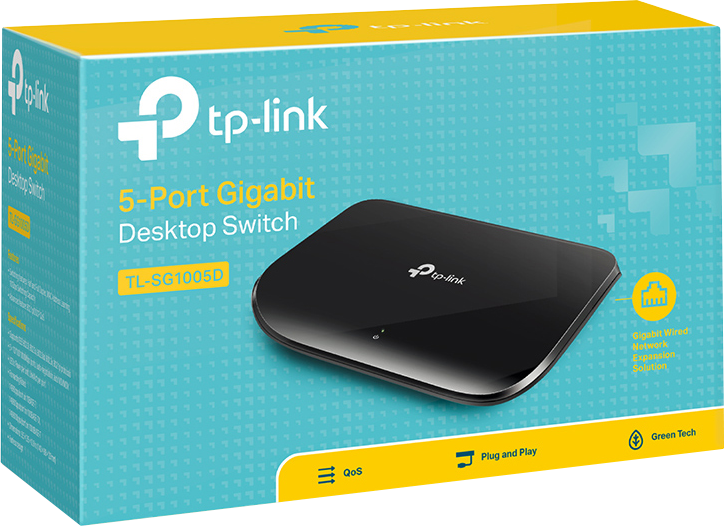

TLSG1005D 5 PORT ETHERNET GIGABIT SWITCH

WITH 10/100/1000M MINI DESKTOP

Code: 09051073

0.4200 kg
6935364091798
EACH
40
In Stock
$19 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

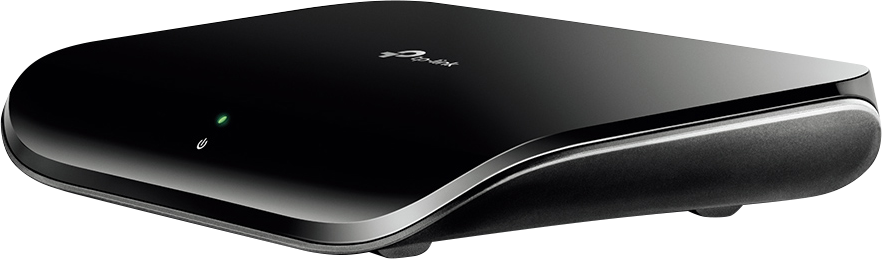

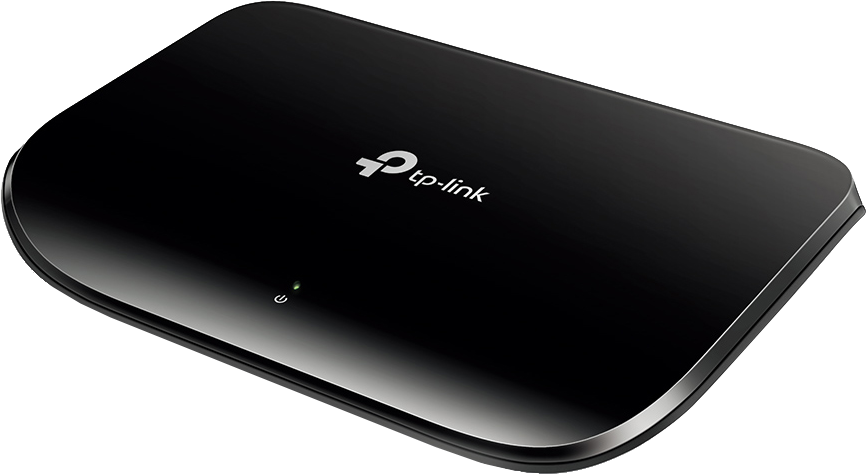

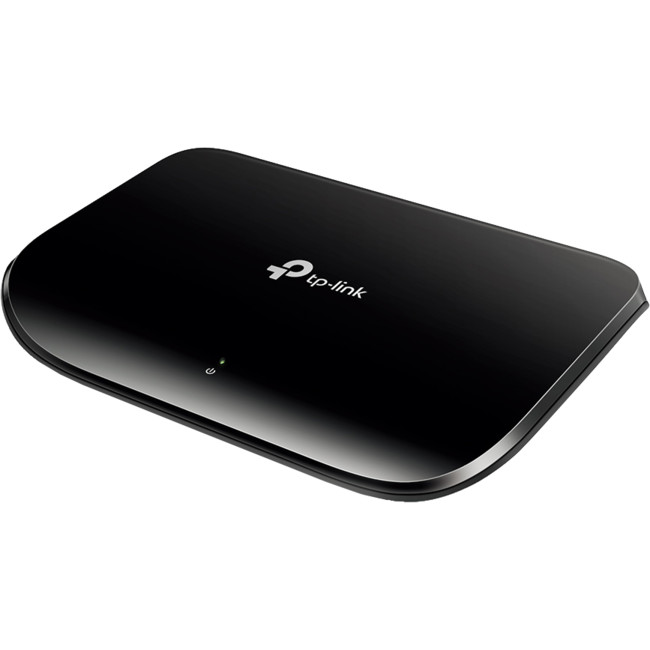

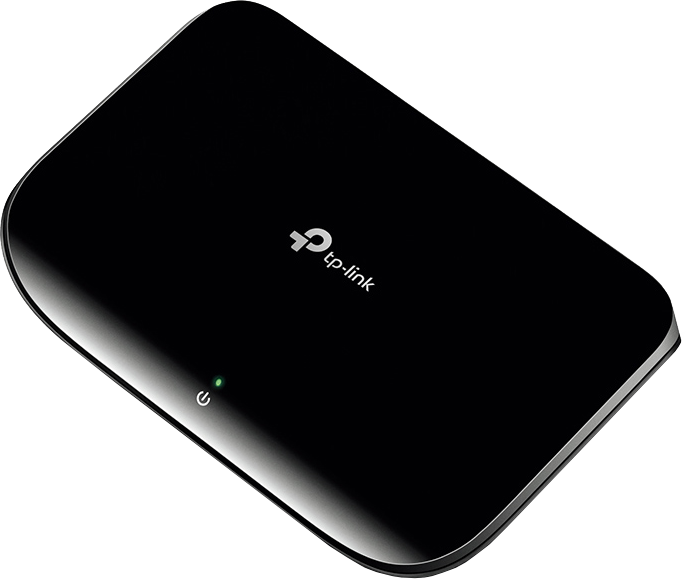

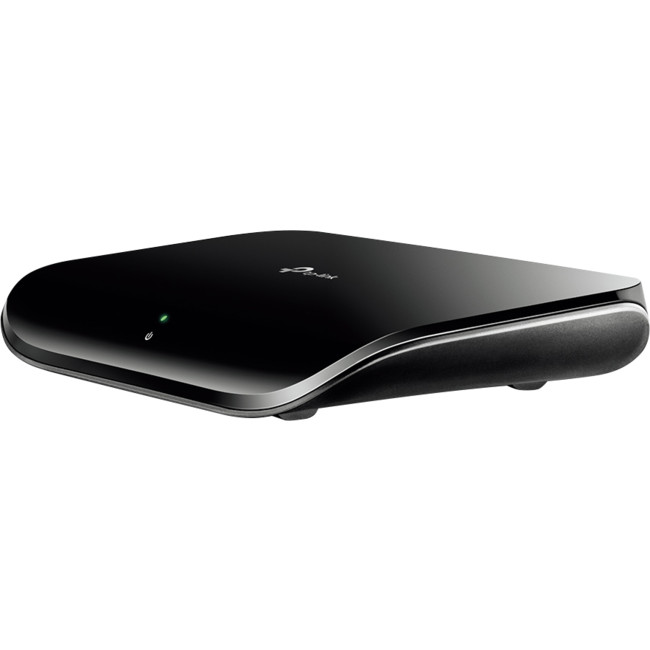

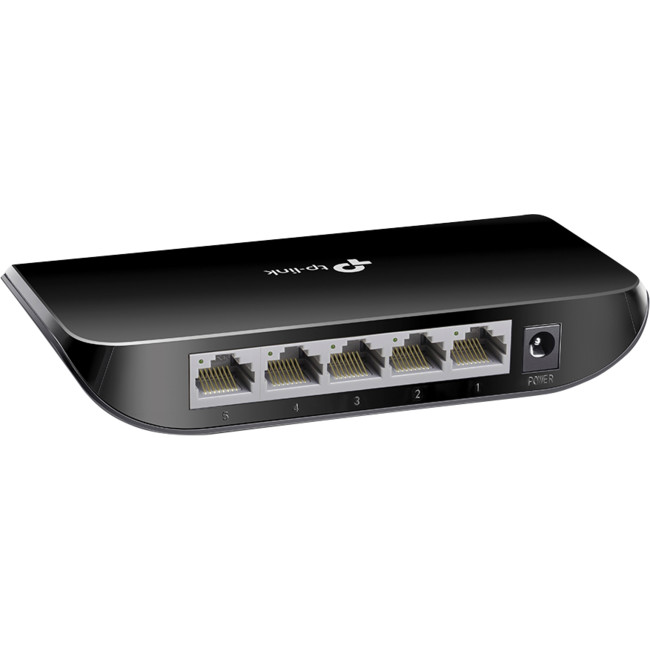

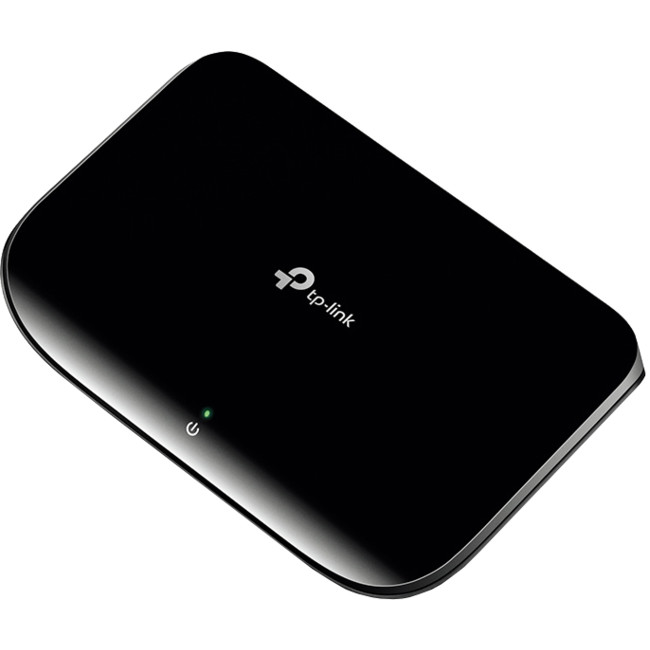

TLSG1005D TP-LINK 5-port 10/100/1000M Gigabit Ethernet Desktop Switch

Green Ethernet technology, saves power and cost. 5 × 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto-MDI/MDIX)

The TL-SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

TL-SG1005D adopts Green Ethernet technology. It can automatically power down ports that have no link, and budget power output for different cable length. With Green Ethernet technology, TL-SG1005D can help you save power and network cost.


Features

  • Adopts Green Ethernet technology, saving power and cost
  • Supports IEEE 802.3x flow control for Full-Duplex mode and backpressure for Half-Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Supports MAC address auto-learning and auto-aging
  • Plastic case, desktop or wall-mounting design
  • External power adapter supply

SPECIFICATIONS


Standards and Protocols
  • IEEE802.3, 802.3u, 802.3ab,802.3x
  • CSMA/CD, TCP/IP
Basic Function
  • Wire-speed Performance
  • MAC Address Auto-Learning and Auto-aging
  • IEEE802.3x flow control forFull-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth 10Gbps
MAC Address Table 1k
Forwarding Rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
  • 1000BASE-T: 1488000pps/port
Transmission Method Store-and-Forward

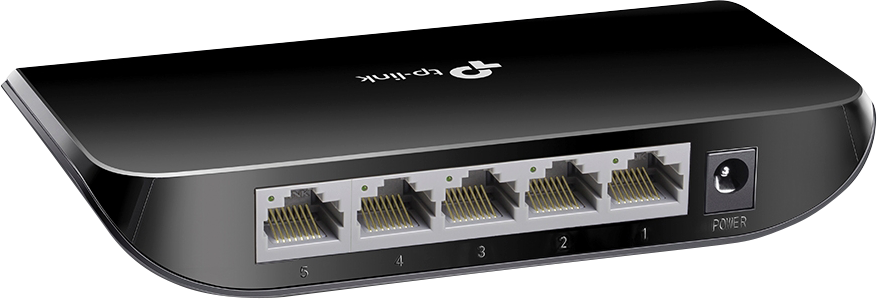

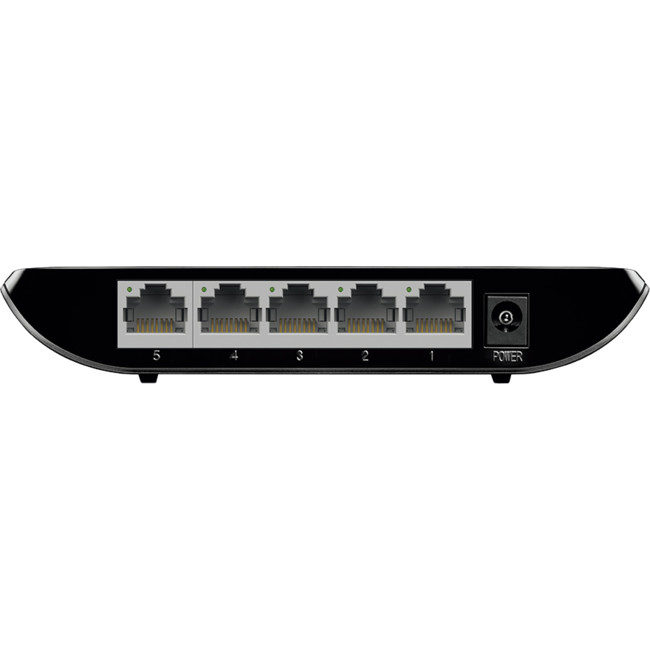

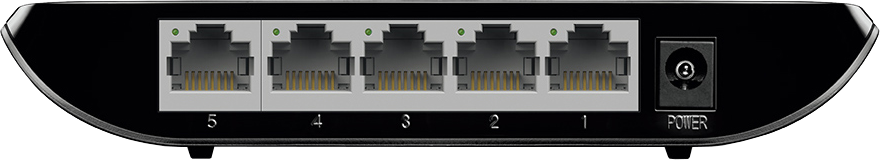

Ports 5 × 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX
Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators Power, Link/Act (100m, 1000m)
Safety & Emission FCC, CE
Dimensions (W×D×H) 165mm × 108mm × 28mm (6.5″ × 4.3″ × 1.1″)
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: −40°C~70°C (−40°F~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Power External Power Adapter (Output: 9V DC / 0.6A)
