TLPOE10R POE SPLITTER 100MT RANGE

OMADA

Code: 09051063

0.2330 kg
6935364030490
EACH
30
Low Stock
$17 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

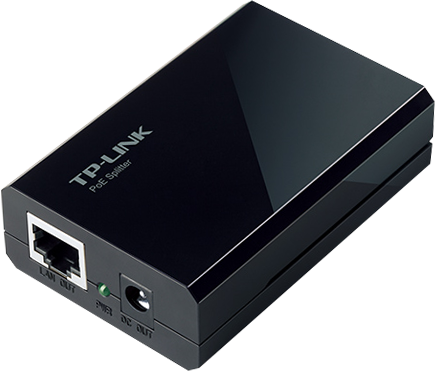

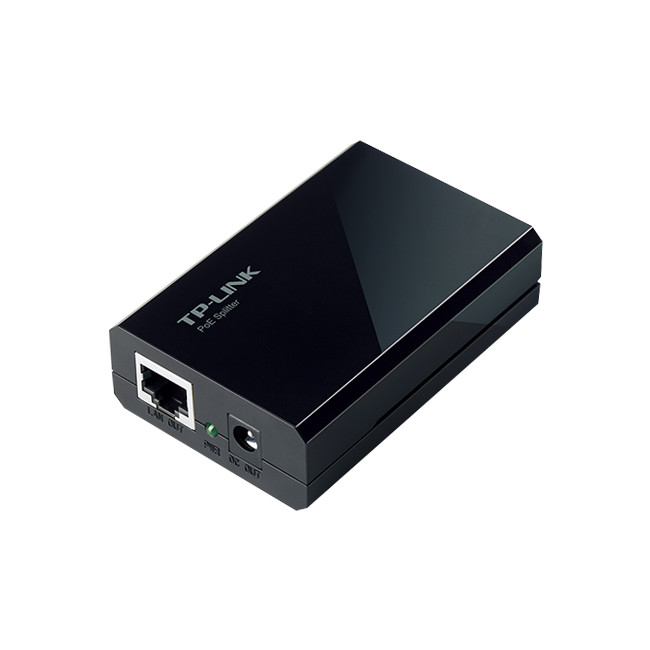

TL-POE10R TP-LINK PoE Receiver Adapter

The PoE Receiver Adapter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK’s TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V or 5V Direct Current to where there are no power line or outlet, where you wish to fix a non-POE compliant device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Delivers power over 100 meters

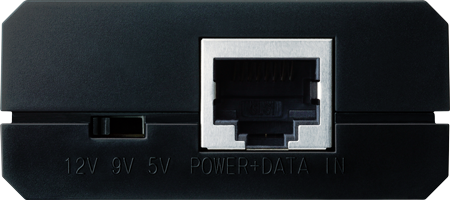

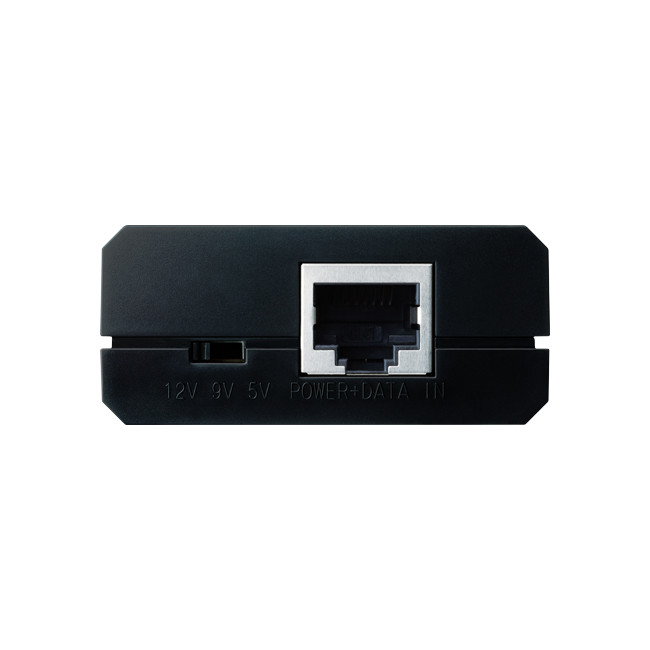

  • Can switch between 12V DC or 5V DC power supply output
  • Plug-and-Play, requires no configuration

Specifications


Standards and Protocols
  • IEEE 802.3, 802.3u, 802.3af
  • CSMA/CD, TCP/IP
Basic Function
  • Compatible with IEEE 802.3af compliant PSEs
  • Delivers power up to 100 meters
  • Optional 12VDC or 5VDC power supply
  • Plug-and-Play
Ports LAN Port
  • 1 × 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
PoE Port
  • 1 × 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicator PWR
Safety & Emission FCC, CE
Dimensions (W×D×H) 81mm × 52mm × 24mm (3.2″ × 2.0″ × 0.9″)
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: −40°C~70°C (−40°F~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Power Output 12W (12V DC) or 11.5W (5V DC)
DATA SHEET Compressed file
USER GUIDE PDF file
