TLPOE150S TP-LINK POE LINE INJECTOR

48VDC OMADA

Code: 09051060

0.3270 kg
6935364030506
EACH
30
In Stock
$25 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

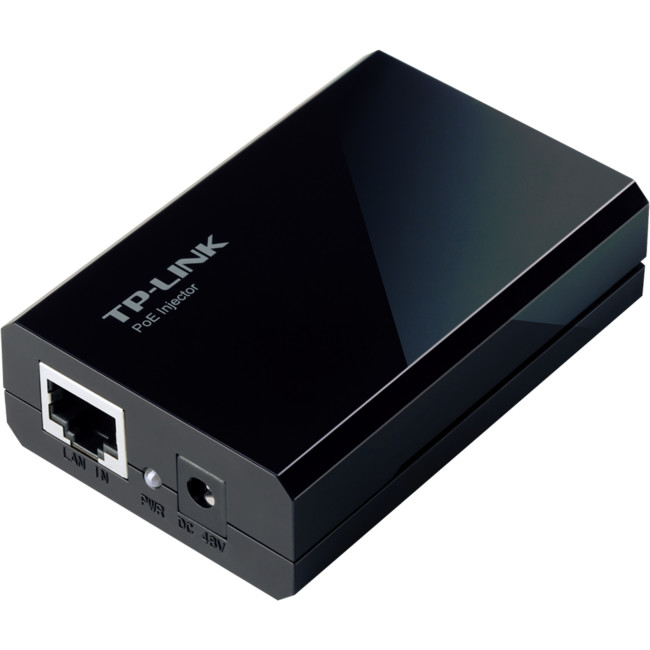

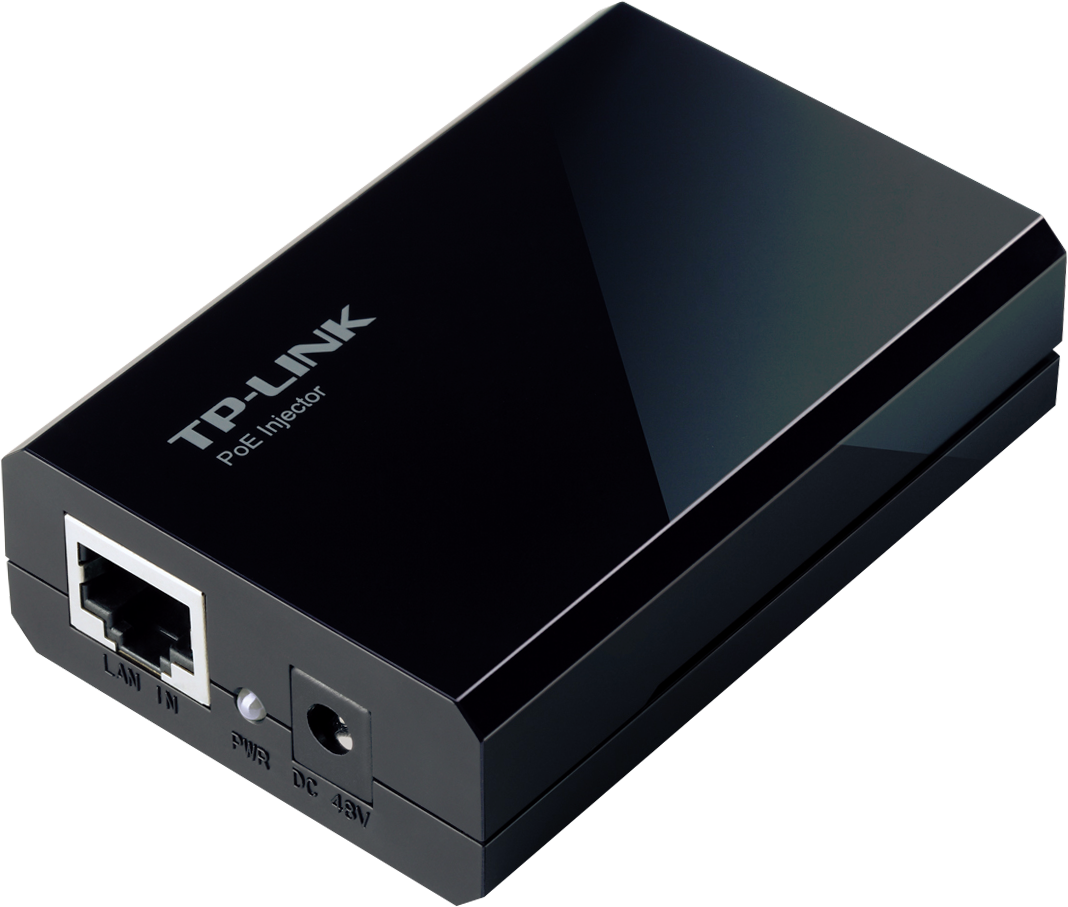

TL-POE150S TP-LINK PoE Injector / Sender Adapter

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Auto-determine the necessary power requirements
  • Plug-and-Play, requires no configuration
  • Delivers power up to 100 meters
  • External power adapter supply

SPECIFICATIONS


Standards and Protocols
  • IEEE 802.3, 802.3u, 802.3af
  • CSMA/CD, TCP/IP
Basic Function
  • Compatible with IEEE 802.3af compliant PDs
  • Delivers power up to 100 meters
  • Auto-determine the necessary power requirements
  • Plug-and-Play

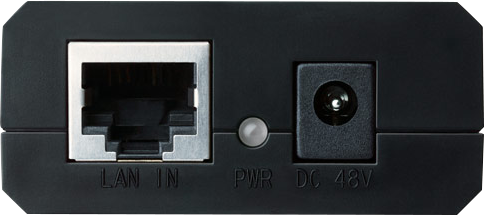

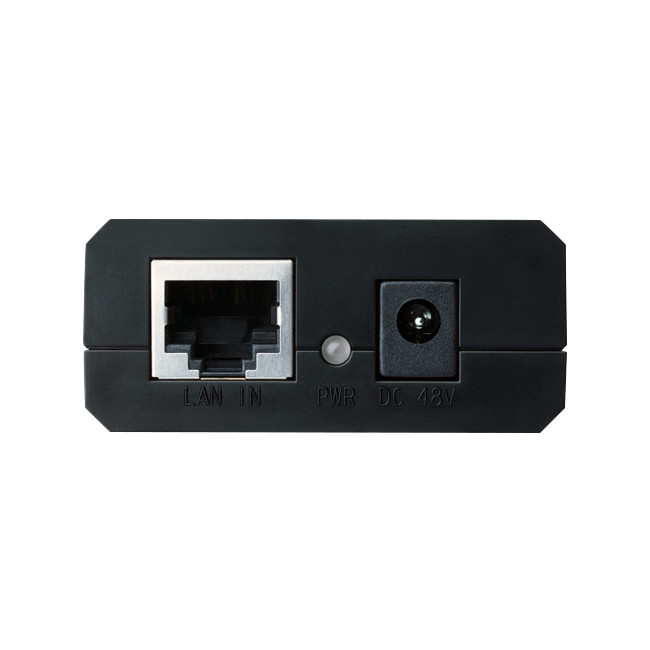

PortsLAN Port
  • 1 × 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)

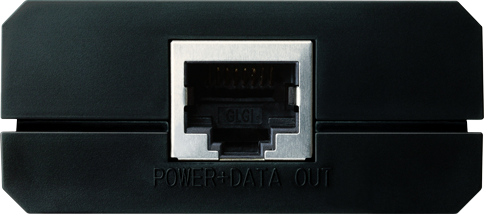

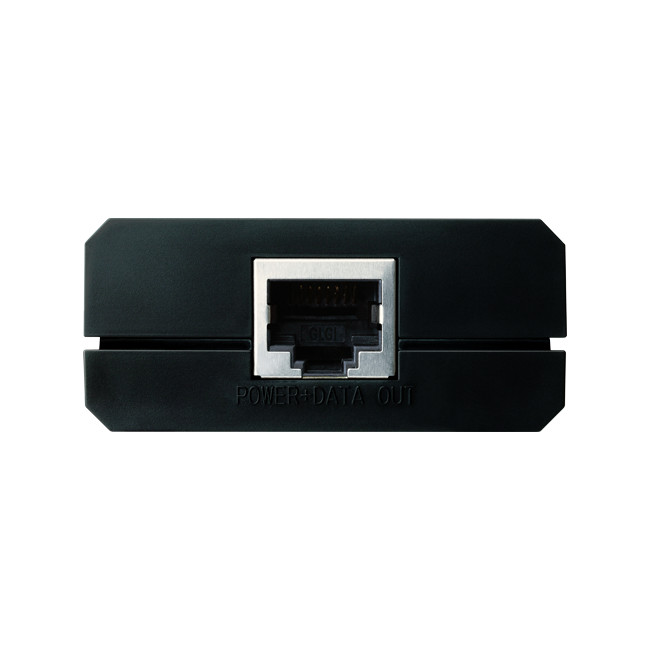

PoE Port
  • 1 × 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
LED IndicatorPWR
Safety & EmissionFCC, CE
Dimensions (W×D×H)81mm × 52mm × 24mm (3.2″ × 2.0″ × 0.9″)
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Power Output15.4W (Max. 48V DC)
