TLSF1024 24 PORT ETHERNET SWITCH / HUB

DESK MOUNT 10/100M TP-LINK

Code: 09051056

2.38 kg
6935364021474
EACH
6
Low Stock
$89 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

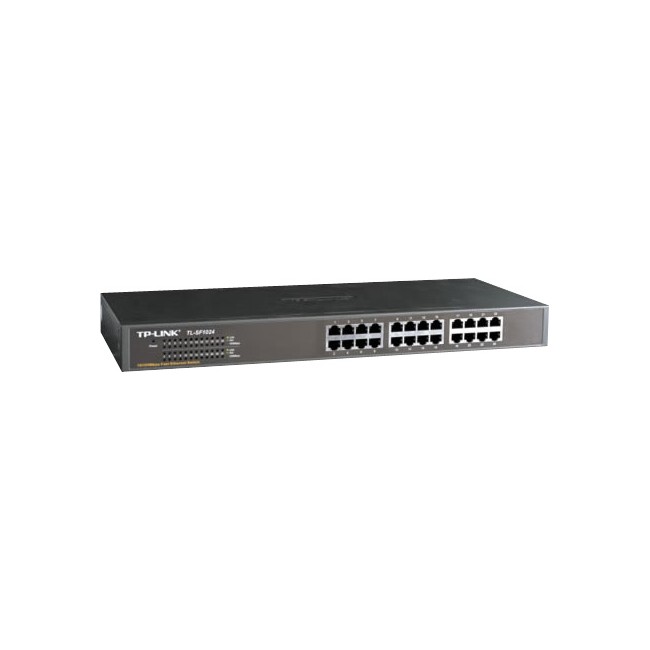

TL-SF1024 TP-LINK 24-port Unmanaged 10/100M Rackmount Switch

TL-SF1024 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub's collision phenomenon downgrading the performance. All ports can be the uplink (cascade) port which is provided to link to another Switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.


FEATURES

  • 24 × 10/100M RJ45 ports.
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging (MDI/MDIX)
  • LED indicators for monitoring power, link, activity, 100Mbps
  • Standard 19″ rack-mountable steel case
  • Internal universal power supply

SPECIFICATIONS


Standards and ProtocolsIEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
  • Wire-speed Performance
  • MAC Address Auto-Learning and Auto-aging
  • IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Back Bound Bandwidth4.8Gbps
MAC Address Table8k
Forwarding Rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
Transmission MethodStore-and-Forward
Ports24 × 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
LED IndicatorsPower, Link/Act, 100Mbps
Safety & EmissionFCC, CE
Dimensions (W×D×H)440mm × 180mm × 44mm (17.3″ × 7.1″ × 1.7″)
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: −40°C~70°C (−40°F~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Power100-240V AC, 50/60Hz
