TLSF1016DS 16 PORT ETHERNET SWITCH / HUB

RACK MOUNT 10/100M TP-LINK

Code: 09051054

1.92 kg
6935364021535
EACH
8
Low Stock
$64 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

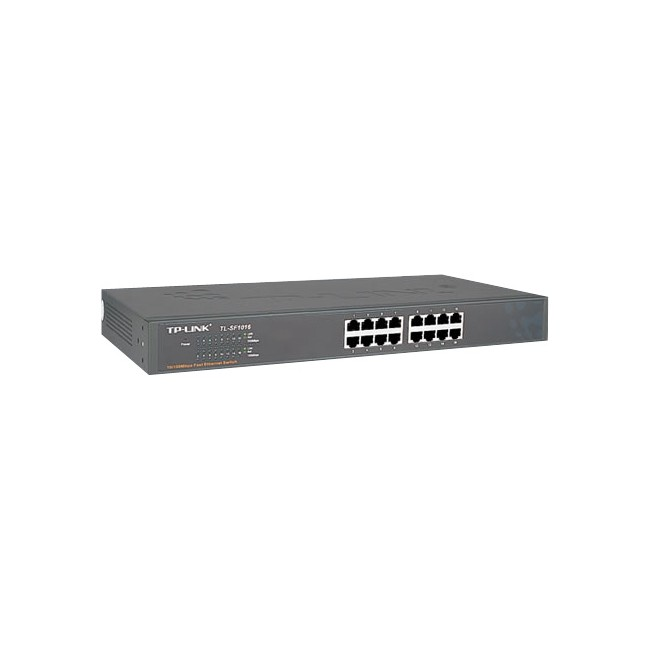

TL-SF1016 TP-LINK 16-port Unmanaged 10/100M Rackmount Switch

The TL-SF1016 16-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. The rack-mount size metal case design combined witha safety certified internal power supply make the Switch themost robust product which is very cost-effective for a less than 16 user environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example)with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub’s collision phenomenon downgrading the performance. All ports can be the uplink (cascade) port which is provided to link to another switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount


FEATURES

  • 16 × 10/100M RJ45 ports.
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging (MDI/MDIX)
  • LED indicators for monitoring power, link, activity, 100Mbps
  • Standard 19″ rack-mountable steel case
  • Internal universal power supply

SPECIFICATIONS

Standards and ProtocolsIEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Functions
  • Wire-speed Performance
  • MAC Address Auto-Learning and Auto-aging
  • IEEE802.3x flow control forFull-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth3.2Gbps
MAC Address Table8k
Forwarding Rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
Transmission MethodStore-and-Forward
Ports16 × 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
LED IndicatorsPower, Link/Act, 100Mbps
Safety & EmissionFCC, CE
Dimensions (W×D×H)11.6″ × 7.1″ × 1.7″ (294mm × 180mm × 44mm)
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Power100-240V AC, 50/60Hz
