TLSF1008D 8 PORT ETHERNET SWITCH / HUB

DESKTOP 10/100M TP-LINK

Code: 09051050

0.3110 kg
6935364020071
EACH
60
In Stock
$16 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

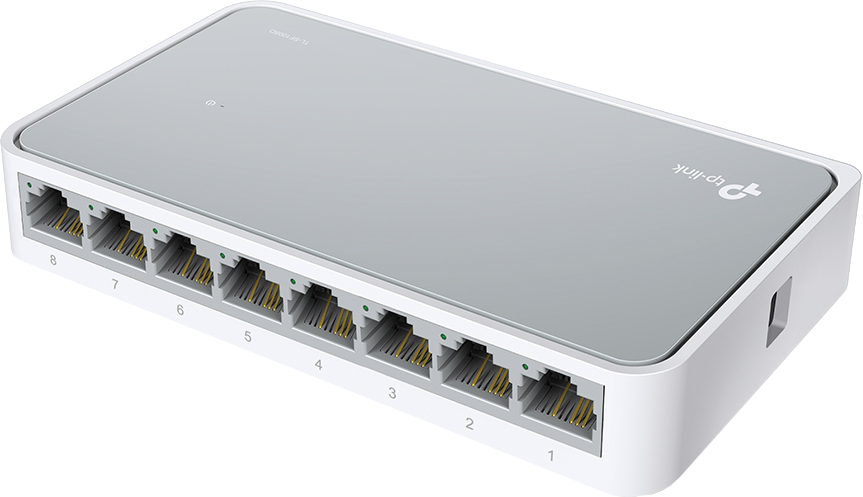

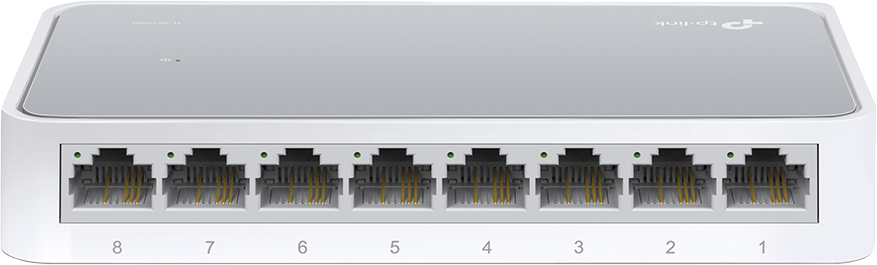

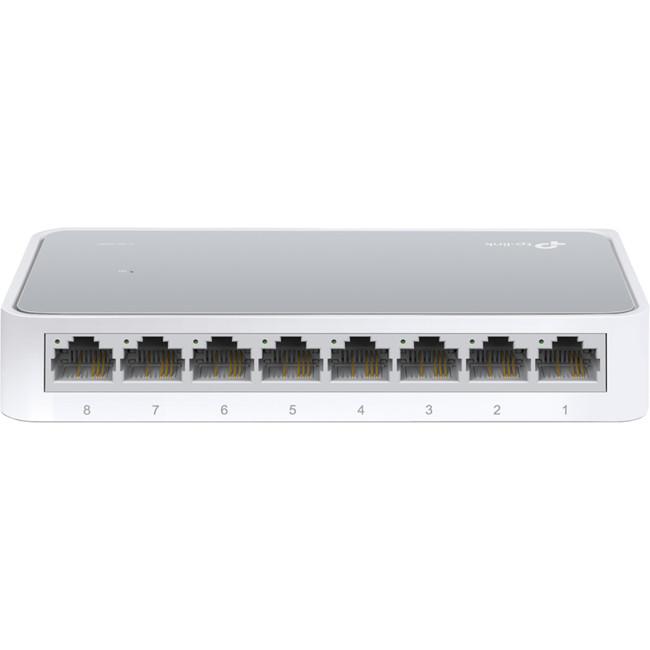

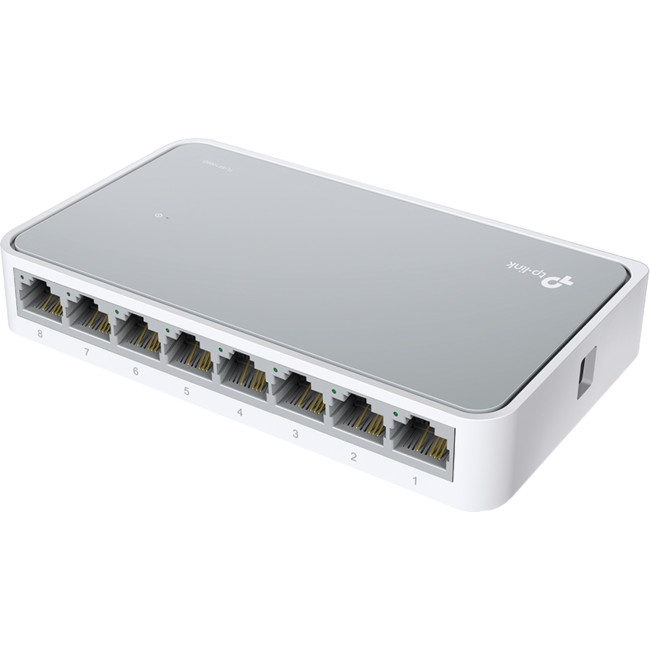

TL-SF1008D TP-LINK 8-port Unmanaged 10/100M Desktop Switch

TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The TP-LINK TL-SF1008D 8-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast asthe speed that your network delivers those packets to them.


FEATURES

  • Complies with IEEE 802.3, IEEE 802.3u standards
  • 8 × 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Supports IEEE 802.3x flow control for Full Duplex modeand backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • Plastic case, desktop or wall-mounting design
  • External Power Adapter supply

SPECIFICATIONS


Standards and ProtocolsIEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
  • Wire-speed Performance
  • MAC Address Auto-Learning and Auto-aging
  • IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth1.6Gbps
MAC Address Table1k
Forwarding Rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
Transmission MethodStore-and-Forward
Ports8 × 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
LED IndicatorsPower, Link/Act (1, 2, 3, 4, 5)
Safety & EmissionFCC, CE
Dimensions (W*D*H)5.5*3.4*1.1 in. (140*87*27.5 mm)
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
PowerExternal Power Adapter
