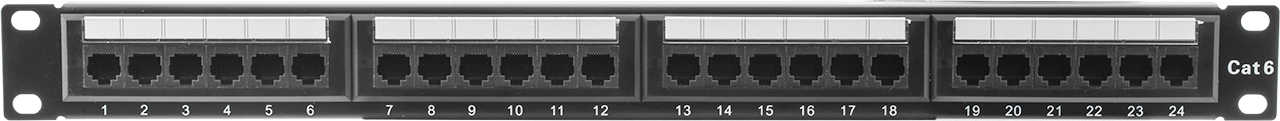

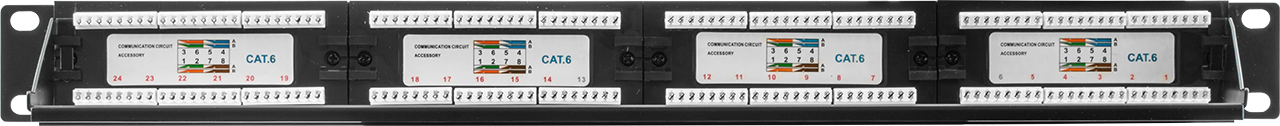

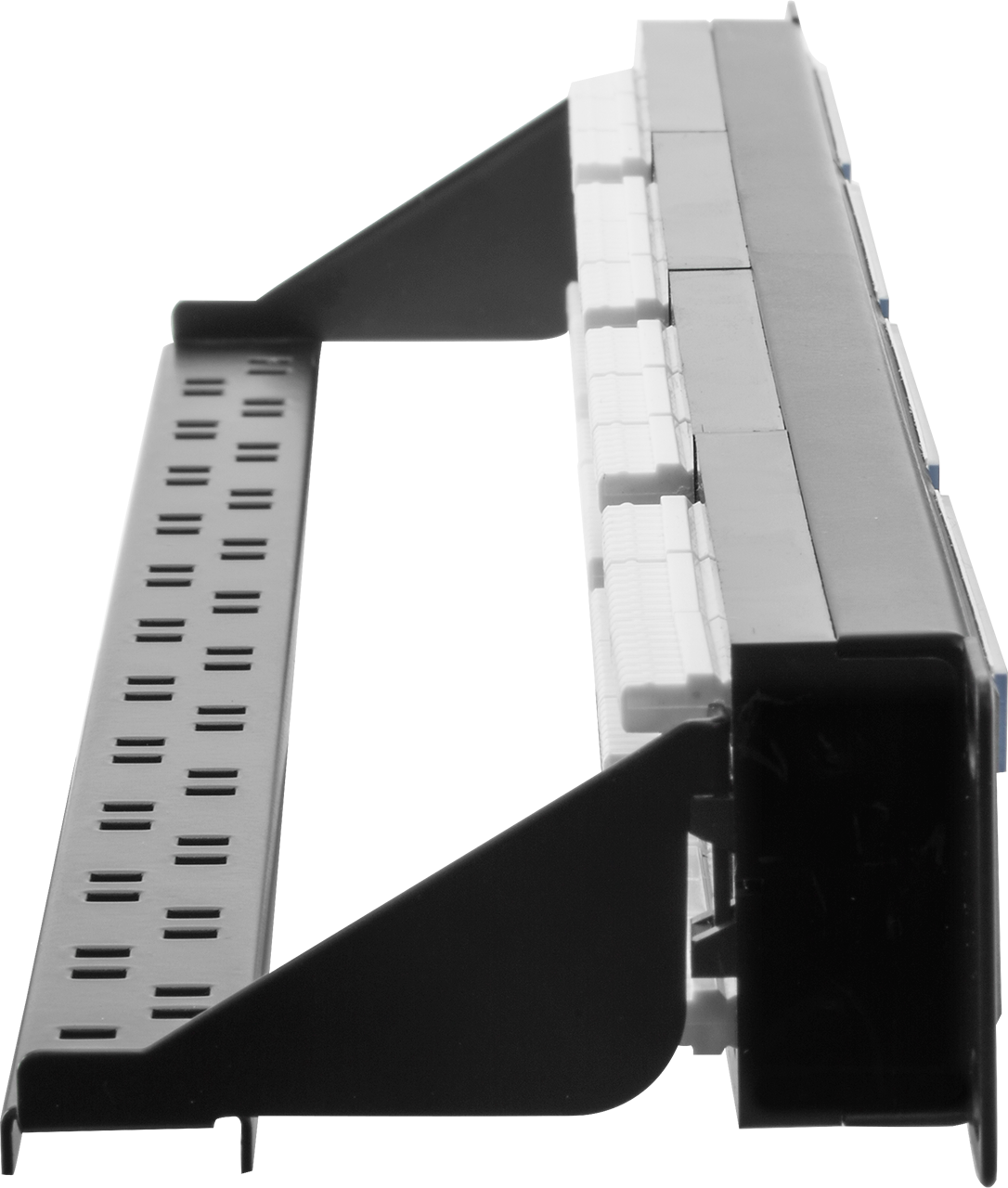

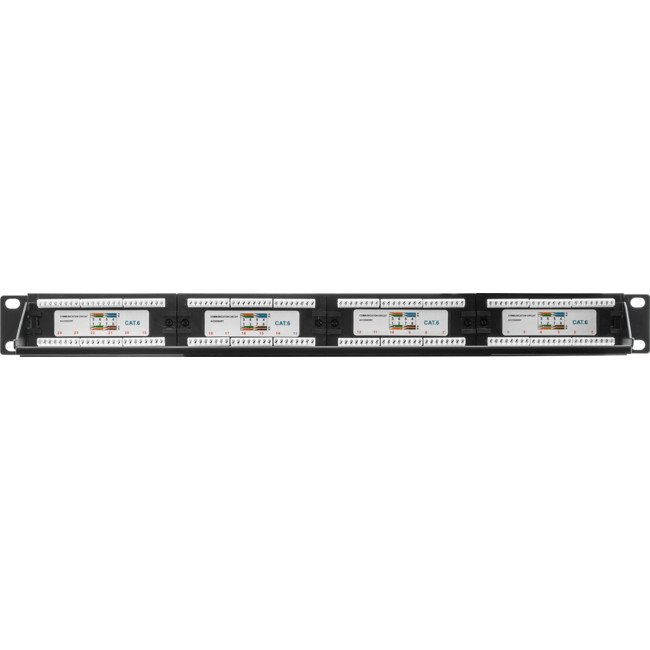

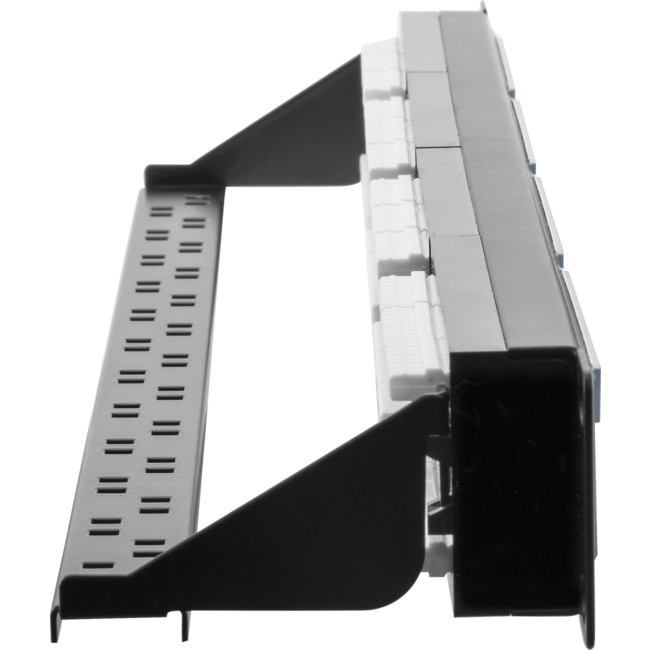

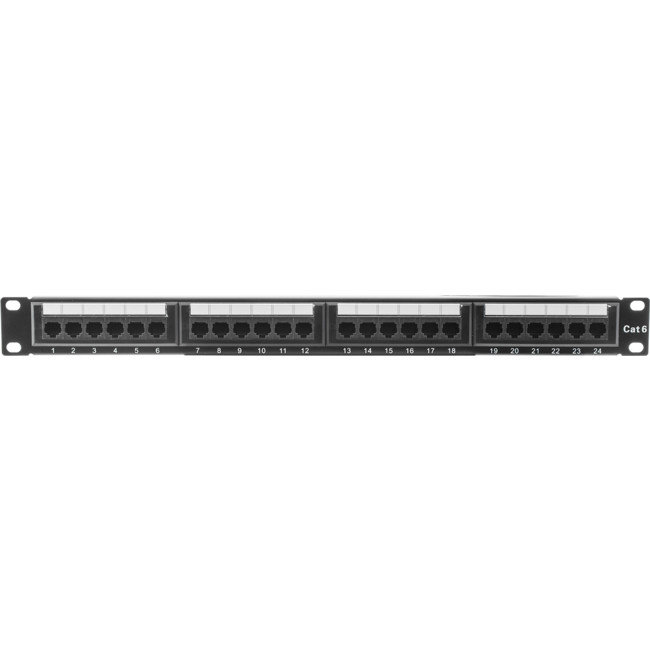

PPC624 24 PORT CAT6 PATCH PANEL

TE TECH

Code: 09009635

0.7700 kg
9312663124919
EACH
Low Stock
$69.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

CAT6 METAL PATCH PANEL

FEATURES:

  • Patch panel case, metal 1U
  • RJ45 Jack
    • Body: PC UL94V-0 rated.
    • Colour: Black, other colours available MOQ
    • Contacts: Phophor Bronze,
    • 50u” Gold plated over Nickel plated in contact area.
    • Tin-lead over Nickel in solder area.
  • Connector:
    • 110 connector body: PC UL94V-0
    • Colour: Ivory
    • Contact: Phosphor Bronze with Tin plated
  • P.C. board: FR4, 1.6mm double side, UL94V-0
  • Operation temperature: 0˚ to 80˚C
  • Insertion force: 900gms for 8 contacts
  • Retention strength: 7.7kgs between jack and plug
  • Durability: 750 cycles contact resistance test check every 100 cycles. Insertion cycles at 20 cycles/minute max.
  • Certificates: ETL verify, UL listed, ANSI/TIA/EIA-568-B.2 SO/IEC 11081 class E, FCC
