2-Port USB 2.0 HDMI KVMP™ Switch- ATEN

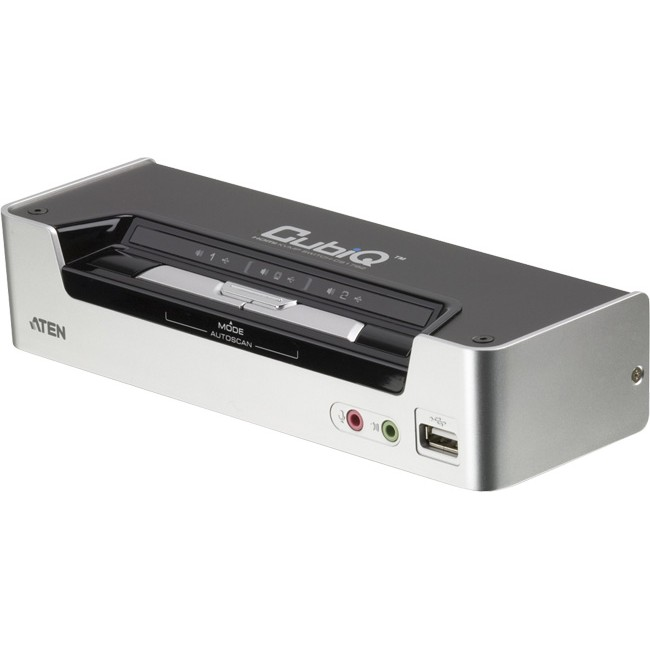

With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimediaSOHO environment.
Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from asingle console. The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the home or office, the CubiQ™ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
FEATURES:
- 2-port HDMI USB 2.0 KVMP™ Switch
- One USB console controls two HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with theUSB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI 1.3a; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
* 2. Mac keyboards only work with their own computers
Package Content:
- 1x CS1792 USB 2.0 HDMI KVMP™ Switch
- 2x Custom HDMI KVM Cable Sets
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x USB-to-PS/2 Converter
- 1x User Manual
- 1x Quick Start Guide
SPECIFICATIONS:
| Computer Connections | 2 |
| Port Selection | Front Panel Pushbuttons; Hotkeys |
| Connectors | Console
Ports | Keyboard | 1 x USB Type AFemale
(Black; rear panel) |
| Video | 1 x HDMI Type A Female (Black) |
| Mouse | 1 x USB Type AFemale
(Black; rear panel) |
| Speaker | 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) |
| Mic. | 2 x Mini Stereo Jack Female
(Pink; 1 x front, 1 x rear) |
KVM
Ports | Keyboard / Mouse | 2 x USB Type BFemale (White) |
| Video | 2 x HDMI Type A Female (Black) |
| Speaker | 2 x Mini Stereo Jack Female (Green) |
| Mic. | 2 x Mini Stereo Jack Female (Pink) |
| F/W Upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
| Power | 1 x DC Jack |
| USB 2.0 Hub | 2 x USB Type AFemale
(White; 1 x front panel; 1 x rear panel) |
| Switches | Selected | 3 x Pushbutton |
| LEDs | Audio | 3 (Green) |
| KVM | 3 (Orange) |
| USB | 3 (Green) |
| Emulation | Keyboard/Mouse | USB |
| Video | 1080p (HDTV) / 1920 x 1200(DVI) |
| Scan Interval | 1-99 secs. (Default: 5 secs) |
| Power Consumption | DC 5.3 V, 3.2 W |
| Environment | Operating Temp. | 0-50￠XC |
| Storage Temp. | -20-60￠XC |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | Housing | Metal, Plastic |
| Weight | 0.42 kg |
Dimensions
(L x W x H) | 20.50 x 7.30 x4.50 cm |
