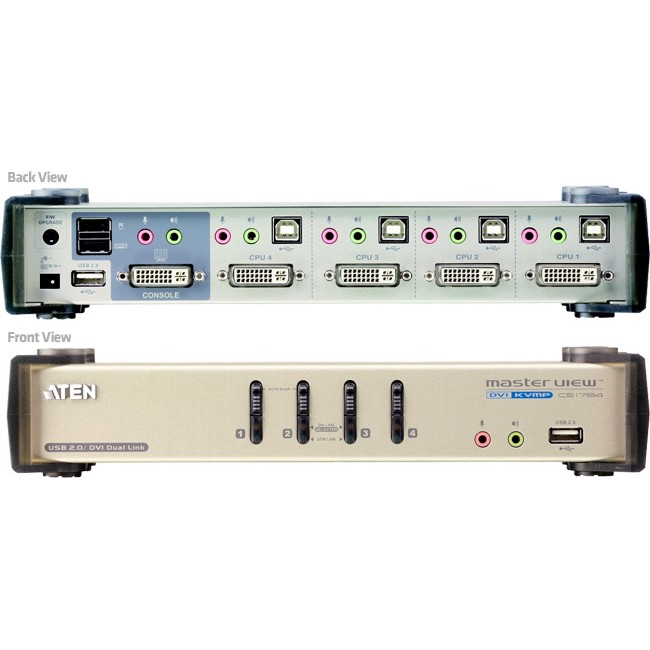

4-Port USB 2.0 DVI KVMP Switch - ATEN
The CS1784 DVI KVMP Switch charts a revolutionary new direction in KVM switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as providing an interface for a DVI monitor and audio support.
FEATURES:
- One USB console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Full bass response provides a rich experience for 2.1channel surround sound systems
- Console audio ports on front panel for easy access ideal for IP phone users
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support fully compliant with the DVI specifications; also HDCP compliant
- Superior video quality - 2560 x 1600 (DVI Dual Link);1920 x 1200; DDC2B (DVI Single Link)*
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons and hotkeys
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- HDCP compliant
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation**
- Auto Scan Mode for monitoring all computers
- Firmware upgradeable
*2560x1600@60Hz (DVI Dual Link);3840x2400@13Hz (DVI Single Link) only supports specific monitor resolution
**1. PC keyboard combinations emulate Sun/Mac keyboards 2. Sun/Mac keyboards only work with their own computers
Package Content:
- 1x USB 2.0 DVI KVMP Switch
- 4x Custom KVM Cable Sets (DVI-D)
- 1x USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x User Manual
- 1x Quick Start Guide
SPECIFICATIONS:
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton |
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (Black) |
| Video | 1 x DVI Female (White) |
| Mouse | 1 x USB Type A Female (Black) |
| Speaker | 2 x Mini Stereo Jack Female (Green) |
| Microphone | 2 x Mini Stereo Jack Female (Pink) |
| Computer Connectors | Video | 4 x DVI Female (White) |
| Keyboard / Mouse | 4 x USB Type B Female (White) |
| Speaker | 4 x Mini Stereo Jack Female (Green) |
| Microphone | 4 x Mini Stereo Jack Female (Pink) |
| USB Hub | 2 x USB Type A Female (White) |
| F/W upgrade | 1 x 4-conductor 3.5mm Jack(Black) |
| Power | 1 x DC Jack |
| Switches | Port | 4 x Pushbutton |
| LEDs | USB Link | 4 (Green) |
| On Line/Selected | 4 (Orange) |
| Emulation | Keyboard/Mouse | USB |
| Video | DVI-D: 2560 x 1600 @60Hz (Dual Link); 1920 x 1200 @60Hz (Single Link)
DVI-A: 2048 x 1536; DDC2B |
| Scan Interval | 1-99 seconds (5 secs. default) |
| Power Consumption | DC5.3V, 9W, 1.7A |
| Environment | Operating Temp. | 0 -50˚C |
| Storage Temp. | -20-60˚C |
| Humidity | 0~80% RH, Non-condensing |
| Physical Properties | Housing | Metal |
| Weight | 0.94 kg |
Dimensions
( L x W x H ) | 27.00 x 8.70 x 5.50 cm |
