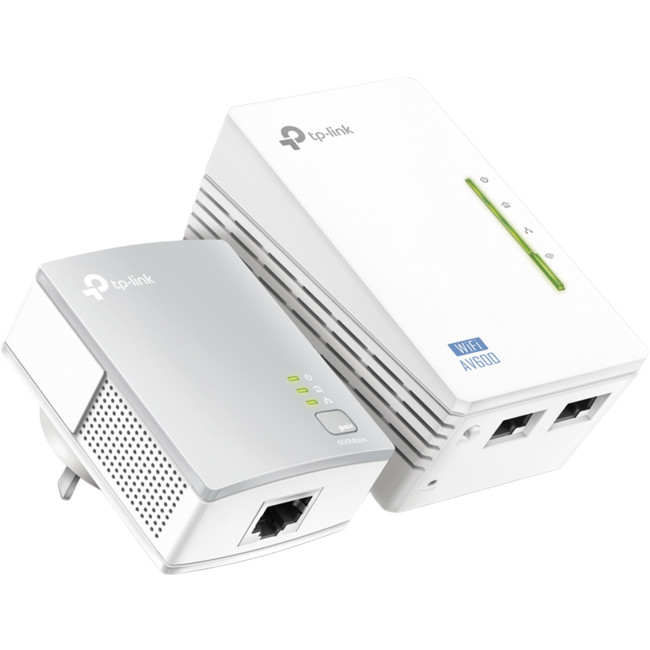

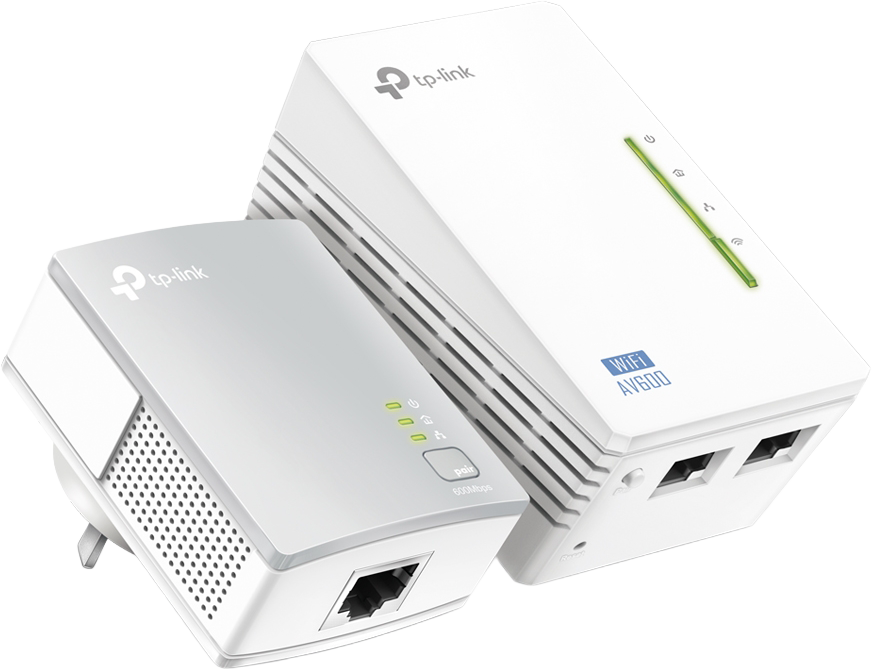

TP-LINK WPA4220KIT WIRELESS POWERLINE EXTENDER
What This Product Does
TP-LINK’s TL-WPA4220 extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.

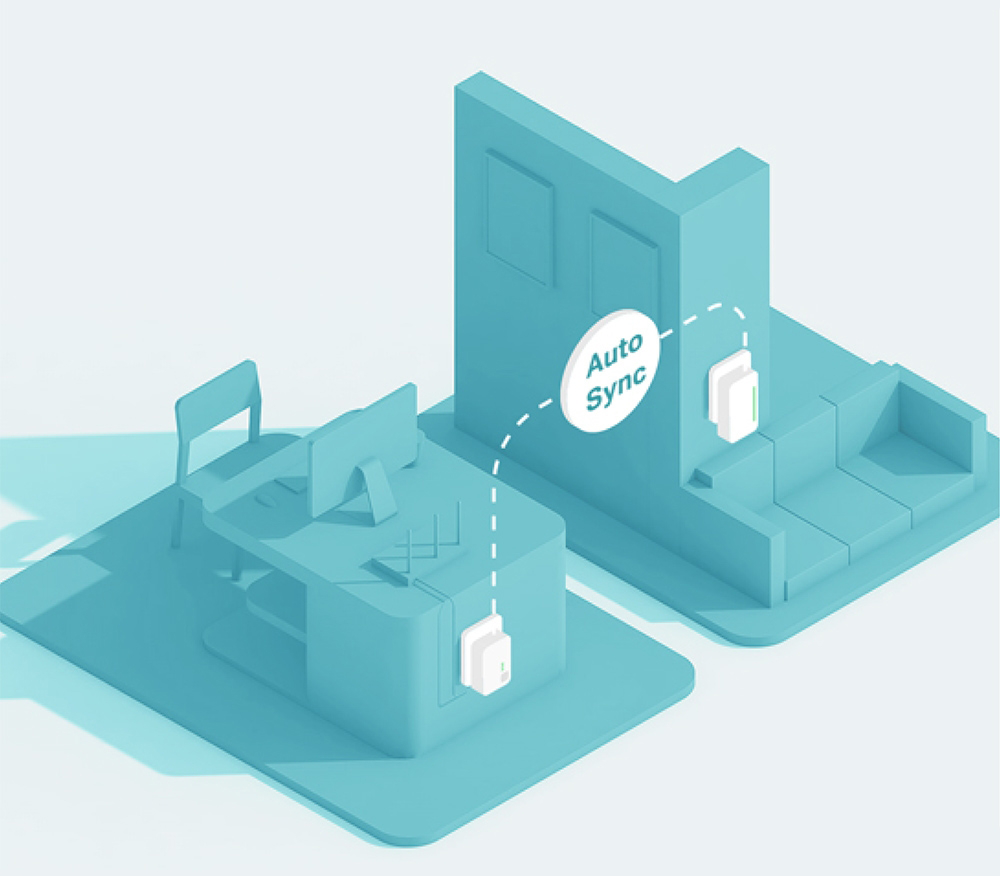

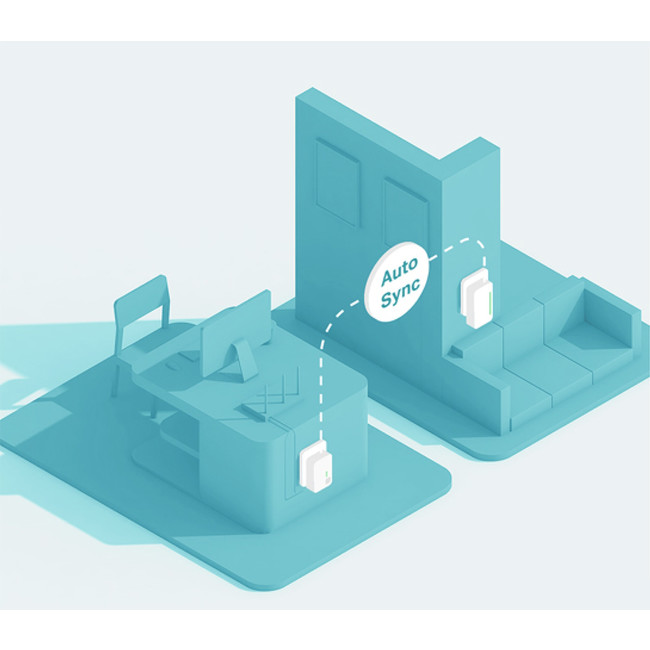

One Touch Super Range Extension
With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.
Up to 600Mbps – Ideal for HD Video Streaming
With advanced HomePlug AV technology, TL-WPA4220 provides you with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices - from computers, game consolesto set-top boxes for IPTV to printers and NAS hard drives.

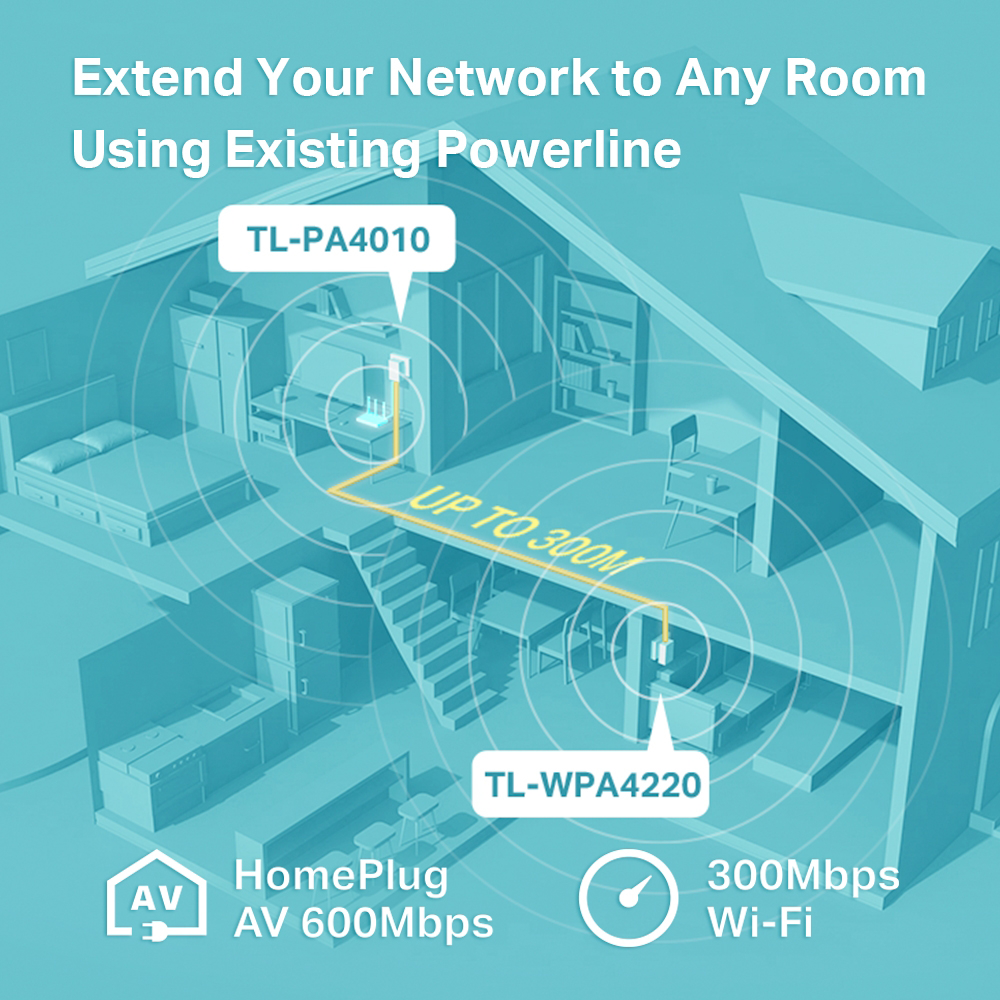

Extend Wi-Fi Coverage to Every Room
With wireless speeds of up to 300Mbps, you can effortlessly extend your WiFi network via the existing powerline and broadcast a wireless signal to share with all your WiFi enabled devices in another area of your home or office.
Plug and Play
You can set up a hassle-free Powerline network within minutes with TP-Link’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilised for securing or managing multiple powerline adapters in your home powerline network.
- Plug one Internet connected adapter into a nearby power outlet
- Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi – and you're done!
*Recommended: Press the pair buttons for network security and data encryption.
Note: Powerline adapters should be deployed on the same circuit and in set of two or more.
Features
- Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 500Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
- Two Ethernet ports allow your TVs, game consoles, orPCs connect to the Internet
- Up to 300-meter range over the household power circuit
- Easy to install, just plug in and play
- 128-bit AES encryption easily at a push of "Pair" Button
- Optimises IPTV applications like Fetch TV, Telstra T-Box, Apple TV, TPG IPTV, Google TV, FOXTEL on Xbox 360 andso on
{tab SPECIFICATIONS}
Specifications

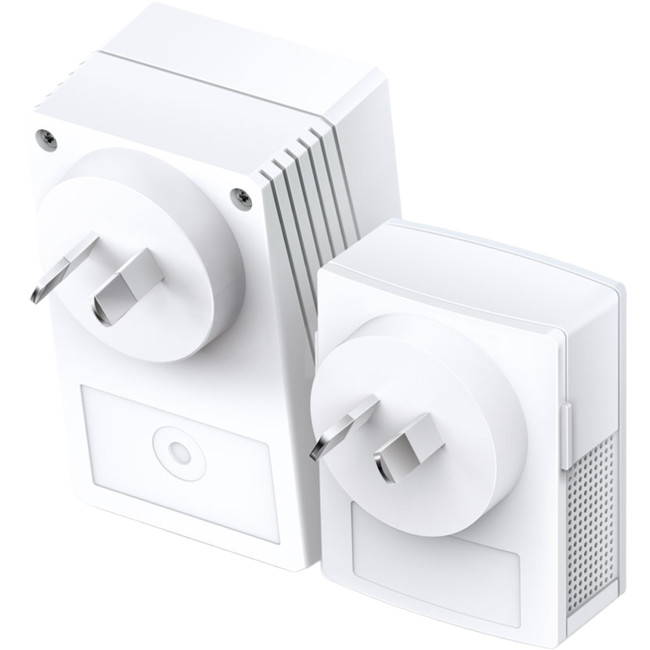

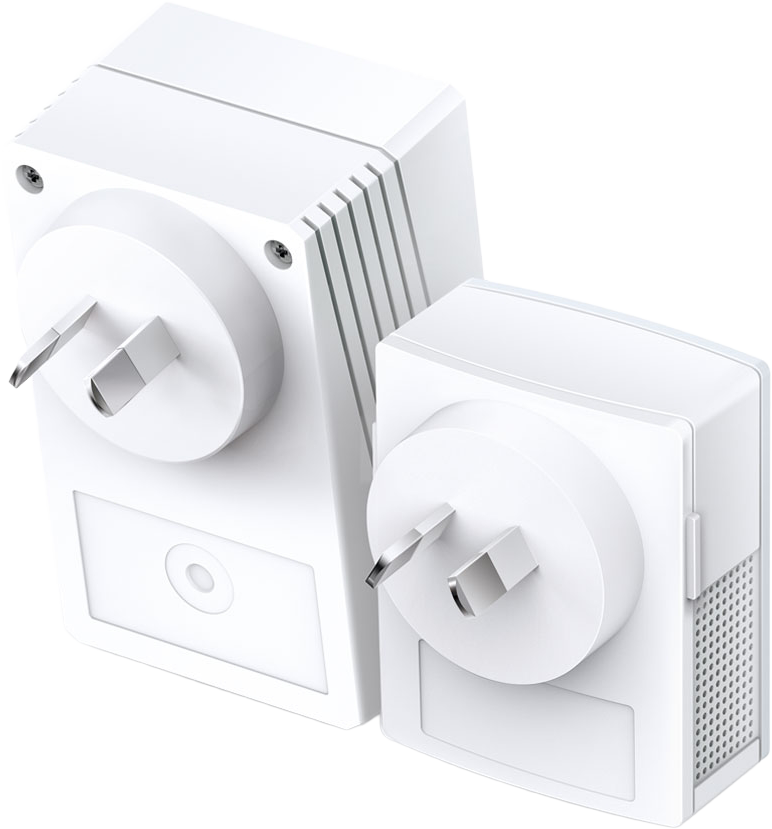

HARDWARE FEATURES | Plug Type | AU |
---|
Standards and Protocols | HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n |
Interface | 2 × 10/100Mbps Ethernet Port |
Button | Pair, Reset, Wi-Fi/Wi-Fi Clone |
Power Consumption | - Maximum: 5.308W (220V/50Hz)
- Typical: 5.086W (220V/50Hz)
- Standby: 4.170W (220V/50Hz)
|
LED Indicator | PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone |
Dimensions (W×D×H) | 94mm × 54mm × 40mm (3.7″ × 2.1″ × 1.6″) |
Range | 300 Meters over electrical circuit |
WIRELESS FEATURES | Frequency | 2.4-2.4835GHz |
---|
Signal Rate | - 11n: Up to 300Mbps (dynamic)
- 11g: Up to 54Mbps (dynamic)
- 11b: Up to 11Mbps (dynamic)
|
Reception Sensitivity | - 270M: −68dBm @ 10% PER
- 130M: −68dBm @ 10% PER
- 108M: −68dBm @ 10% PER
- 54M: −68dBm @ 10% PER
- 11M: −85dBm @ 8% PER
- 6M: −88dBm @ 10% PER
- 1M: −90dBm @ 8% PER
|
Wireless Security | 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
Advanced Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
Transmission Power | - CE: <20dBm (2.4GHz)
- FCC: <30dBm
|
SOFTWARE FEATURES | Modulation Technology | OFDM (PLC) |
---|
Encryption | Powerline Security | 128-bit AES |
---|
Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption |
OTHERS | Certification | CE, FCC, RoHS |
---|
Package Contents | - Powerline Ethernet Adapter TL-WPA4220
- 6.5ft (2m) Ethernet cable (RJ45)
- Resource CD
- Quick Installation Guide
|
System Requirements | Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux |
Environment | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
---|
Storage Temperature | −40°C to 70°C (−40°F to 158°F) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Warranty | Limited 3-Year Warranty |
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
