TX3350UVP TX3350 Ultimate Value Pack - GME
Super Compact UHF CB Radio with LCD SoundPath? Speaker mic

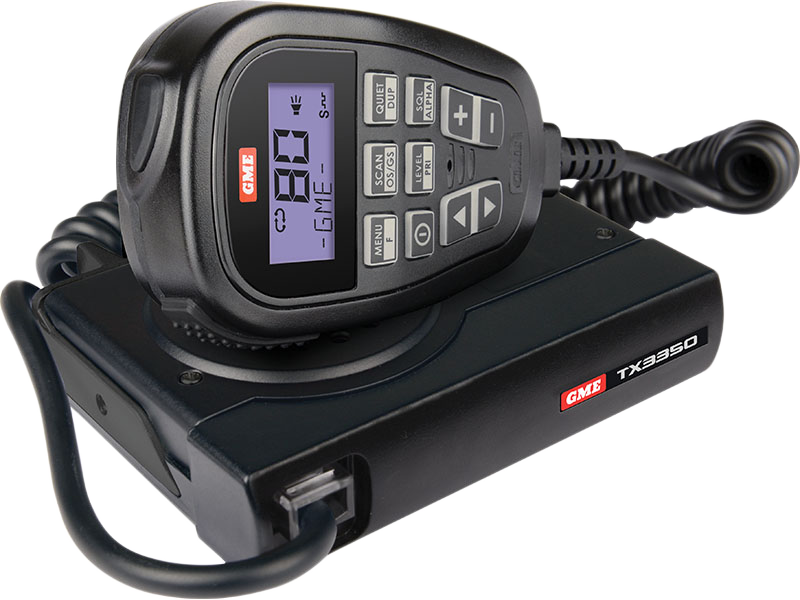

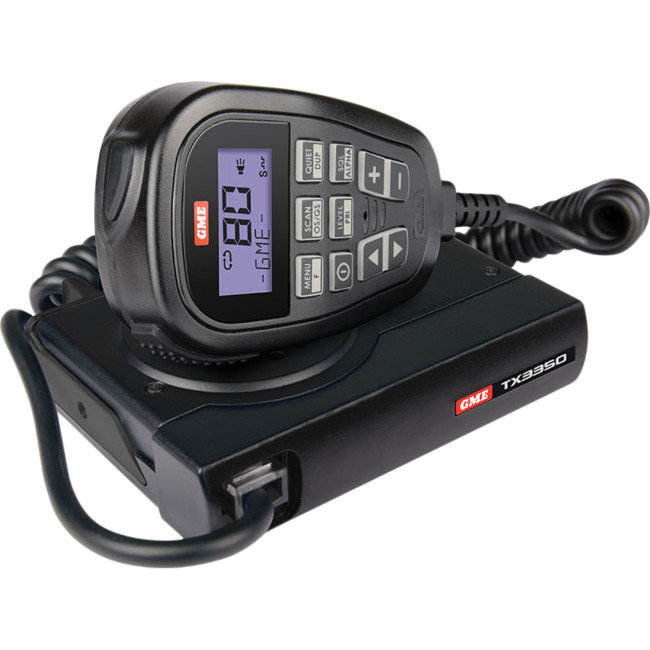

The TX3350 is an 80 channel, feature packed super compactUHF CB radio with the new SoundPath? full function LCD Speaker Microphone.
The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design. SoundPath? diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.
The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extensionspeakers.
Features:
- Powered by Pure Sound DSP engine
- Full spectrum backlit LCD microphone with Soundpath speaker
- User selectable open and group scan
- User adjustable squelch
- User selectable duplex channels
- User selectable priority channel
- 104 in-built DCS codes
- 50 in-built CTCSS codes
- 5 digit selcall with quiet mode
- Five year warranty
- Australian design and manufacture
{tab Specifications}
Compliant SpecificationMeets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX476.425 ? 477.4125 MHz
Number of Channels80 UHF CB
Channel Spacing12.5 kHz
Operation Modesimplex channels 1-80, Semi Duplex channels 1-8, 41-48
Scanning Speed20 channels per second
Antenna Impedance50 Ohms nominal
Nominal Battery Voltage13.8 volts DC
Operating Voltage Range10-15 volts DC
Overvoltage Protection25 volts DC max At 18 volts DC the RF power is reduced, and the words ?Hi DC? flash.
Overcurrent ProtectionIn-line 2A Fuse
Frequency stability±2.5 PPM
Modulation FM
RF Output5.0 watts max
Maximum Deviation< ± 2.5 kHz at 20 dB limiting
Transmit Frequency Response 6 dB per octave, 300 Hz to 3 kHz 1-3 dB
Current Consumption1.5 amps with 50 Ohms termination
Intermediate Frequencies1st - 21.54, MHz 2nd - 450 kHz
Sensitivity- 123 dBm for 12 dB SINAD unweighted
Selectivity- 6 dB at 3.5 kHz, - 60 dB at ± 12.5 kHz
Intermodulation Immunity73 dB
Blocking Immunity100 dB
Spurious Response Immunity70 dB
Audio Output Power3 watts average into 4 Ohms
Current consumption< 180 mA muted 600 mA @ max. A.F output
Receive Frequency-6 dB/Octave de-emphasis, 300 Hz to 3 kHz 1-3 dB
Conducted Spurious Emission< - 57 dBm
Dimensions102 (W) x 87 (D) x 23 (H) mm
Weight158 grams

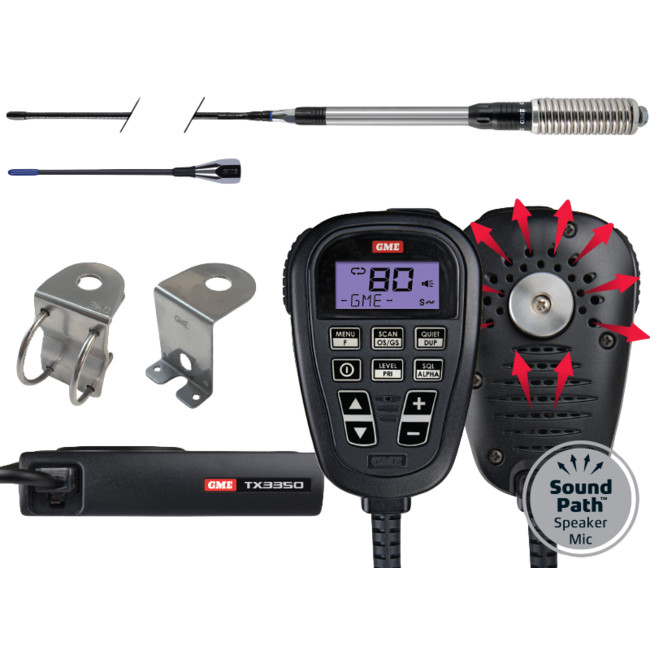

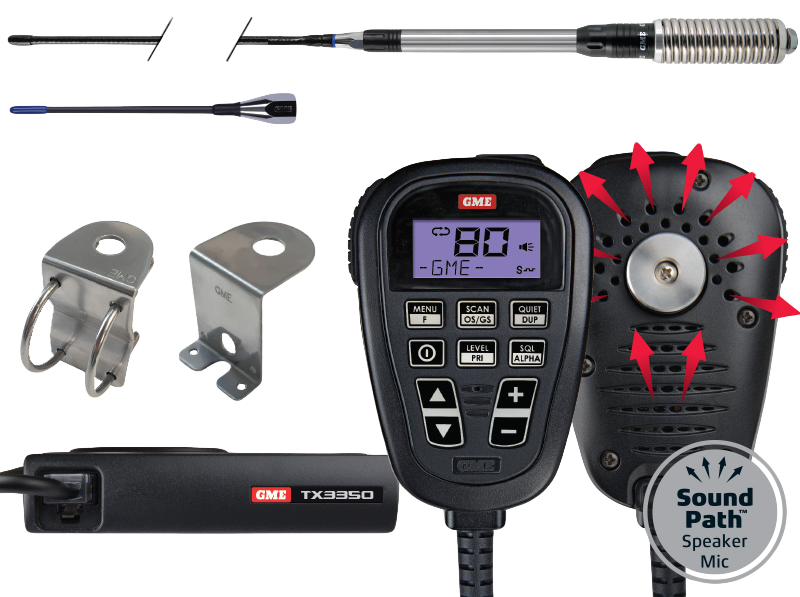

{tab In the Box}
- TX3350 Radio Unit
- LCD Speaker Microphone
- AE4018K3 Rugged Antenna Kit
- AE4002 Low Gain Replacement Antenna Whip
- MB407SS Universal "Z" Bonnet/Boot Antenna Mount
- MB024SS Universal Bull Bar Antenna Mount
- Microphone Clip
- Screw Pack
- DC Lead
- Mounting Cradle
- Instruction Manual
