TX3120SPNP Plug'n Play UHF Radio Kit
Plug'n Play UHF Radio Kit
Introducing the latest generation of portable UHF CB communication ? TX3120S Plug ‘N’ Play.
This pack is easily installed into any vehicle within minutes and does not require any drilling, cutting or soldering. Aimed at the casual user TX3120S Plug ‘N’ Play is perfect for any convoy journey or rental vehicle.
Designed and engineered in Australia TX3120S incorporates the widest LCD in its class size, twin rotary controls, speaker microphone and ScanSuite - GMEs latest scanning technology to enable uninterrupted conversations.
When no longer required, all accessories pack away intothe travel case supplied, ready for the next adventure.
{tab Features}
- ScanSuite
- Dynamic Volume Control
- Selectable priority channel
- Voice inversion scrambler
- Memory channel quick select
- CTCSS & DCS
- Advanced signal management
- Full spectrum backlighting
- Active channel transmit in scan
- Digital signal processing
- Open and group scan mode
- 5 year warranty
{tab Specifications}
GENERAL
Compliant Specification
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX 476.425-477.4125 MHz
Number of Channels 80 UHF CB
Operation Mode Simplex channels 1-80, Semi Duplex channels 1-8, 41-48
Scanning Speed 20 channels per second
Antenna Impedance 50 Ohms nominal
Nominal Battery Voltage 13.8 volts DC
Operating Voltage Range 10-15 volts DC
Overvoltage Protection 25 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent Protection In-line 2A Fuse
Frequency stability ±2.5 PPM
TRANSMITTER
Spurious Emission < - 70 dBc
Maximum Deviation < ± 2.5 kHz at 20 dB limiting
Transmit Frequency Response 6 dB per octave 300 Hz to 3 kHz 1-3 dB
Current Consumption 1.5 amps with 50 Ohms termination
RECEIVER
Intermediate Frequencies 1st -38.85 MHz 2nd -450 kHz
Sensitivity - 123 dBm for 12 dB SINAD unweighted
Selectivity -6 dB at 3.5 kHz -60 dB at ± 12.5 kHz
Intermodulation Immunity 73 dB
Spurious Response Immunity 70 dB
Audio Signal to Noise > 45 dB
Current consumption < 180 mA muted 600 mA @ max. A.F output
Conducted Spurious Emission < - 57 dBm
MECHANICAL SPECIFICATIONS
Dimensions 102 (W) x 97 (D) x 23 (H) mm
{tab In the Box}

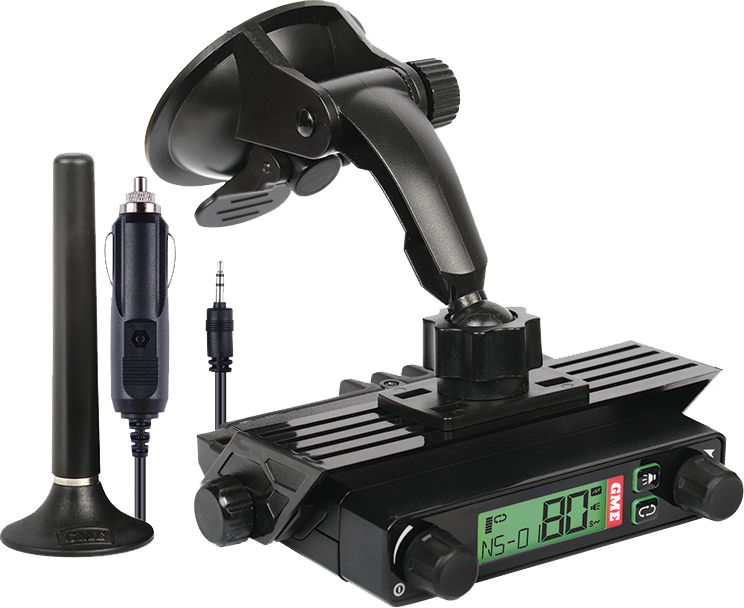

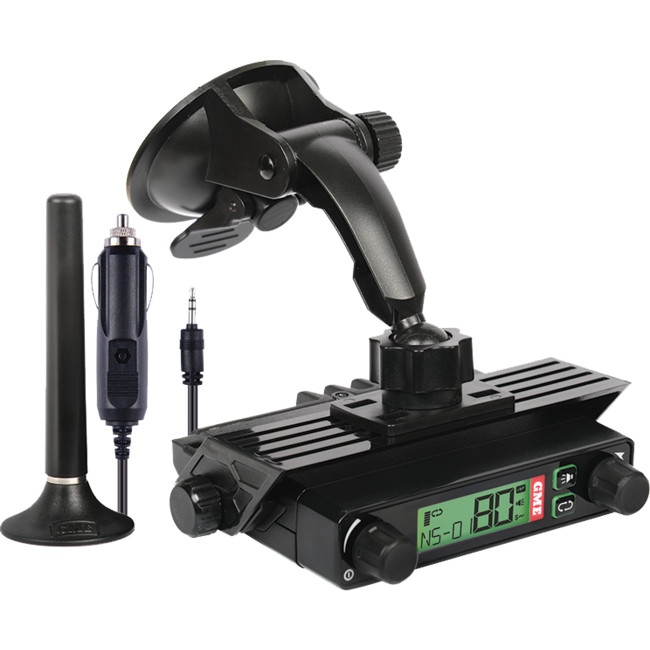

- TX3120S Super compact UHF CB radio
- Compact Magnetic Antenna
- Windscreen Suction Mount
- 12V DC Auxiliary Power Lead
- Speaker Microphone

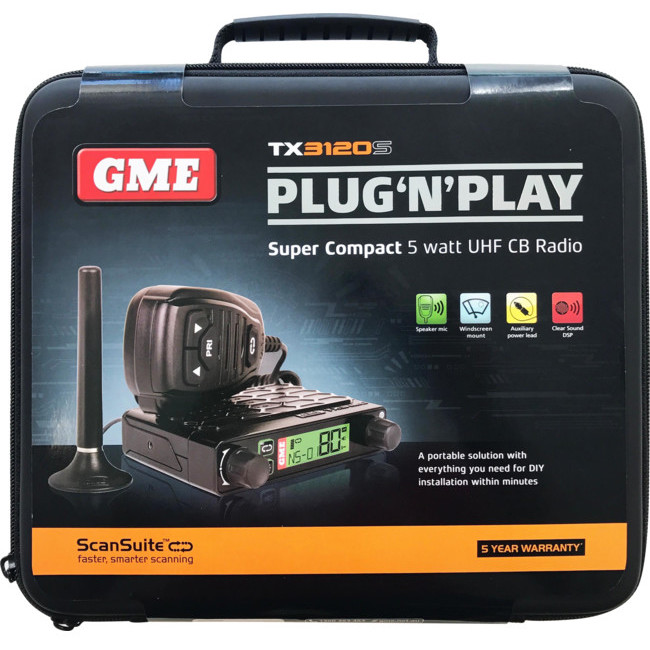

- Convenient Travel Case
- Mounting Accessories Pack
- Instruction manual
