XRS330CTP XRS330 & AE4018BK TOURING PACK - GME
The XRS Connect Touring pack is the latest addition to the revolutionary range of XRS radios, designed to be smart, adaptable and rugged.
Enabled by Bluetooth® Smart technology, the XRS Connect range are a new generation of connected UHF CB radios with unique features exclusive to GME; including the XRS Connect smartphone app, and the recently released, game-changing XRS Connect Location Services smartphone app.

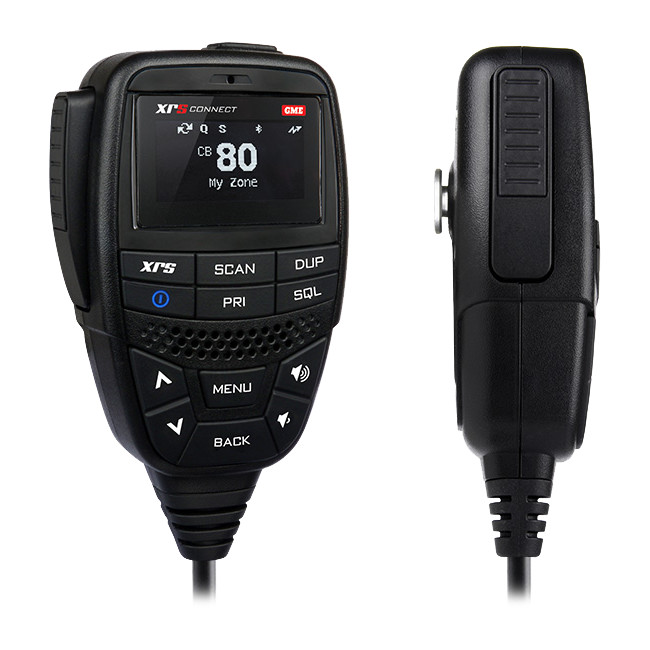

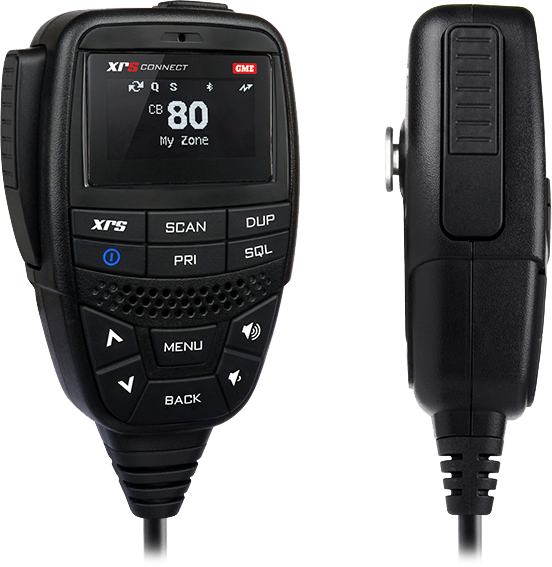

Combined with a market-leading Speaker Microphonefeaturing a bright, anti-glare OLED display and powerful 2 watt front-facing speaker, the XRS Connect range of radios offer outstanding performance in the toughest conditions.

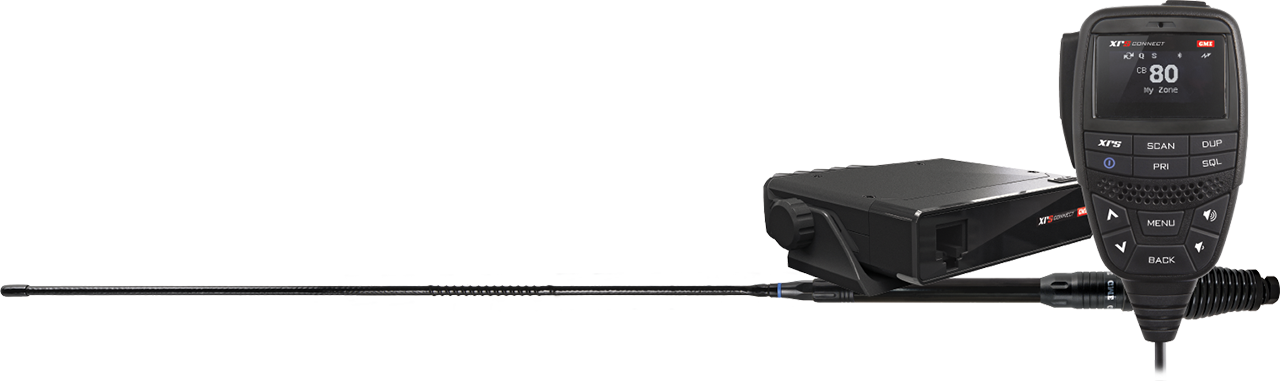

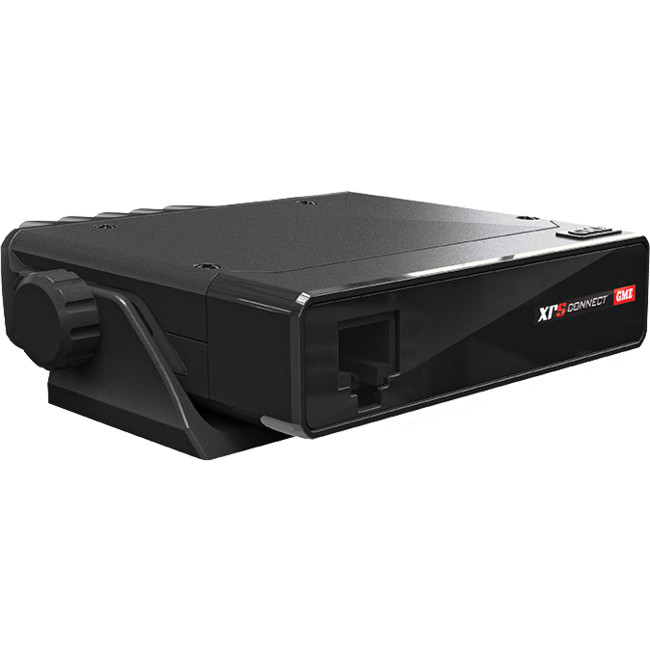

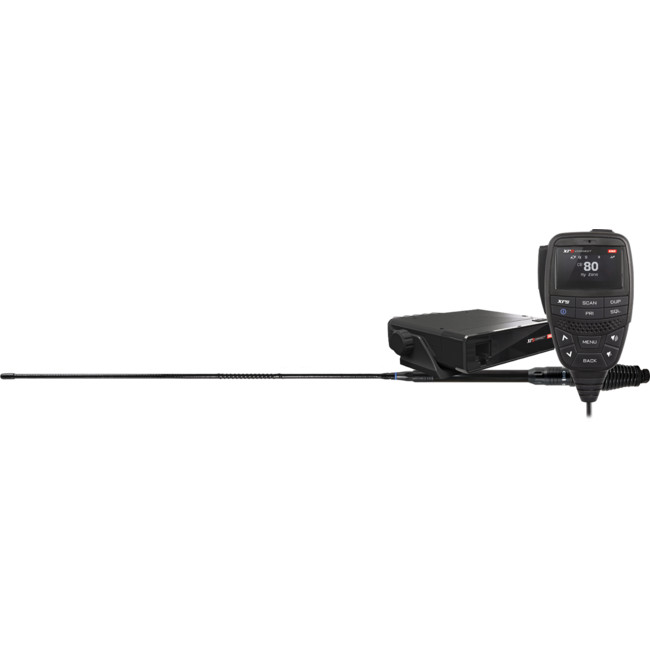

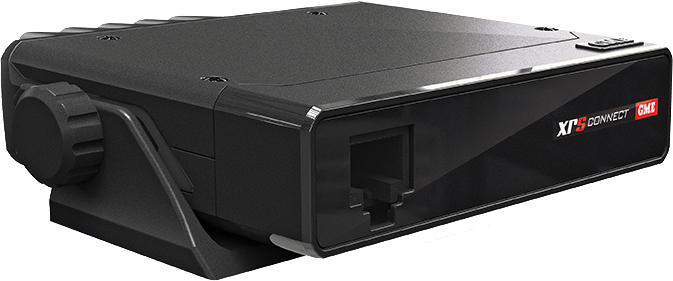

The XRS Connect Touring Pack pairs the popular XRS-330C Super Compact UHF CB Radio, with the AE4018BK1 elevated-feed antenna, the perfect solution for those users looking for the ultimate communications setup for their 4WD tourer
{tab Features}
- Bluetooth Wireless technology ? Smartphone control
- Professional grade OLED speaker microphone
- Class-leading 2 watt front-facing speaker
- User-customisable buttons
- Super compact design
- Includes 6.6dBi Elevated-feed antenna
- Download the XRS Connect App on Google Play or the AppStore
{tab Specifications}
Compliant Specification
Meets AS/NZS 4365 for radio communications equipmentin the UHF citizen and personal radio service.
Frequency Range TX
476.425-477.4125 MHz
Operation Mode
Simplex or half Duplex with repeater talk around.
Scanning Speed
25 ms per channel (40 channels per second)
Antenna Impedance
50 Ohms nominal
Nominal Battery Voltage
12 volts DC
Operating Voltage Range
10-16 volts DC
Battery Polarity
Negative Earth
Standard Test Voltage
13.8 volts DC
Overvoltage Protection
30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Reverse Voltage Protection
Diode Crowbar
Overcurrent Protection
In-line 2 amp fuse
Operating Temperature
-10°C to 60°C
TRANSMITTER
Spurious Emission
< - 70 dBc
Frequency Error
< ± 1.5 kHz
Maximum Deviation
< ± 2.5 kHz at 20 dB limiting
Transmit Frequency Response
6 dB per octave 300 Hz to 3 kHz 1-3 dB
Demodulated Audio Signal to Noise
> 45 dB unweighted
Current Consumption
1.5amps with 50 Ohms termination
RECEIVER
Intermediate Frequencies
38.85 MHz, 450 kHz
Sensitivity
- 122 dBm for 12 dB SINAD unweighted
Selectivity
- 6dB at 3.5 kHz, - 60 dB at ± 12.5 kHz
Intermodulation Immunity
-72dB
Spurious Response Immunity
70 dB
Audio Output Power
3 watts average into 4 Ohms
Audio Signal to Noise
> 45 dB unweighted
