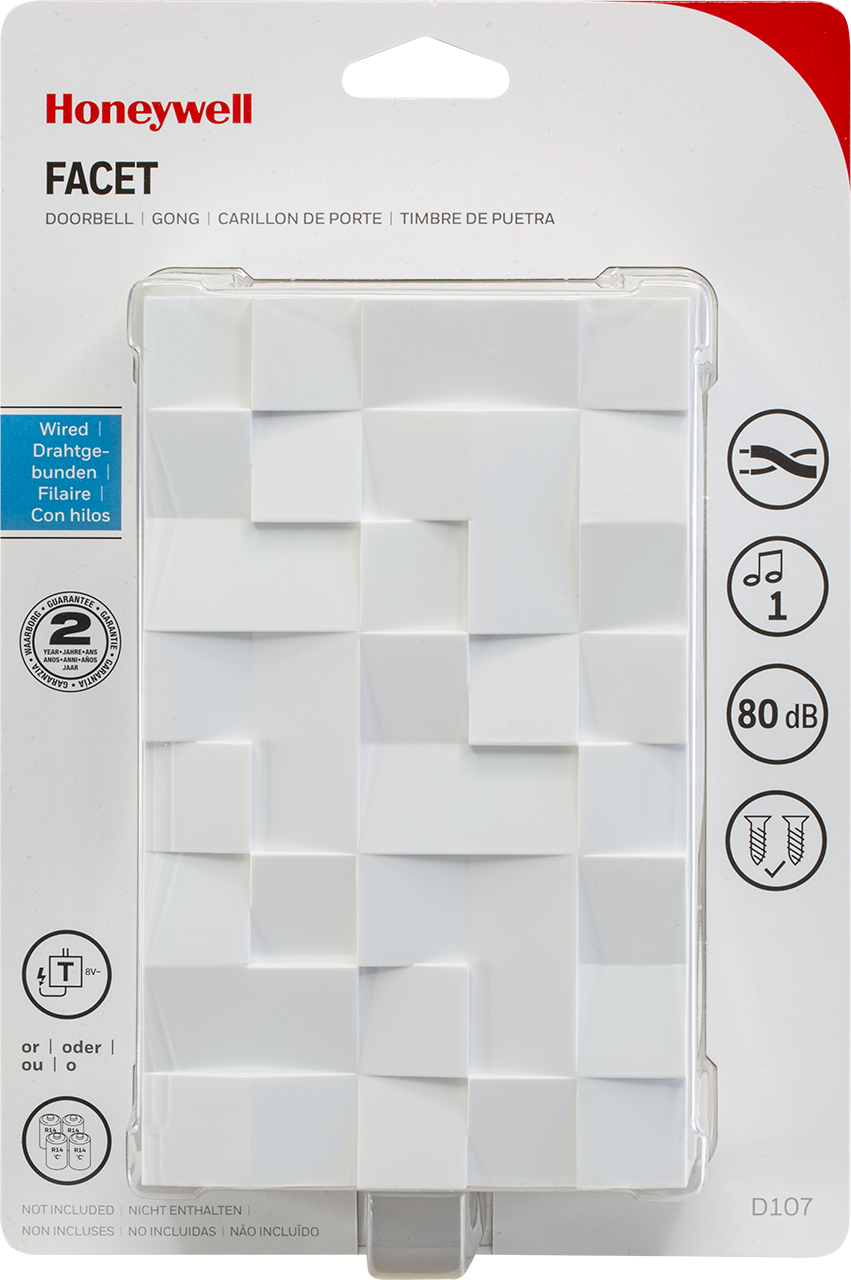

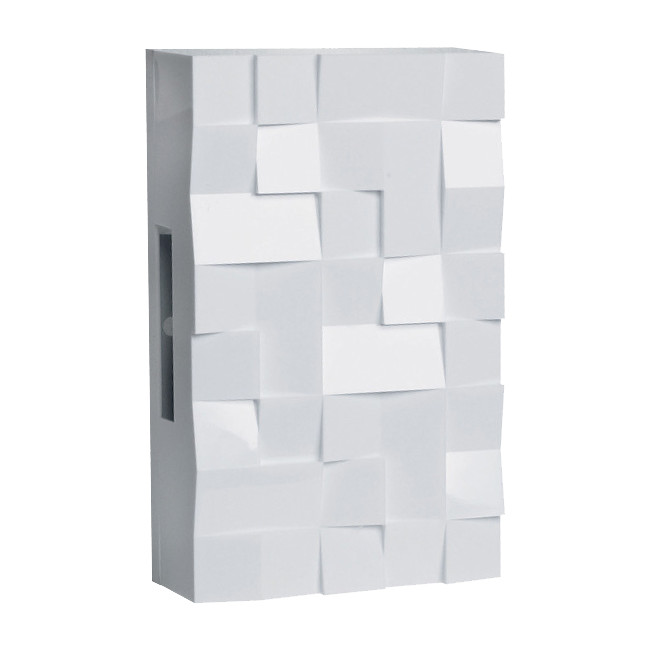

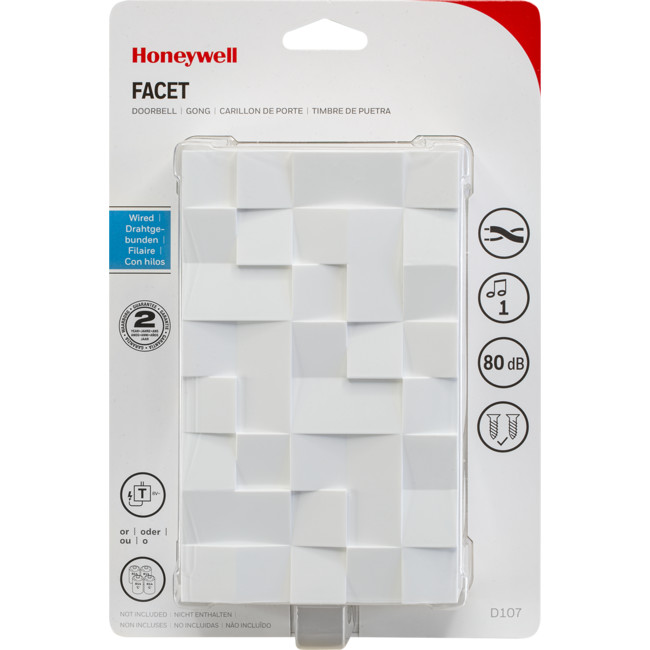

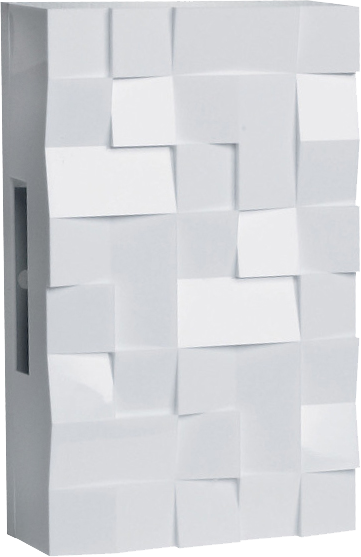

D107 FACET CHIME - FRIEDLAND

Friedland is synonymous with innovation and excellence. With a prestigious history of design, manufacture and supplyof high quality wirefree and wired doorbells and pushes, Friedland has established itself as a
world leader.

A 60 year commitment to quality

Our reputation for product excellence, choice, reliability and customer service stems from the continuous review of improved methods, including new product development and design innovation. We constantly seek to provide solutions to our customer's individual requirements.Our total quality management system ensures that high standards are maintained in every aspect of the business, from customer support and service through to manufacture anddistribution. This commitment to being 'best in class' has been recognised with the highly valued ISO9001 quality approval.

Useful Information ? Wired Chimes and Pushes

• Wired-in Chimes should be mounted vertically on a wall, ideally at 2 metres high, for best sound coverage

• When battery-operated, wired-in Chimes and Bells can be mounted up to a maximum of 15 metres from the push, usingstandard Friedland bell wire

• When transformer operated, wired-in Chimes and Bells can be mounted up to 60 metres from the Push, using standardFriedland bell wire

• D902/D973 Bell In One can be mounted up to a maximum of 9 metres from the push

• The use of wire not intended for Door Chimes /Bells (e.g. telephone wire) may affect Chime/Bell performance

• Do not mount wired-in Chimes on the back of a door, asthe chime bars or batteries may dislodge if the door is slammed

• All terminal screws should be tightened down, including those which are not being used

• All wired-in Chimes can operate from either batteries or a suitable transformer
• Additional Chimes can be wired to the original Chime, to provide better sound coverage ? an additional or alternative transformer may also be required

• Lit pushes must be used in conjunction with 8V output transformer only

{tab Specifications}

• 2 notes
• Powered by:

• 4 x R14/C batteries (not included)

OR
• E3554N transformer (not included)

• 80dB @ 1m
• Dimensions: 171 x 105 x 49mm
