| CAMERA & LENS | Image Sensor | 1/3″ Progressive Scan CMOS Sensor |
|---|
| Focal Length | 1.18mm |
| Aperture | F1.8 |

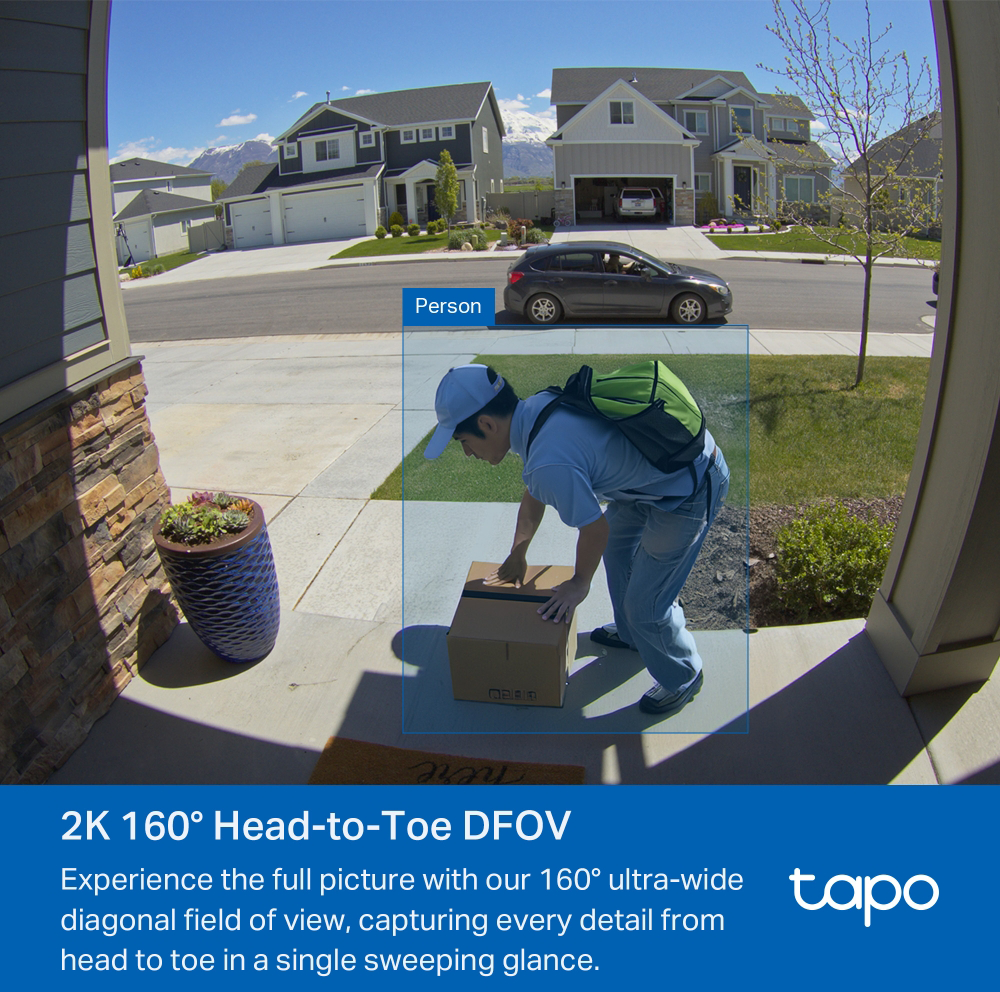

| Field of View | - Diagonal: 160°
- Horizontal: 135°
- Vertical: 109°
|
| Night Vision | - 850nm IR LED (25ft / 7.6m)

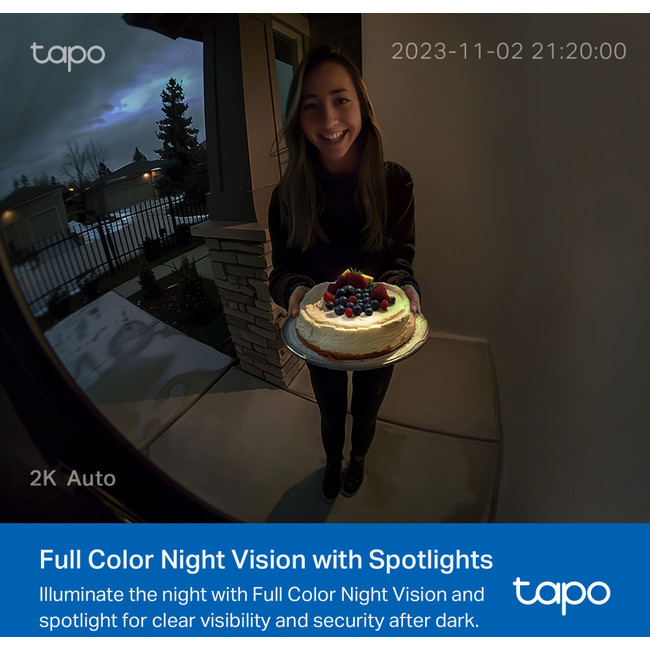

- Full-Color Night Vision
|
| Lighting | Built-in Spotlights |
| Interface & Button | - 1 × RESET Button
- 1 × Doorbell Button
- 1 × Anti-Theft Button
|
| VIDEO & AUDIO | Maximum Resolution | 2K 3MP (2304px × 1296px) |
|---|
| Frame Rate | 15 fps |
| Digital Zoom | 10× |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |

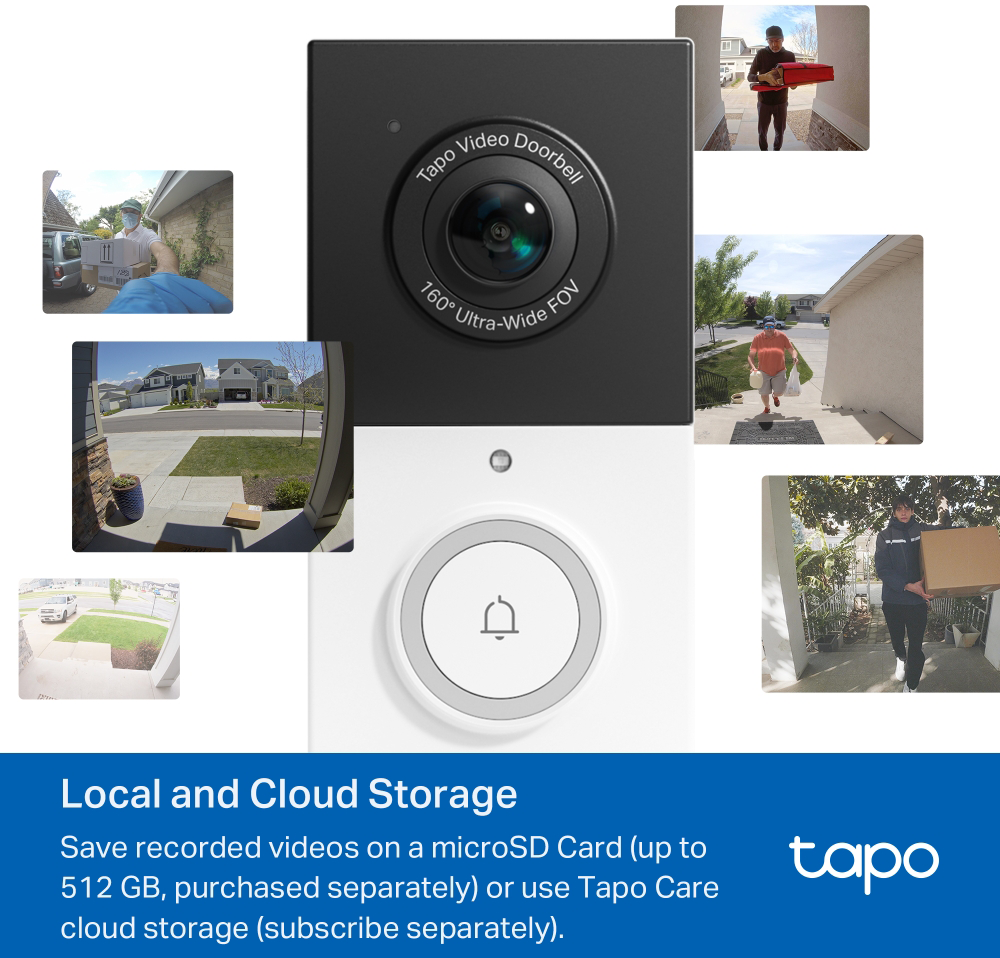

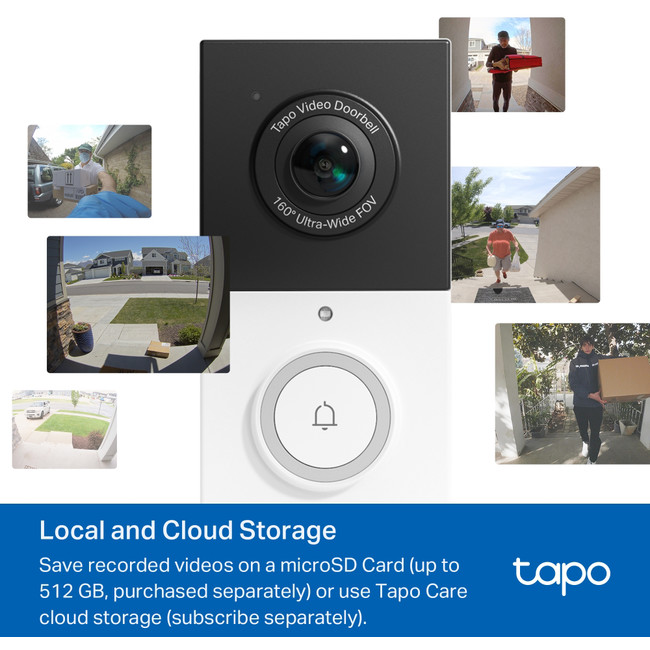

| STORAGE | Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION & NOTIFICATIONS | Sensor | - Dual PIR Motion Sensor (FOV: 150° horizontal)
- One Ambient Light Sensor
|
|---|

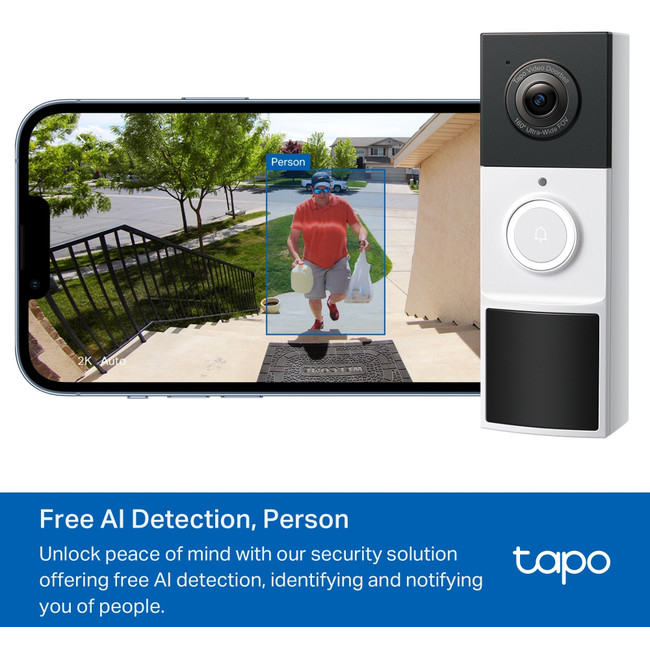

| AI Detection | Person Detection |
| Activity Zones | Yes |
| Output Notification | - System Notification
- System Notification with Snapshot (Tapo Care Services)
|
| NETWORK & SECURITY | Network Connectivity | Connect via Wi-Fi |
|---|
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Security | - On-Device Machine Learning
- 128-bit AES Encryption with SSL/TLS
- WPA/WPA2-PSK
|
| POWER | Power Source | - 6400 mAh Built-in Rechargeable Lithium-ion Battery
- Optional Solar Panel: Tapo A201 (Sold separately)
|
|---|
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240V, 50/60Hz |
| Output Voltage | Doorbell Battery Pack Adapter Output: 5.0V, 1.0A |
| ENVIRONMENT | Operating Temperature | −20°C~45°C |
|---|
| Storage Temperature | −40°C~60°C |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| GENERAL | Smart Integration | Google Assistant, Amazon Alexa |
|---|
| Weather Resistance | IP65 |
| System Requirements | Tapo App: iOS 12.0 or higher, Andriod 4.4 or higher |
| Mounting Options | - Stick to a Wall
- Mount to a Wall
|
| Doorbell Dimensions | 150mm × 50mm × 38.4mm (5.91″ × 1.97″ × 1.52″) |
| Chime Dimensions: | 73mm × 51mm × 43.5mm (2.87″ × 2.01″ × 1.71″) |

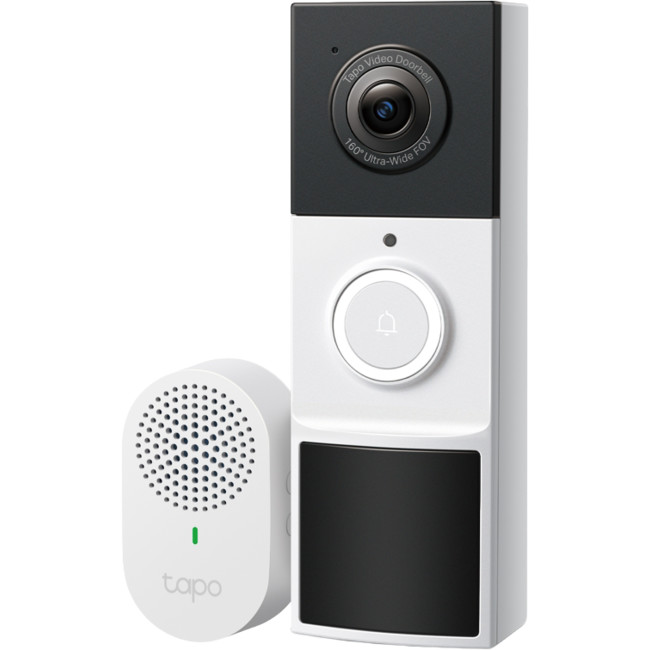

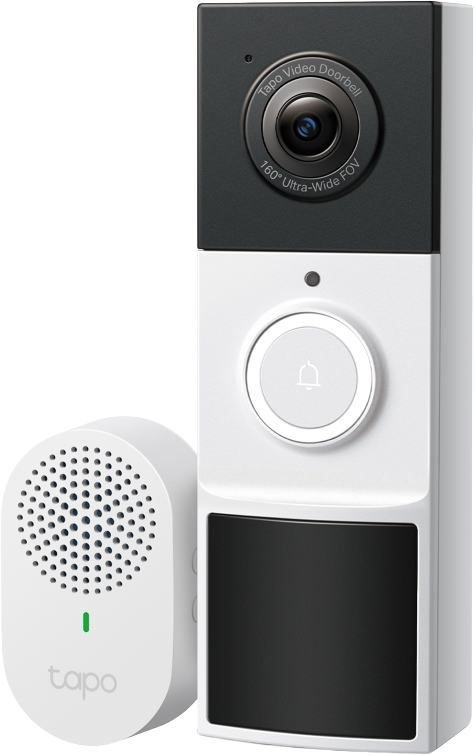

| Package Contents | - 1 × Tapo D210 Video Doorbell
- 1 × Tapo Doorbell Chime
- 1 × Mounting Bracket
- 1 × Horizontal Mounting Wedge
- 1 × Mounting Template
- 1 × 3M Adhesive
- 1 × Foam Pad
- 3 × Mounting Screws
- 3 × Mounting Anchors
- 5 × Mounting Wedge Screws
- 1 × Doorbell Detaching Pin
- 1 × Quick Start Guide
- 1 × USB Adapter Cable
|
| Certifications | CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
