1: The data is measured based on the optimal installation height of 1.2m of the doorbell, the actual distance will be affected by the installation height.
2: Battery life of up to 180 days is based on TP-Link's laboratory testing triggering 10-20 events per day. Actual battery life may vary based on device settings.

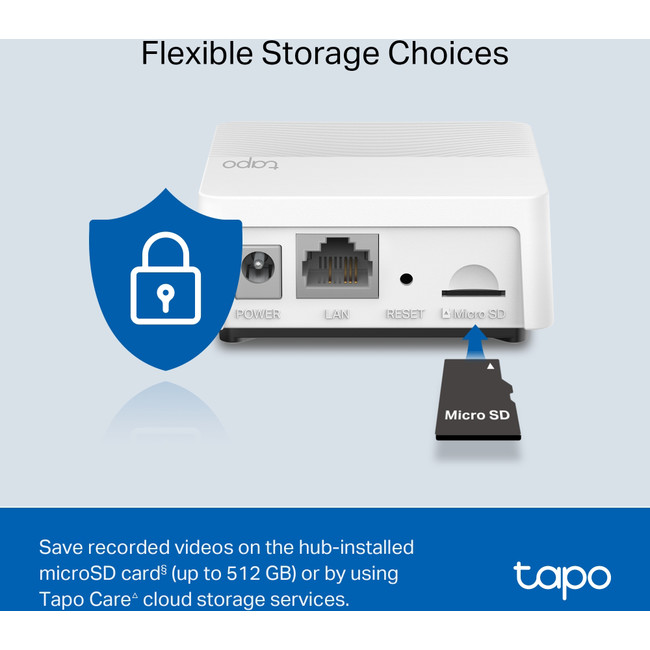

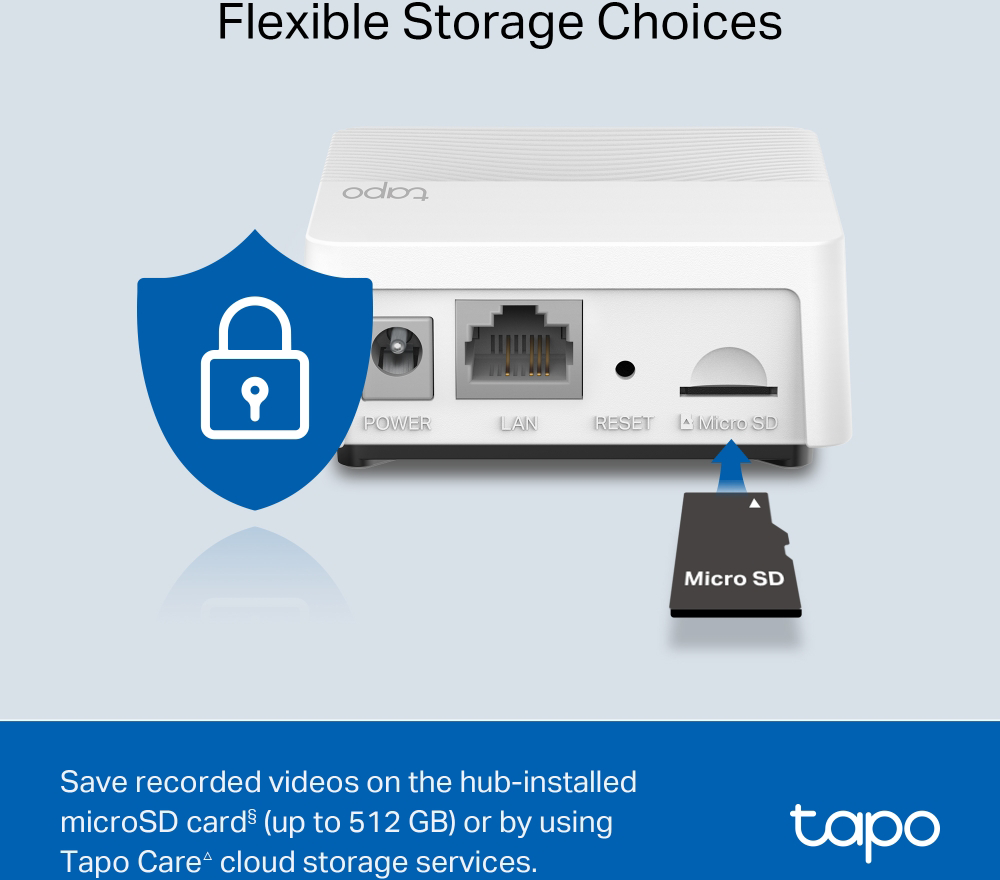

3: MicroSD card purchased separately.
4: Subscribe Tapo Care
| CAMERA | Image Sensor | 1/2.7″ Progressive Scan CMOS Sensor |
|---|
| Lens | - Focal Length: 2.1 mm
- Aperture: F2.1

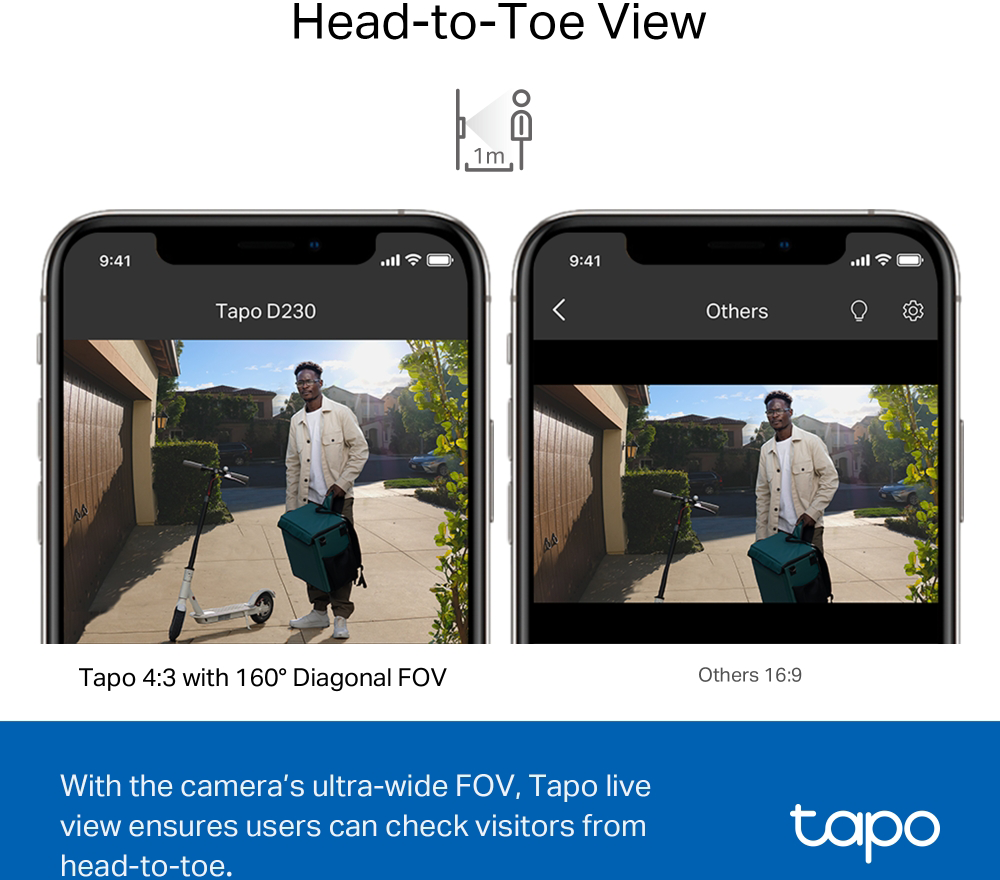

- Field of View: 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical)
|
| Night Vision | 850 nm IR LED (25ft / 7.6m)
Full-Color Night Vision |
| Weatherproof Rating | IP64 |
| Viewing Angle | 160° Diagonal |
| Resolution | 2K 5MP (2560 × 1920px) |
| VIDEO | Frame Rate | 15 fps |
|---|
| Video Streaming | 2K 5MP |
| Audio Compression | G.711 |
| Video Compression | H.264 |
| AUDIO | Audio Communication | 2-way audio |
|---|
| Audio Input & Output | Built-in microphone and speaker |
| NETWORK | Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
|---|
| Wireless Security | WPA/WPA2-PSK |
| Standards and Protocols | IEEE 802.11b/g/n, 2.4 GHz |
| Security | 128-bit AES encryption with SSL/TLS |
| Frequency | 2.4 GHz |
| ACTIVITY NOTIFICATIONS | Input Trigger | Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection |
|---|
| Output Notification | Notification, Snapshot (Tapo Care*⁴), Clips (Tapo Care*⁴) |
| ENVIRONMENT | Operating Temperature | −20°C to 45°C (−4°F to 113°F) |
|---|
| Storage Temperature | −20°C to 45°C (−4°F to 113°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| HARDWARE | Button | - Doorbell Button: Reset/SYNC/Anit-Theft Button
- Hub Button: Reset/SYNC Button
|
|---|
| Indicator LED | - Doorbell Indicator LED: System LED
- Hub Indicator LED: System LED
|
| Adapter Input | - Doorbell Adapter Input: 100-240V, 50/60Hz
- Hub Adapter Input: 100-240V, 50/60Hz, 0.3A
|
| Adapter Output | - Doorbell Adapter Output: 5.0V, 1.0A
- Hub Adapter Output: 9.0V, 0.85A
|
| DIMENSIONS | Camera Dimensions (L×W×H) | 146mm × 54.5mm × 35.5mm (5.7″ × 0.21″ × 1.3″) |
|---|
| Hub Dimensions (L×W×H) | 71.45mm × 71.45mm × 31.25mm (2.8″ × 2.8″ × 1.2″) |
1: The data is measured based on the optimal installation height of 1.2m of the doorbell, the actual distance will be affected by the installation height.
2: Battery life of up to 180 days is based on TP-Link's laboratory testing triggering 10-20 events per day. Actual battery life may vary based on device settings.
3: MicroSD card purchased separately.
4: Subscribe Tapo Care
