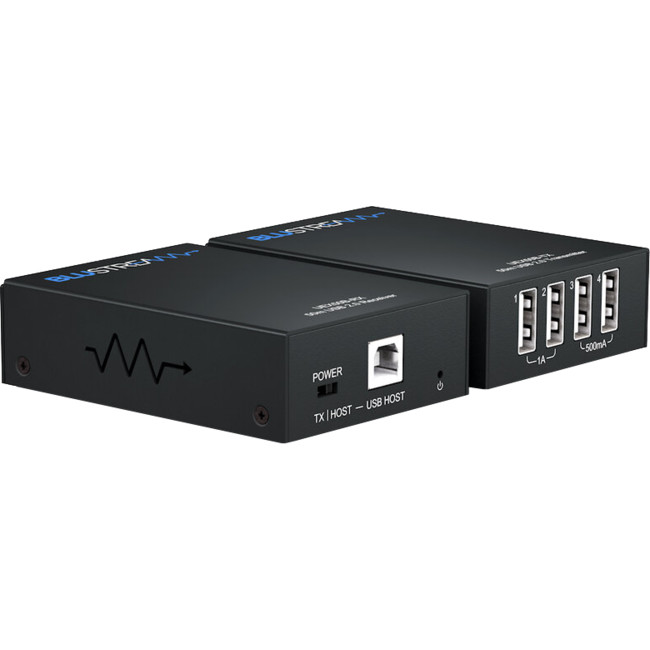

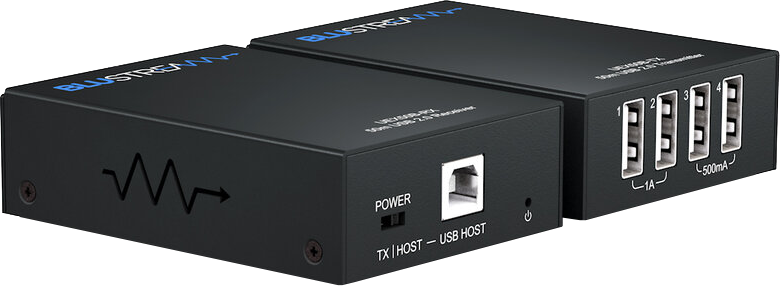

Our UEX50B-KIT delivers USB 2.0 extension up to 50m over a single CAT cable, allowing up to 4 x USB peripheral devices to be connected to a single USB host with charging /power.
Supports a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.
Extends USB up to a distance of 50m over a single CATcable
Supports USB 2.0 signal extension
Backwards compatible with USB 1.1 devices
Combined transmitted data bandwidth up to 480Mbps

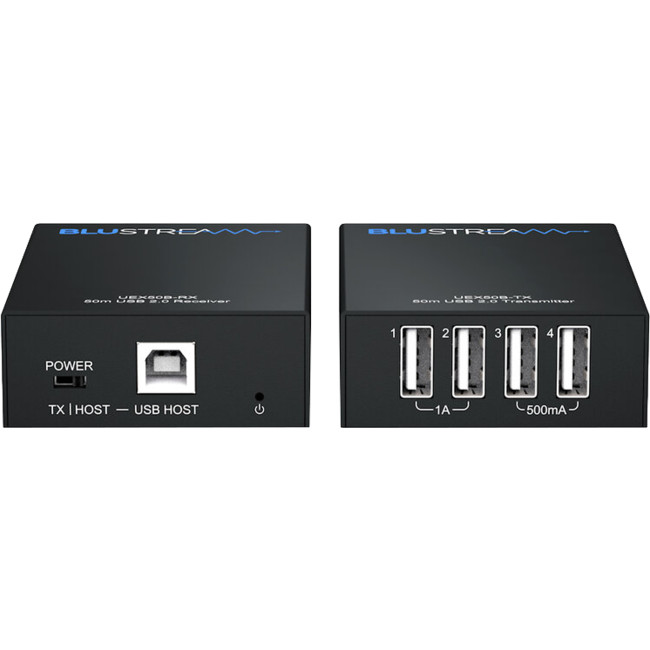

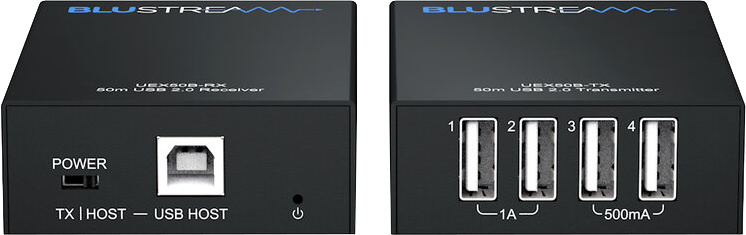

1 x USB Type-B on the Transmitter for connection to the Host device
4 x USB Type-A hub on the Receiver for connection to peripheral devices
USB Type-A ports 1-2 support 5V 1A, with ports 3-4 supporting 5V 500mA
Simple plug and play, no driver installation or setuprequired *Signal distribution length subject to length of device and host USB cables and CAT cable type

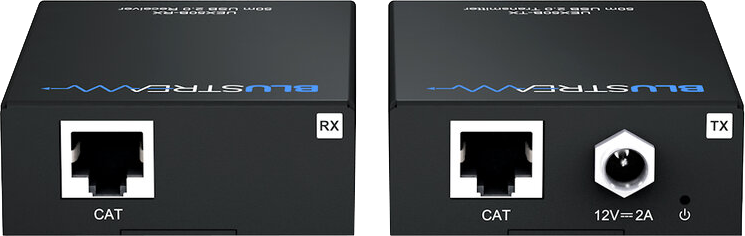

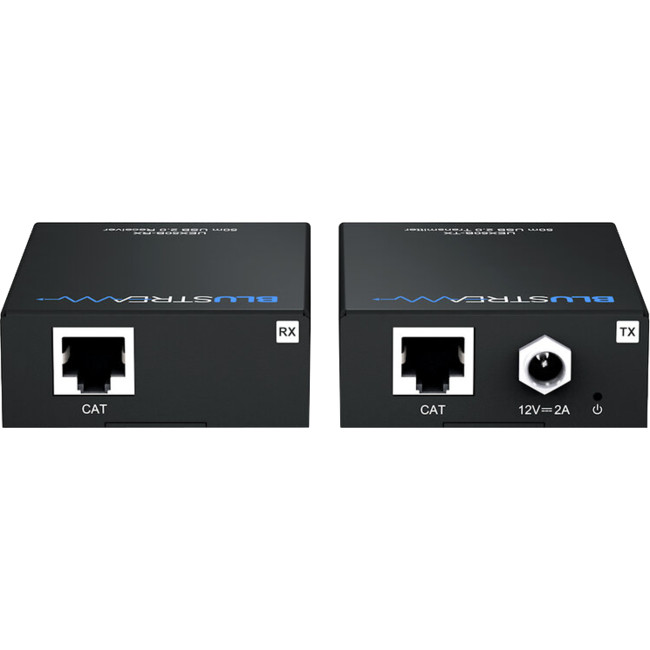

CAT Connectors: 1 x RJ45 connector
USB Port: 1 x USB Type-B
USB Port: 4 x USB Type-A
Casing Dimensions (W x D x H ): 84mm x 60mm x 23.5mm (TX/RX)
Shipping Weight (kit): 0.5kg
Operating Temperature: 32°F to 104°F (-5°C to 55°C)
Storage Temperature: -4°F to 140°F (-25°Cto 70°C)
Power Supply: 12V/2A DC
1 x UEX50B-TX 1 x UEX50B-RX 1 x USB Type-A to USB Type-B cable 1 x 12V/2A DC power supply 2 x Mounting kit 1 x Quick Reference Guide
