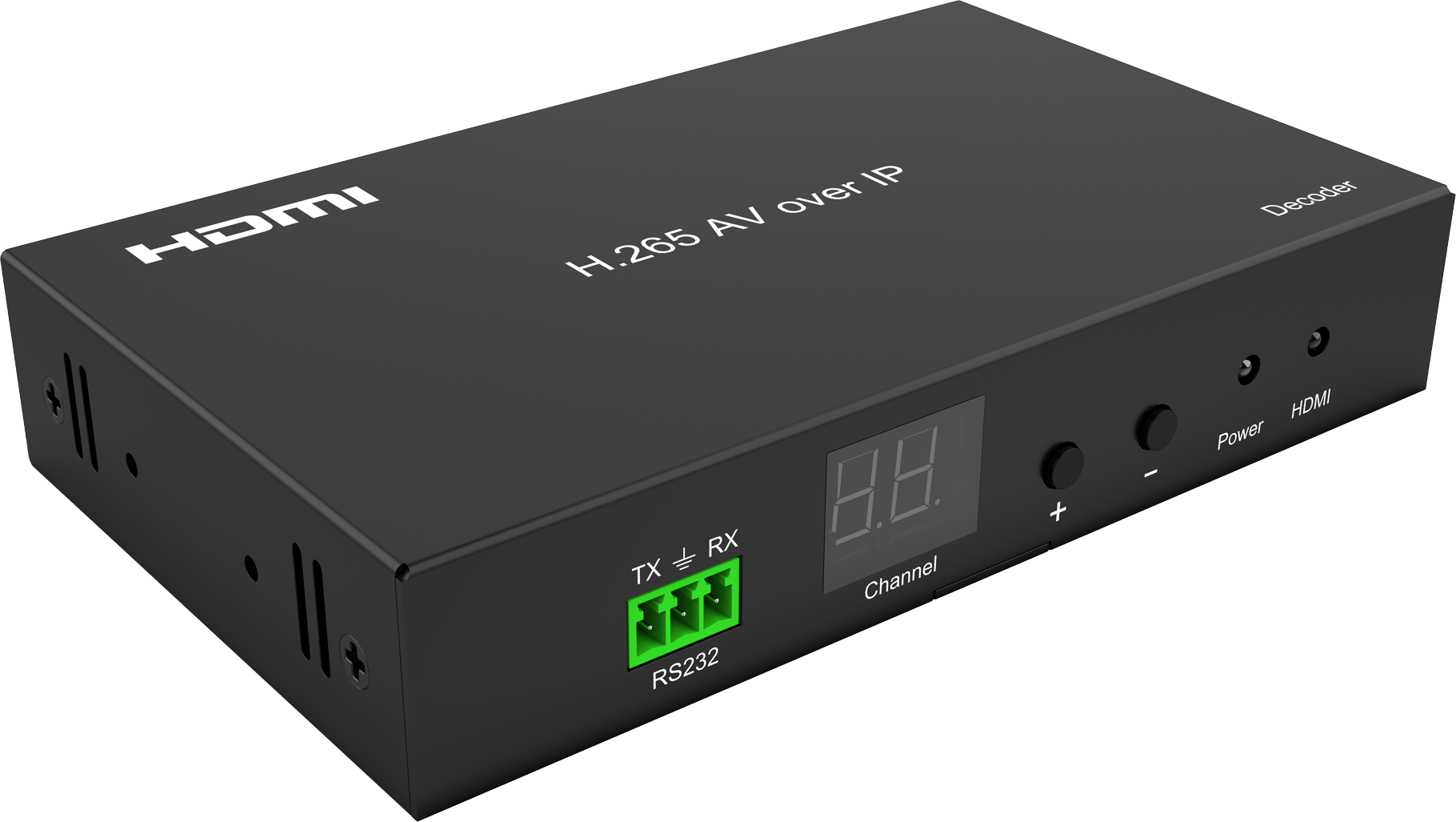

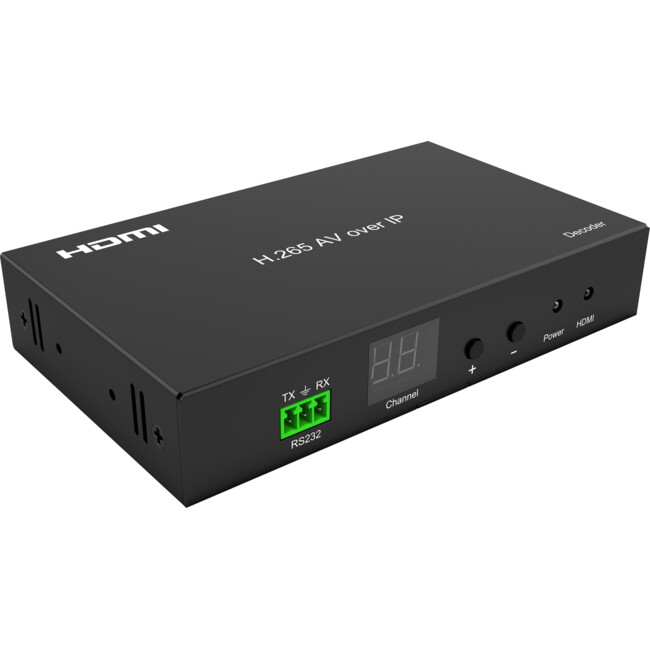

HDIP26RX SPARE RECEIVER FOR HDMIIPPROV2

SPARE H.265 HDMI OVER IP RECEIVER

The Pro.2 HDIP26RX is an additional receiver for the HDIP26 HDMI over IP extender system. Add it to an existing HDIP26 installation to drive another display: connect it to the network switch, set the Group ID to match the transmitter and the receiver picks up the stream. Ideal for expanding one-to-many and many-to-many setups in meeting rooms, classrooms, retail advertising and the home.

Features:

• Expand Your System:
  • Adds another display to one-to-many and many-to-many HDIP26 setups, up to 255 receivers per system
• Long Range:
  • Connects up to 120m from the switch over a single Cat5e/6 cable
• H.265 Decoding:
  • Smooth, low-bandwidth video with resolutions up to 1080p
• Simple Group ID Switching:
  • Front-panel +/- buttons and LED display set the Group ID (00 to 99) to select the source
  • On-screen OSD number for easy identification of each display
• Control Pass-Through:
  • Bi-directional IR (38kHz) and 2-way RS232 pass-through up to 115200 baud
• PC Tool Control:
  • Set Group ID, device name, IP settings, image adjustment, output resolution and OSD, and update firmware from a PC
• Automatic IP addressing via DHCP
• HDCP 1.4 compliant
• Requires an HDIP26 transmitter. Use an IGMP/DHCP capable network switch for multi-receiver systems

• Model: HDIP26RX (receiver only)
• Compatible with: Pro.2 HDIP26 HDMI over IP extender
• Video:
  • Compression: H.265 encoder/decoder over UDP
  • Video formats: 480i, 480p, 576p, 720p, 1080i, 1080p up to 60Hz
  • PC (VESA) resolutions: 640x480 up to 1920x1080 and 1600x1200 at 60Hz
  • HDCP: 1.4
• Audio:
  • LPCM 2.0, 48kHz sampling rate
• Control:
  • IR: bi-directional, 38kHz
  • RS232: bi-directional pass-through, 2400 to 115200 baud (8 selectable rates)
• Network:
  • Group ID: 00 to 99
  • Default IP: TX 192.168.1.168, RX 192.168.1.169
  • Switch requirements: IGMP and DHCP support recommended for multi-unit systems
  • Up to 255 receivers per system (total transmitters and receivers less than 256)

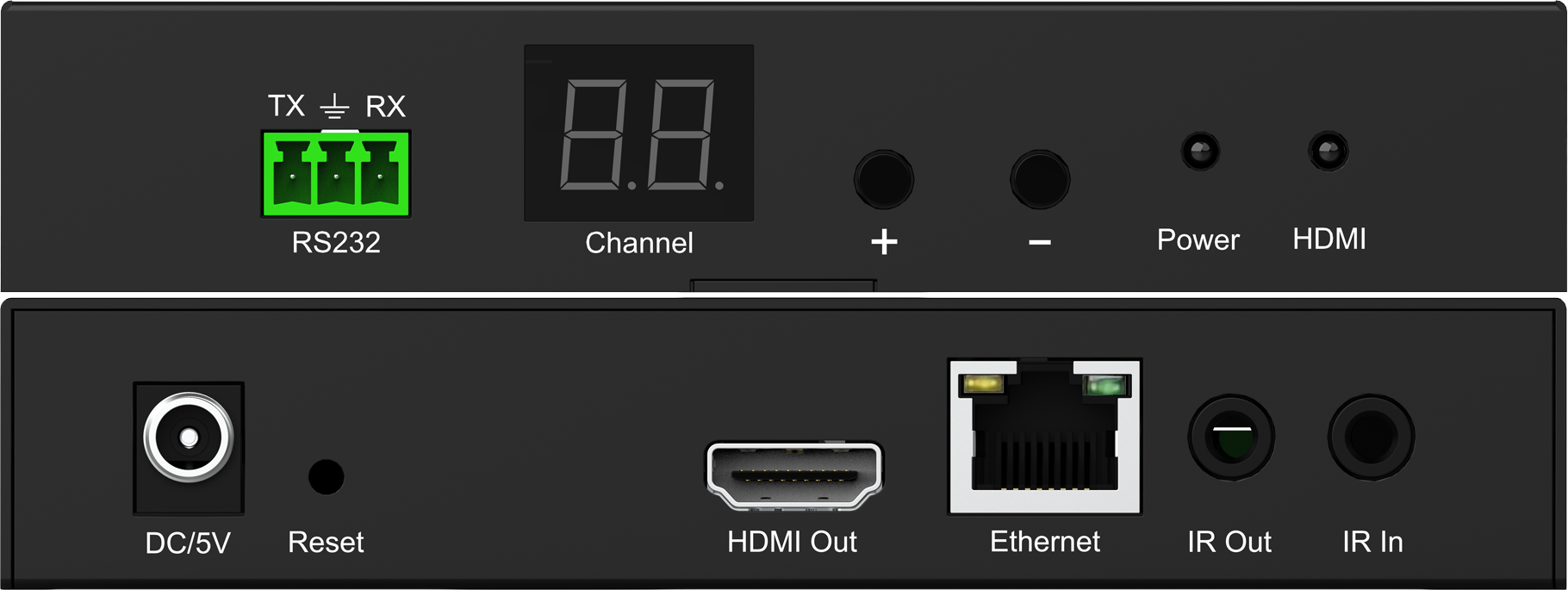

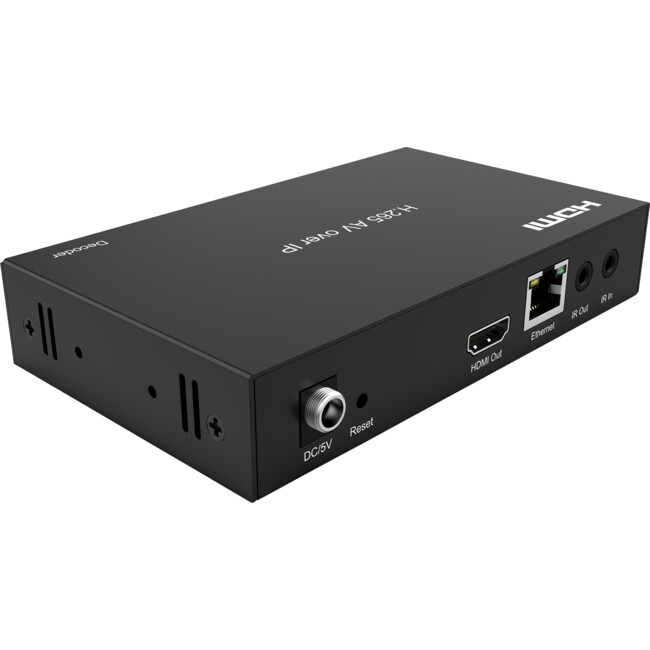

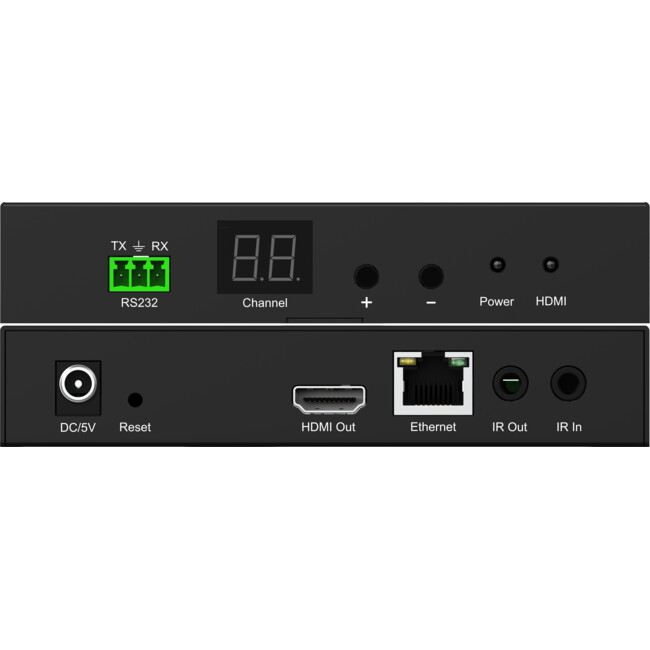

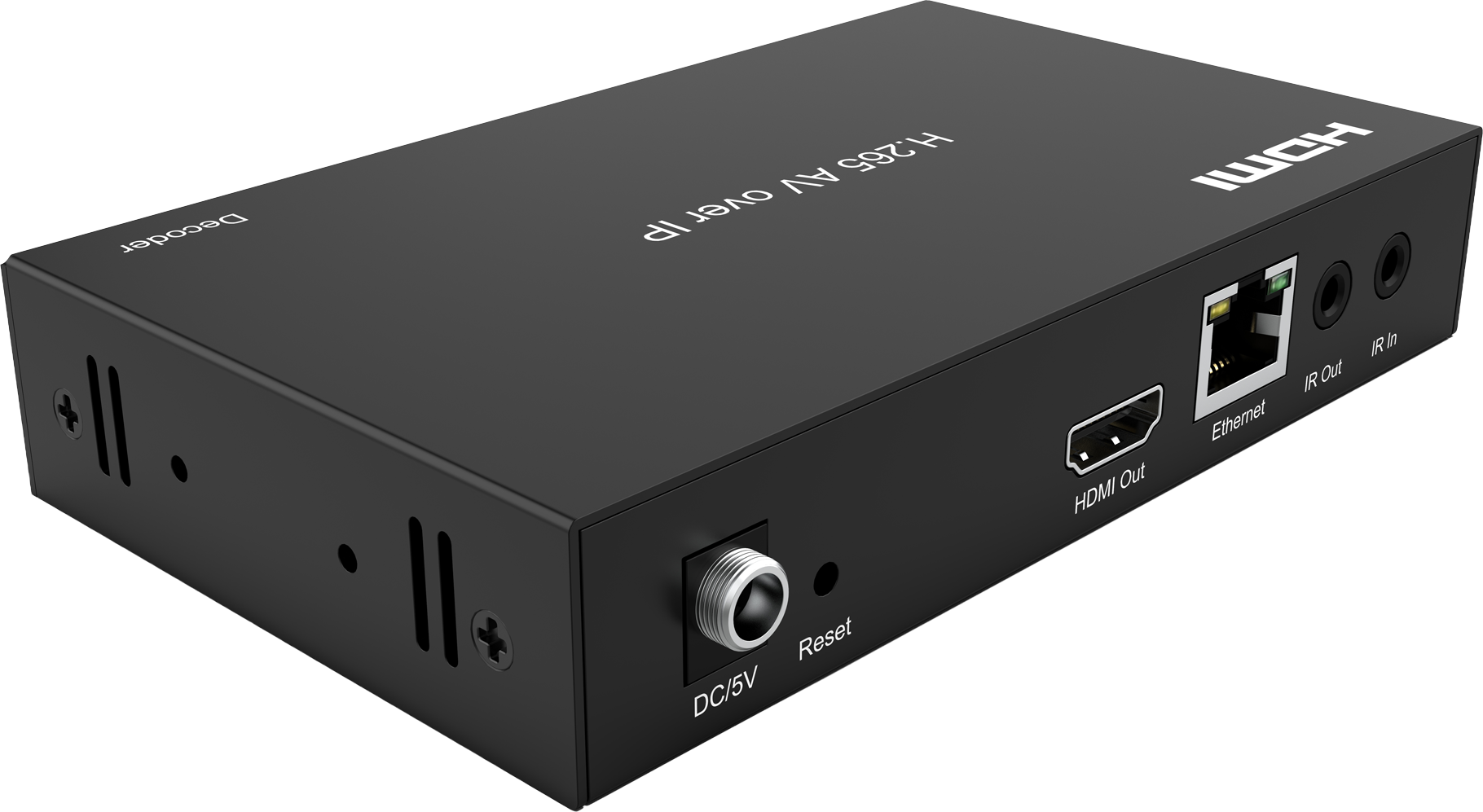

• Connections:
  • 1x RJ45 input
  • 1x HDMI output
  • Phoenix RS232 port
  • IR TX port and IR RX port
  • DC 5V input
  • Reset button
• Output resolution (via PC tool): 1920x1080, 1440x900, 1280x800, 1280x720 at 60Hz
• Transmission distance: up to 120m over Cat5e/6
• Power supply: 5V DC 1A
• Power consumption: 1.75W
• Operating temperature: -5 to +35 degrees C
• Operating humidity: 5 to 90 percent RH, non-condensing
• Dimensions: 134.4 x 79.2 x 25.1mm
• Weight: 0.28kg
