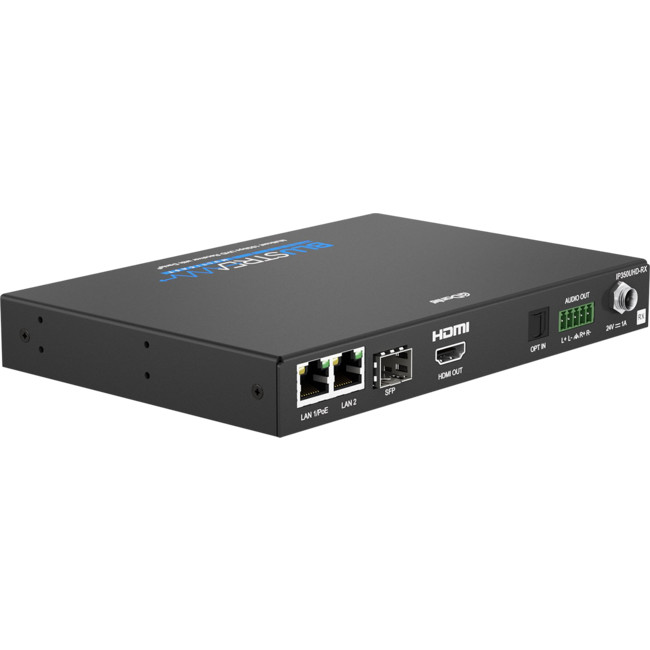

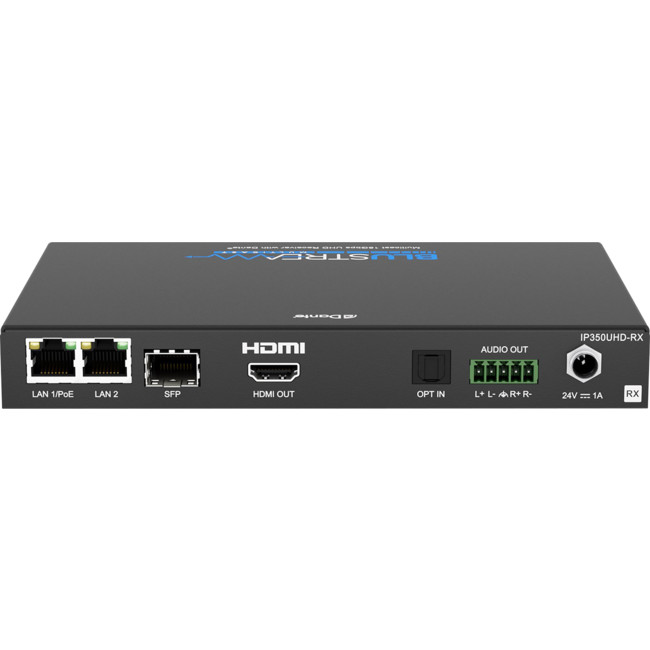

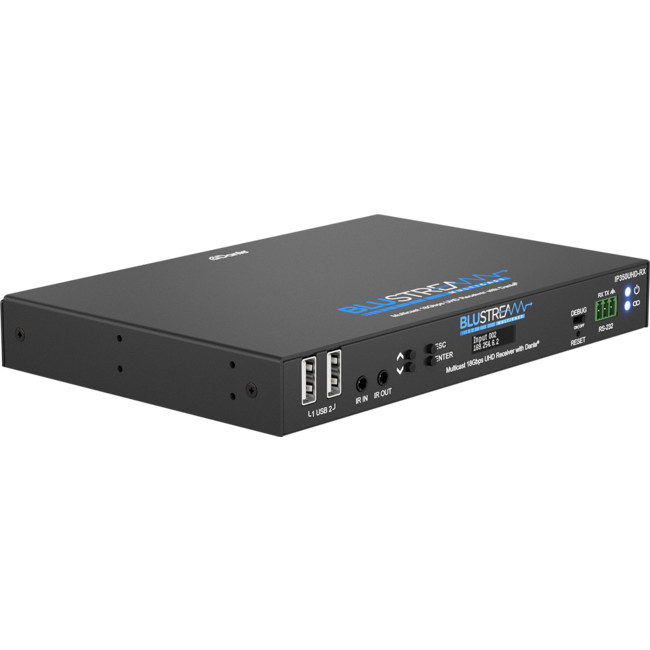

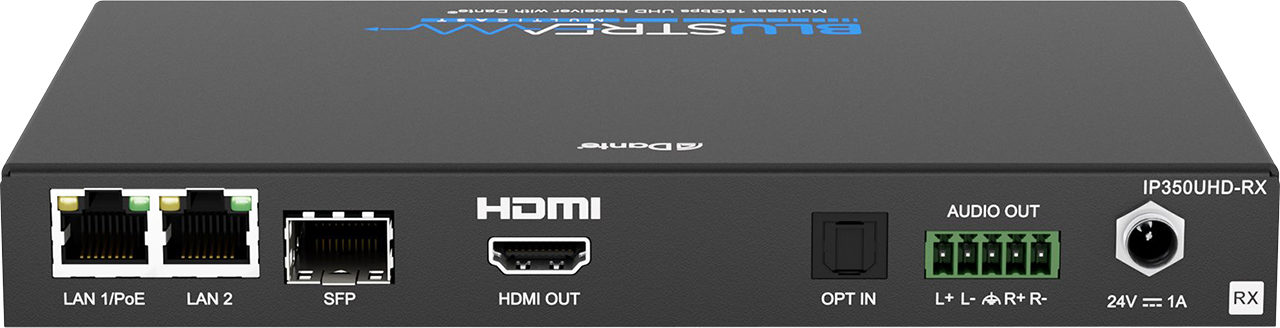

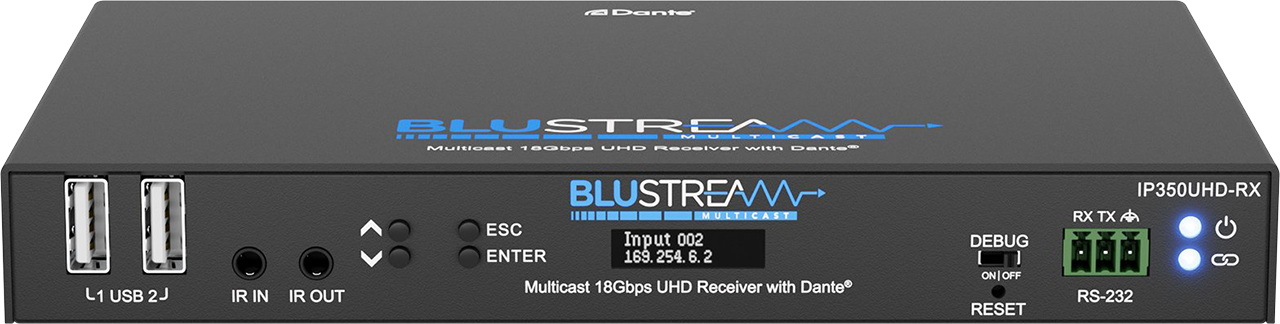

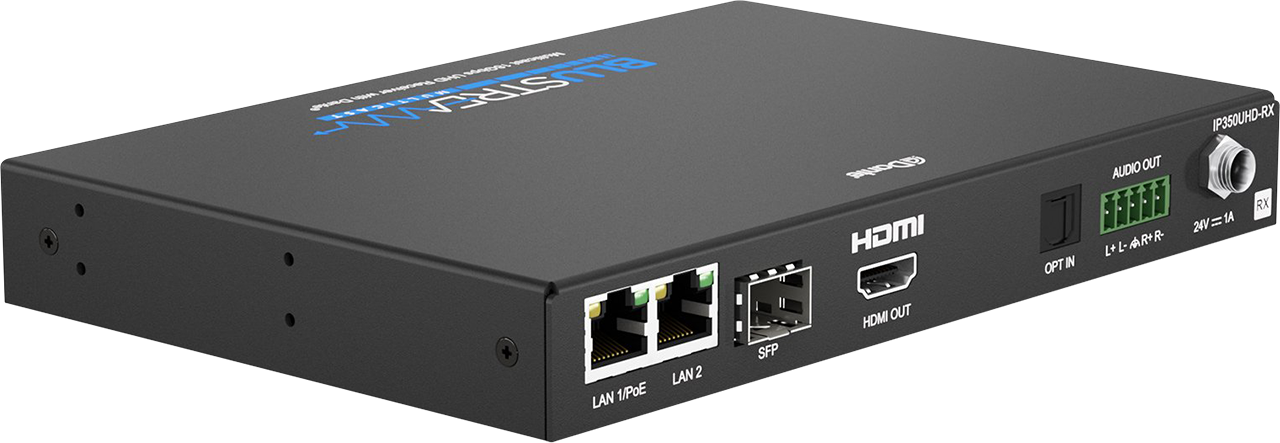

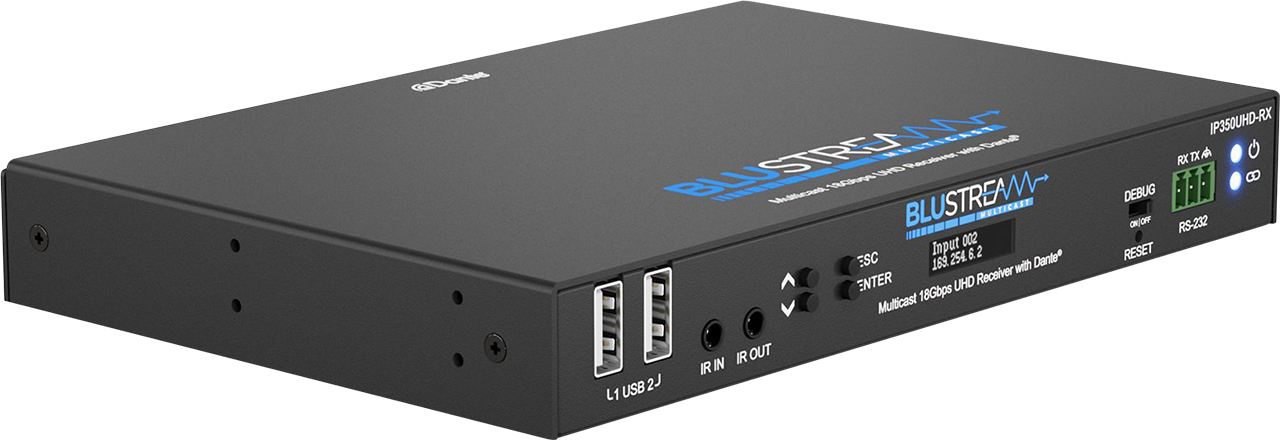

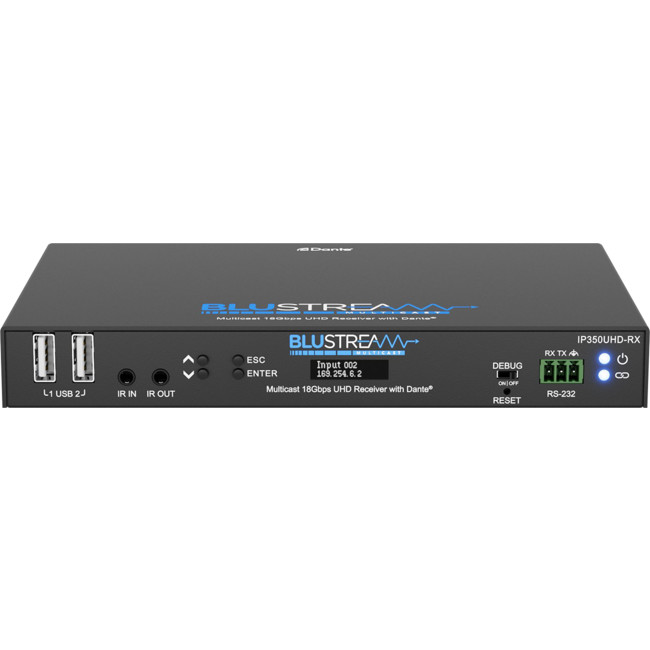

Blustream IP350UHD-RX Dante enabled 4K 60Hz 4:4:4 video over 1Gb network solution - Receiver
Description
The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb managed network.
Featuring full interoperability with the IP300UHD product line, the IP350UHD-RX is an industry leading Dante enabled 4K HDCP 2.2 HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
The IP350UHD-RX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network if required.
With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K. The scaling capabilities of this unit also allow for videowalls to be created where needed.
The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.
With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.
Key Features
-
Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
-
Virtually unlimited system size
-
Extends HDMI up to a distance of 100m over a single CAT cable
-
SFP port for signal distribution over fibre
-
Supports up to 4K UHD 60Hz 4:4:4
-
Supports HDR including Dolby Vision LLM
-
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
-
Extends HDMI and Dante up to a distance of 100m over a single CAT cable
-
Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
-
SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
-
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
-
PoE (Power over Ethernet) to power Blustream unit from PoE switch
-
HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system
-
Analogue L/R audio output supports both balanced and unbalanced audio signals
-
Optical (S/PDIF) input for 2ch optical audio return that can be fed into Dante network
-
OLED front panel display for advanced system information and manual configuration
-
Optional 24V power supply (should Ethernet switch not support PoE)
-
Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
-
Features 4 operational modes:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
Specifications
-
Video Input: 1 x LAN RJ45 connector, 1 x SFP connector
-
Video Output: 1 x HDMI Type A, female, 1 x LAN RJ45 connector
-
Audio Input: 1 x 5-pin Phoenix connector
-
Audio Output: 1 x 5-pin Optical (S/PDIF) connector
-
Dante Port: 1 x LAN RJ45 connector (LAN2)
-
Fibre Port: 1 x SFP connector (fibre module not supplied)
-
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
-
USB/KVM Port: 1 x USB2.0-type B for KVM
-
IR Input: 1 x 3.5mm stereo jack
-
IR Output: 1 x 3.5mm mono jack
-
Dimensions (W x D x H ): 190mm x 128mm x 25mm
-
Packaging Dimensions (W x D x H): 260mm x 180mm x 55m
-
Unit Weight: 0.75kg
-
Power Consumption: 12W (max)
-
Shipping Weight: 1kg
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
-
Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU
Box Contents
1 x IP350UHD-RX
1 x IRR Receiver
1 x IRE1 Emitter
1 x Audio 5-pin Phoenix Connector
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
