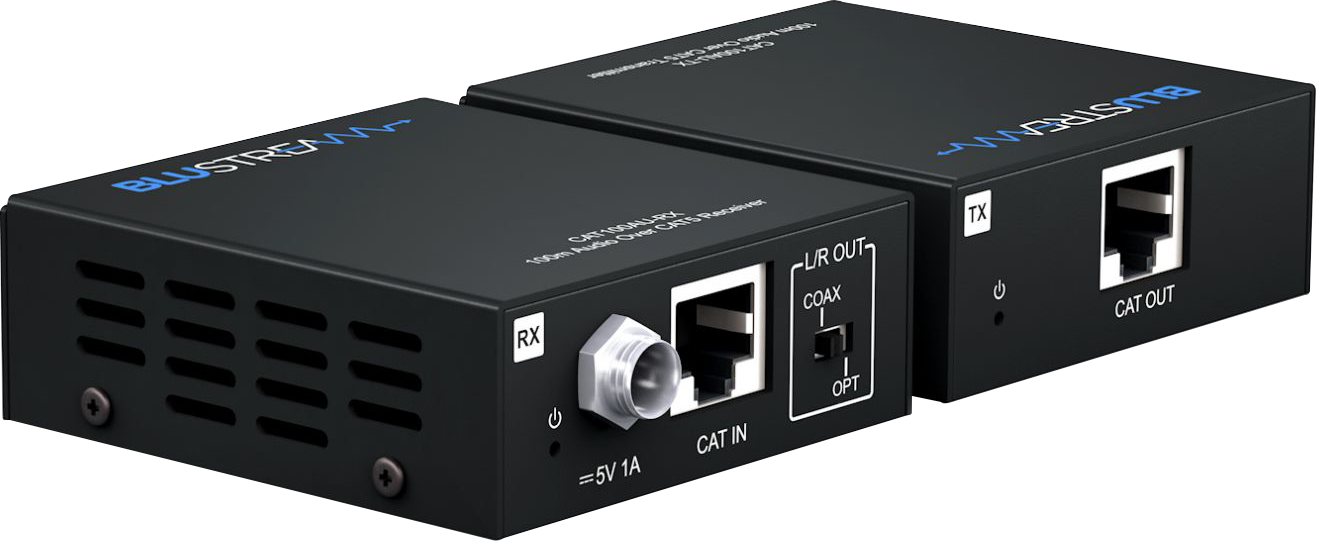

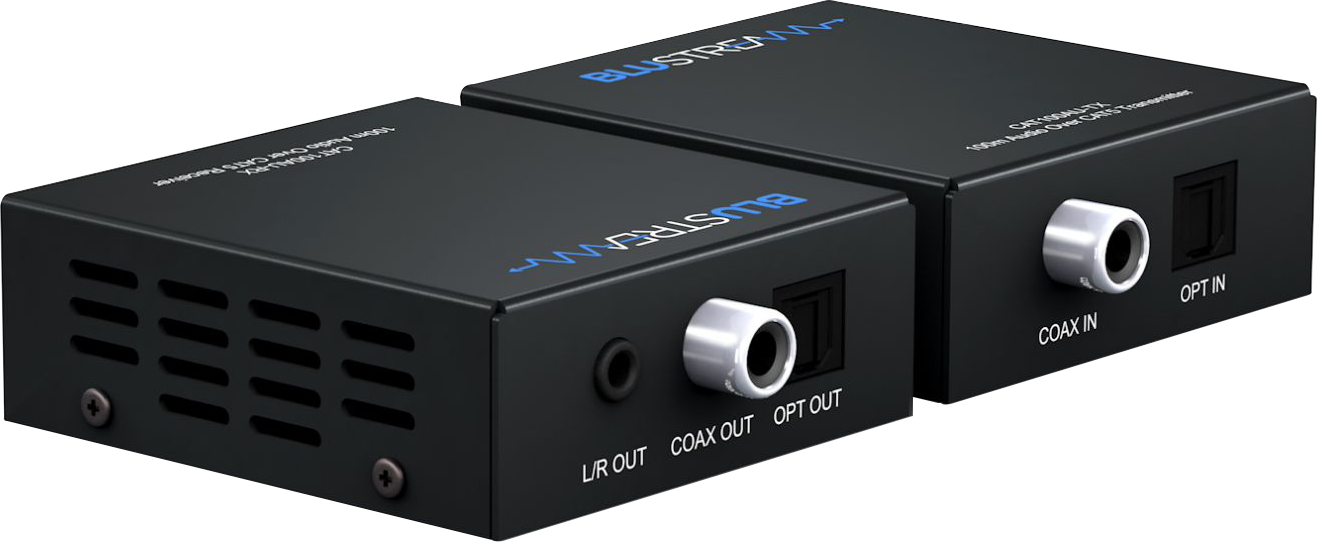

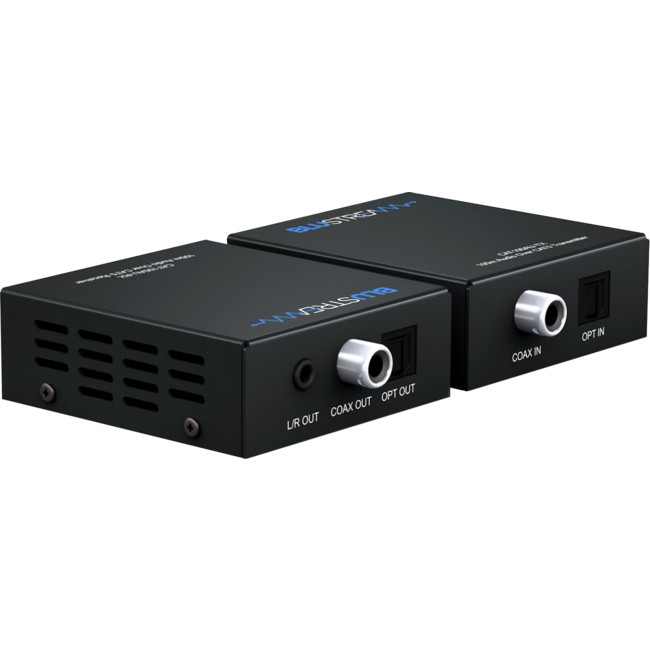

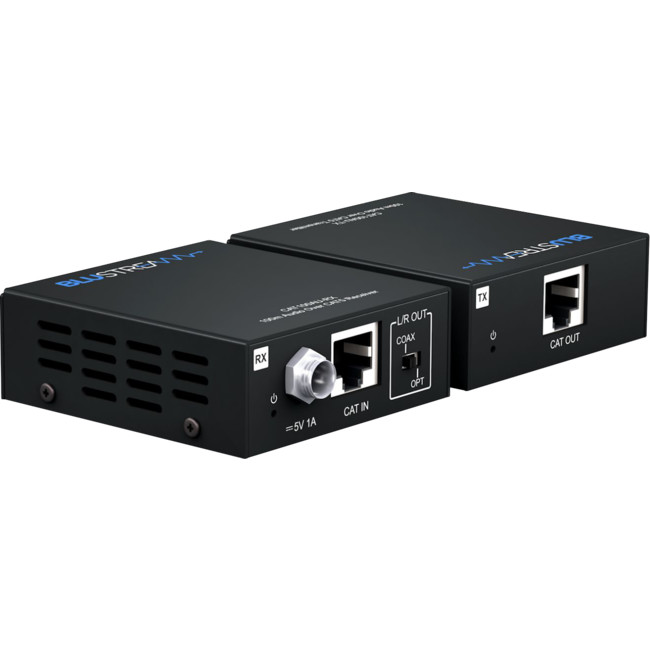

CAT100AU 100M DIGITAL AUDIO EXTENDER

Our CAT100AU Audio over CAT 5/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to100m).

This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enableuse of the stereo left / right audio output.

Ideal way to avoid Lip Sync in an installation

Key Features

• Extend optical and coaxial digitalaudio signals up todistances of 300m over a single CAT cable
• Both optical and coaxial digital can be distributed atthe same time
• Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left/right audio output
• Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and192kHz up to 24-bit resolution
• Ultra low jitter and high fidelity design
• CAT100AU supports distances of up to: 192kHz - 100m, 96kHz - 150m, ≤48kHz- 300m


Specifications

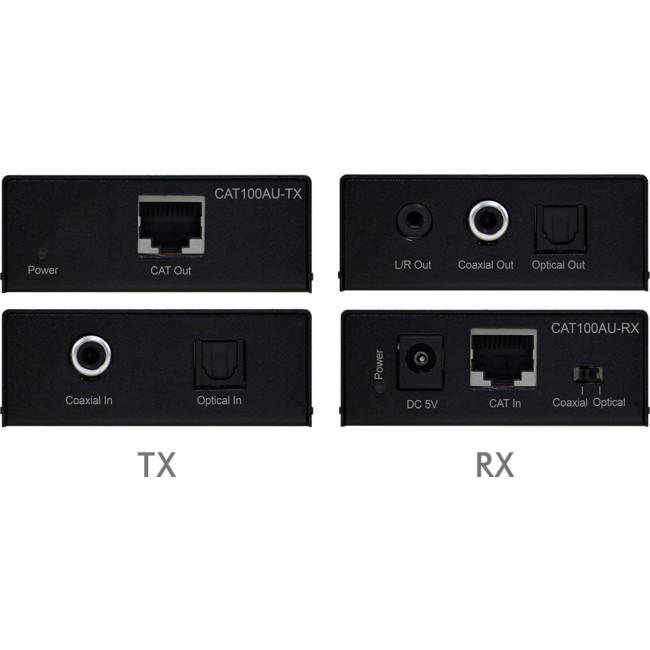

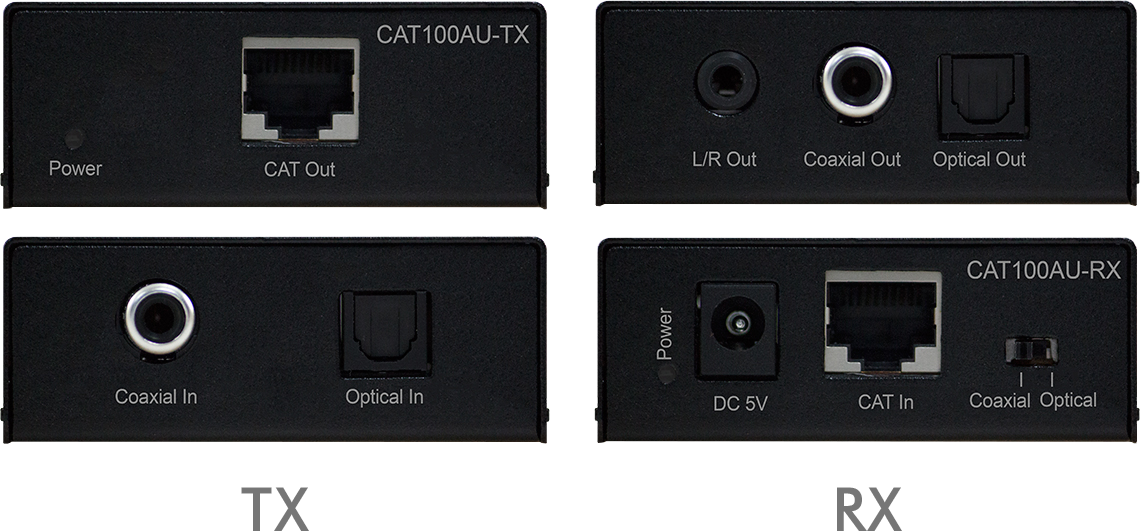

• CAT100AU-TX - Transmitter
  • Audio Input Connectors: 1x Optical (SPDIF) &1x RCA (SPDIF)
  • Output Connectors: 1x RJ45
• CAT100AU-RX - Receiver
  • Input Connectors: 1x RJ45 & 5V/1A DC
  • Output Connectors: 1x Optical (SPDIF), 1x RCA (SPDIF) & 1x Analogue left/right - 3.5mm stereo audio jack
• Casing Dimensions (WxDxH): 69x64x24mm
• Dimensions including connections (WxDxH): 76x64x28mm
• Shipping Weight: 0.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°Cto 60°C)
• Power Supply: 5V/1A DC

Box Contents

1 x CAT100AU-TX
1 x CAT100AU-RX
1 x 5V/1A DC power supply
1 x Mounting kit
1 x User manual
