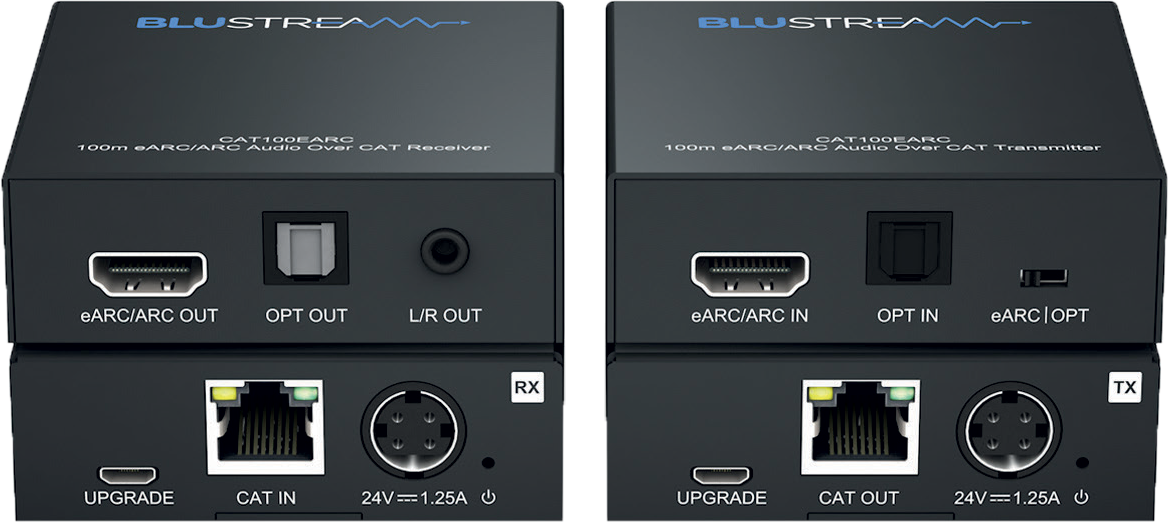

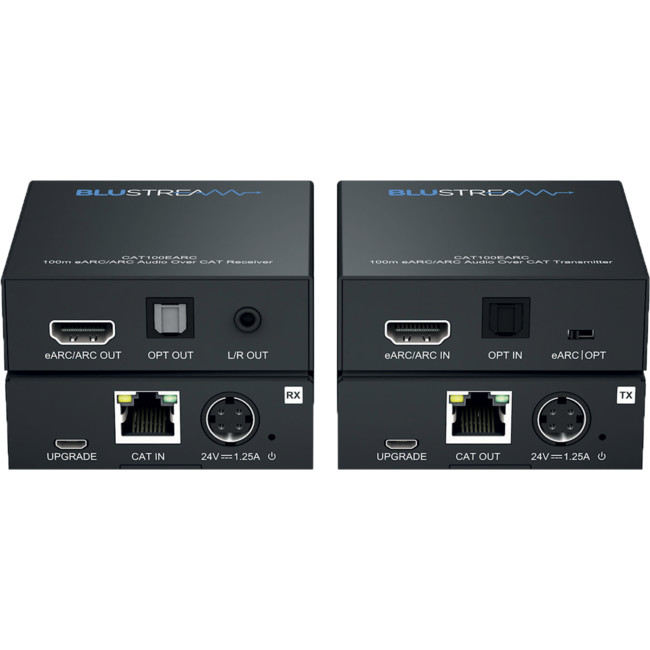

CAT100EARC 100M eARC/ARC OVER CAT KIT

Blustreams CAT100EARC Audio over CAT cable extender transmits HDMI eARC/ARC or optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m).

This plug and play device supports CEC pass-through when HDMI eARC/ARC audio is selected and features a built in DAC to convert either of the inputs to a stereo left / right audio output.

Key Features

• Extend either eARC/ARC or optical digital audio signals over a single CAT cable*

• CAT100EARC supports eARC/ARC distribution distances of up to 100m

• CAT100EARC supports Optical audio distribution distances of up to 200m

• Built in DAC (Digital to Analogue audio Converter) converts either HDMI eARC/ARC or optical digital to analogue stereo left/right audio output (2ch PCM only)*

• Supports CEC pass-through when HDMI eARC/ARC mode selected

• Supports the following audio formats:

  - eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos

  - ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch

  - Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch

• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver

  * Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX



Specifications - TX

• Audio Input Connectors: 1x Optical (SPDIF) & 1x HDMI Type A

• Output Connectors: 1x RJ45

• Firmware Upgrade: 1x Micro-USB

• Dimensions (W x H x D): 74mm x 80mm x 24mm

Specifications - RX

• Input Connectors: 1x RJ45 & 5V/1A DC

• Output Connectors: 1x Optical (SPDIF), 1x HDMI Type A & 1x Analogue audio L/R (3.5mm stereo Jack)

• Firmware Upgrade: 1x Micro-USB

• Dimensions (W x H x D): 74mm x 80mm x 24mm

• Shipping Weight: 0.7kg

• Operating Temperature: 32 F to 104 F (-5 C to 55 C)

• Storage Temperature : -4 F to 140 F (-25 C to 70 C)

• Power Supply: 24V/1.25A DC
