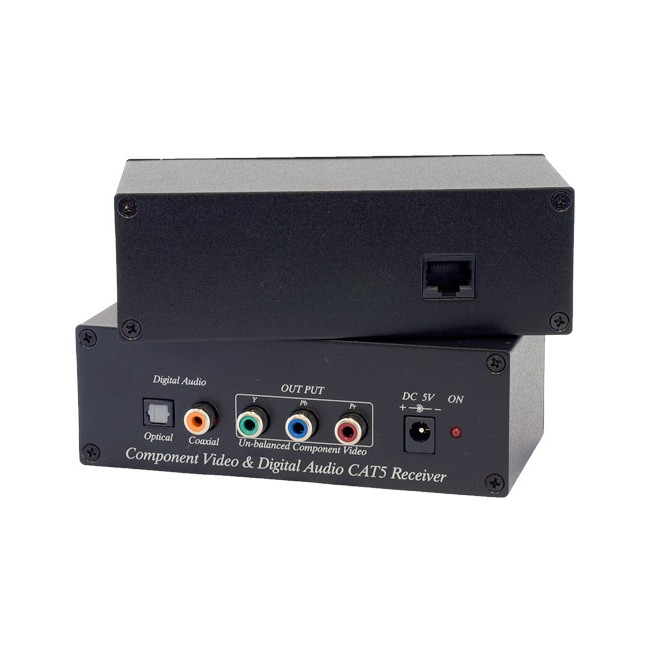

CV02A-4 IDEO DIGITAL AUDIO CAT5 EXTENDER 2PCS/SET
The Component Video & Digital BALUN is designed for component video signal (Y, Pb, Pr) and one digital audio be transmitted via cost effective one CAT5 UTP cable. Used inpairs, the Component Video/Digital Audio BALUN supports 408i/p, 720p and 1080i video formats for hi-definition (HDTV) video application. Application for control rooms, multimedia rooms, communications centers, convention facilities, classroom video corporate projection system.
Specifications:
ITEM NO.
CV02A
VIDEO INPUT (RCA Connector)
Green colorfor Y, Blue color for Pb, Red color for Pr,
Audio Input
RCA or Optical
Support
480Ii/480p/720p/1080i/1080p
Bandwidth
Video: 60Mz, 3dB roll off, Digital Audio: 25MHz, 1dB roll off
Maximum Input
1.0Vp-p , 75 Ohms
Insert Loss video
1dB for 0.1Mhz. Gradually increasing to 3.0dB over the frequency range
Video Gain
Y, Pb, Pr
Return Loss video
Greater than 15dB over the frequency range
Common Mode Rejectionvideo
- 55db max.
Power
5V
Distance
300 meters (Max.)
CABLE FOR RJ-45
Twisted Pair CAT 5 (AWG24)
Temperature
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions W x H x Dmm
70*133*44
Weight (g)
300
