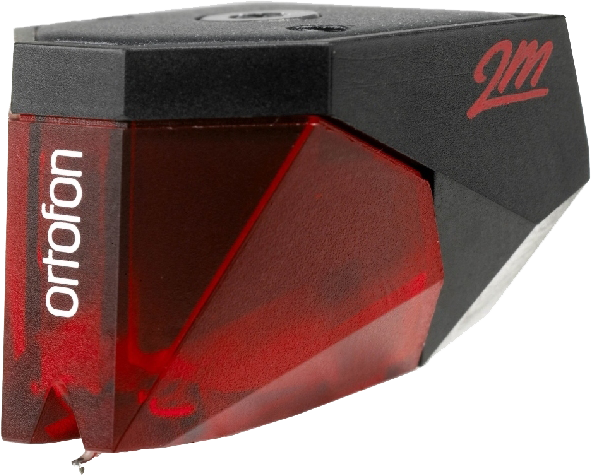

2MRED ORTOFON 2M RED CARTRIDGE

WITH ELLIPTICAL STYLII

Code: 07165210

EACH
Special
Buy-In
$179 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

The Ortofon 2M Series was developed together with the Danish designer "Møller Jensen Design" fromCopenhagen, Denmark - the same designer who designed the award winning Jubilee and the Kontrapunkt Moving Coil seriesof cartridges.

The 2M series of Moving Magnet cartridges are engineered for precise and accurate retrieval of the information in therecord groove.

The Ortofon philosophy is to play the recorded sound as accurately as possible, without colouration of the sound.

They have optimised the design for ease of mounting the cartridge to the headshell with weight and size to fit the most common turntableson the market today.

Of course the 2M isn't just another pretty face.

The 2M series of cartridges feature Ortofon's trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge.

Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

The 2M Red Series features:

  • an improved engine, which provides an increased outputof 5.5mV
  • a tipped Elliptical diamond andsplit pole pins with acopper wire



What Hi-Fi Choice had to say

May 2011

"...Ortofon cartridges are veryinformative...well extended at both frequency extremes...this one seems to fit the pattern...

...The treble is notably clean and tidy, full of life without ever becoming strident or harsh...

...Bass is assured...Tracking very confident..."









Technical data 2M Red


  • Output voltage at 1000 Hz, 5cm/sec.
5.5 mV
  • Channel balance at 1 kHz
1,5 dB
  • Channel separation at 1 kHz
22 dB
  • Channel separation at 15 kHz
15 dB
  • Frequency range at - 3dB
20-22.000 Hz
  • Frequency response
20-20.000 Hz 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force
70 µm
  • Compliance, dynamic, lateral
20 µm /mN
  • Stylus type
Elliptical
  • Stylus tip radius
r/R 8/18 m
  • Tracking force range
1.6-2.0g (16-20 mN)
  • Tracking force, recommended
1.8 g (18 µmN)
  • Tracking angle
20°
  • Internal impedance, DC resistance
1.3 kOhm
  • Internal inductance
700 mH
  • Recommended load resistance
47 kOhm
  • Recommended load capacitance
150-300 pF
  • Cartridge colour, body/stylus
Black/Red
  • Cartridge weight
7.2 g
  • Replacement stylus unit
2M Red (interchangeable with 2M Blue)
  • Stylus protection guard
2M Red



2M Red accessories included the package:




  • 1 x Stylus brush
  • 1 x Screwdriver
  • 2 x Screw M2,5 x 5
  • 2 x Screw M2,5 x 7
