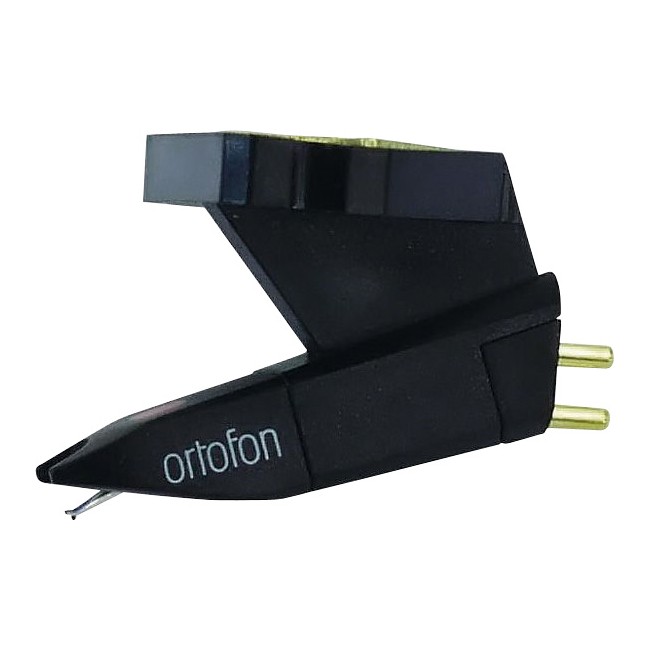

Ortofon OM 5E Cartridge & Stylus -Eliptical
With an eliptical stylus, OM 5E promises quality soundfrom Ortofon's moving magnet (VMS) system. New technology and further optimization have produced the greatest sounding magnetic cartridges from Ortofon - ever!
Ortofon has been designing and manufacturing magnetic cartridges for more than 20 years. In providing an economic alternative to the renowned Ortofon moving coil cartridges, the magnetic models have established a firm position for themselves among music lovers and Hi-Fi cognoscenti the world over. Naturally, the magnetic cartridges also benefits from Ortofon's research and experience in transducer technology.Sophisticated styli, light and rigid cantilevers, and advanced magnetic circuitry have produced a level of quality which is state-of-the-art within the magnetic category.
The Super OM cartridges have been designed on the basis of Ortofon's lightweight moving magnet system - originallyintroduced in the OM (Optimum Match) Series - with two major refinements. By means of advanced computer simulation methods, it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. This translates into improved linearity, higher channel separation, and reduced distortion.
In addition, Ortofon has succeeded in developing a technique by which to slit the less than 1 mm diameter hollow pole pins, thus significantly reducing eddy currentlosses caused by magnetic hysteresis. This sophisticated technology extends the frequency range and improves phase linearity. The cartridge body is manufactured from a Noryl plastic/glass combination, which ensures high rigidity, and freedom from resonances.
FEATURES:
- Standard 1/2" mounting
- Output voltage: 4mV
- Frequency response: 20 - 25,000Hz
- Stylus type: Eliptical diamond
- Tracking force range: 1.5 - 2g
- Recommended Tracking force: 1.75g
- Cartridge weight: 5g
- Cartridge colour: Black
- Mounting screws supplied
SPECIFICATIONS:
| Technical data |
|
| 20-25.000 Hz |
| 20-20.000 Hz ± 2 dB |
- Tracking ability at 315Hz at recommended tracking force *)
| 65 µm |
- Compliance, dynamic, lateral
| 20µm/mN |
| Eliptical |
| r/R8/18 µm |
- Equivalent stylus tip mass
| 0,5 mg |
| 1.5-2 g (15-20 mN) |
- Tracking force, recommended
| 1.75 g (17.5 mN) |
| 20° |
| Black |
