CS01I 3X 6.5CM CHANNEL CABLE GUARD

EXTREME HEAVY DUTY RAMP

Code: 05590100

20.06 kg
EACH
Low Stock
$251.90 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

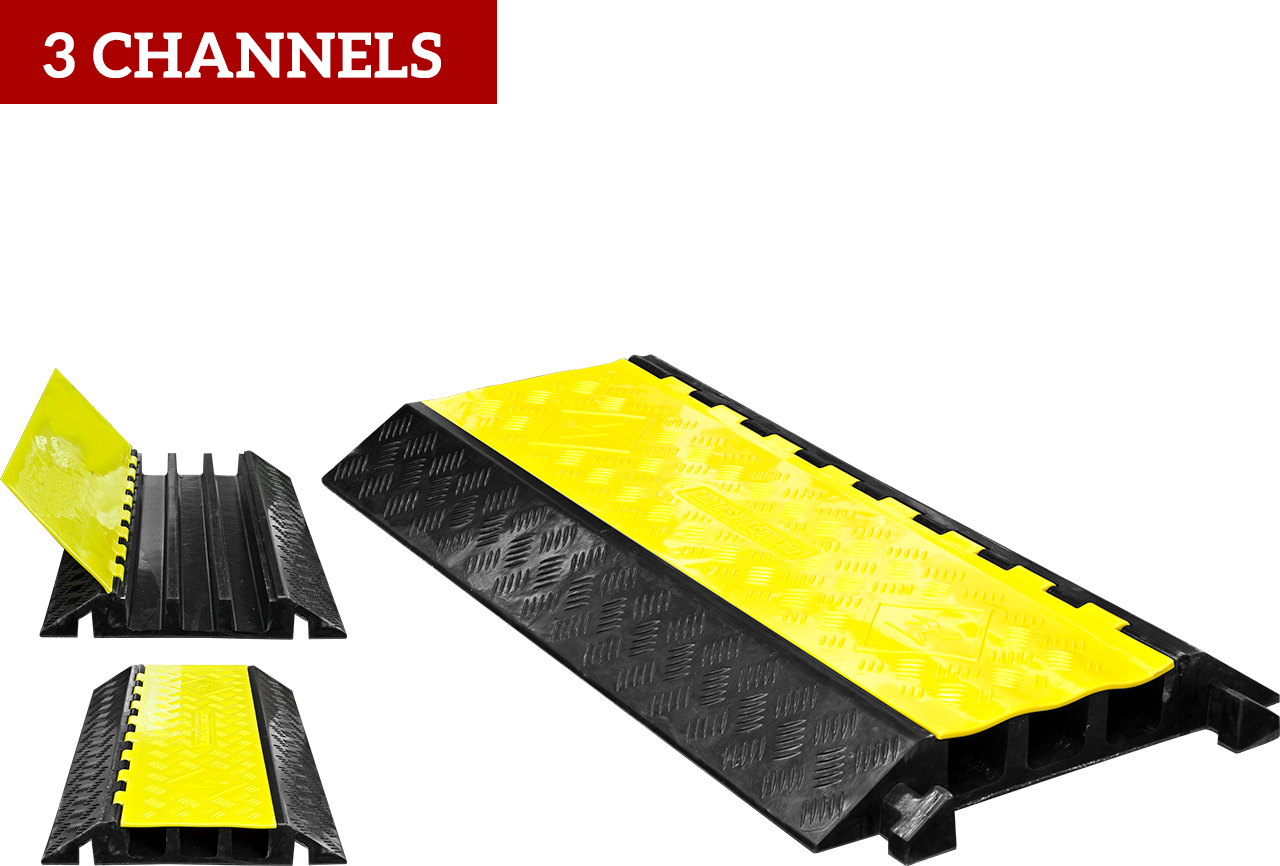

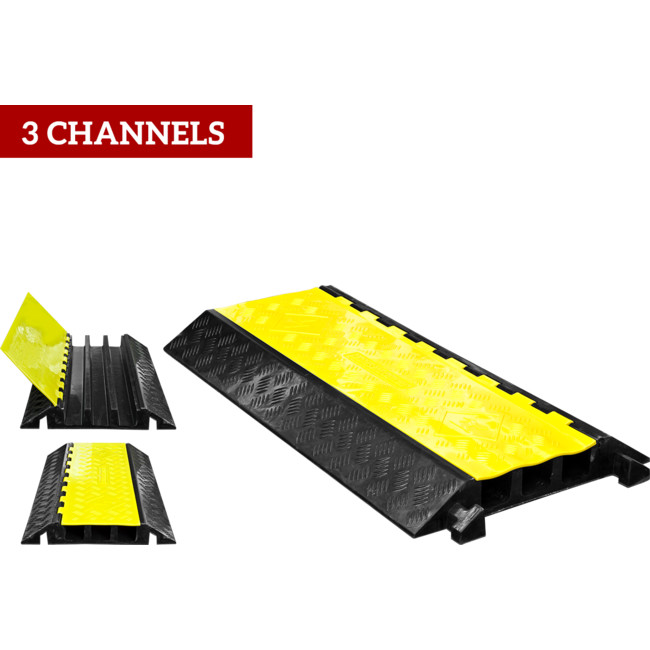

3 Channel Heavy Duty Cable Guard

Cable management made easy with CableSafe Heavy Duty CableGuards

CableSafe is proud to present to you our range of very affordable 3 and 5 channel cable ramps now available in Australia. We have worked hard on being able to supply ourcustomers with cost effective yet superb quality, cable guard solutions. Better cable management has never been easier to find or more affordable.

FEATURES:

This unit (CS-01i Heavy Duty cable guard ) is specifically designed for  cable management where cables or hoses need to be run out over roadways or in pedestrian areas and a trip risk exists. It also allows heavy vehicles to drive over these cables or hoses withoutdamaging them.

The main points of difference between this and other products on the market  are the ability to get more cables or  hoses into the channels due to their  size and the overall cost benefit.

This product sells for about one third  the cost of other comparable products.

Applications Include:

  • Traffic Management
  • Construction
  • Factories & Workshops
  • Mining
  • Entertainment Industry
  • Aircraft Maintenance
  • Utility Companies
  • Jack Up Barge

SPECIFICATIONS:

  • Dimensions: 900mm(L) x 500mm (W) x 75mm (H)
  • Weight: 19KG
  • No of Channels: 3
  • Channel Dimensions: 57.5mm x 57.5mm
  • Weight Loading:   NATA Laboratory Tested to 5.1T per tyre for 5 minutes ( Equivalent to 20T per axle)
  • Interconnect System: Male-Female System
  • allowing Any Length to be Created
  • Patented 5 bar tread surface provides maximum traction
  • Non-Conductive
