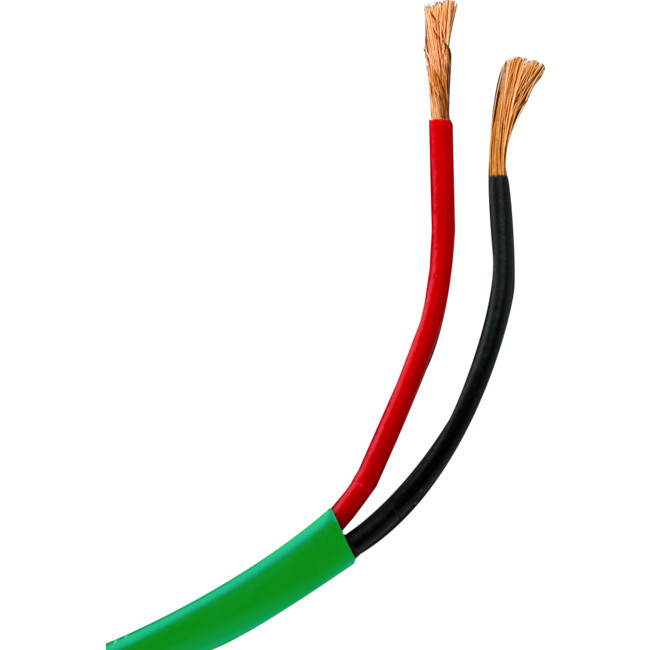

UCA142GNBUR/1M 2 CORE BURIAL SPEAKER CABLE-1M

14 GUAGE - GREEN JACKET

Code: 05107144

0.0700 kg
EACH
152
In Stock
TRADE ALERT!
$3.99 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Introducing Unified Copper installation cables by TruAudio, USA.

Introducing Unified Copper installation cables by TruAudio, USA

UC-A142GN500-BUR -14-2, 14AWG, burial, 2 conductor, stranded, bare copper, class 3 & FT4, rated for audio applications

Quality speaker cabling that offers installation ease, superior technology and fantastic value for money.

UC Cables are low-loss speaker cables available in multiple gauge thickness, using high strand oxygen free copper inside a superior low capacitance polypropylene dielectric.

This results in low signal loss and great audio performance.

A durable box design, with large mouth opening allows fortangle free, easier cable pulls.

All cables come with sequential meter markings counting down from 152m.



  • Conductors
 2
  • Guage
 14
  • Jacket Colour
 Green
  • Cable Thickness
 6.6mm
  • Use
 Burial



Description

  • Rated Voltage
 300v
  • Rated Temp (C)
 60 C
  • Product Standard Certification
 UL444 (CMR), Passes UL1666 Flame Test, RoHS Compliant
  • Flame Test
 FT4
  • Application
 Designed for underground installations, featuring a moisture resistant cable jacket paired with water blocking tape. Class 3 and Class 2 circuits.
  • Reference Standard
 UL13



Performance

Electrical Characteristics
  • Max Conductor Resistance (O/KM)
 8.28
  • Voltage
 300V RMS
  • Temperature (C)
 -15 ~ 60 C
  • Min. Insulation Resistan ce (O/KM)
 5000M
  • Dielectric Strength
 1.6KV / 1 Minute
  • Nom. Capacitance Between Conductor
 30 PF/ft @1 KHz
  • Nom. DC Resistance per Conductor @ 20C
 .273O / 1, 000 ft .




Construction

  • Conductor
 Stranded Bare Copper

Component


  • AWG
 14
  • Construction( /-0.008mm)
 0.16
  • Stranded Dia (=/-0.05mm)
 2.05

Insulation


  • Insulation Material
 Polyvinyl/Polypropylene
  • Nom. Thickness (mm)
 0.5
  • Insulation Dia. ( /-0.05mm)
 2.55
  • Ripcord
 Nylon Thread

Jacket


  • Jacket Material
 PVC
  • Nom. Thickness (mm)

0.6
  • Outter Dia. ( /-0.10mm)
 6.6
  • Waterproof tape
 Yes

Insulation /Conductors Colors


  • Componet
 1. Red, 2. Black
  • Jacket Colour
 Green



Compliance

  • CL3 FT4

National Electrical Code: Ar ticle 800
National Electrical Code: Ar ticle 725
