CCTVCOM24-1M RG59 AND FIG8 CCTV COMBO - 1M

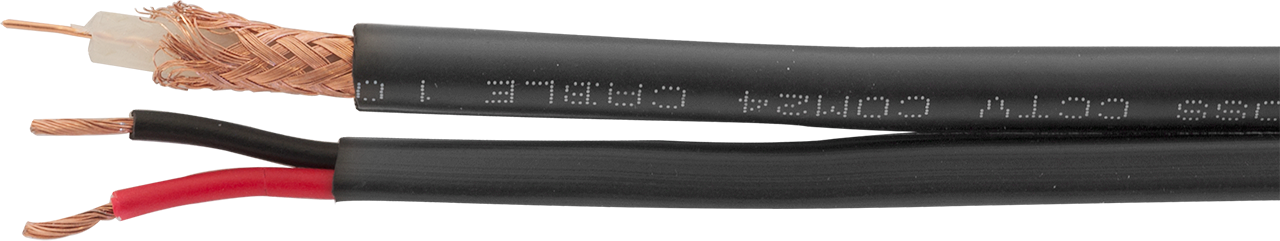

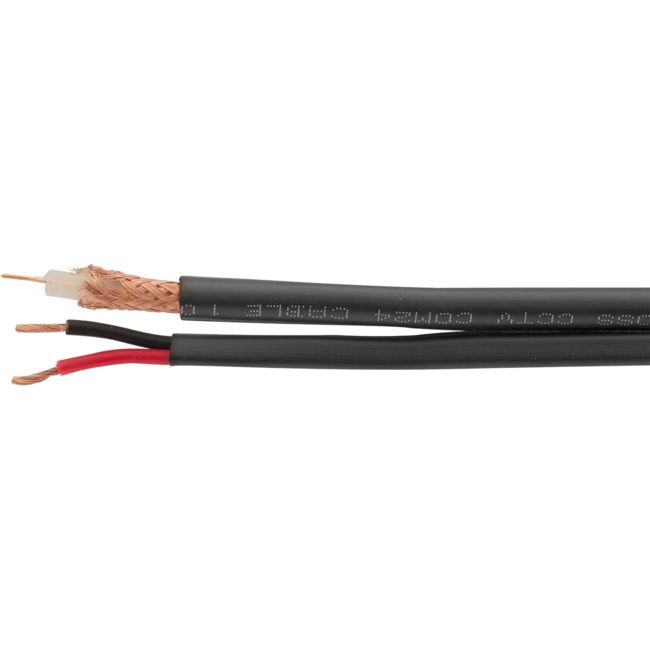

Figure-8 RG59 Video Coax heavy duty 2-core power cablewith tracer

• IMPROVED DESIGN
  The construction has been improved to have 2 separate butbonded (figure 8) power and RG59 video cables.
  This is an improvement as there's one less jacket for easier install and due to the better placement of the figure8, there is less crosstalk
• Designed for commercial applications
• Overall: 10mm max width
• Our CCTVCOM24 has been quality checked.
  • Video signal over 100m — Pass
  • Power attenuation over 100m under a load — Pass
• RG59 Attenuation (dB/100m):
  • 9.342 @ 55MHz
  • 19.071 @ 211MHz
  • 28.846 @ 450MHz
  • 41.635 @ 870MHz
  • 45.388 @ 1000MHz
  • 55.268 @ 1450 MHz
  • 69.270 @ 2150MHz
  • 83.187 @ 3000MHz

Q. Can CCTV cameras operate over the full 100m length of the CCTV cable?

Yes. Picture remains excellent and there are no issueswith power.
Method:
We tested a Doss IN50PRO connected to a Doss 12VDC/500mA powersupply over the full 100m length.
We measured voltage input at 12.18V and output voltage at 10.38V.
Current draw was 260mA and resistance was 7 Ohms.
