KBWIRE200Y 0.9MM YELLOW CABLE - 200M ROLL

Code: 05061990

4.65 kg
9329849012502
EACH
Low Stock
TRADE ALERT!
$220 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

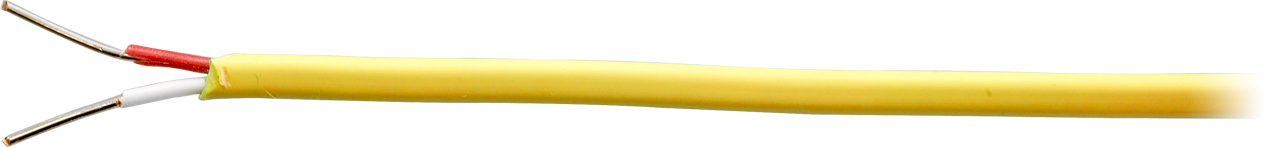

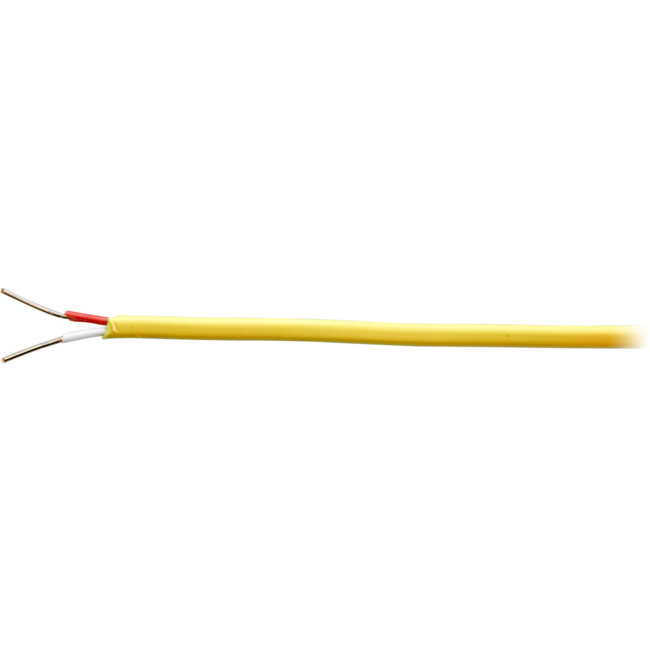

Garland Cables TSW2190 Twin Sheath, 0.9mm, 2 core, PVC/PVC

0.9 mm Bare Copper Conductor, PVC Insulated, PVC Jacketed, 2 Core Flat Cable

Twin sheath connecting wire is used in the alarm and security industries where a double insulated product is required.

Common applications include smoke detectors, fire alarms, Intercoms and public address systems (PA systems) where double insulated cables are now required by legislation.

These cables come in a number of different jacket colourswith Red being reserved for fire alarm applications.

Specifications

General
Pack Size 200 / 500m
Applicable Standards AS/NZS 1125, AS/NZS 3808
Suitable Applications For the wiring of electronic and allied equipment, extension speakers, security system etc.
ROHS Compliant Yes
No. Cores 2
Conductor Characteristics
AWG 19
Stranding (mm) 1/0.9
Area (mm2) 0.64
Diameter (mm) 0.9
Material BC
Insulation
Material PE Compound
Nominal Thickness (mm) 0.3
Nominal OD (mm) 1.5
Outer Sheath
Material PVC
Colour YELLOW
Nominal Thickness (mm) 0.5
Nominal OD (mm) 2.6 x 4.1
Physical Characteristics
Insulation - Elongation at BBA >300%
Outer Sheath - Elongation at BBA >100%
Tensile Strength Before Aging >12MPa
Electrical Properties
Voltage Rating ELV
Max. Conductor DC Resistance @ 20°C 27.1O/km
Min. Insulation Resistance @ 20°C 1000MO.km
Voltage Test: Conductor to core 1.0 kV ac/1min
Mechanical Properties
Operating Temp Range -15 to 70°C
Max. Recommended Pulling Tension 89N
Min Bend Radius (Install) 26mm
Approximate Mass(kgs/100m) 2.2kg/100m
