This cable is also available per metre.

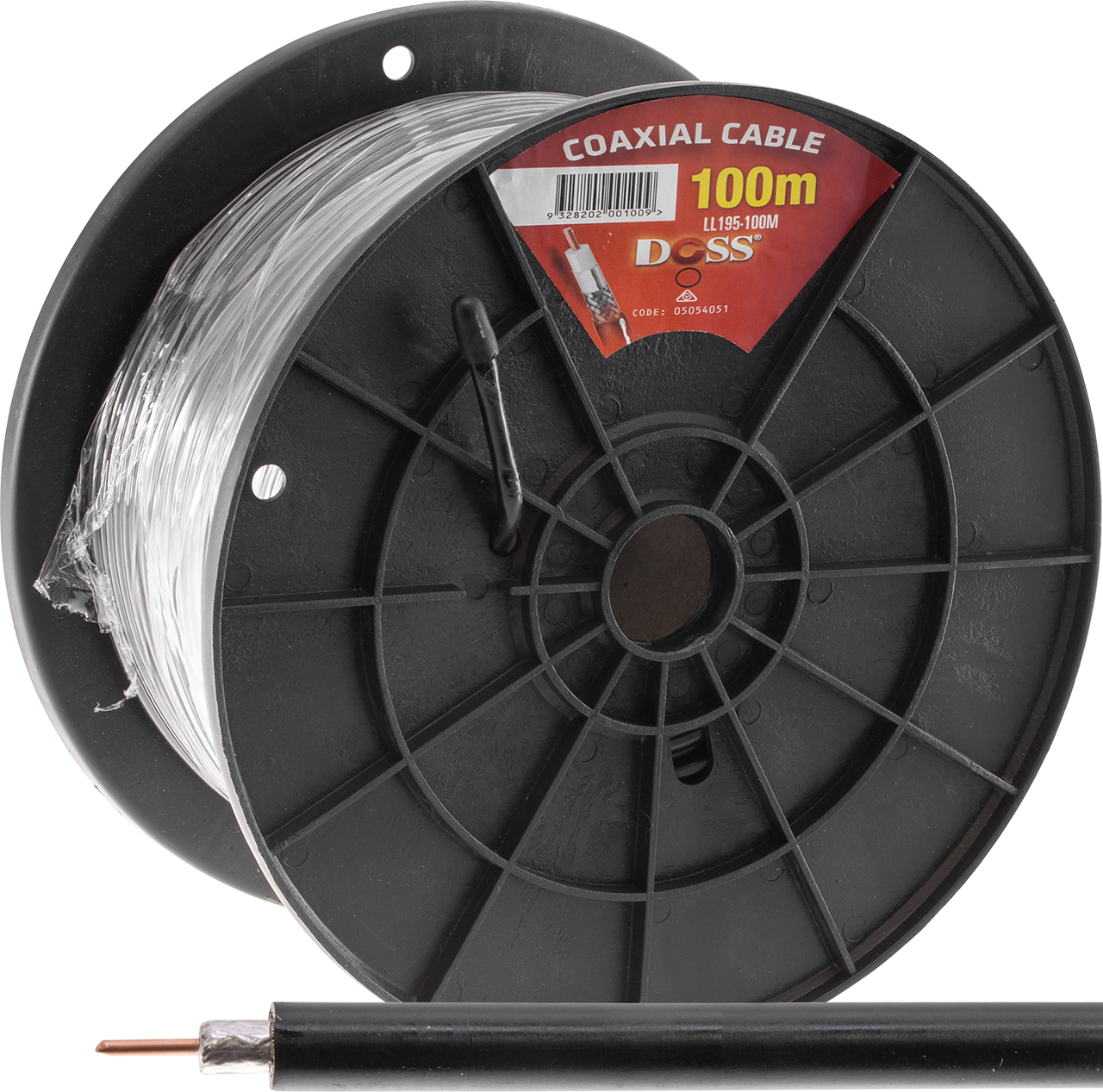

A heavy duty 50 ohm coaxial cable with 0.94mm±0.01solid bare copper conductor & Bonded dual al foil tinned copper outer conductor.
Cable Construction
Material
Dimensions
1.Inner Conductor
Bare Copper
0.94±0.01m m
2.Dielectric
PE(Foam PE)
2.79±0.08mm
3.Outer Conductor
Bonded DualAl Foil Tinned Copper
89% Braid Coverage(16*6*0.127*18.8)
4.Jacket
PE(Black PE)
4.95±0.13mm
Mechanical Characteristics
50±2O
Capacitance
27PF/FT
Velocity
75%
Jacket spark (V.RMS)
3000
Min Bend Radius
24.8mm
Attenuation
Typical(dB/100ft)
Max(dB/100ft)
Frequency(MHz)
30
2.2
2.4
1500
15.1
16.6
50
2.7
3.0
1800
16.8
18.5
150
4.3
4.7
2000
17.9
19.7
220
5.2
5.7
2500
20.4
22.4
450
7.7
8.5
22.8
25.1
900
11.3
12.4
