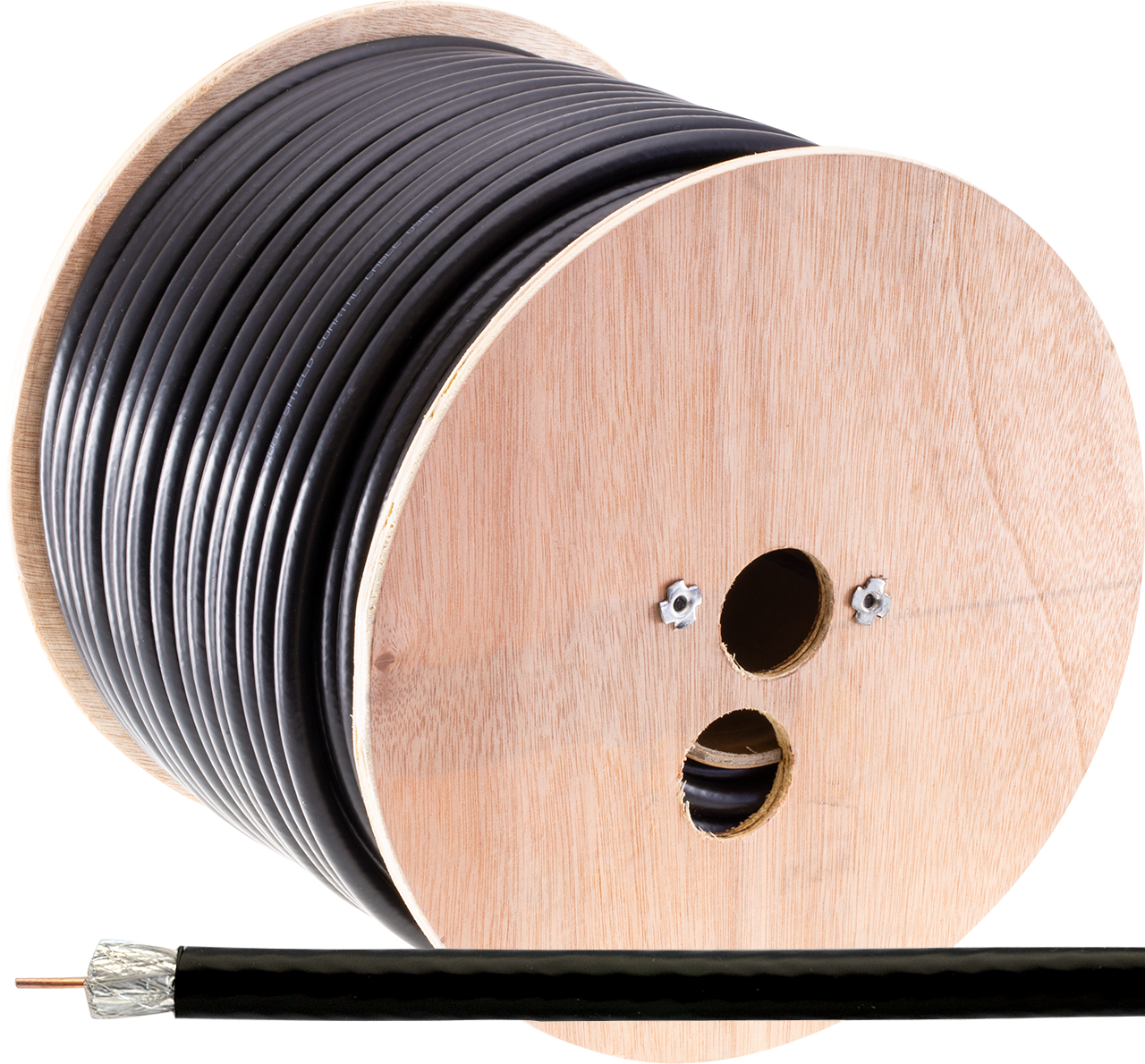

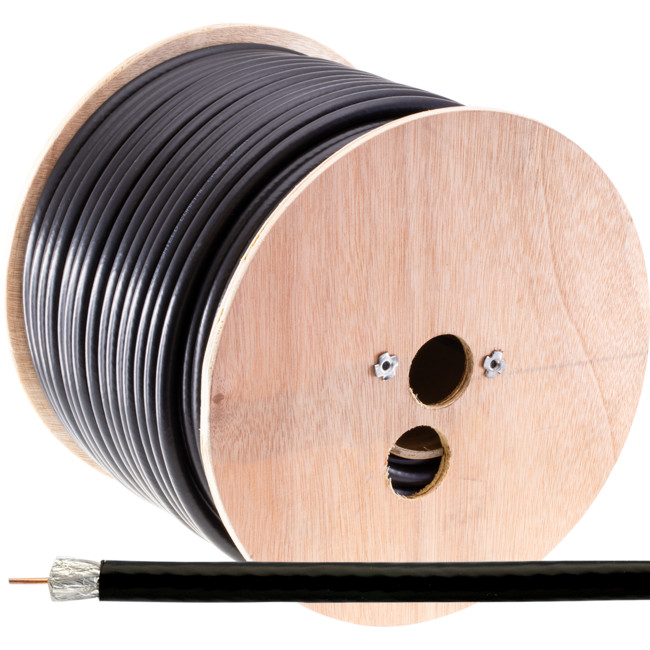

RG11QDR-100M RG11 QUAD SHIELD COAX CABLE

100M ROLL 75OHM DOSS

Code: 05052471

9328202021045
ROLL
In Stock
TRADE ALERT!
$139 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Kit Components
Code
Item
Qty
05052470
RG11QDB-1M RG11 QUAD SHIELD COAX CABLE-1M 75OHM DOSS
100
Enter 4 digit postcode
  • Cable construction (inner- to outer-most):
    • Core:
      • 14 AWG / Ø1.63mm
      • CCS (Copper Coated Steel) 21%
      • DC Resistance: 11Ω / 1000ft. at 20°C
    • Dielectric Foam PE: Ø7.11mm
    • Shielding:
      • Bonded Aluminium Foil
      • Braid Aluminium Shield:
        • 96x Ø0.16mm,
        • 60% Coverage
      • Non-bonded Aluminium Foil
      • Braid Aluminium Shield:
        • 64x Ø0.16mm,
        • 40% Coverage
      • Shield DC Resitance: 6.9Ω / 1000ft. at 20°C
    • PVC Jacket:
      • Ø10.3mm
      • Colour: Black
  • Operating temperature range: -20 ~ 60°C
  • Return loss: 15dB Max (100% swept tested)
  • Impedance: 75.0Ω ± 3Ω
  • Attenuation:
    • 0.20dB/100ft @ 1MHz
    • 0.50dB/100ft @ 10MHz
    • 0.95dB/100ft @ 50MHz
    • 1.25dB/100ft @ 100MHz
    • 1.75dB/100ft @ 200MHz
    • 2.45dB/100ft @ 400MHz
    • 3.35dB/100ft @ 700MHz
    • 3.8dB/100ft @ 900MHz
    • 4.00dB/100ft @ 1000MHz
    • 4.40dB/100ft @ 1200MHz
    • 4.80dB/100ft @ 1450MHz
    • 5.30dB/100ft @ 1800MHz
    • 5.80dB/100ft @ 2200MHz
