Sold per metre. Also available as 200m roll.
Eurocable have joined together systems from opera houses,concert areanas, olympic stadiums, office complexes, recording studios, houses of worship, submarines, internet servers, to great sounding Pub Rock bands and all at a pricethat should make you think twice before buying another batch of dodgy replacements cables
SS series key features are high flexibility and long flexlife. Thanks to these properties SS is one of the most popular cables for critical outdoor use applications.
The external jacket in extra flexible PVC ensures anti-treading and anti-abrasion features.
The XLPE conductor insulation, featuring a low dielectric-constant for low capacitance, is particularly resistant to high temperatures thus avoiding jacket shrinkage when soldering the conductor.
This particular construction is ideal for continuous winding and unwinding, its use with HD series cable reels isalthough recommended.

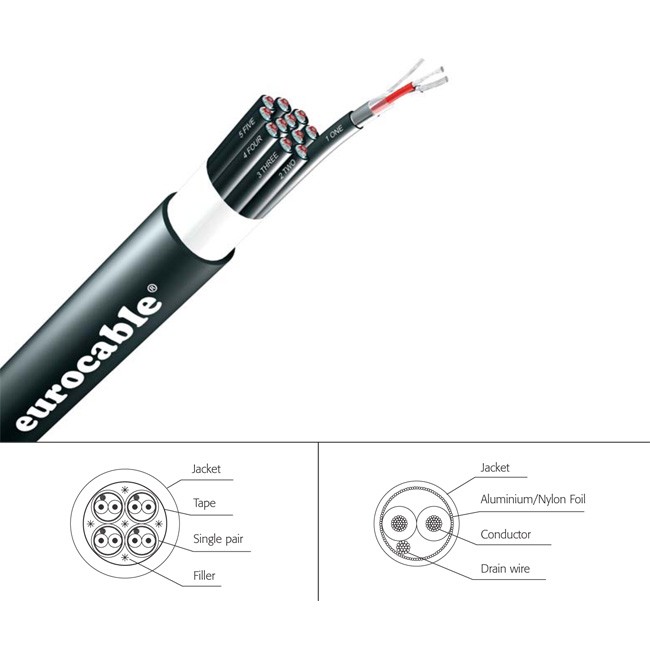

All pairs are individually shielded, twisted and identified by numbers and letters printed on the internal yellow jackets. Available from 2 to 48 pairs.
Each pair consists of two insulated twisted conductors and drain wire enclosed within a high-density spiral copper shield
| CVS LK Code | SS02C | SS04C | SS08C | SS12C | SS16C | SS20C | SS24C | SS28C | SS32C | SS40C | SS48C | |
| # Pairs | 2 | 4 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 40 | 48 | |
| | O.D. mm | 8.0 mm | 9.6 mm | 12.8 mm | 14.9 mm | 16.9 mm | 18.9 mm | 20.3 mm | 21.6 mm | 23.2 mm | 25.4 mm | 27.8 mm | |
| CABLE | Standard reels | 500 m | 200 m | |
| Weight kg / 100m | 10.3 | 15.40 | 27.00 | 36.80 | 46.30 | 60.50 | 67.90 | 73.60 | 86.80 | 106.70 | 123.20 | |
| Operating Temp | -20°C / 70°C | |
| JACKET | Material | PVC | |
| Nom. Thickness | 1.25 mm | 1.50 mm | 1.75 mm | 1.75 mm | 1.85 mm | 2.05 mm | 2.05 mm | 2.05 mm | 2.25 mm | 2.45 mm | 2.45 mm | |
| SHIELD | Material | Bare Copper spiral shield 24 AWG tinned copper drain wire | |
| Coverage | > 95% | |
| CONDUCTOR | Quantity | 2 x 2 | 4 x 2 | 8 x 2 | 12 x 2 | 16 x 2 | 20 x 2 | 24 x 2 | 28 x 2 | 32 x 2 | 40 x 2 | 48 x 2 | |
| Strand | 28 x 0.10 mm | |
| Area / AWG | 0.22 mm2 / 24 | |
| Insul. O.D. | 1.00 mm | |
| Material | Annealed bare copper XLPE insulated | |
| ELECTRICAL DATA | D.C.R. at 20°C |
Conductor: 85Ω/km
Shield: 40Ω/km
| |
| Capacitance | CDR/CDR @ 1 kHz: 100 pF/m
CDR/SCR @ 1 kHz: 180 pF/m | |
| Nominal Impedance | @ 1kHz: 530Ω/100m | |
| Attenuation | @ 1kHz: 0.20 db/100 m | |
| Inductance | @ 1kHz: 70 µH/100 m | |
