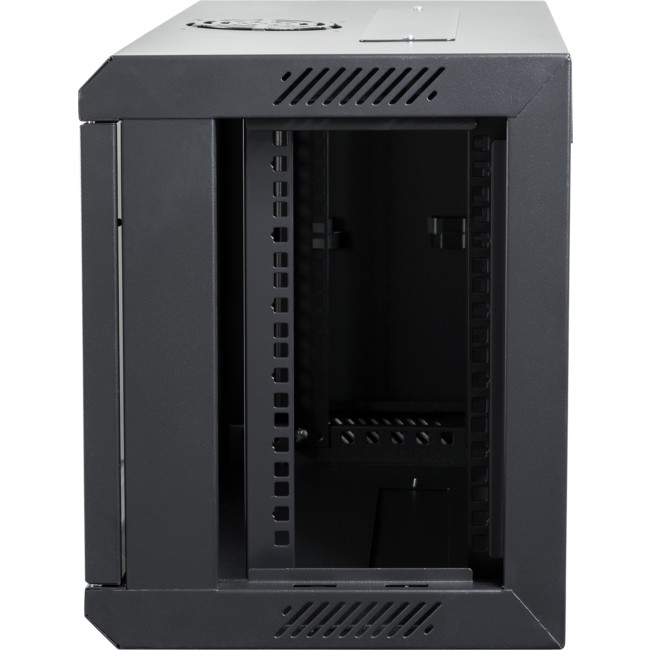

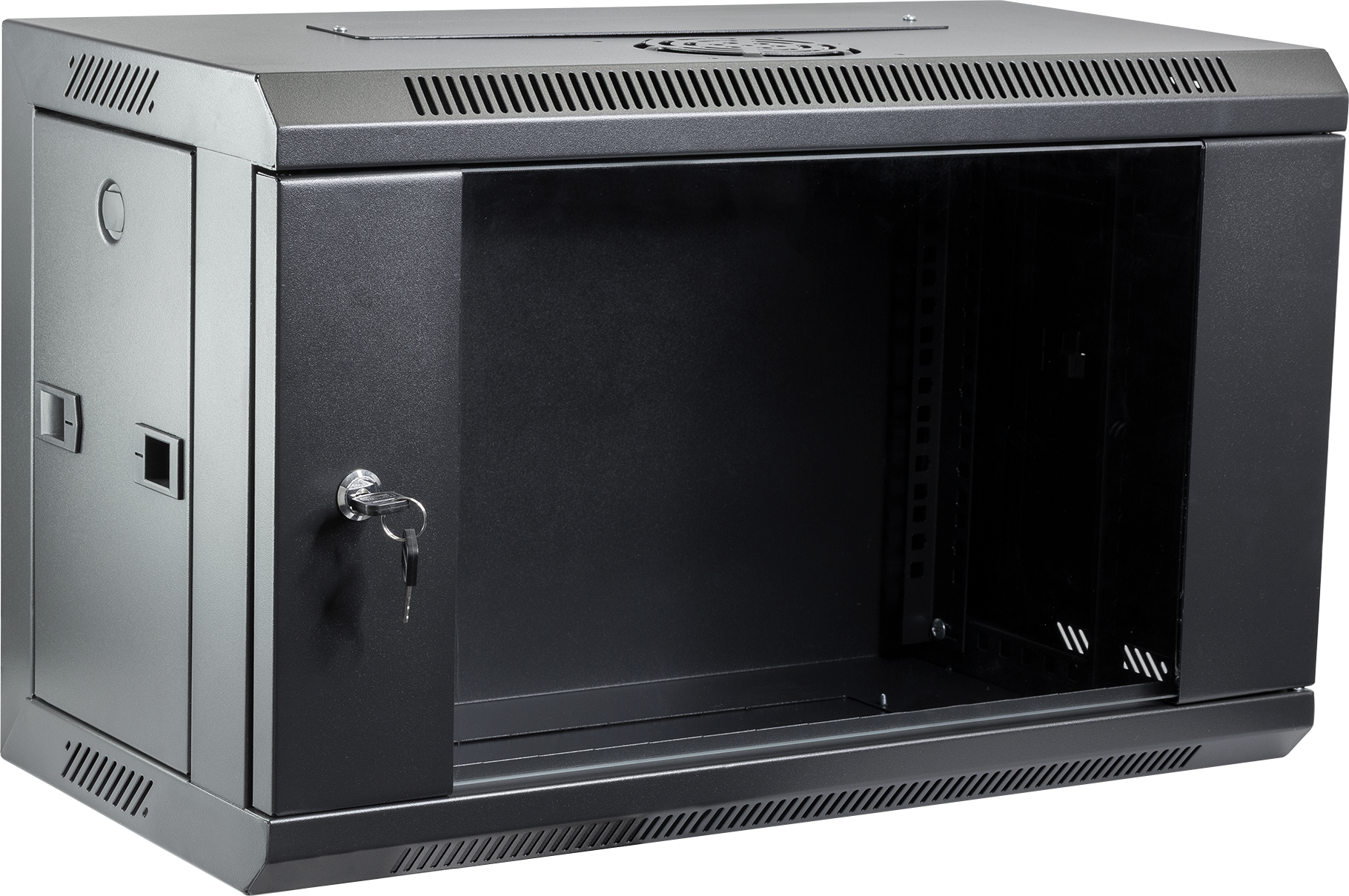

WMC6U30 6RU WALL MOUNT CABINET 600X300MM

HEIGHT 368MM FRONT GLASS DOOR

Code: 04855407

12.00 kg
9328202035622
EACH
In Stock
TRADE ALERT!
$129 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

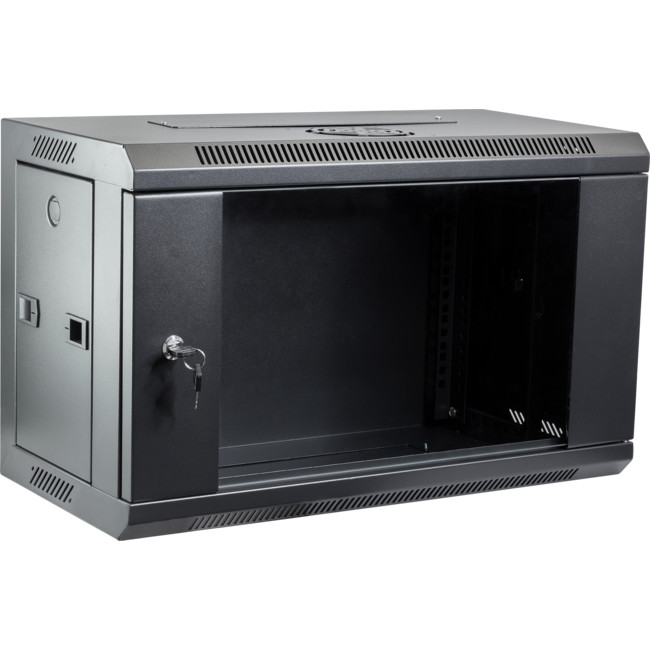

WMC6U30 6RU WALL MOUNT CABINET – 600mm × 300mm

  • Pre-assembled 6RU wall mount cabinet 368mm height
  • Welded frame and stable structure
  • Standing or wall mounting installation
  • Easy wall mounting bracket installation

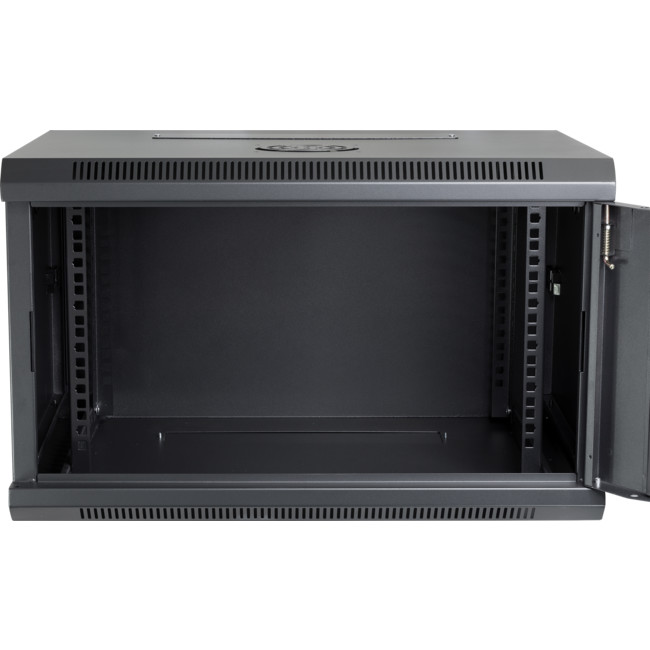

  • 19″ EIA-compliant standard rack frame

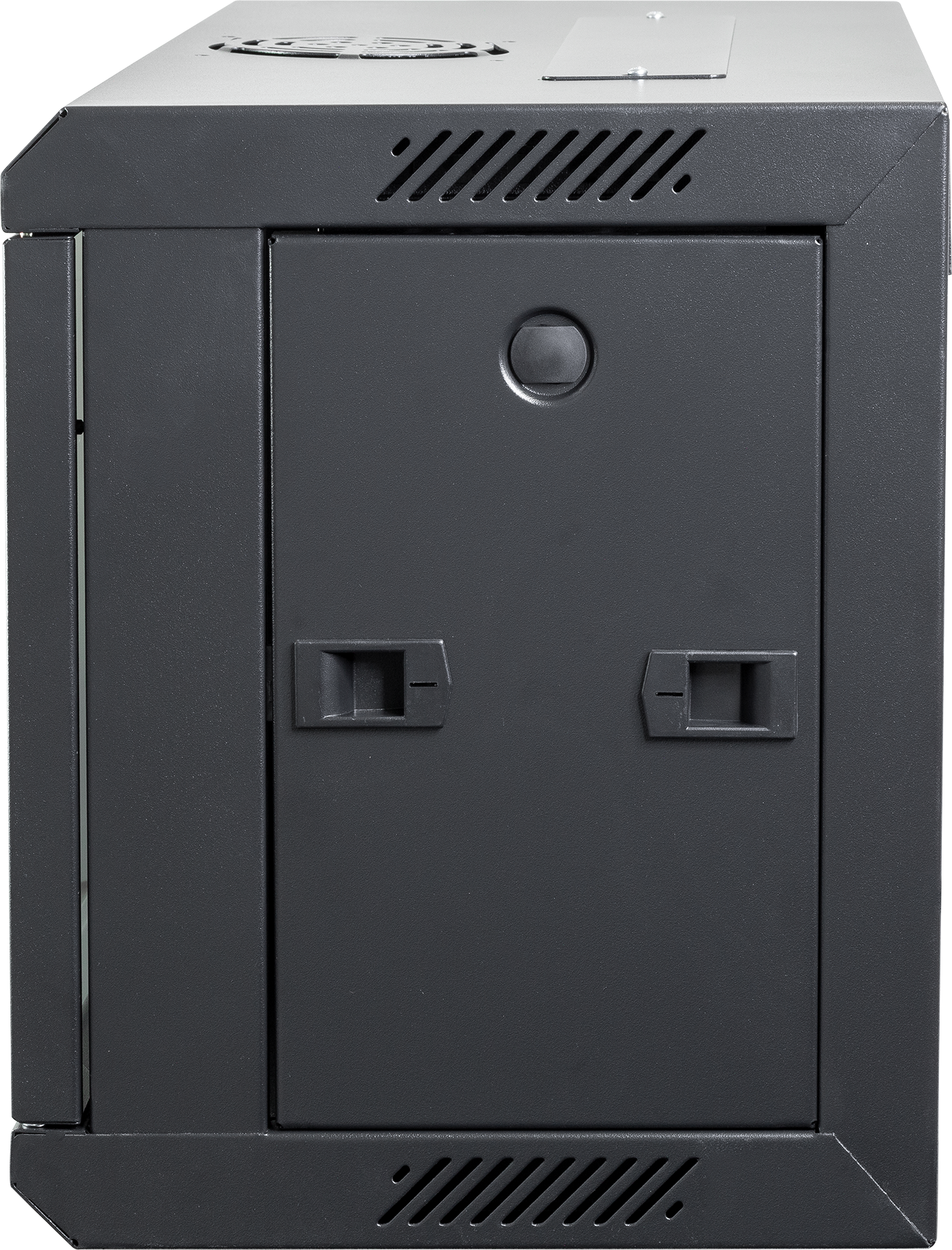

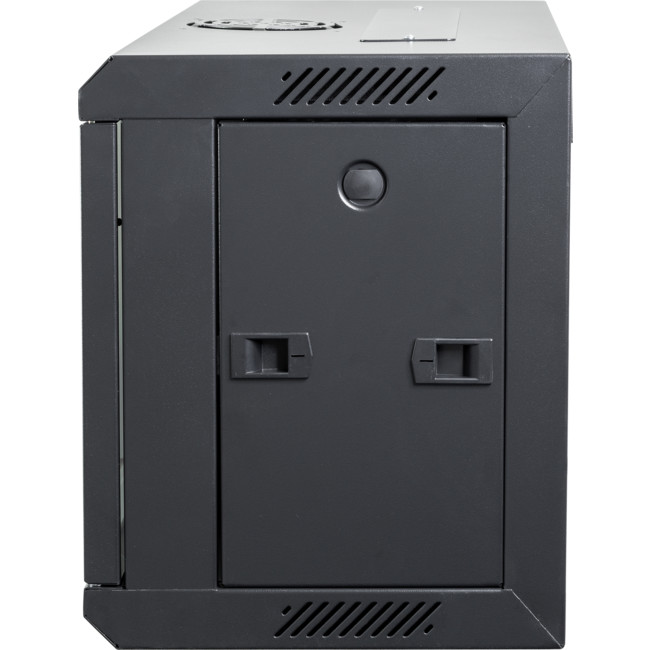

  • Quick removable side panels
  • Top/Bottom cable entry knock-out plates

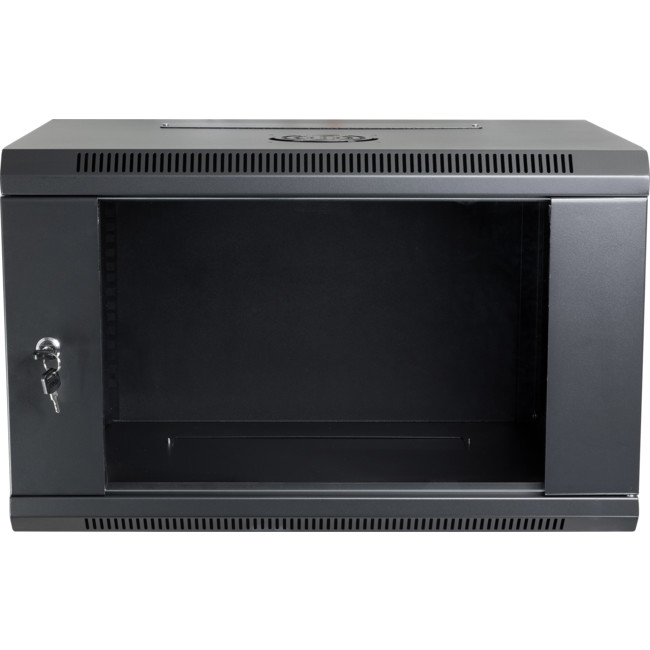

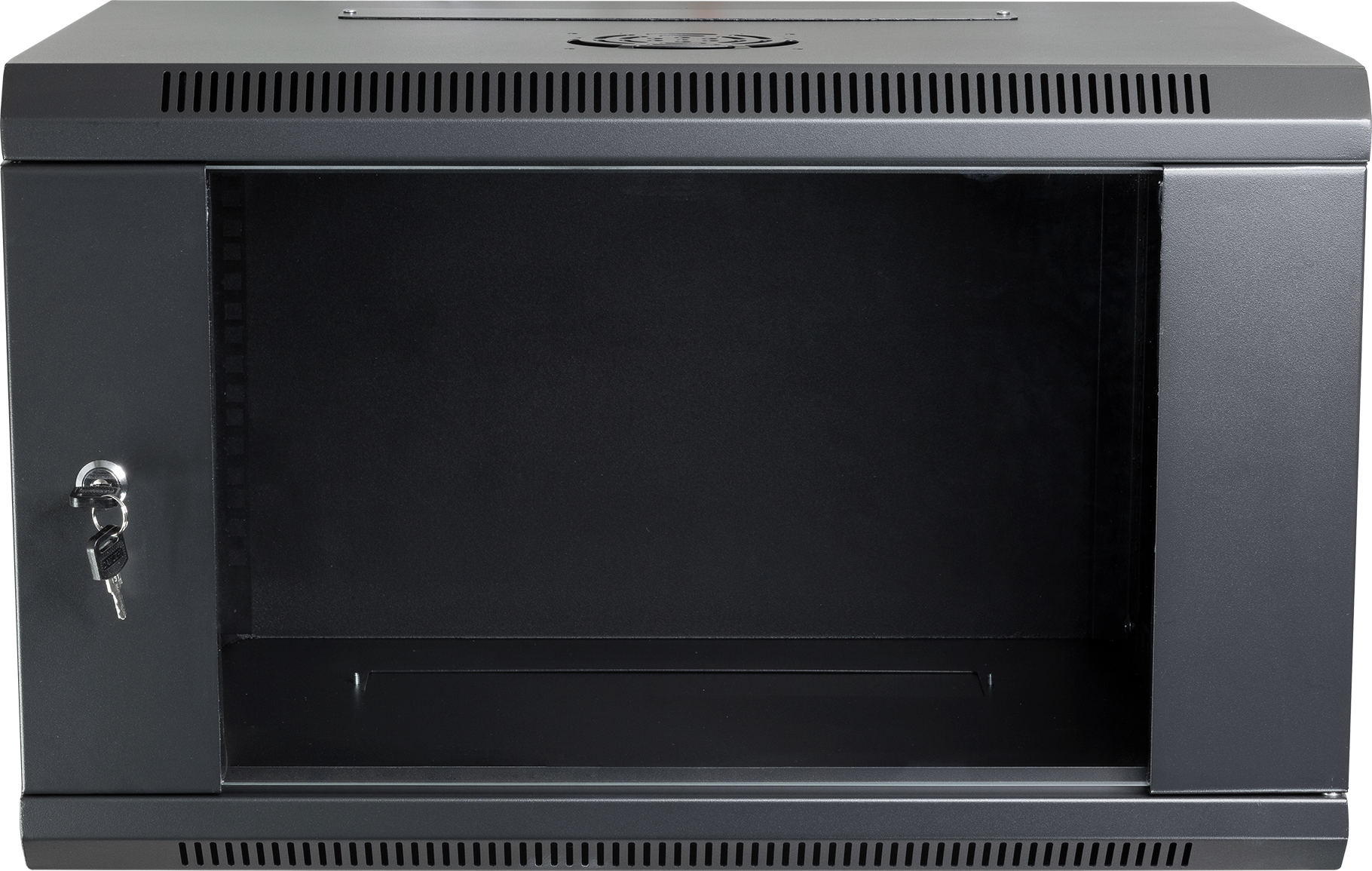

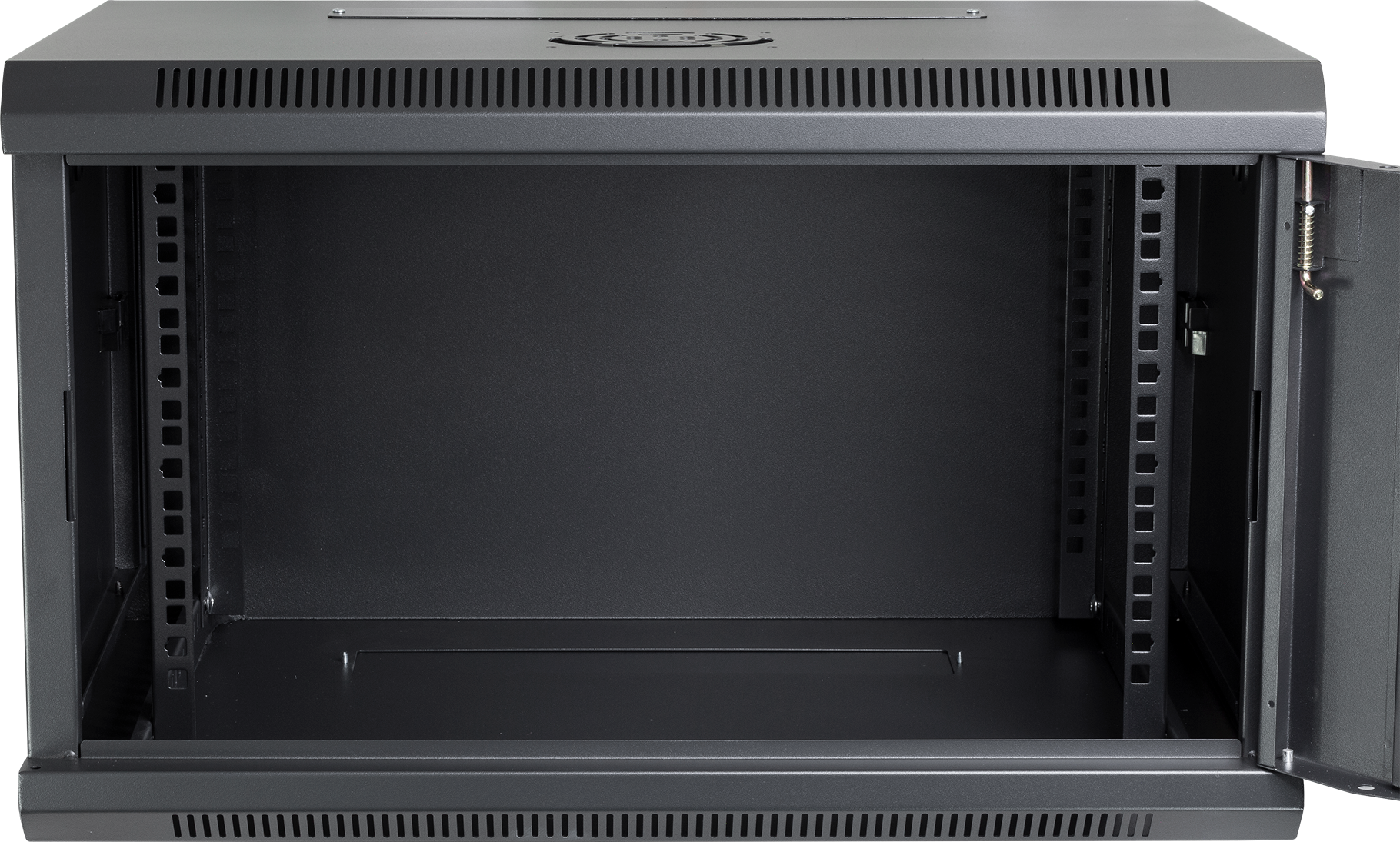

  • Tempered glass front door with over 180 degrees of turning angle
  • Easy fan installation with the fan cutout on the top cover
  • Removable hinges to change the front door swing direction
  • L-shaped mounting profile, easy to adjust on the mounting rail
  • A wide range of optional accessories allows you to adjust the cabinet to your own needs

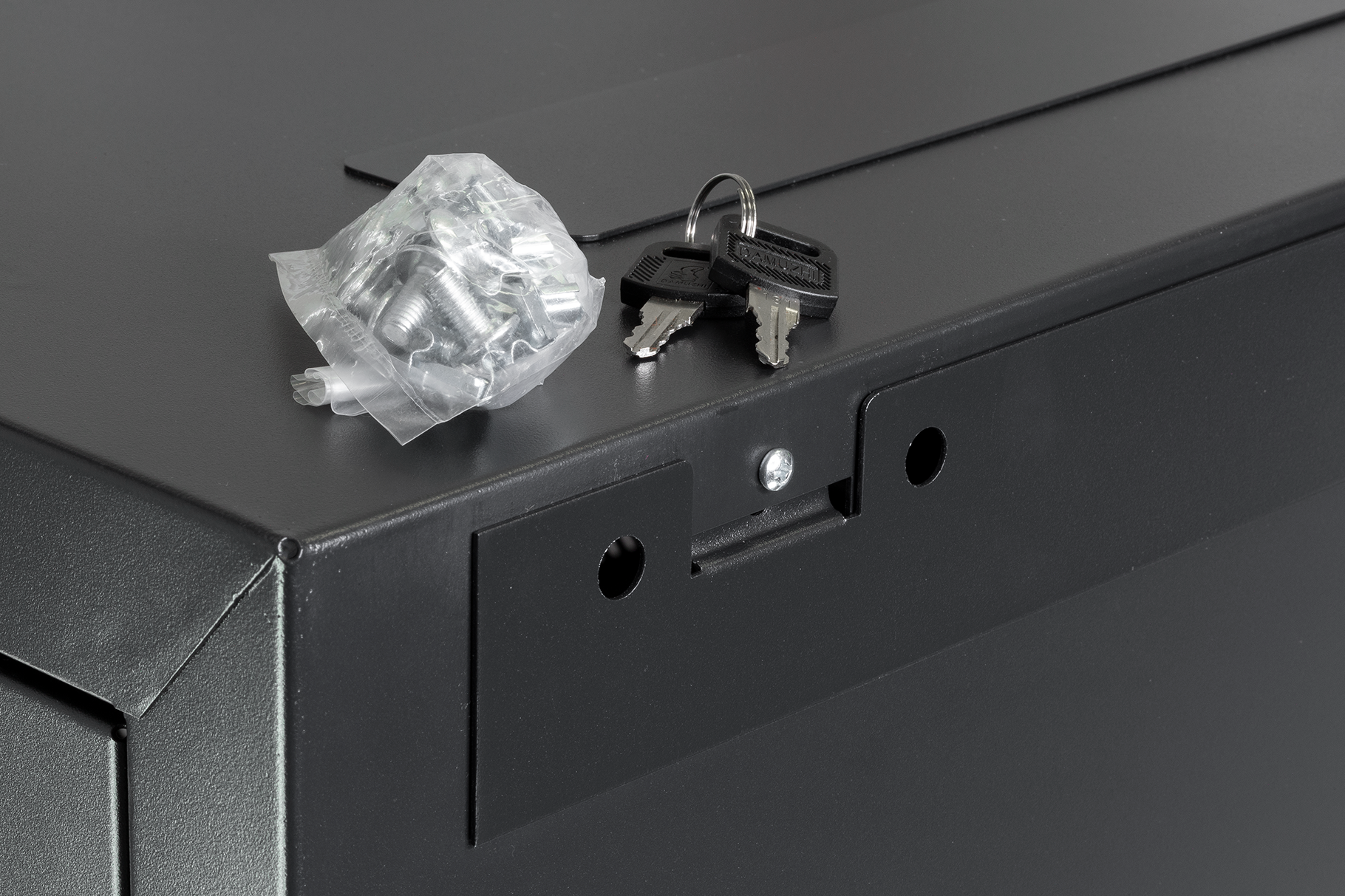

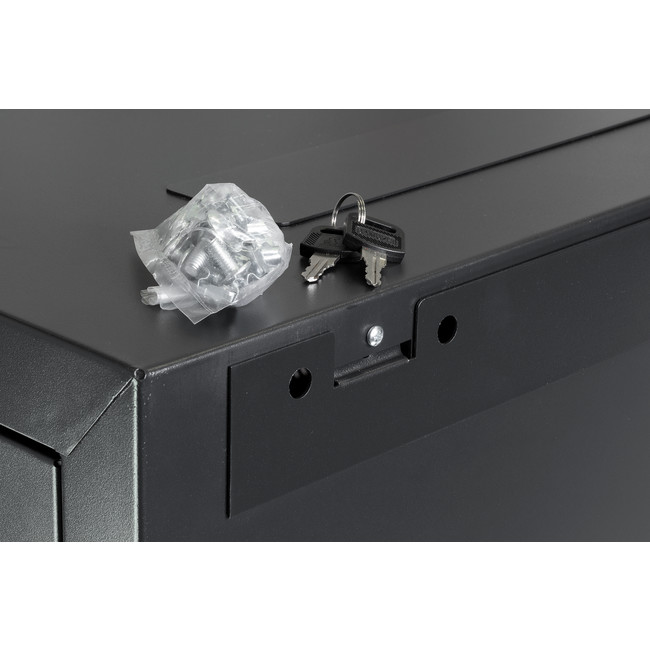

  • Supplied with 10 sets of screws & nuts

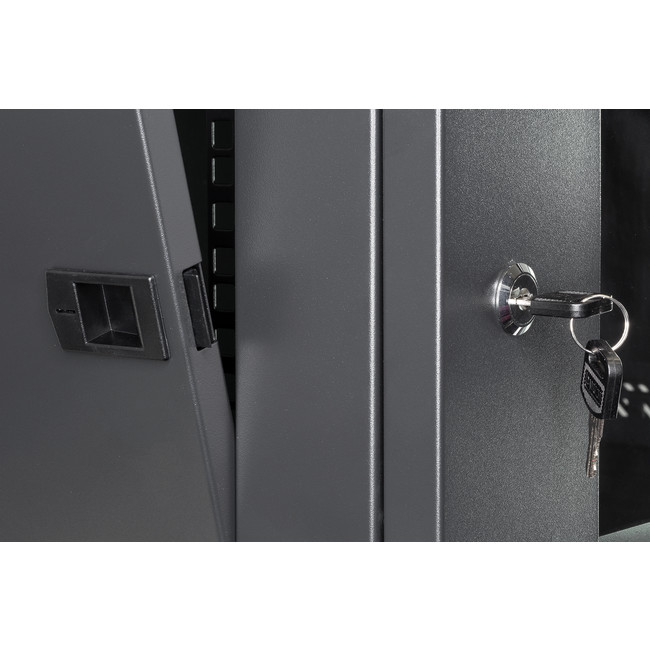

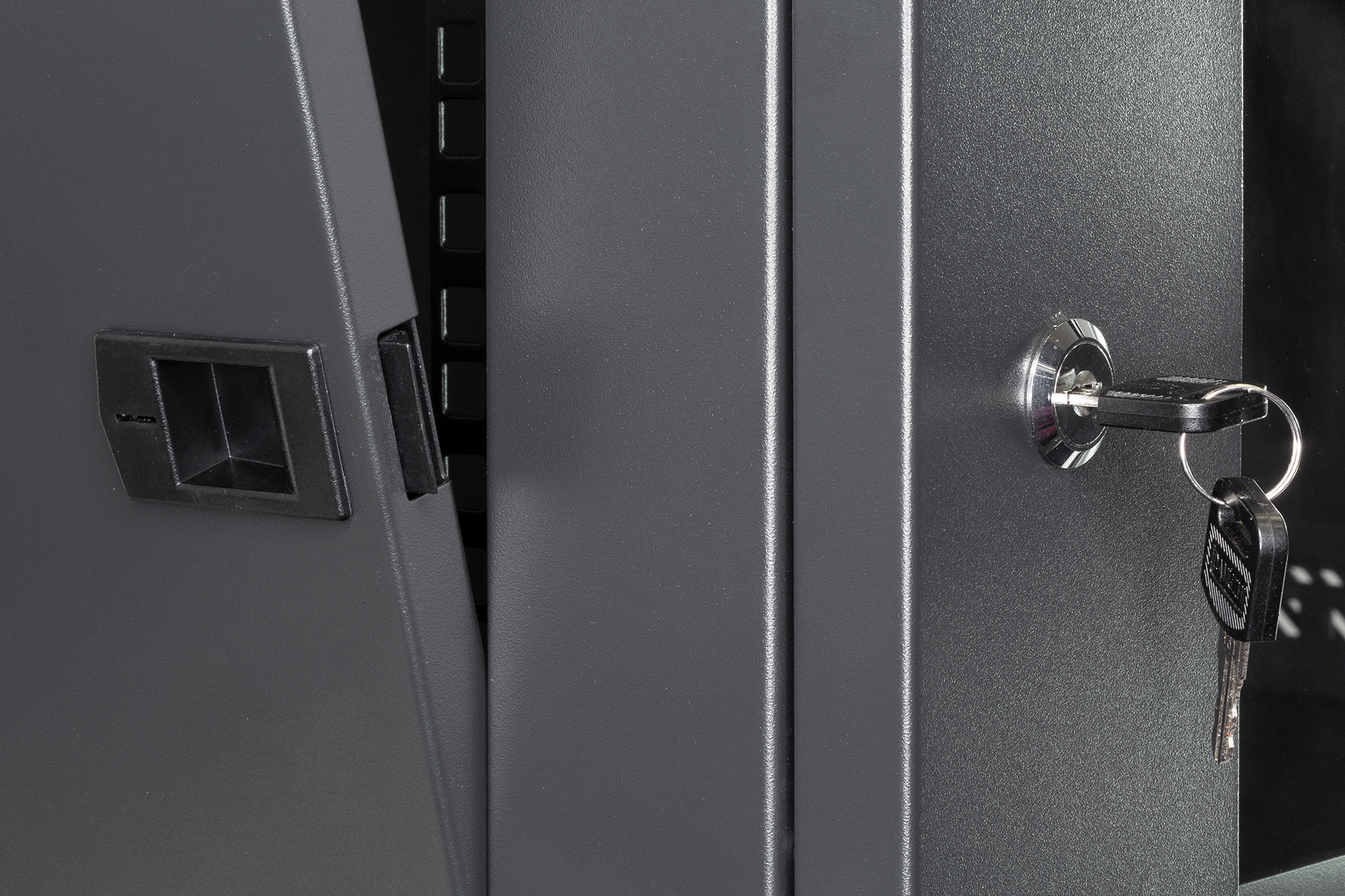

  • Supplied with 2 door keys

Specifications


Material Quality SPCC cold-rolled steel
Thickness 1.0mm
Width 600mm
Depth 300mm
Height 368mm (6RU)
Rail Width 19″ EIA-compliant
Loading Capacity 60kg
Protection Class IP20
Surface Finishing Degreasing, Pickling, Phosphating, Powder-coated
Fan Size Suits 120mm × 120mm
Tempered Glass Thickness 5.0mm
Compliance ANS/EIA RS-310-D, IEC297-2, DIN41494, Part 1, DIN41491, Part 7, GB/T3047.2-92
