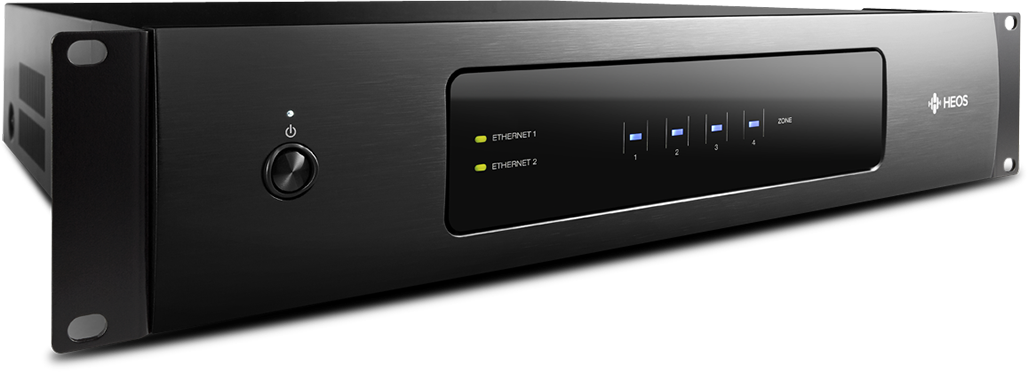

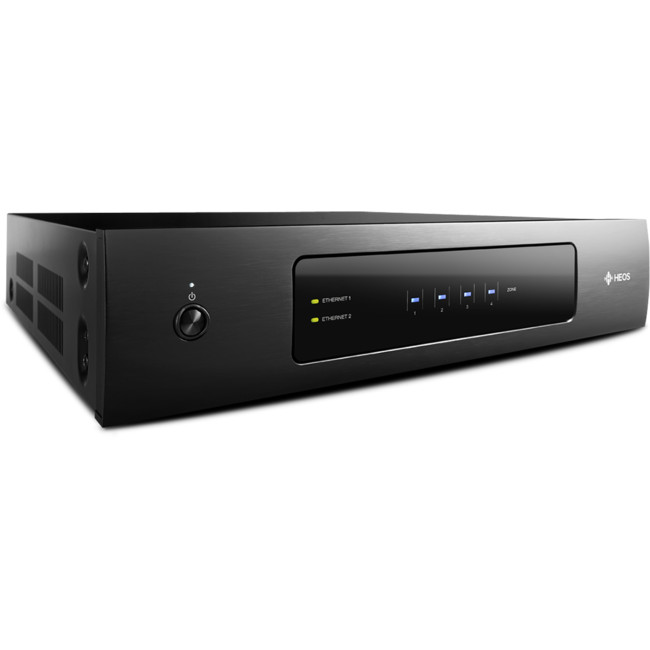

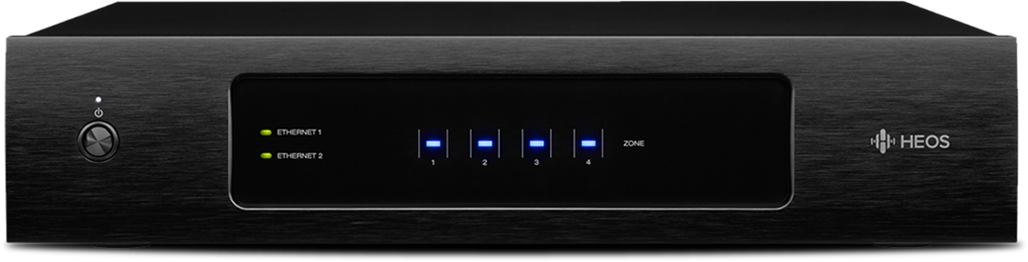

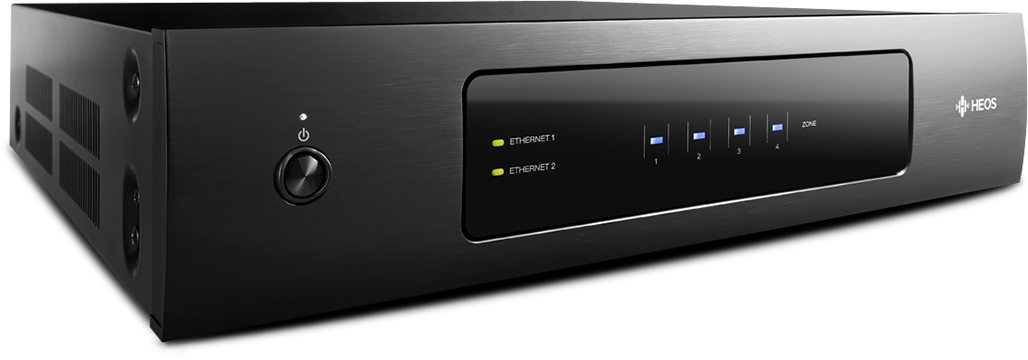

Designed by custom integration specialists for custom integration professionals, HEOS Drive HS2 is a unique 4 zonewhole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis that features both Dolby Digital and Dolby Digital decoding withstereo downmixing.
Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive HS2 features low impedance drive capability (4 ohms).
Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output.
The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs,any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.
Equipped to handle virtually any combination of speakerconfigurations, HEOS Drive HS2 features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.

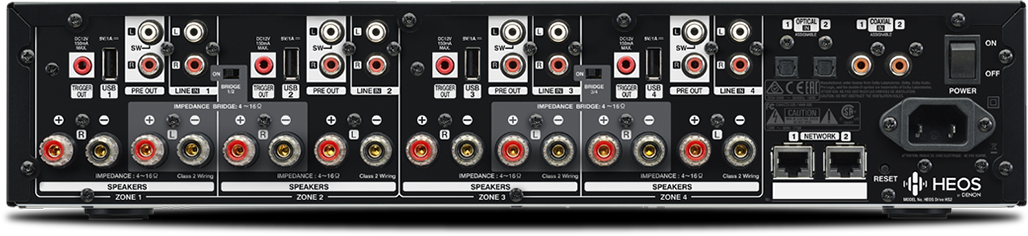

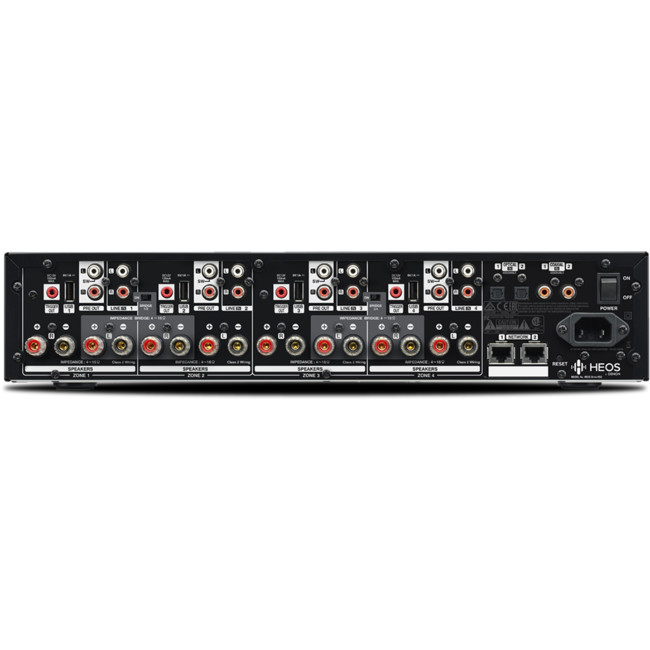

The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations, and there are 4 12V trigger outputs.
The chassis features quiet fan cooling for long term stability and operational reliability.
Dual RJ-45 Ethernet LAN ports are provided, for connection to the network and sharing the internet connection with other devices, and HEOS Drive HS2 is 3rd party control compatible.

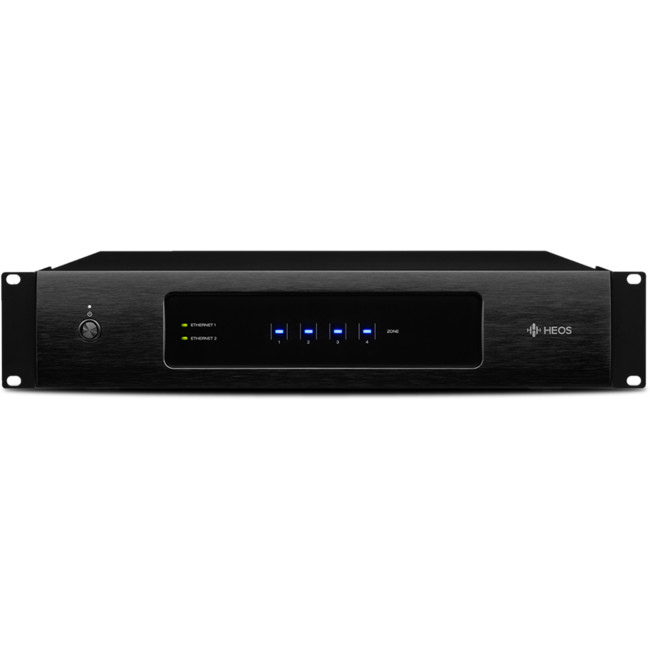

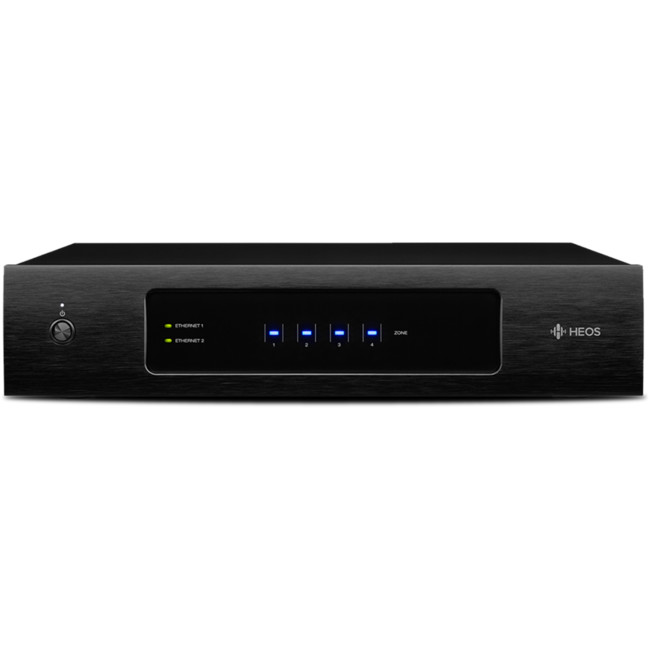

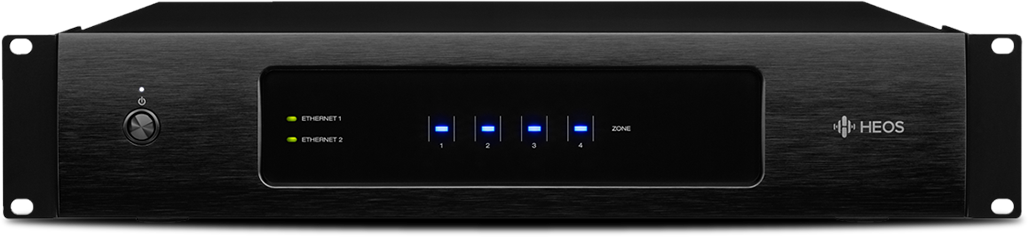

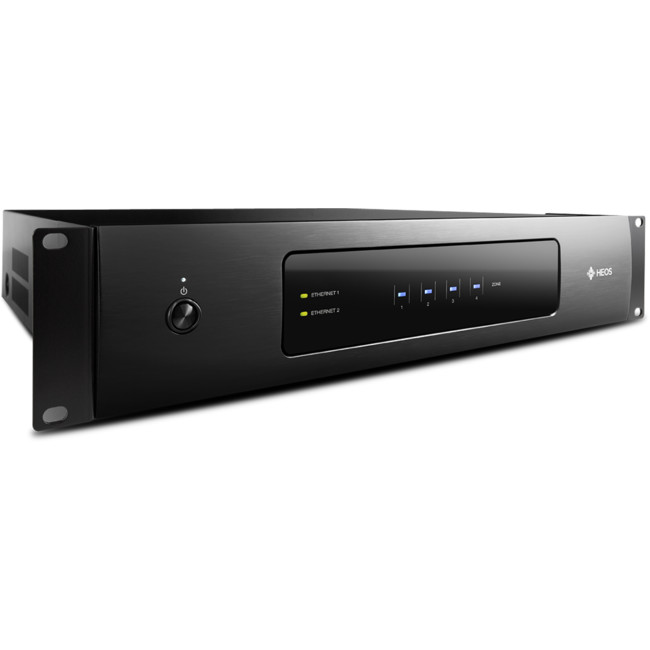

HEOS Drive HS2 comes with removable feet and attachablerack ears, allowing rack or shelf placement.
Once installed and connected, HEOS Drive HS2 setup and configuration is fast and easy via our HEOS app (iOS and Android).
