{tab Overview}

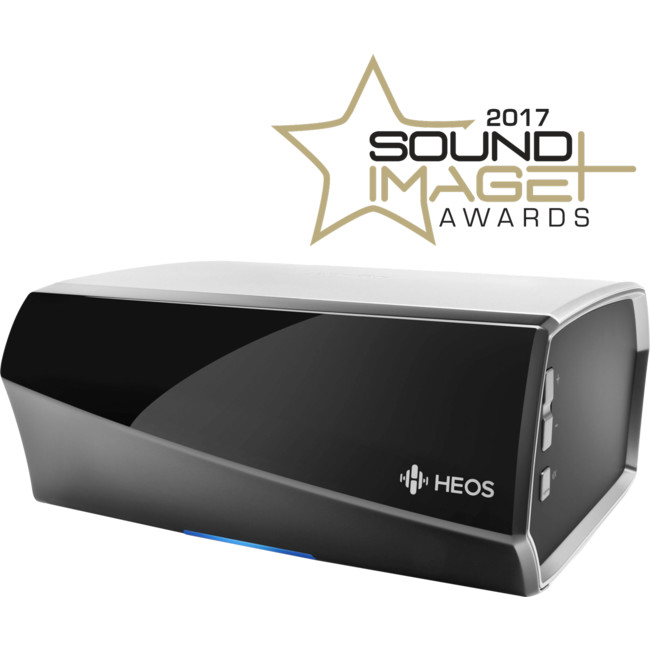

HEOS Link
Highly Commended: MULTIROOM COMPONENT OF THE YEAR
- Turn any stereo system into a wireless zone.
- Play your favorite music from a range of streaming services as well as your smartphone, tablet, USB drives or other external device.
- Control your Denon receiver, integrated amplifier or mini system right from the HEOS app.
The HEOS Link is part of the HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere around your home.
By utilizing your existing wireless home network and the HEOS app on your iOS or Android device, you can explore, browse, and play music from your own music library, from online streaming music services, and from thousands of internet radio stations.
With the HEOS Link, you can add HEOS multi-room audio to an existing music or home theater audio system, and you can play different songs in different rooms or the same song in every room.
The versatile HEOS Link features built-in dual band "N" wireless technology for quick and easy connection to your home network.
In addition to the built-in wireless function, the HEOS Link is also equipped with an RJ-45 Ethernet port for hard wire connection to your LAN.
The USB port lets you connect a portable USB drive, and you can also use the USB connection to charge your portable device.

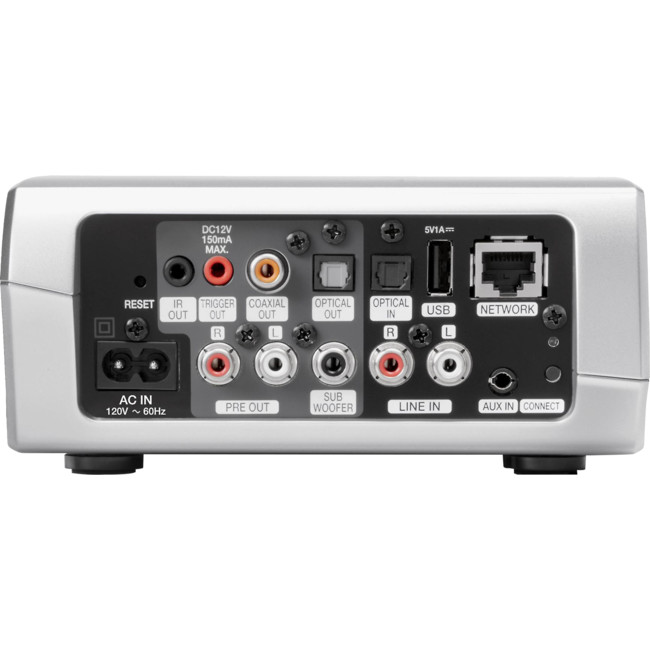

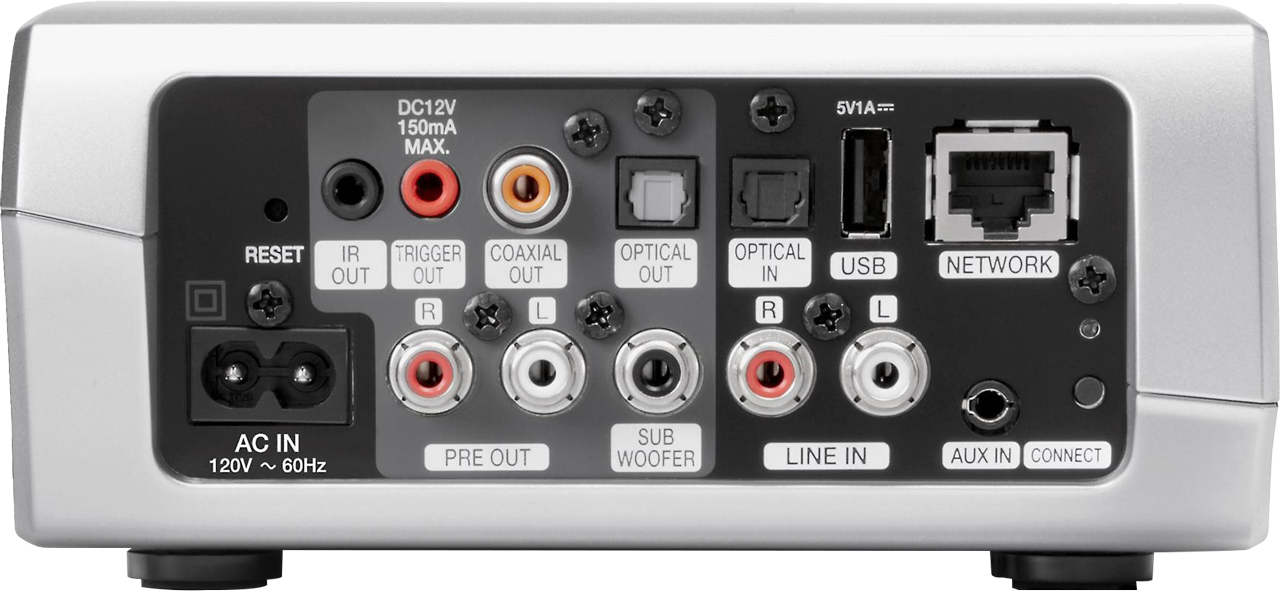

In addition to the stereo pre-amp outputs, there's also a sub output for connection to a powered subwoofer. Both coaxial and optical digital audio outputs are included for compatibility with the widest range of equipment, and the unit features an optical digital audio input. The HEOS Link is also equipped with a stereo line input (via RCA jacks) as well as an additional auxiliary input with a 3.5mm jack for direct connection to a portable player.
As with our HEOS wireless speaker models, you'll be able to stream your favorite music tracks and control the HEOS Link with our HEOS App, which is available in both iOS and Android versions.
With the HEOS App, you can choose to listen to music tracks on your smartphone, tablet or portable audio player, and you also can listen to your choice of internet radio stations, and you can also listen to your favorite music streaming service.
Our exclusive digital technology provides precise audio synchronization (within microseconds) to ensure top audio fidelity and stereo imaging quality.
And, the HEOS Link provides additional convenience for owners of Denon audio components or systems. Connect the included infrared emitter to the HEOS Link IR output and place it so that it's near the front panel of your Denon component. Or, if your Denon has a direct IR input jack, you can connect the HEOS Link via the supplied IR direct cable. Then, via the HEOS App, you can turn your Denon system on and select the appropriate input and enjoy your favorite music tracks. You can choose to listen to different songs in different rooms or play the same song in all rooms. There's also a 12V trigger output that lets you connect the HEOS Link to other devices or products that feature a 12V trigger input, such as motorized drapes or a drop-down motorized front projection screen.
The elegant HEOS Link enclosure features stylish silveraccents, and for convenience, there are volume and mute controls discreetly placed on the side panel.
- Turn any receiver, amplfiier or home stereo system into a HEOS zone
- Play any Song in any room on demand from streaming services.
- Denon AVR, HiFi and Mini power, input and volume control
- 12V trigger output for external device turn-on
- Subwoofer pre-out
- Optical digital and analog inputs
- Coaxial and optical digital outputs
- Variable analog output
- Multi-room function
- Superior Sound
- Easy to Use App
- Easy Setup
- Play and source on any speaker from any smart device: streaming cloud services, directly from phone/tablet, USB, network storage, aux in.
- Better Industrial Design
{tab Specifications}
Specifications
Audio System
Fixed/Variable Analog Output
Add the HEOS Link to any existing stereo system using the high quality analog output.
Digital Fiber Optic and Coxial Ouputs
Fiber optic and coaxial outputs allow for stereo LPCM digital audio output to compatible audio systems.
Auxiliary Analog Line Input
The 3.5 mm stereo analog auxiliary line input lets users connect a device with analog stereo output directly tothe HEOS Link.
Optical Digital Input
The optic digital line input lets users connect a device with an optical digital output directly to the HEOS Link.
Subwoofer Pre-out
Connect any powered subwoofer to the HEOS Link for additional bass.
External Audio System Control
The HEOS Link comes with an IR emitter output which allows for automatic power, source selection and volume control of Denon A/V receiver, integrated amplifiers and mini systems.
12 Volt Trigger Output
The 12V trigger output lets you connect the HEOS Link to other devices that feature 12V trigger inputs such as power amplifiers, motorized drapes or front projection screens.
Music Sources
Music Subscription Services
The HEOS app lets you choose from popular subscription streaming services including Napster, Deezer, Spotify and TuneIn, and from other services that offer DRM-free tracks.
More services will be added soon.
Internet Radio Stations
Choose from your favorite internet radio stations and listen to MP3 and WMA streaming audio.
Music Formats Supported
HEOS Link supports MP3 and WMA music files, including purchased WMA downloads, as well as AAC (MPEG4) and FLAC (lossless) file types, along with WAV files. Supports 32 kHz, 44.1 kHz and 48 kHz sampling rates.
Picture Formats Supported
HEOS Link supports JPG, PNG, BMP and GIF album art picture formats.
USB Drives Supported
HEOS Link supports USB thumb drives via the built-in USB port. Music content on a USB drive can be played back locally, or on any or all HEOS players on your network.
Networking
Wireless Connection
Connect to your wireless network quickly and easily. HEOS Link supports the latest 802.11 networks (including dual band "N") for the most reliable network connection.
Wired Connection
Connect to your home or office LAN system via the RJ-45wired LAN port.
General
Power Supply
AC 120 V, 60 Hz (North America)
AC 220 - 240 V, 50/60 Hz (Europe)
What's In The Box
HEOS Link, AC power cord, 3.5mm setup cable, 3.5mm IR direct cable, IR emitter cable, Analog RCA cables, Ethernet cable for wired LAN hookup, Quick Start guide.
Controls & Indicators
Volume Up/Down ( , -)
Mute
Mute LED indicator
LED multi-function status indicator
Network connect button
Reset button (recessed)
Weight
2.9 lbs; 1.3 kg
Multiple Language Support
English, French, German, Dutch, Swedish, Spanish
Dimensions
(H x W x D)155mm x 74mm x 150mm / 6.1in x 2.9in x 5.9in
Operating Temperature Range
41°F~95°F; 5°C~35°C
Product Finish
Black Front/Sides, Silver Top and Trim
{tab About HEOS}
What is HEOS
HEOS is a wireless music system that allows you to control all your music effortlessly from anywhere in your home.
All you need is one or more HEOS speakers and the free app.
HEOS APP
ANY TUNE. ANY ROOM. ANY TIME.
HEOS gives you access to all your music, and, you can addother users to the line-up to vary the playlist or personalise the room according to the user:
His tunes in the kitchen, hers in the master bedroom. Stream from your favourite music service, phone or network.Learn More.
WIRELESS MULTI-ROOM SOUND SYSTEM
ANY ROOM. OR EVERY ROOM.
Your music is at your command. Stream or play selections from your library. Party and Family modes allow you to play one song everywhere, or different songs in every room. The choice is yours.
Learn More
FAMILY OF PRODUCTS
THEY MAKE BEAUTIFUL MUSIC, TOGETHER OR APART.
Together or individually, these acoustically sculpted, stylish and powerful speakers deliver pure, precise sound.
Group them together to synchronise the sound and create the front-row experience that only HEOS delivers.
