DA11XLR ANALOGUE XLR TO DANTE ENCODER

POE - SWITCHABLE 48V PHANTOM POWER

Code: 01619055

EACH
Special
Buy-In
TRADE ALERT!
$649 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

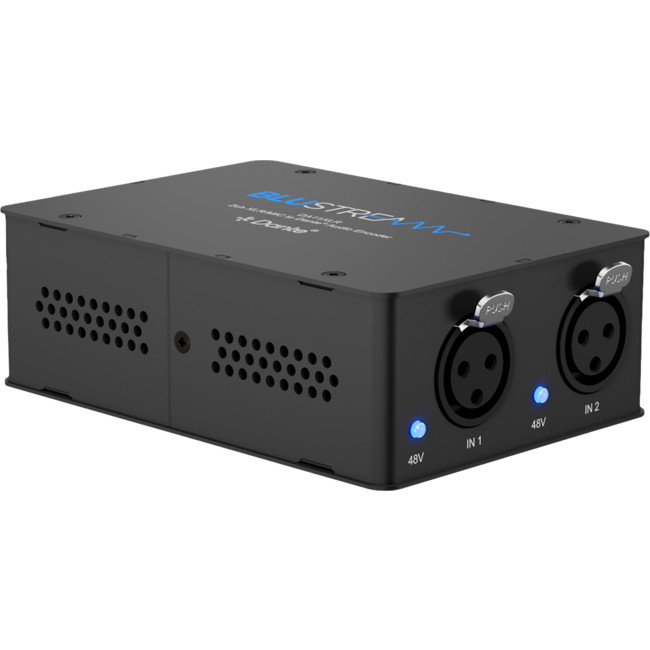

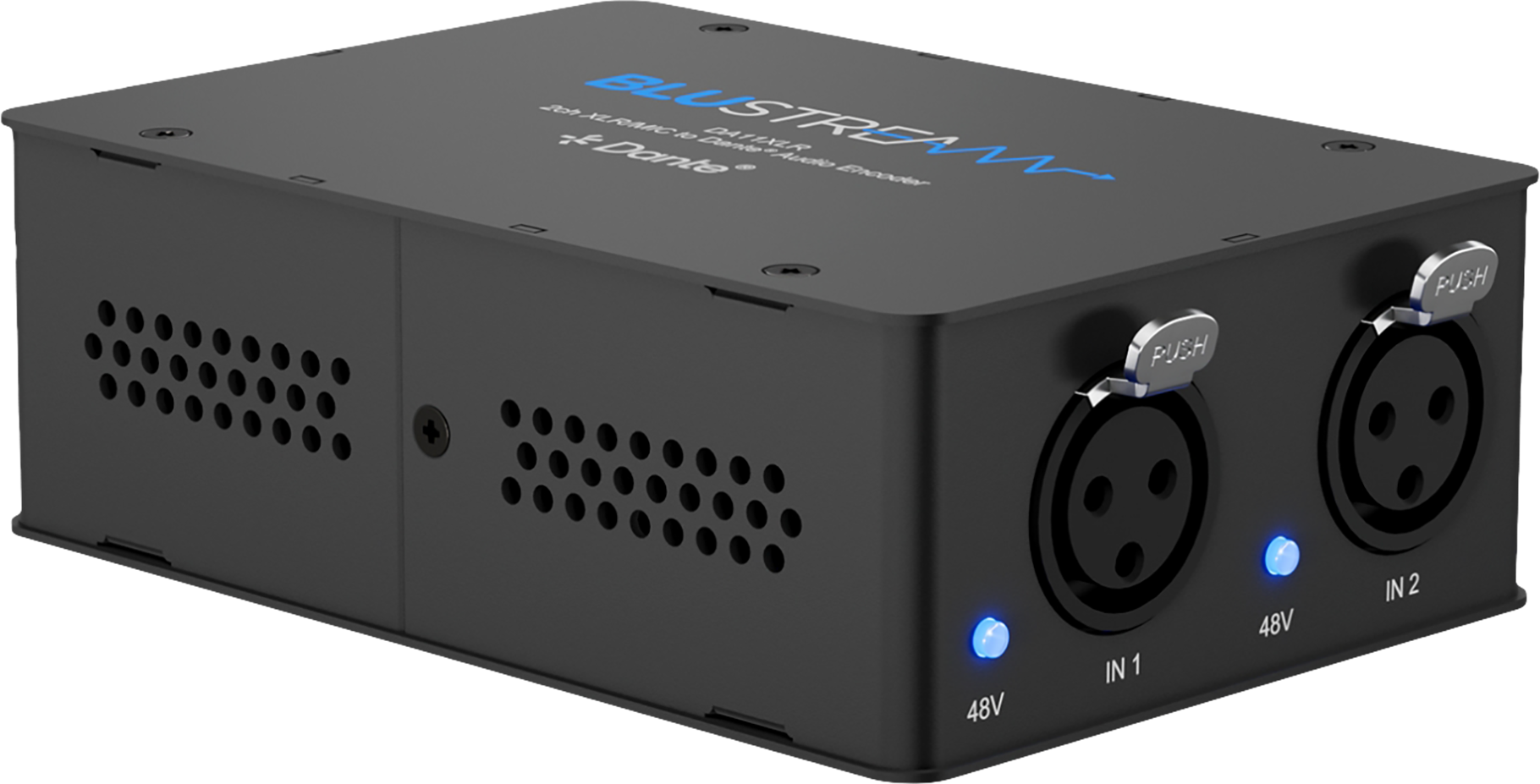

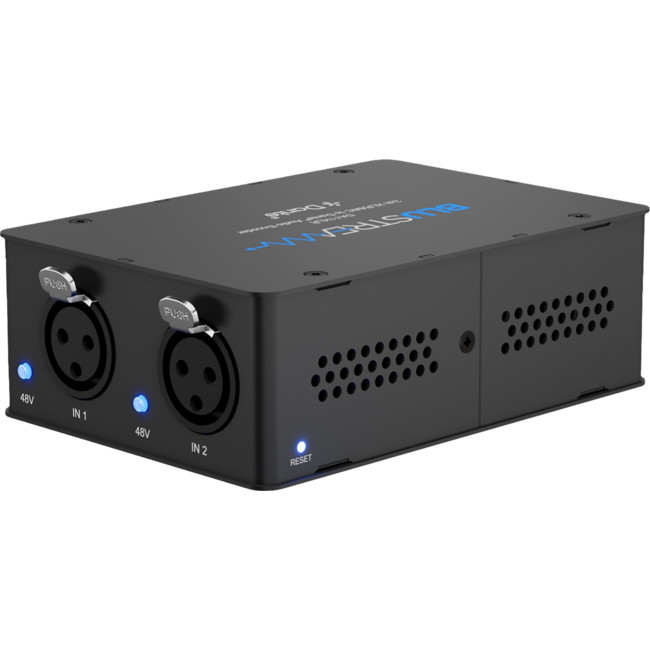

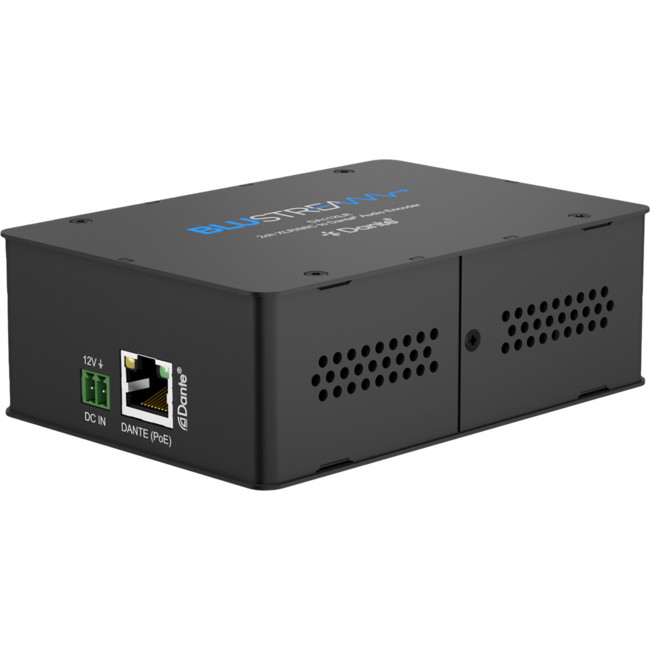

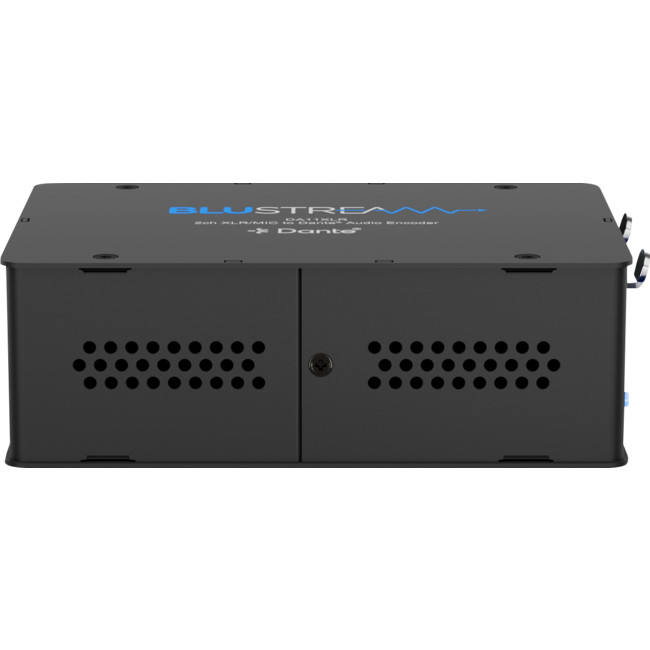

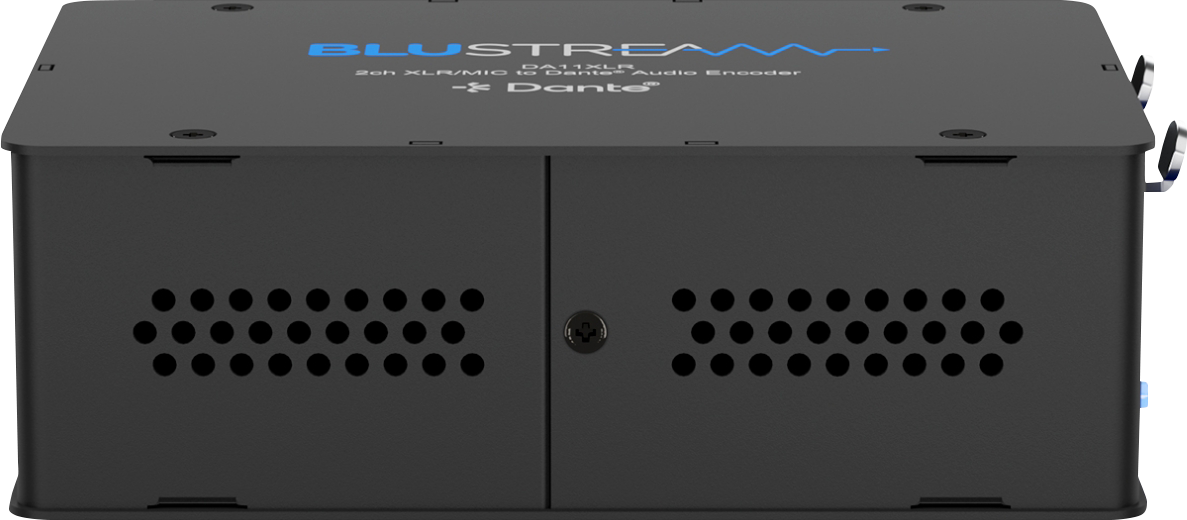

Blustream DA11XLR Analogue XLR Audio to Dante® Encoder

The DA11XLR is a multi-input XLR to Dante® networked audio system. The DA11XLR converts 2 input channels of balanced / unbalanced / MIC audio with switchable 48V Phantom power to Dante® digital audio.

The DA11XLR is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport.


48V Phantom Dante Plug Play XLR

Key Features

  • Dante® network interface for 2 × XLR audio inputs
  • Converts 2 × balanced / unbalanced / MIC audio sources to Dante® audio channels
  • Switchable 48V Phantom power for each MIC XLR input
  • Adjustable MIC / line sensitivity from +24dBu to −28dBV for each XLR input
  • Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32-bit
  • Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 802.3af PoE for powering of product from any PoE switch
  • Local 12V power supply input for when network switch does not support PoE*

*PS121PH power supply sold separately


Specifications

  • Casing Dimensions (L×W×H): 120mm × 84mm × 40mm
  • Shipping Weight: 0.3Kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: −4°F to 140°F (−20°C to 60°C)

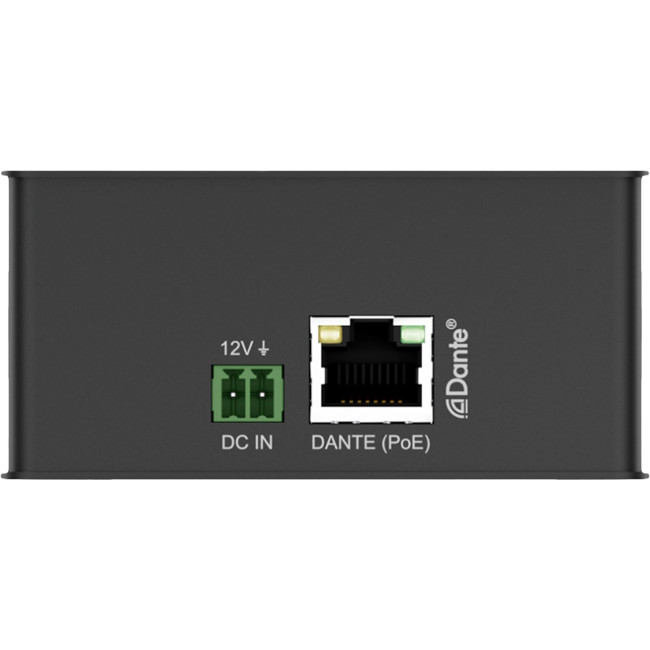

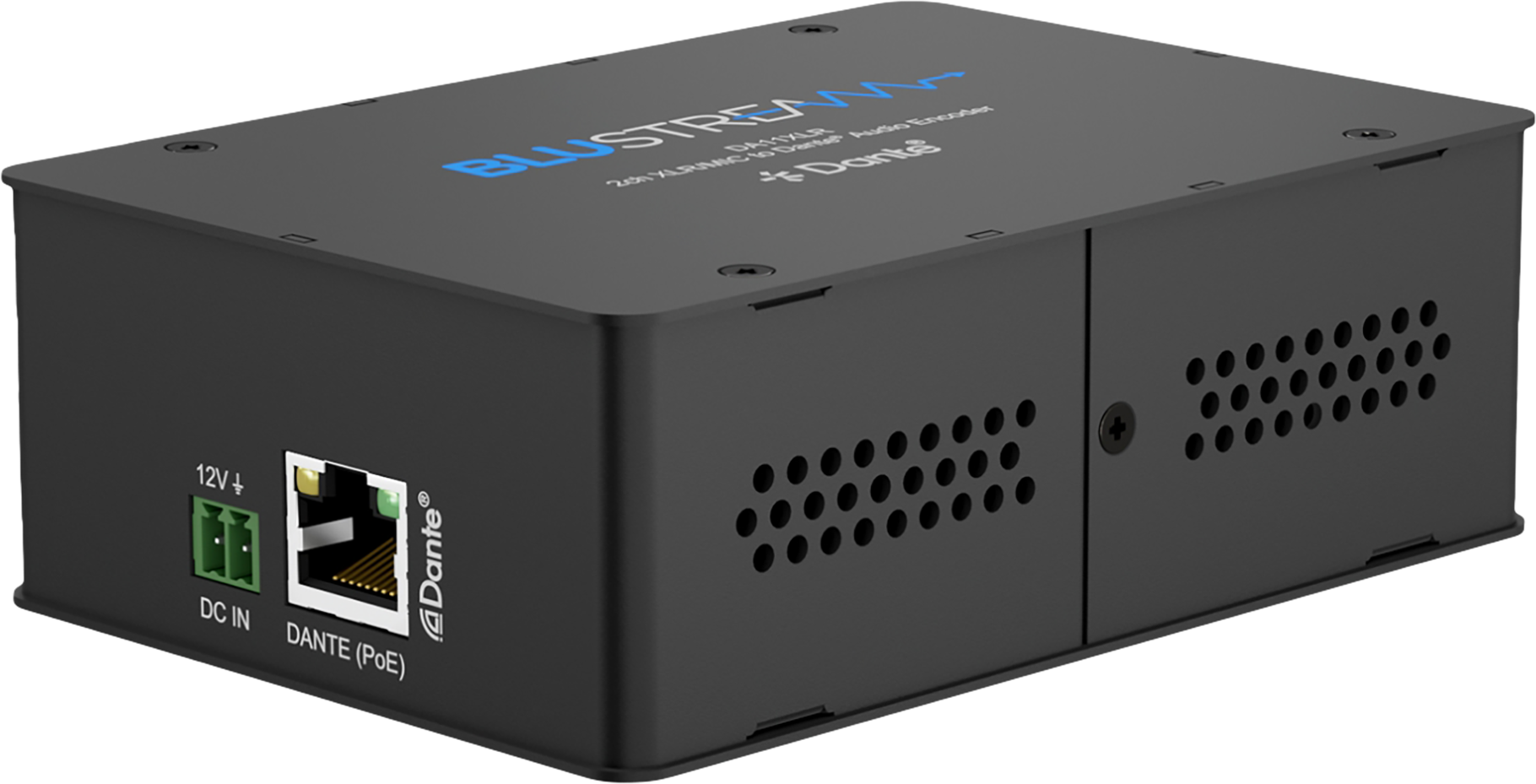

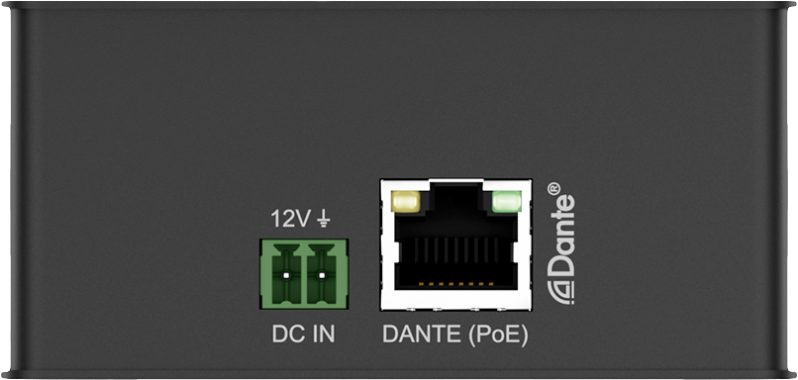

  • Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-Pin Phoenix connector

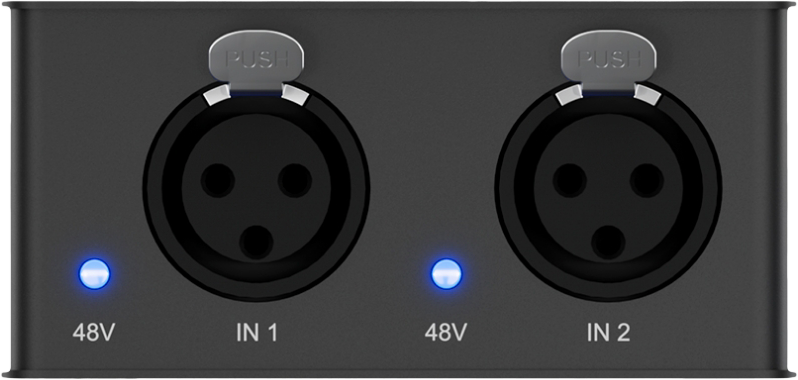

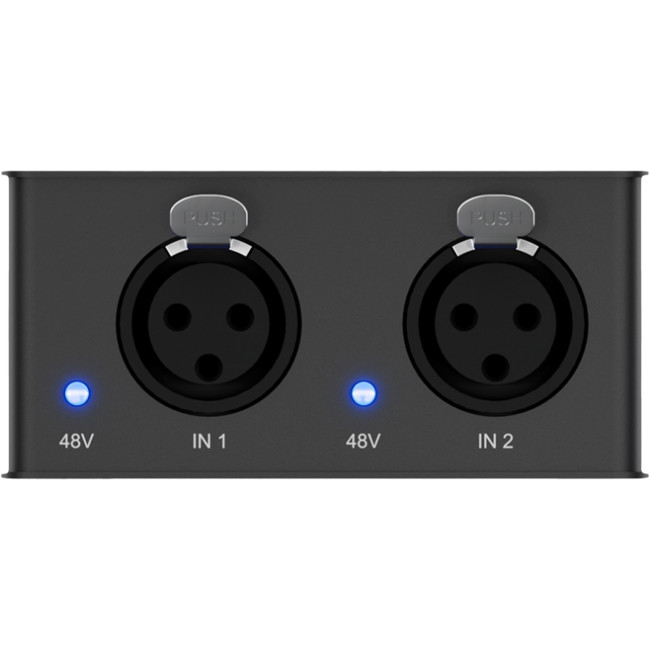

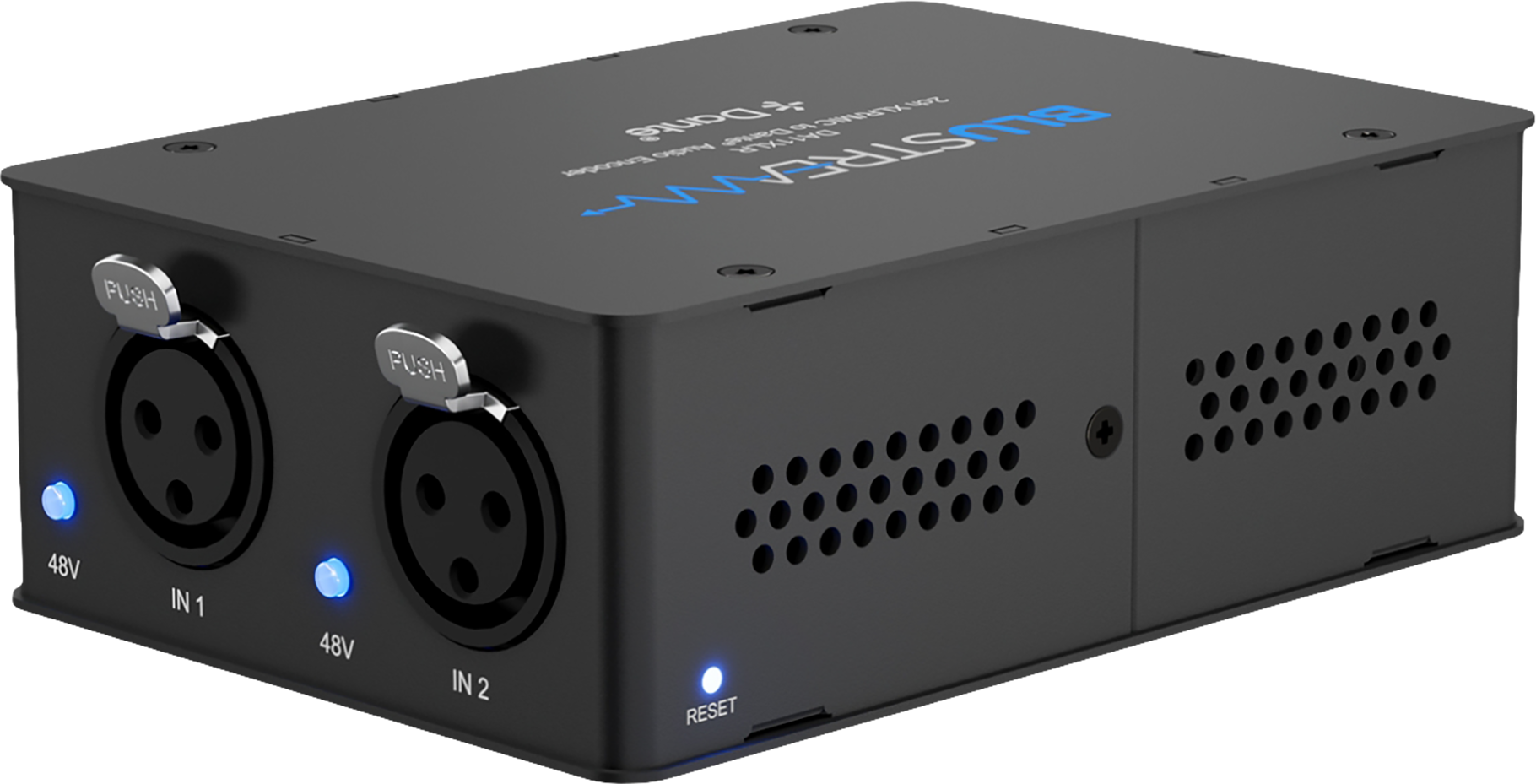

  • Audio Input Connectors: 2 × Analogue Balanced / Unbalanced 3-Pin XLR connector
  • Audio Output Connector: 1 × RJ45, female (100 Mbps Dante® network)

Box Conents

  • 1 × DA11XLR
  • 1 × Quick Reference Guide
