NPA20ANA 2X10W ANALOGUE AUDIO NETWORKED POWER AMP

POE LAN 4-8 OHM

Code: 01619020

EACH
Special
Buy-In
TRADE ALERT!
$649 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

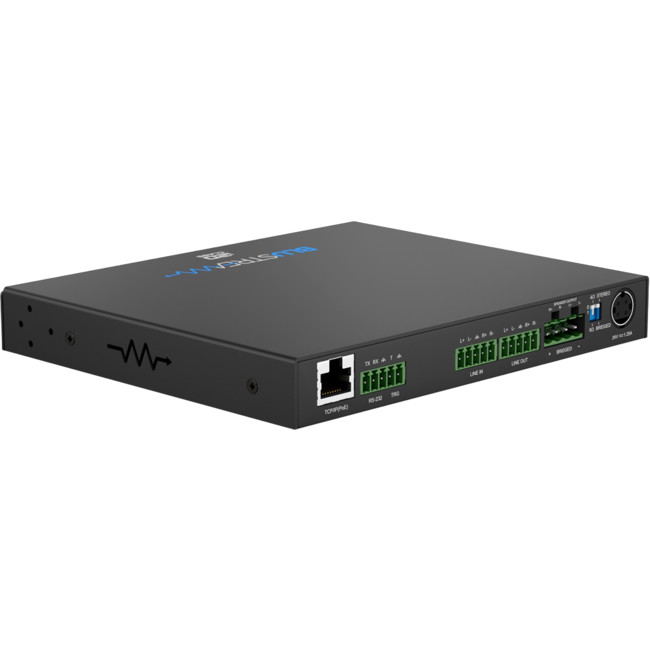

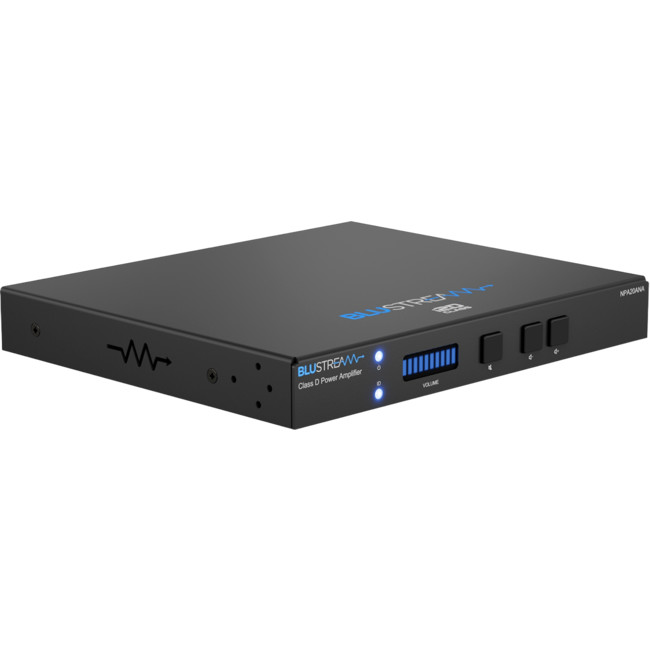

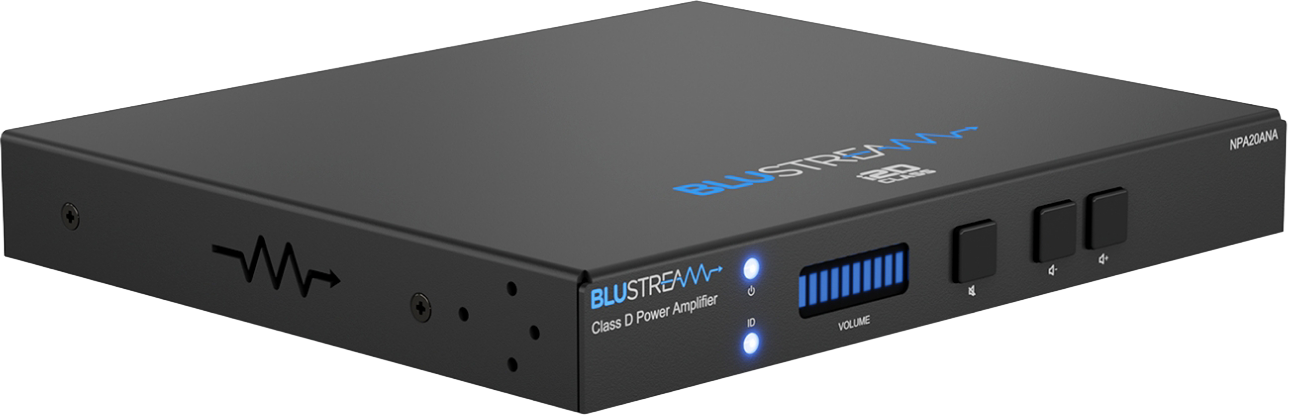

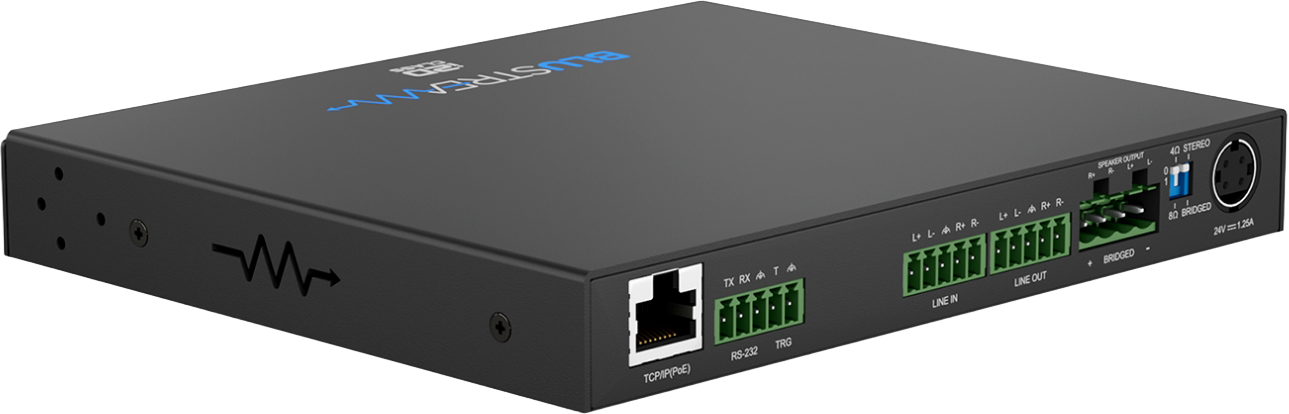

Blustream NPA20ANA Analogue Audio Networked Power Amplifier

The NPA20ANA networked power amplifier features a 2 x 10W (1 x 20W mono) audio output at 4 or 8 ohm, with a 2ch balanced / unbalanced analogue audio input.

The unit can be powered via PoE or PoE from a compatible network switch, or locally should the switch not support PoE. The unit includes the ability to lower the amplifier power output subject to PoE capabilities, a 31 band DSP with EQ, and audio delay capabilities for lip sync correction with any associated video within the zone.

A daisy-chain audio output with a centralised control feature for linking up to 4x NPA20ANA devices, control from the front panel buttons, RS-232, IP, Web-GUI, or 12V trigger gives maximum flexibility for system integration and simplified control.

The NPA20ANA is ideal for dedicated audio delivery in smaller areas (such as bedrooms or en-suites) where larger amplifiers would be considered excessive; or for enhancing voice and audio in meeting spaces.

AMPPoE plusRS 232WEB GUIi2DSignal Sensing

Key Features:

  • Advanced network audio amplifier with balanced / unbalanced analogue audio input
  • Supports 2 x 10W @ 4 / 8 ohm, 1 x 20W @ 4 / 8 ohm
  • Supports power via PoE on LAN connection or local power supply*
  • 2ch balanced / unbalanced audio in and out with master / slave amp control feature allowing daisy chain of up to 4x NPA20ANA amplifiers
  • DSP with 31 band EQ with 3dB/-10dB and audio delay
  • Local 0V / 5~12V input trigger for automated power control

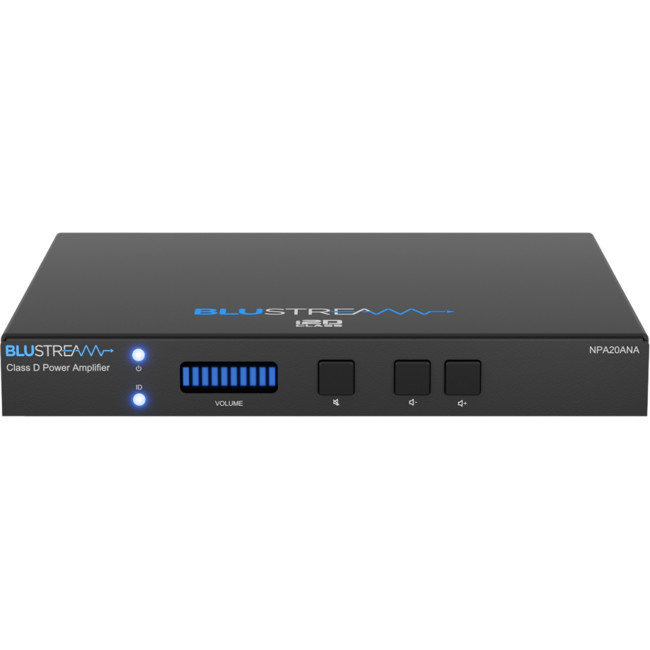

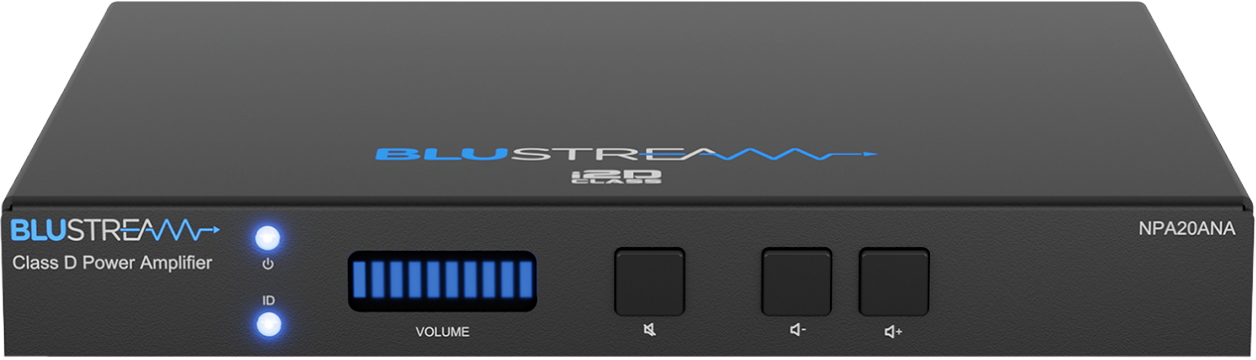

  • Control via front panel buttons, RS-232 and IP
  • Auto standby mode with signal sensing
  • In-built web-GUI for setup and control

    * Amp power limited when using PoE / PoE

Specifications:

  • Casing Dimensions (W x H x D): 169mm x 144mm x 22mm
  • Shipping Weight: 1.2kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: PoE Type 2 Class 4, or 24v/1.25A DC 4-pin DIN (power supply not included)

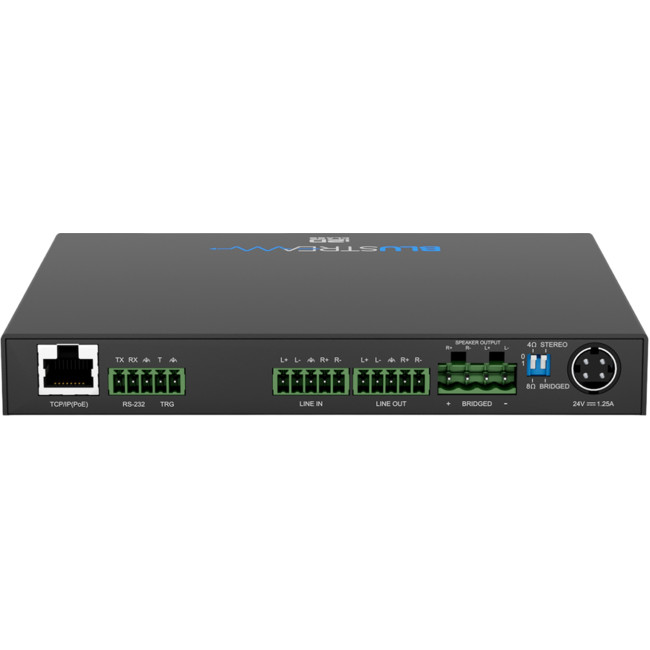

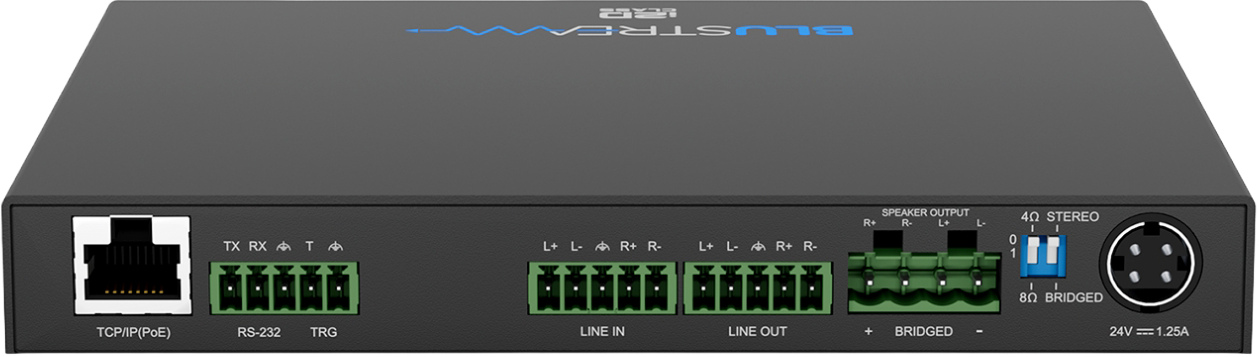

  • Audio Inputs: 1 x 5-pin Phoenix connector (balanced/ un-balanced analogue audio)
  • Audio Output Connectors: 1 x 5-pin Phoenix connector (balanced/un-balanced analogue audio)
  • Speaker Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker)
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • Trigger Input: 1 x 2-Pin Phoenix connector

Box Contents:

1 x NPA20ANA
1 x Mounting Kit
1 x Quick Reference Card
