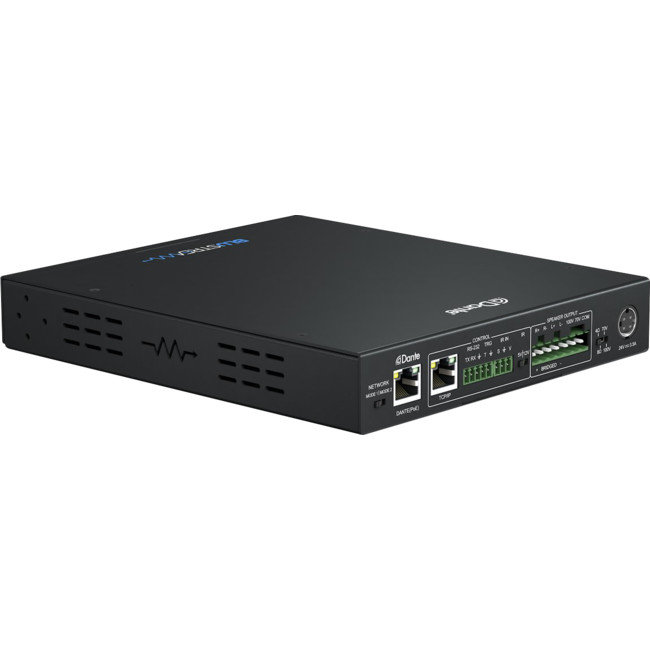

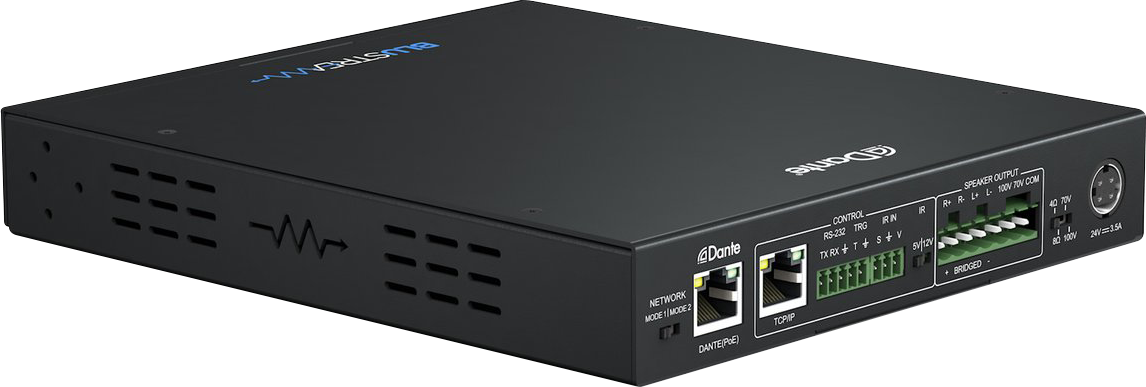

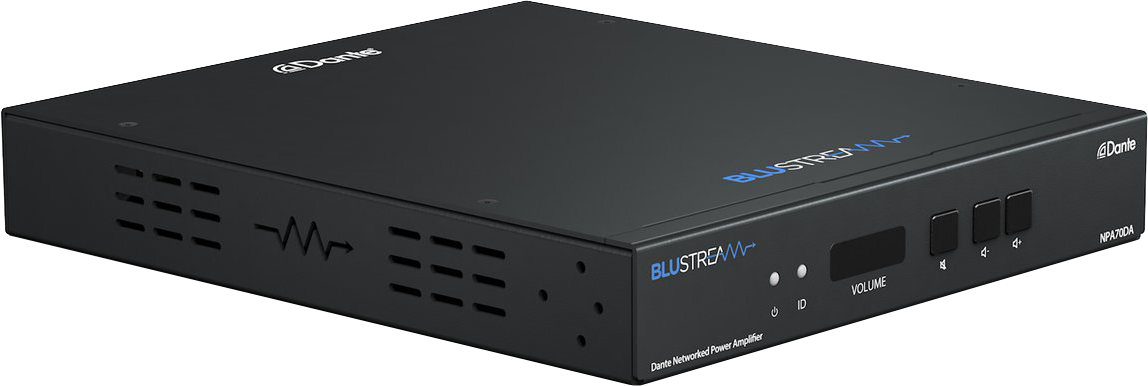

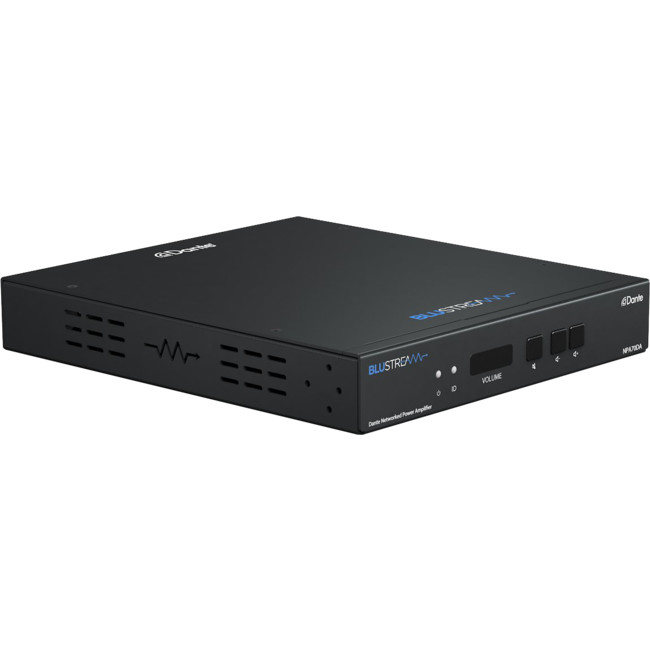

Blustreams NPA70DA networked audio zone amplifier delivers advanced audio integration within a commercial or residential AV installation.
The NPA70DA features a 2 x 35W digital amplifier (1 x 70W mono) or 70V / 100V hi-level constant voltage output and Dante® audio integration.
The NPA70DA can be powered via PoE from a compatible network switch, or locally should the switch not support PoE .
The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, support for combined or independent LAN and Dante® connections, DSP with a 31 band EQ, audio delay for lip sync correction, and control via front panel, IR, RS-232, TCP/IP, web-GUI or 12V trigger.
Advanced network audio amplifier with Dante® integration
Supports 2 x 35W @ 4 / 8 ohm, 1 x 70W @ 4 / 8 ohm or 70 / 100V constant output for multiple speakers with longer cable runs
Supports power via PoE on Dante® LAN connection or local power supply*
Dual network option - independent Dante® and LAN control ports, or combined to a single LAN
2ch Dante® / AES67 audio input
DSP with 31 band EQ with 3dB/-10dB and audio delay
Local 12V input trigger for automated power control

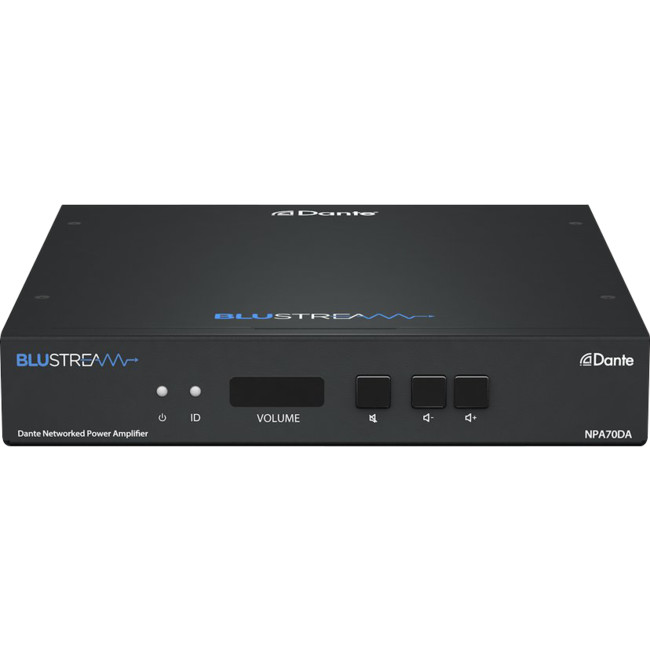

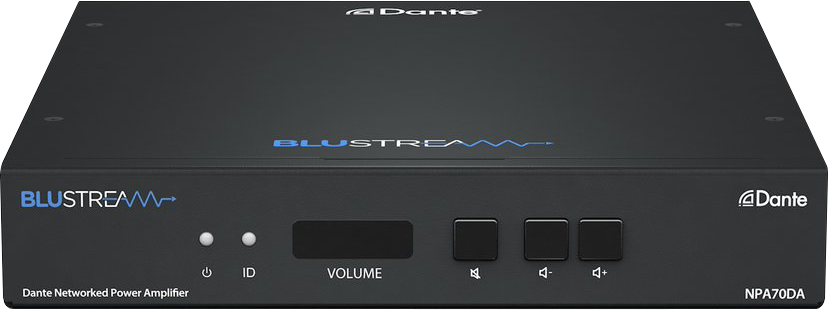

Control via front panel, IR, RS-232 and IP
Auto standby mode with signal sensing
In-built web-GUI for setup and control
* Amp power limited when using PoE

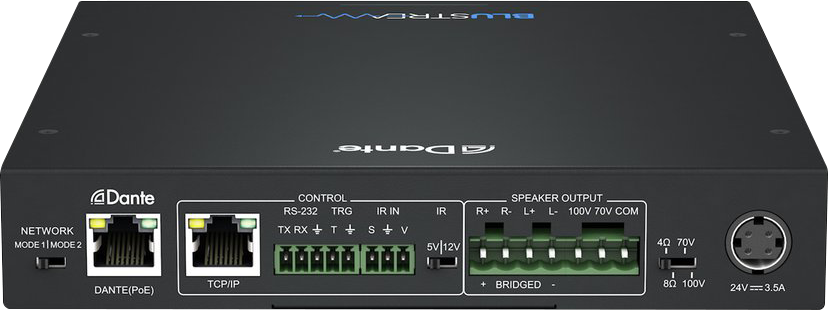

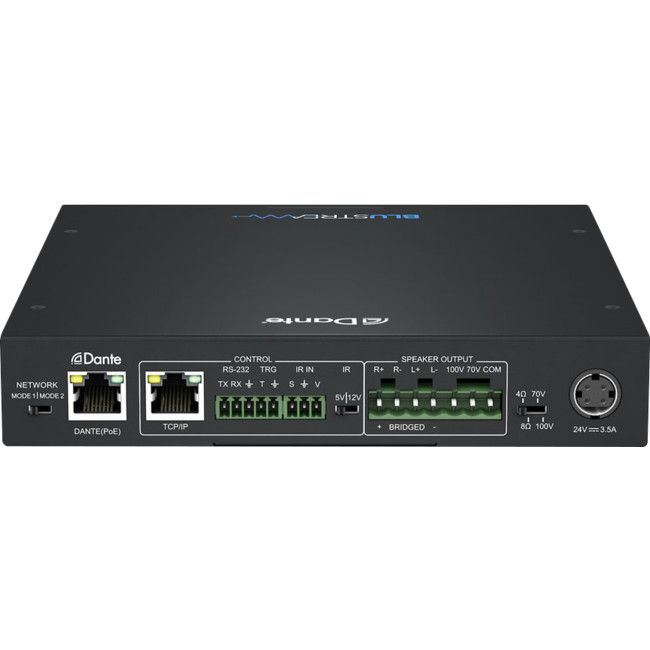

Audio Inputs: 1 x RJ45 Dante® Audio connection
Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker), 1 x 3-Pin Phoenix connector (70 / 100V speaker)
Ethernet Port: 1 x LAN RJ45 connector (Dante®), 1 x LAN RJ45 connector (Network)
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
IR Input Ports: 1 x 3-Pin Phoenix connector
Trigger Input: 1 x 2-Pin Phoenix connector
Rack Mountable: 19” Rack mounting and wall / surface mounting kit included
Casing Dimensions (W x H x D): 202mm x 175mm x 31mm
Dimensions Including Connections (W x H x D): 245mm x 175mm x 31mm
Shipping Weight: 1.8kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: PoE Type 4, or 24V/3.5A DC 4-pin DIN
1 x NPA70DA 1 x 24V/3.5A power supply 1 x Remote control 1 x IR Receiver 1 x Rack mounting kit 1 x Wall / surface mounting kit 4 x Rubber feet1 x User Manual
